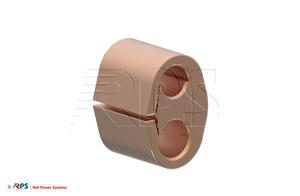

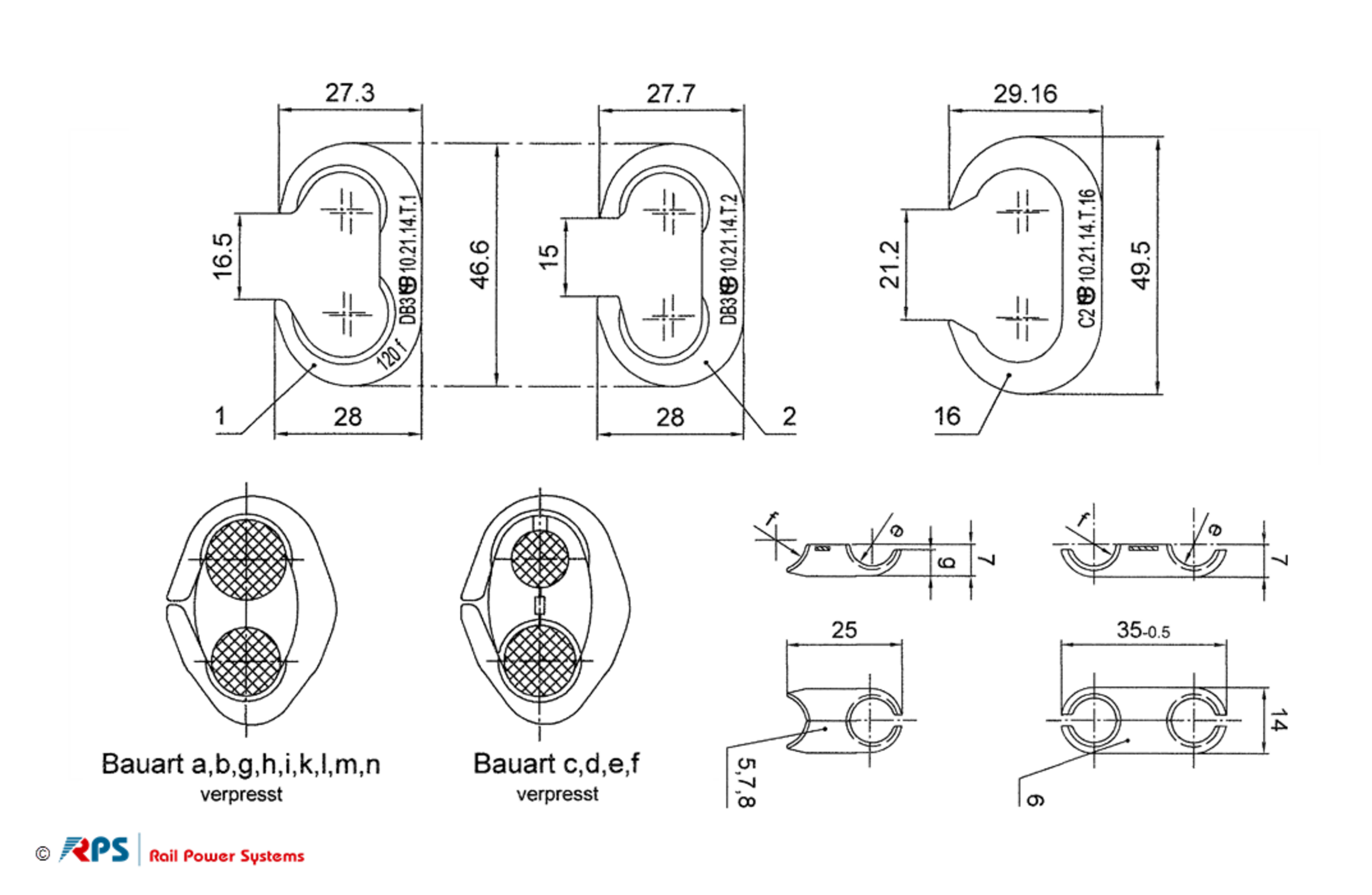

Compression clamp wires
Variante: Electrical connection clamp
|
|
Electrical connection of wires according to DIN 48201
Additional information:
- Pressing Insert: 3EGF011792
- Pressing Insert to release: 3EGF011793
- Pressing Head Size III: 3EGF011848
- Electro-hydraulic high pressure pump: 3EGF011775
Mechanical values
| Wert | |
|---|---|
| Name | Electrical connection clamp |
| Ebs | Ebs 10.21.14 A |
| Material | CW004A |
| Weight | 0,180 kg |
| Rope Combinations | Cu120/Cu120, Cu95f/Cu120, Cu95f/Cu95f |
| Material-ID | 3EGF002208 |

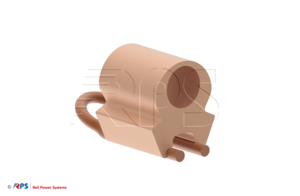

Contact Wire Feeder Clamp
Variante: Electrical Connection Clamp
|
|
For contact wires acc. EN 50149
Additional information:
- Pressing Insert: 3EGF011792
- Pressing Insert to release: 3EGF011793
- Pressing Head Size III: 3EGF011848
- Electro-hydraulic high pressure pump: 3EGF011775
Mechanical values
| Wert | |
|---|---|
| Name | Electrical Connection Clamp |
| Ebs | Ebs 10.21.11 A |
| Material | CW004A |
| Weight | 0,155 kg |
| Rope Q | 95f mm² |
| Contact Wire | AC80 - AC150 |
| Material-ID | 3EGF002204 |

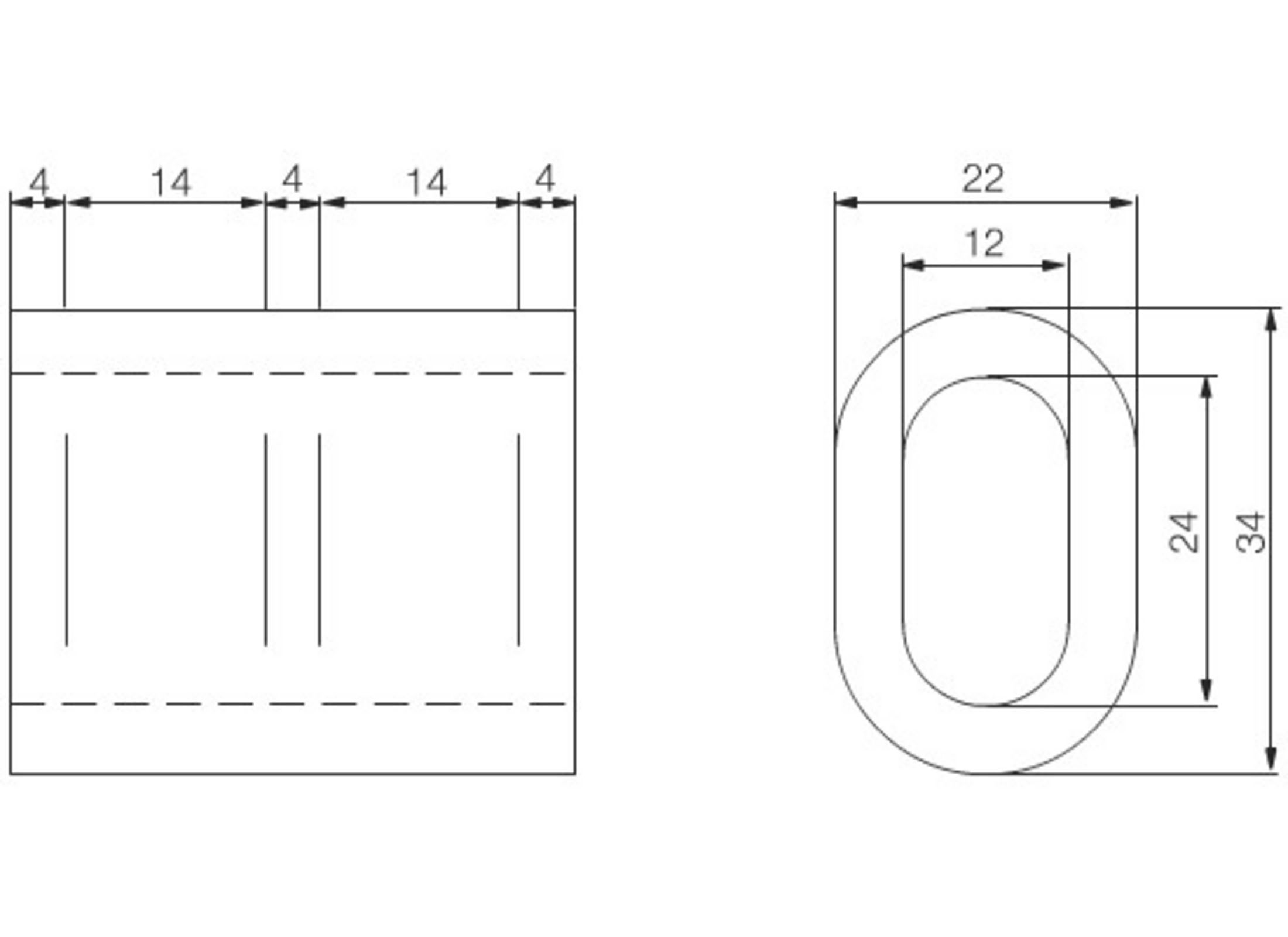

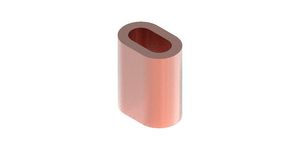

Compression Clamp
Variante: Pressklemme
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Pressklemme |
| Ebs | Ebs 05.83.03 |
| Material | Cu |
| Weight | 0,127 kg |
| Rope Q | 75 bzw. 50 flex mm² |
| Material-ID | 3EGF001224 |

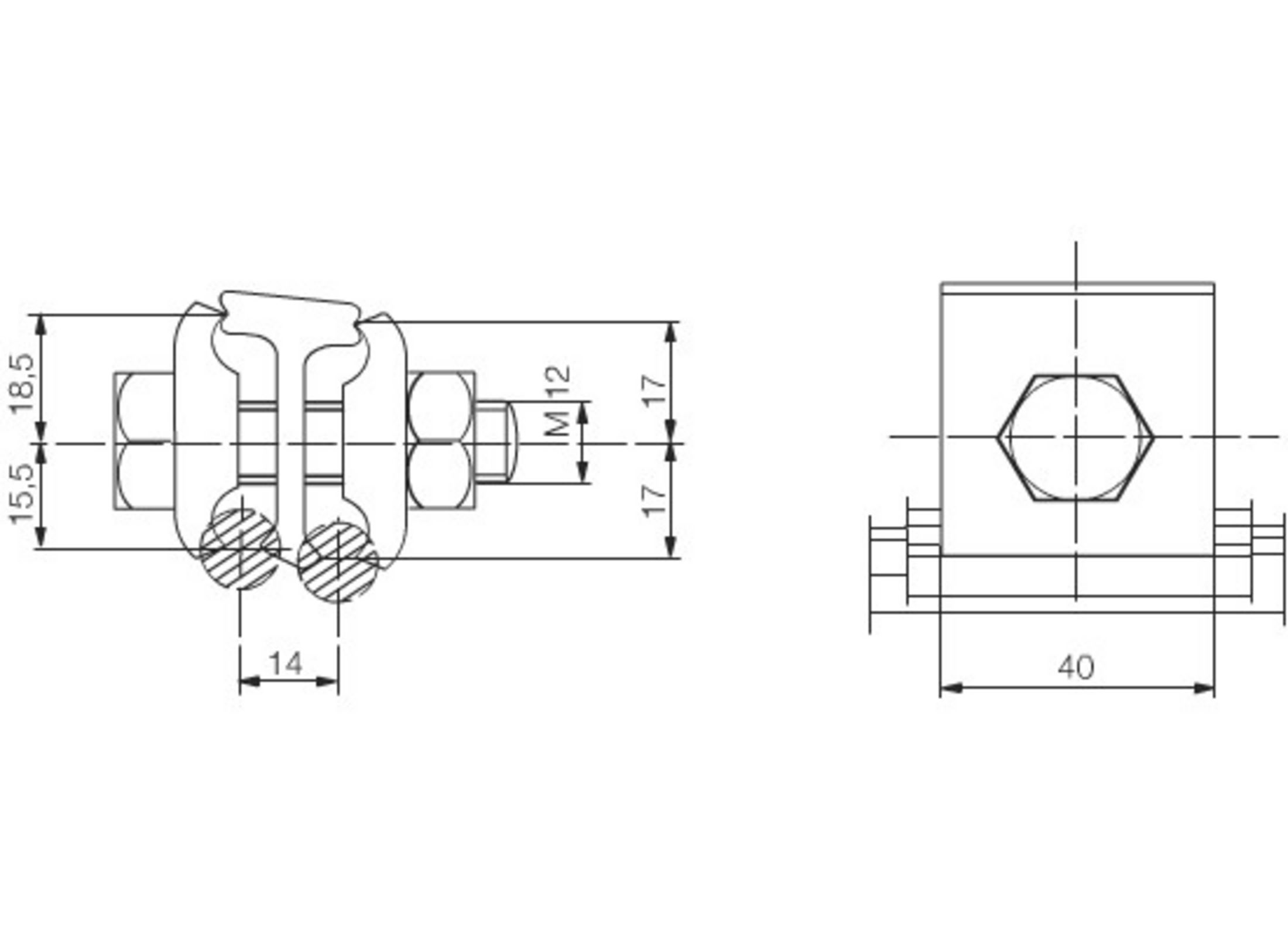

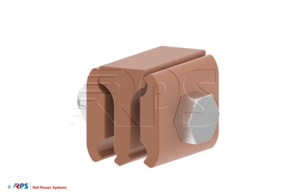

Twin contact wire clamp
Variante: Twin Contact Wire Clamp
|
|
For contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Twin Contact Wire Clamp |
| Ebs | Ebs 20.02.02-1 |
| Material | CW111C |
| Build Type | unequal height |
| Weight | 0,37 kg |
| Material-ID | 3EGF002801 |

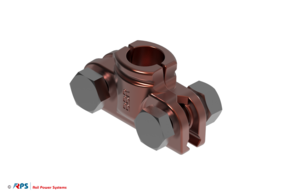

Contact Wire Clamp for pivot pin
Variante: Contact wire clamp
|
|
For contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Contact wire clamp |
| Build Type | without split pin |
| Material | CW111C |
| Weight | 0,29 kg |
| Contact Wire | AC80-150 |
| Nominal Force | 7,5 kN |
| Material-ID | 3EGF006072 |

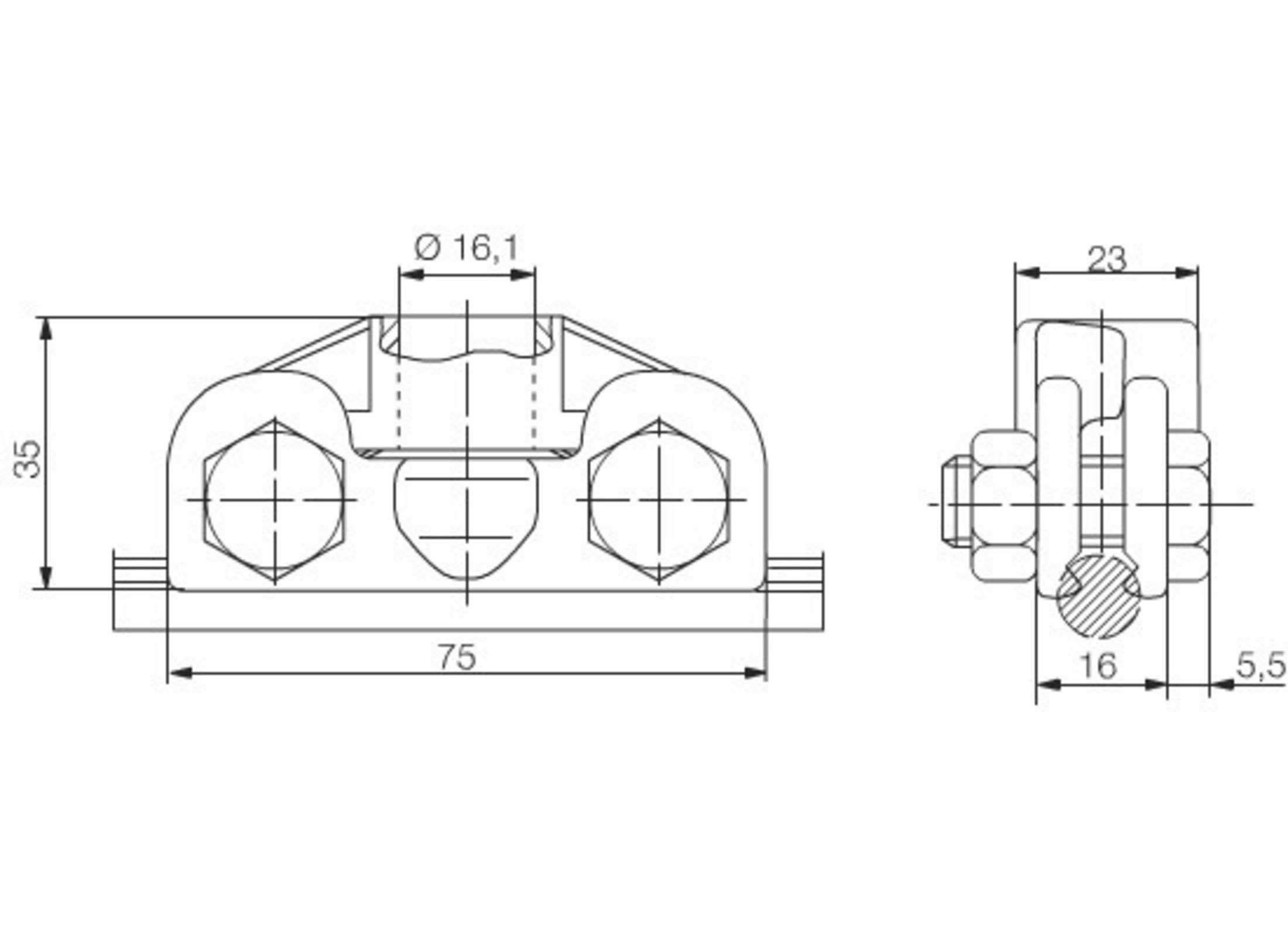

Contact Wire Clamp for thread
Variante: Contact Wire Clamp
|
|
For contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Contact Wire Clamp |
| Build Type | 5/8" |
| Weight | 0,38 kg |
| Contact Wire | AC80-150 |
| Nominal Force | 7,5 kN |
| Material | CW724R |
| Material-ID | 3EGF007358 |

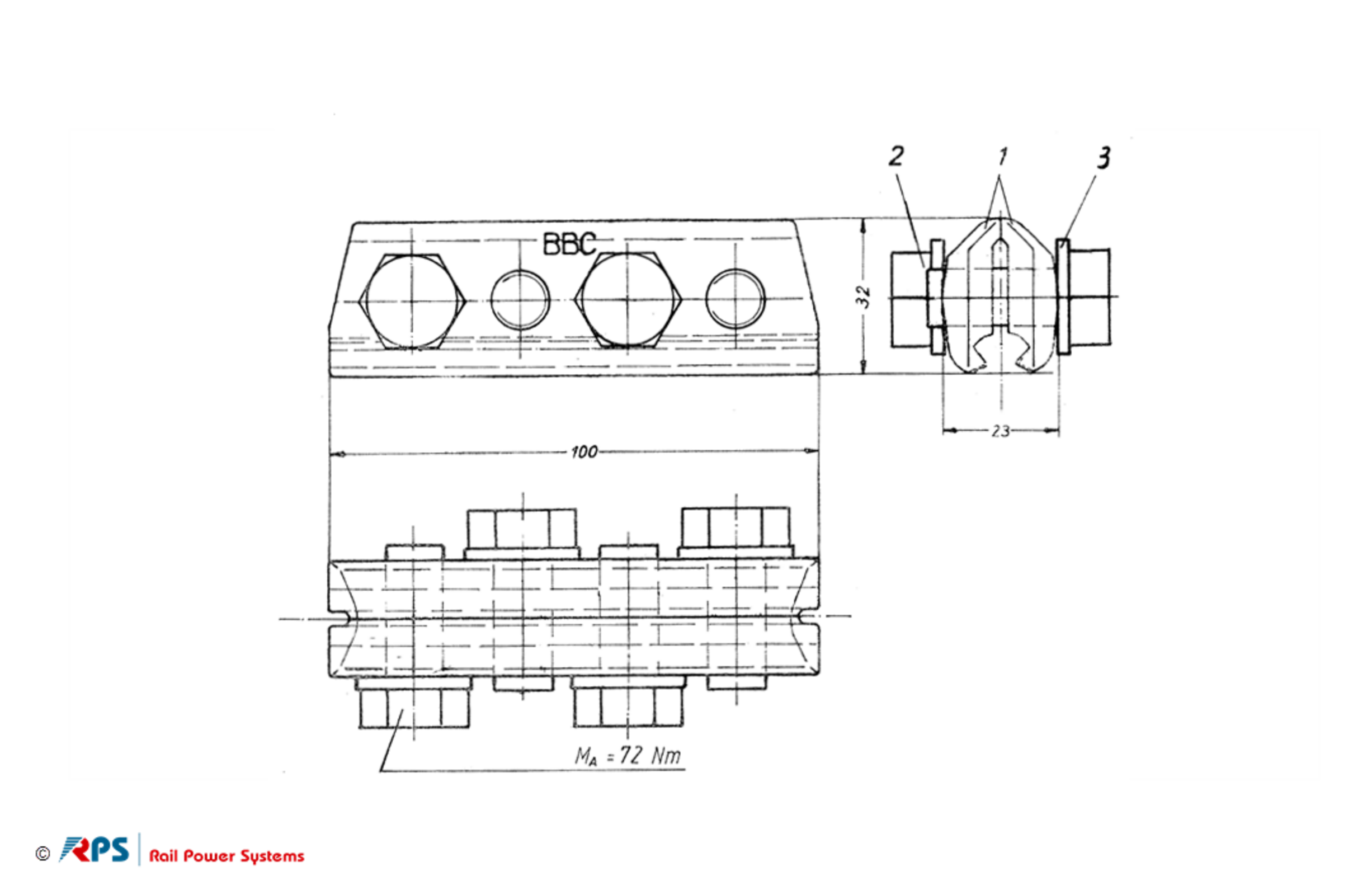

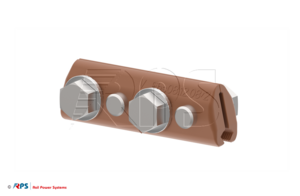

Contact Wire Splices
Variante: Contact wire splice
|
|
for contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Contact wire splice |
| Build Type | bolted |
| Weight | 0,55 kg |
| Contact Wire | AC80-120 |
| Nominal Force | 13 kN |
| Length | 100 mm |
| Material | CW111C |
| Material-ID | 3EGF007578 |
Dropper Clamp for 1 Contact Wire
Variante: Dropper Clamp Contact Wire AC/Wire 50mm²
|
|
for contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Dropper Clamp Contact Wire AC/Wire 50mm² |
| Ebs | Ebs 07.42.12-2 B1 |
| Material | CW111C |
| Weight | 0,11 kg |
| Rope Q | 50 mm² |
| Contact Wire | AC80-150 |
| Material-ID | 3EGF020317 |

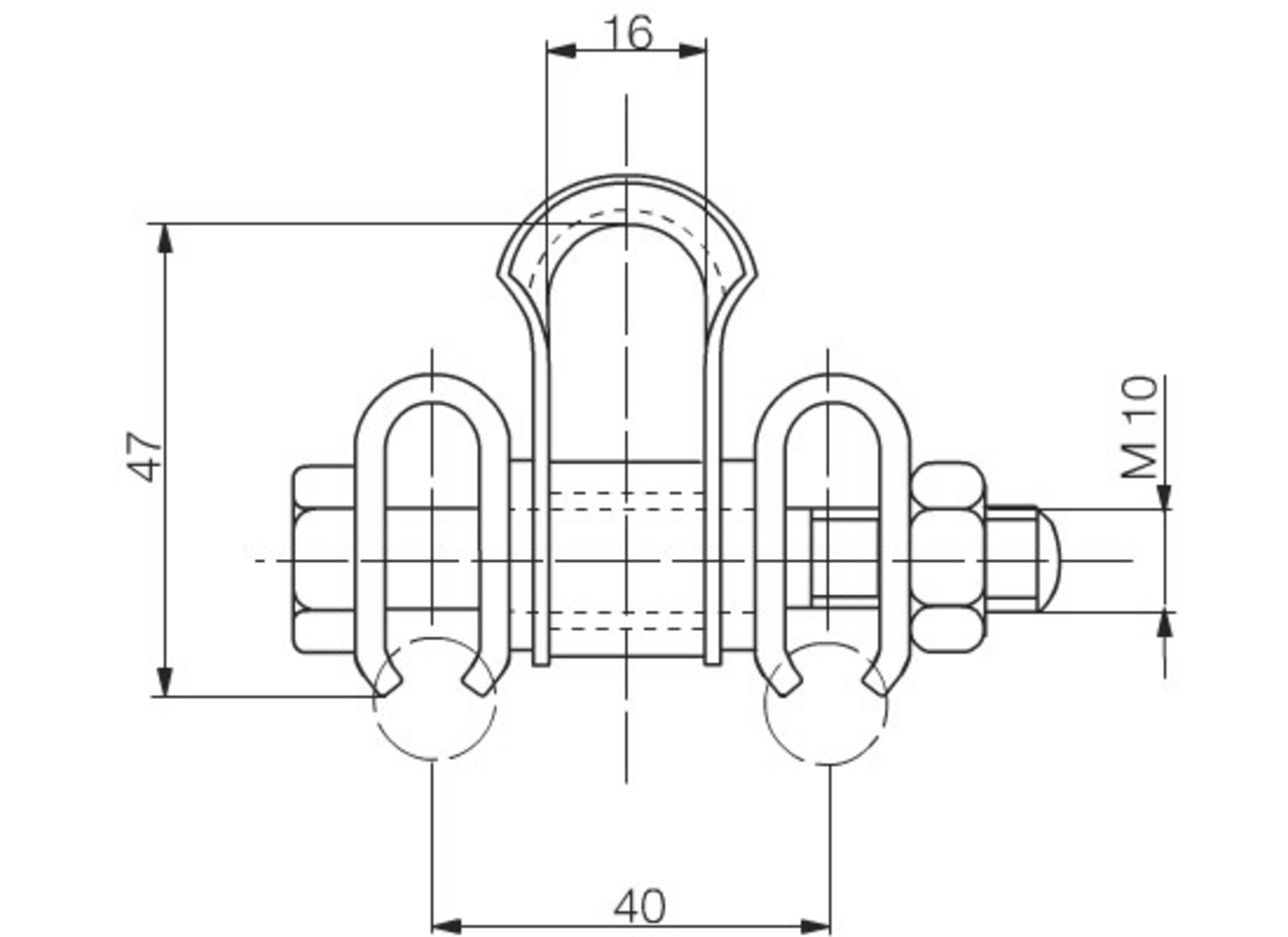

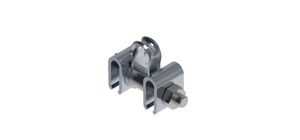

Dropper Clamp for 2 Contact Wires
Variante: Dropper Clamp 2 Contact Wires AC
|
|
for contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Dropper Clamp 2 Contact Wires AC |
| Ebs | Ebs 07.42.22 B |
| Material | X6CrNiTi18-10 |
| Weight | 0,2 kg |
| Contact Wire | AC80-150 |
| Material-ID | 3EGF011655 |

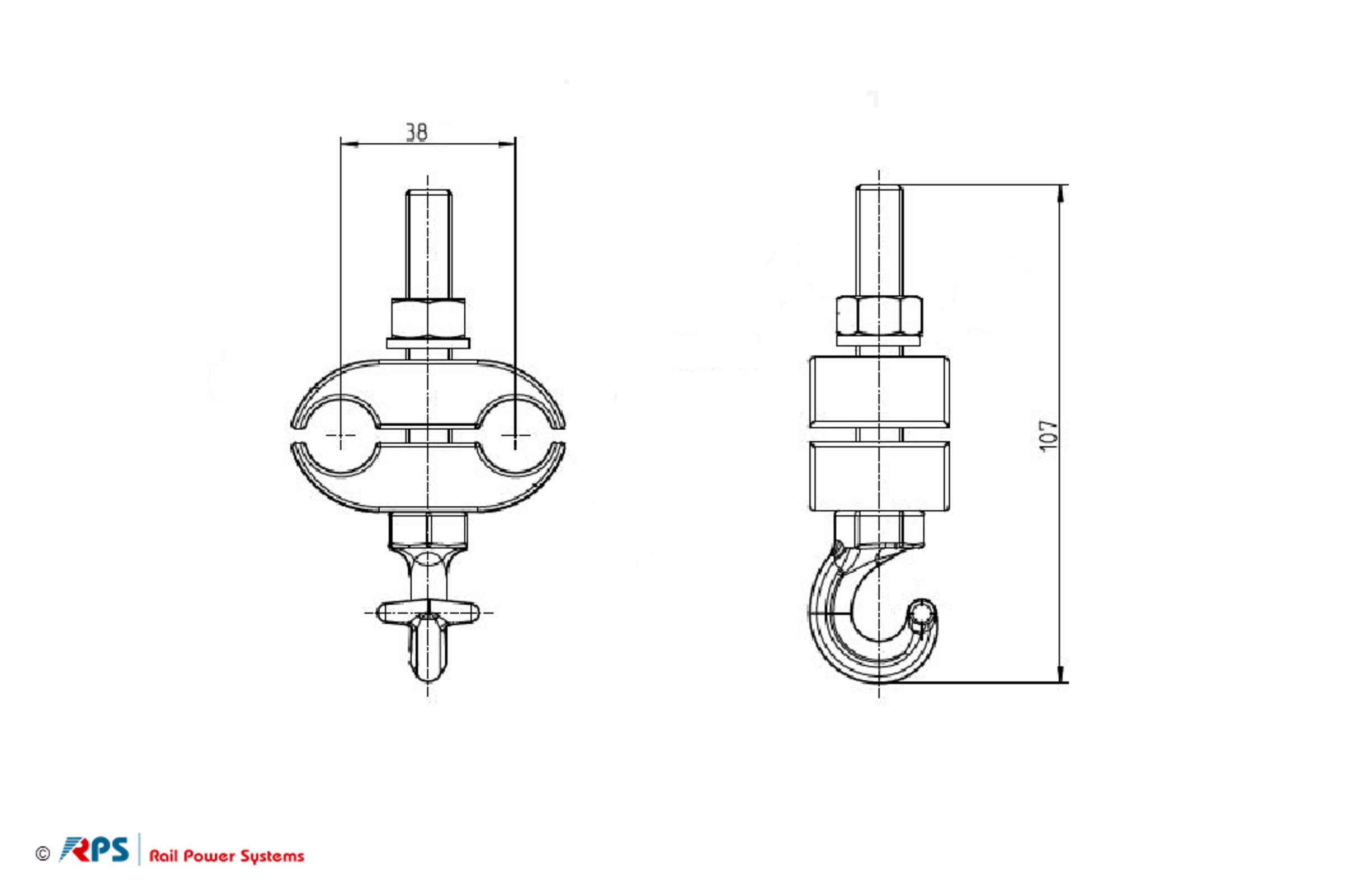

Dropper clip for wires
Variante: Dropper Clamp 2 Wires 150mm² with hook for thimbles
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Dropper Clamp 2 Wires 150mm² with hook for thimbles |
| Material | CC480K |
| Weight | 0,4 kg |
| Rope Q | 150 mm² |
| Material-ID | 3EGF006104 |

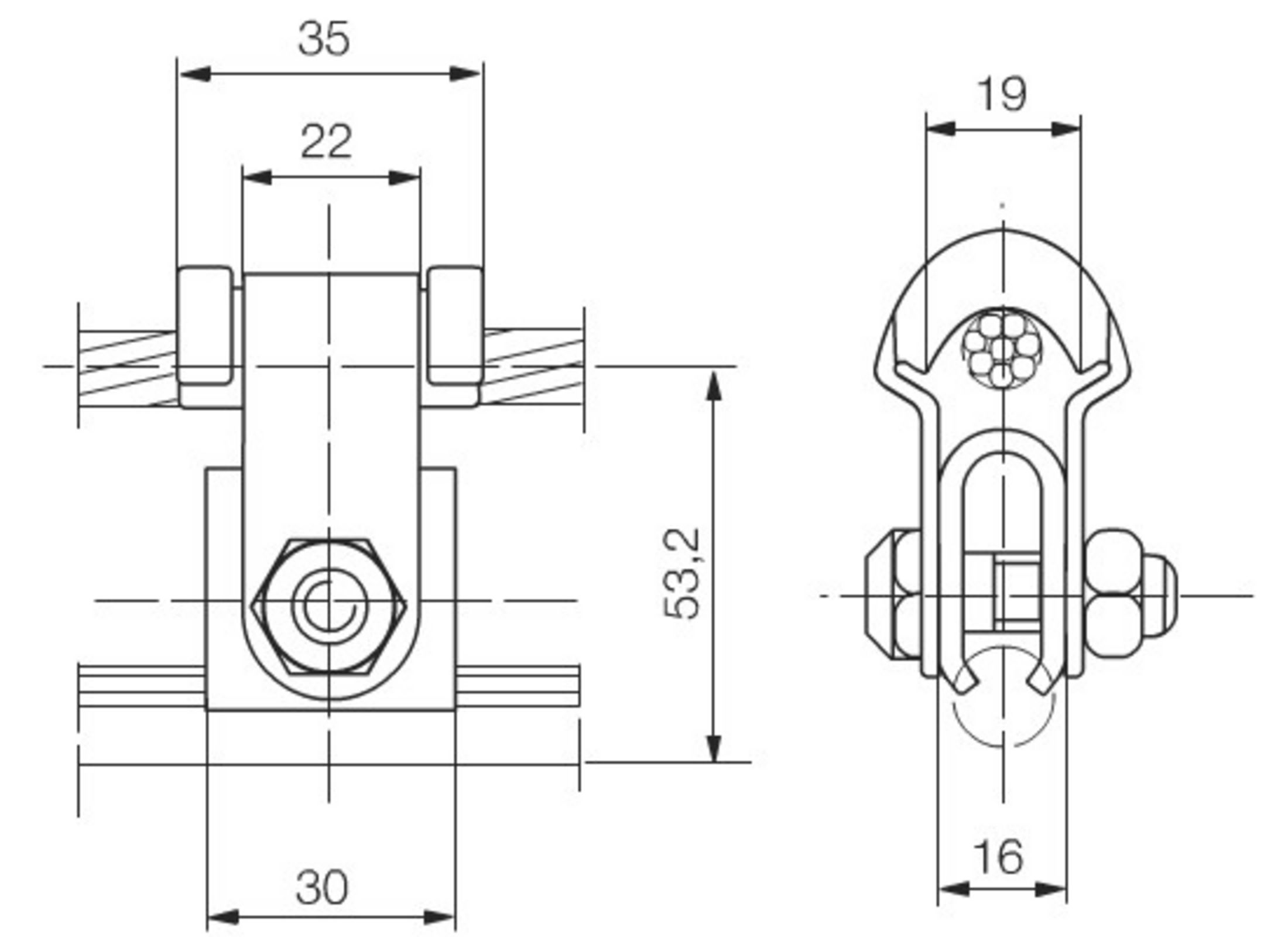

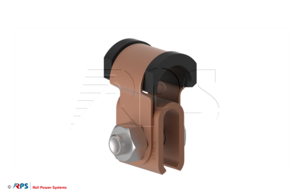

Sliding dropper B
Variante: Sliding Dropper 1 Contact Wire/1 Messenger Wire
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Sliding Dropper 1 Contact Wire/1 Messenger Wire |
| Ebs | Ebs 07.42.54 BL2 P |
| Material | CW111C |
| Weight | 0,134 kg |
| Height | 58 mm |
| Rope Q | 50 - 120 mm² |
| Contact Wire | AC80-150 |
| Material-ID | 3EGF001622 |

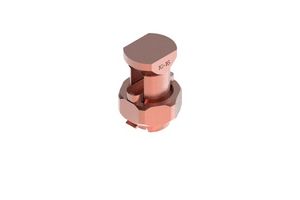

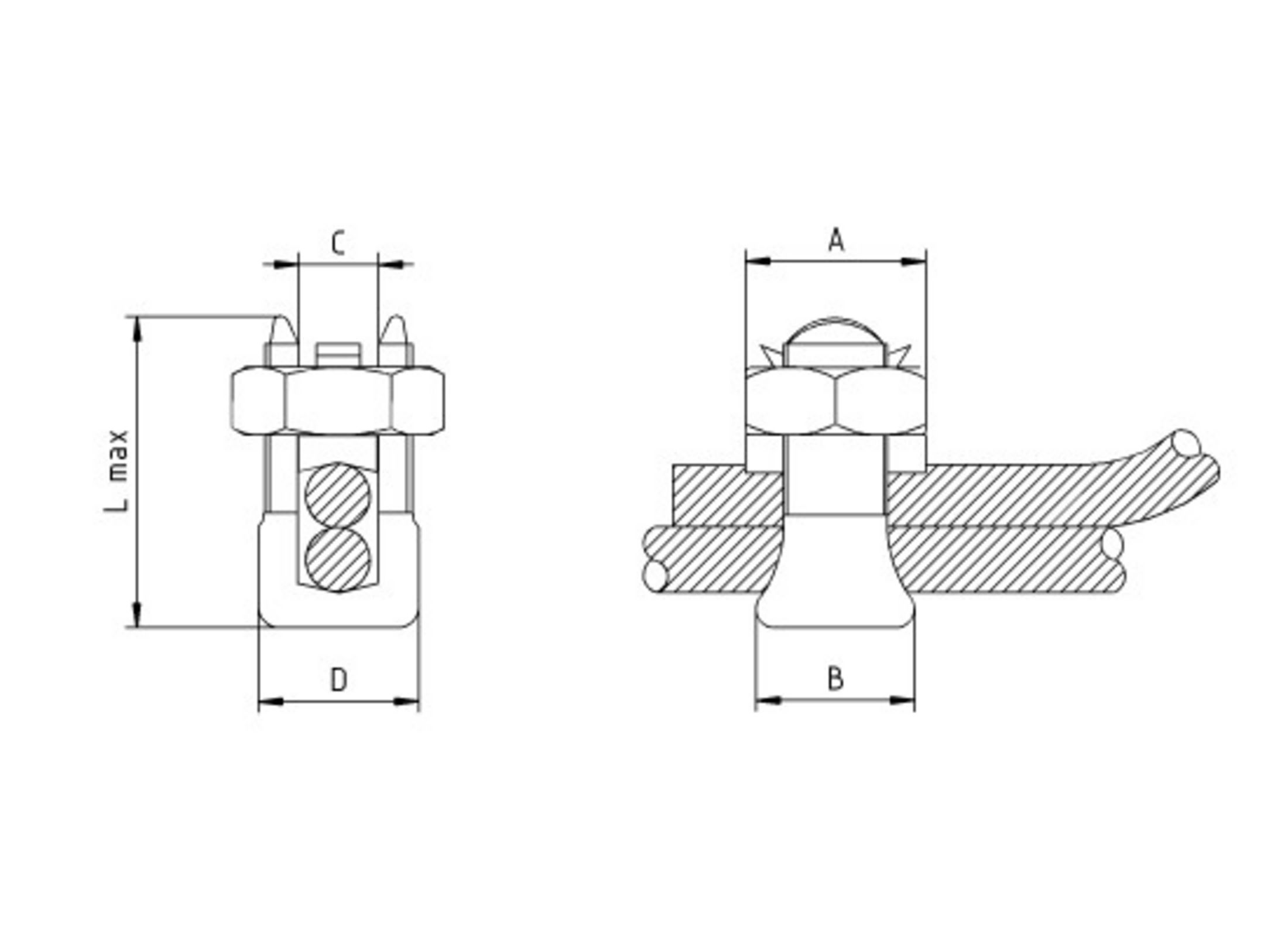

Slotted Bolt Clamp
Variante: Slotted Bolt Clamp 10-16mm²
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Slotted Bolt Clamp 10-16mm² |
| Material | CW008A |
| Rope Q | 10 - 16 mm² |
| Length | 31 mm |
| Weight | 0,029 kg |
| Material-ID | 3EGF014521 |

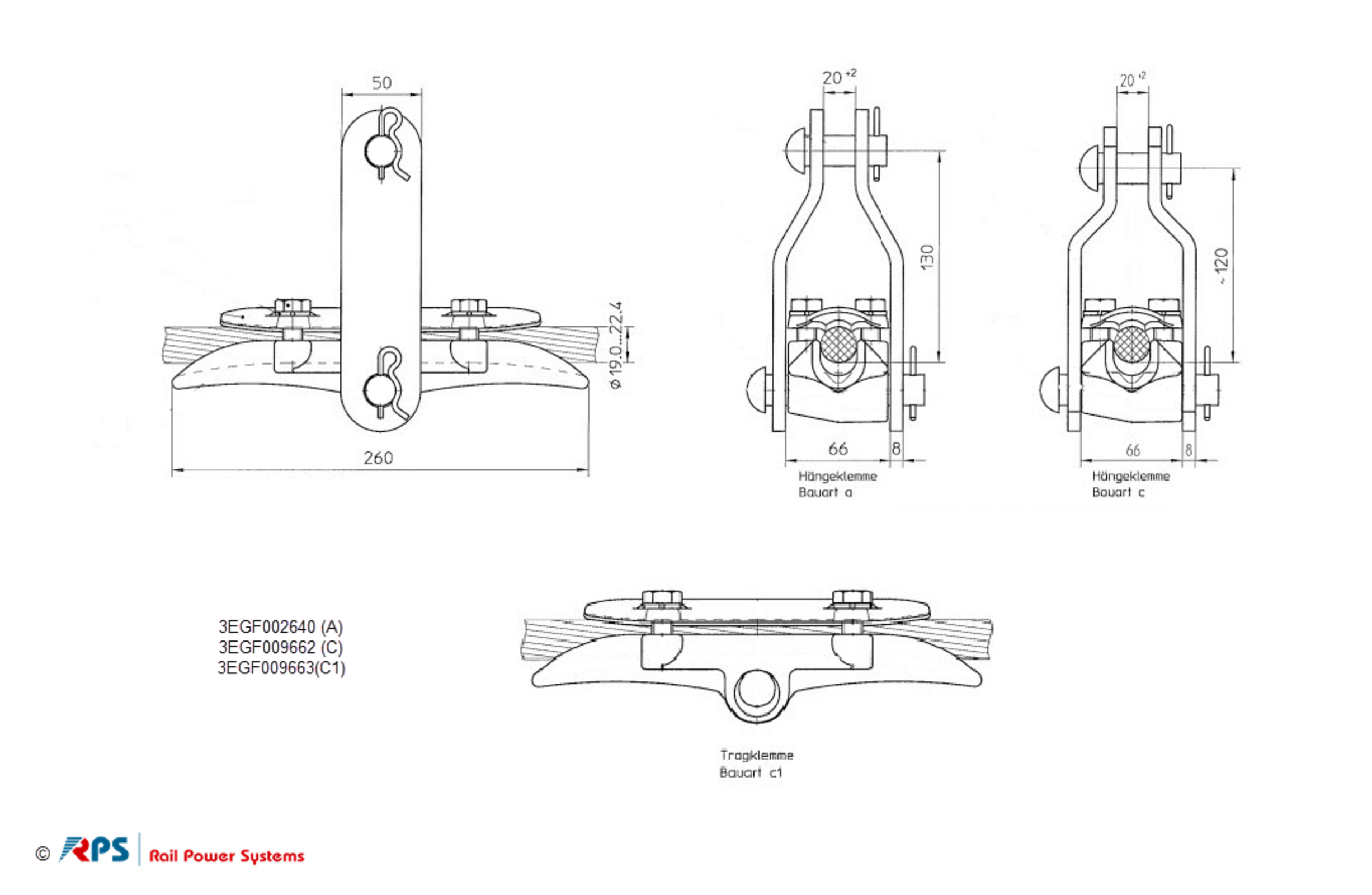

Suspension clamps for wires 243 and 184
Variante: Suspension clamp wire 243/184 steel link plate
|
|
for wires 243-AL1 and 184
Mechanical values
| Wert | |
|---|---|
| Name | Suspension clamp wire 243/184 steel link plate |
| Ebs | Ebs 16.03.04-3 A |
| Material | AW 6082 T6 |
| Weight | 1,435 kg |
| Build Type | Link plate: S355J2 |
| Rope Q | 184 / 243 mm² |
| Rope Diameter | 19 - 24,5 mm |
| Material-ID | 3EGF009658 |

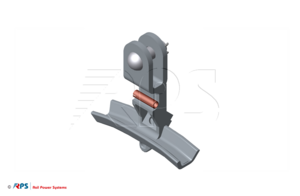

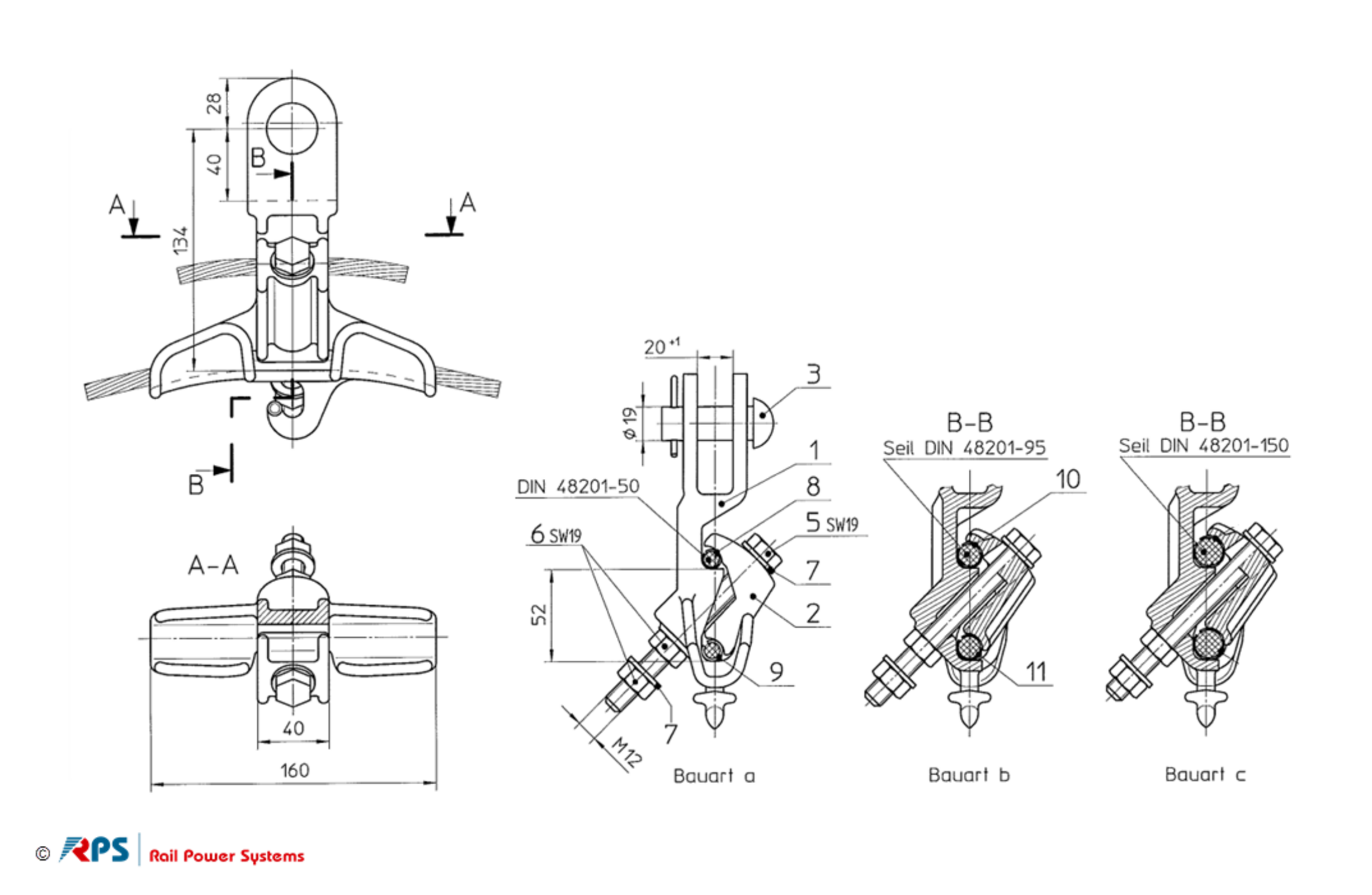

Suspension clamp for 2 wires with protection sleeves
Variante: Suspension clamp wire 50/7
|
|
for wires acc. DIN 48201
Mechanical values
| Wert | |
|---|---|
| Name | Suspension clamp wire 50/7 |
| Ebs | Ebs 06.93.19 A |
| Material | GJMW 400-5 |
| Weight | 1,76 kg |
| Rope Q | 50 mm² |
| Material-ID | 3EGF010257 |

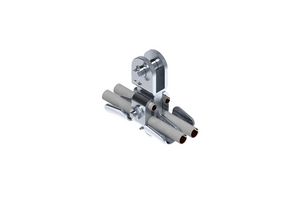

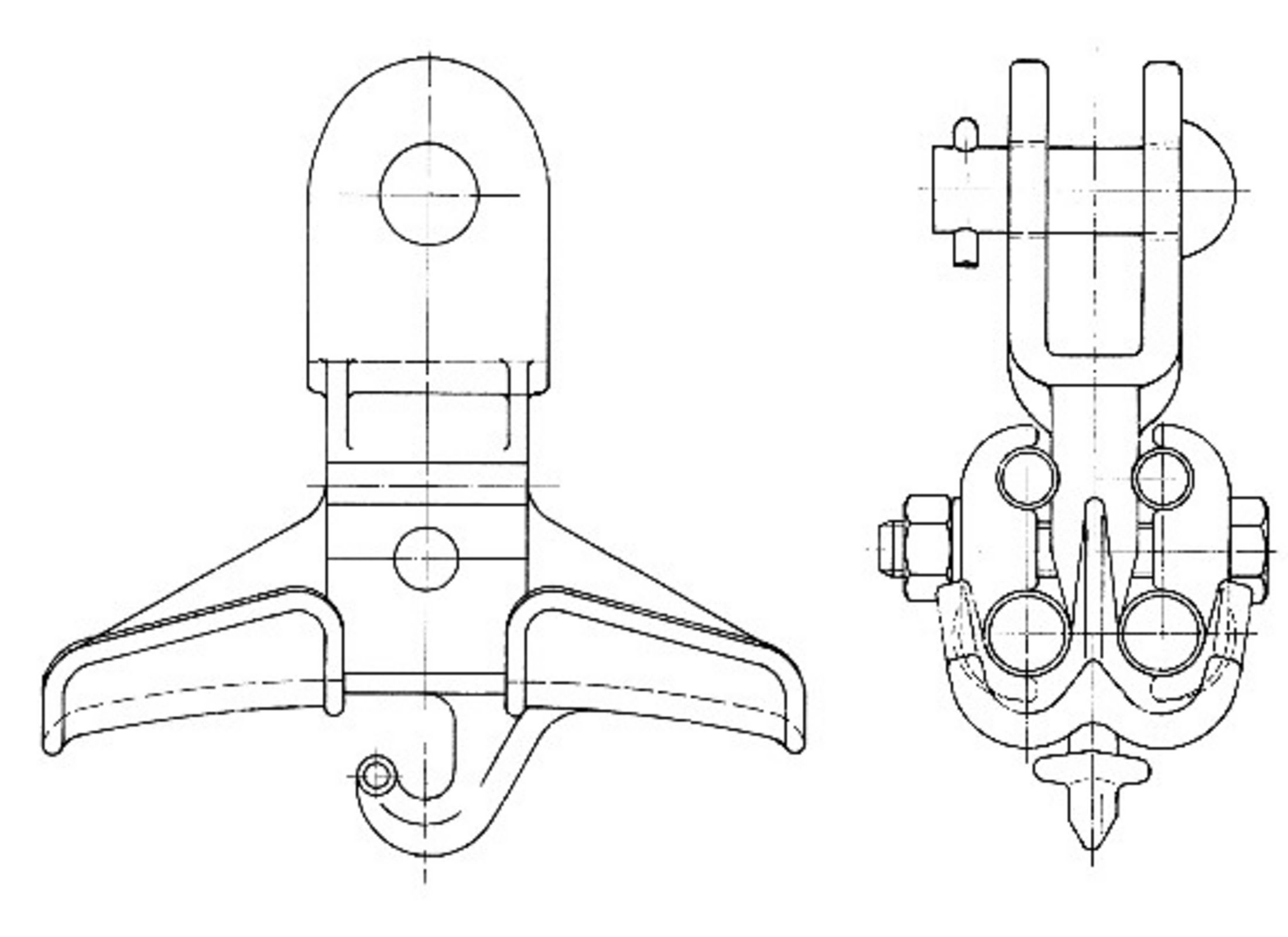

Suspension clamp for 2 wires 50 - 150 mm² with 2 parallel wires 70 mm²
Variante: Suspension clamp 2 wires 150 / 2 wires 70
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Suspension clamp 2 wires 150 / 2 wires 70 |
| Material | AC-42100 |
| Weight | 0,9 kg |
| Build Type | with parallel wire 70 mm² |
| Rope Q | 150 / 70 mm² |
| Material-ID | 3EGF006753 |

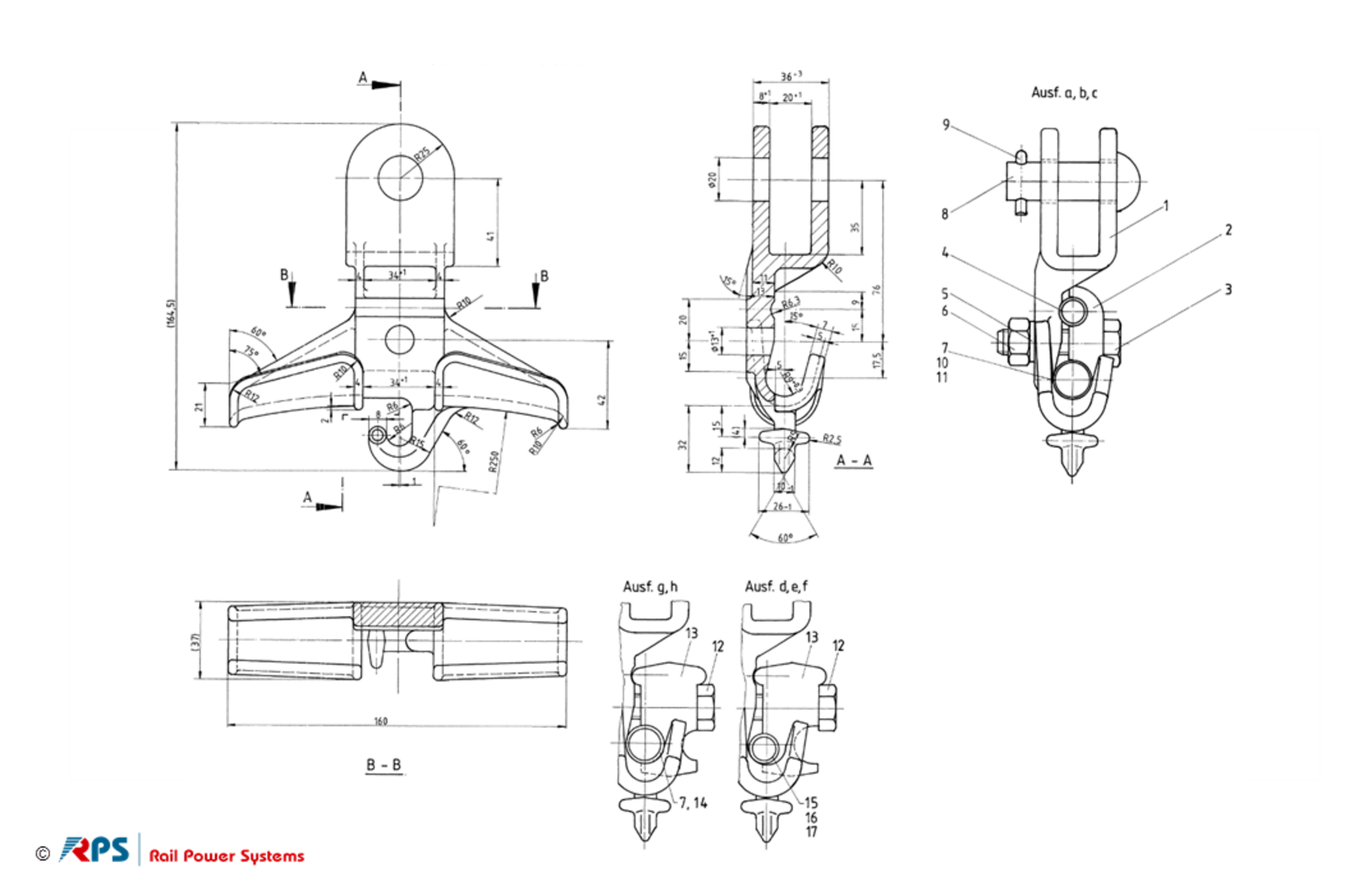

Suspension clamp for wire 50 - 150 mm² with parallel wire 70 mm²
Variante: Suspension clamp wire 50
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Suspension clamp wire 50 |
| Material | AC-42100 |
| Weight | 0,596 kg |
| Build Type | without parallel wire |
| Rope Q | 50 mm² |
| Material-ID | 3EGF011025 |

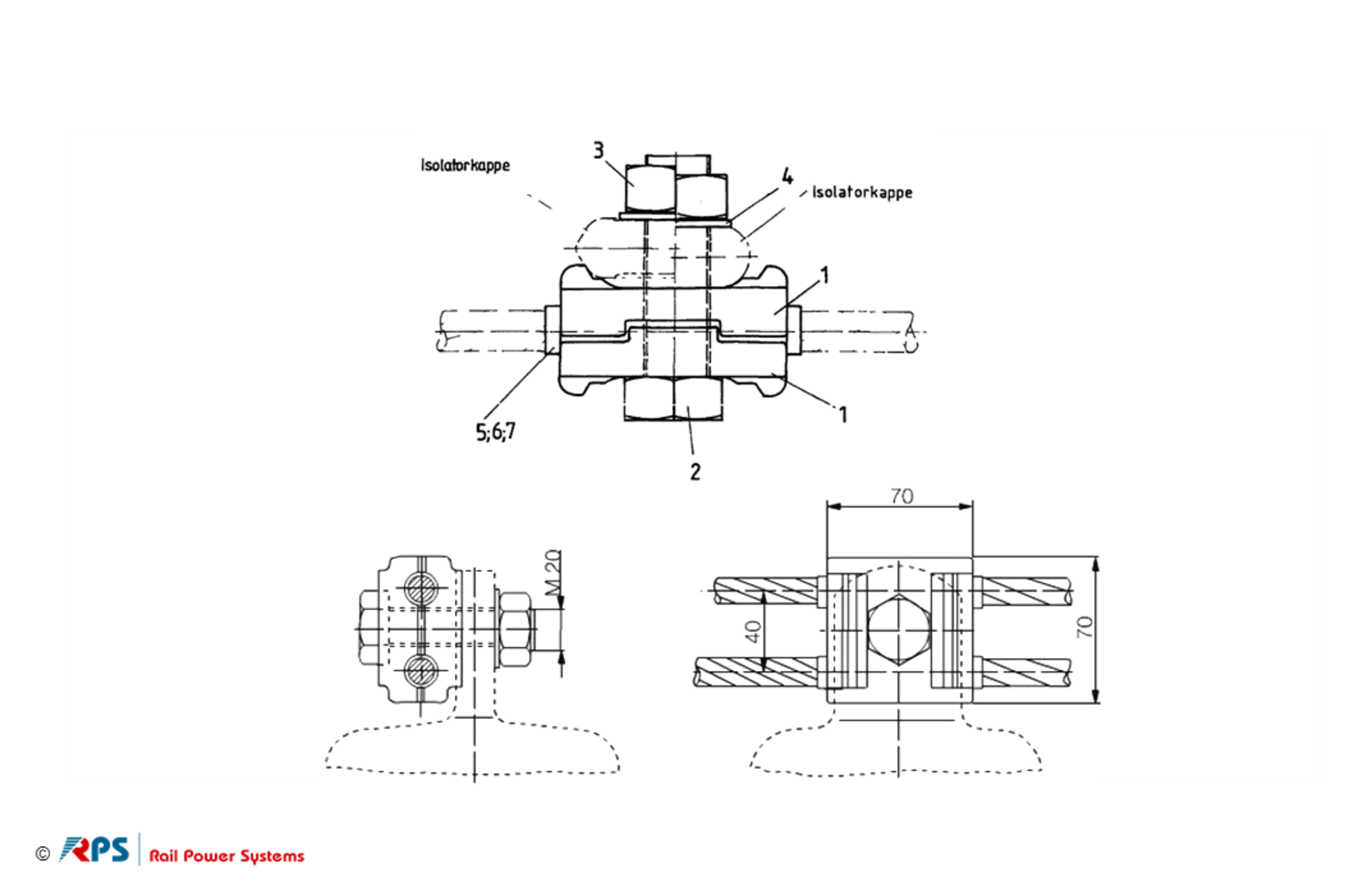

Wire Guiding Clamp
Variante: Wire Guiding Clamp wire 95/259
|
|
for wires & cables at post insulator and contact wire
Mechanical values
| Wert | |
|---|---|
| Name | Wire Guiding Clamp wire 95/259 |
| Ebs | Ebs 10.21.15 B |
| Material | CC761S-GS |
| Weight | 1,135 kg |
| Rope Q | 95 mm² |
| Material-ID | 3EGF002222 |

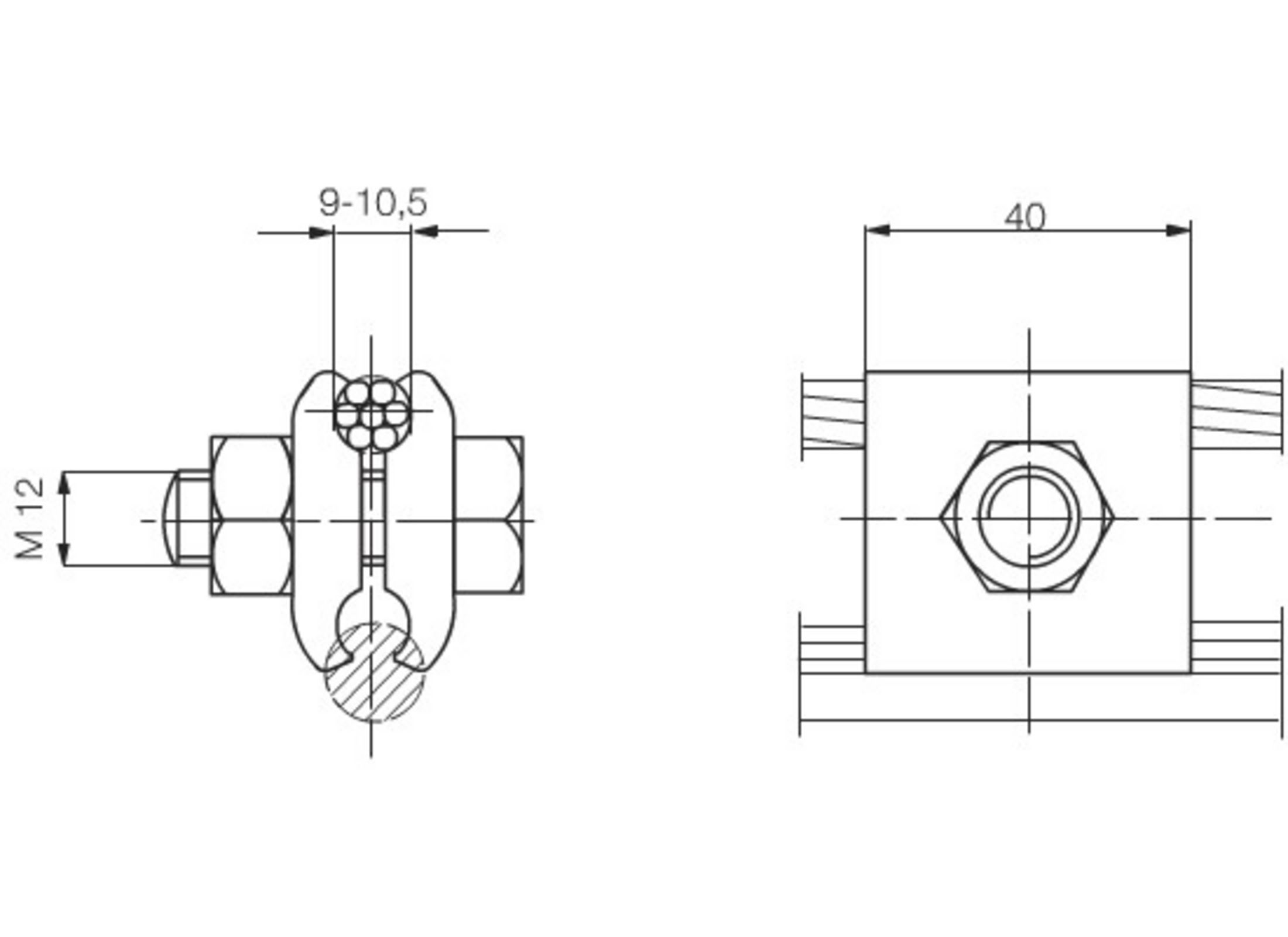

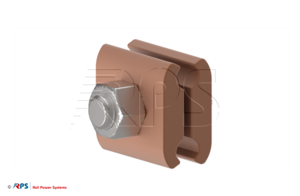

Parallel groove clamp
Variante: Parallel Groove Clamp wire 50 / wire 10
|
|
for wires acc. DIN 48201 or round wire acc. DIN 43137
Mechanical values
| Wert | |
|---|---|
| Name | Parallel Groove Clamp wire 50 / wire 10 |
| Ebs | Ebs 20.02.01-1 |
| Material | CW111C |
| Weight | 0,24 kg |
| Material-ID | 3EGF002798 |

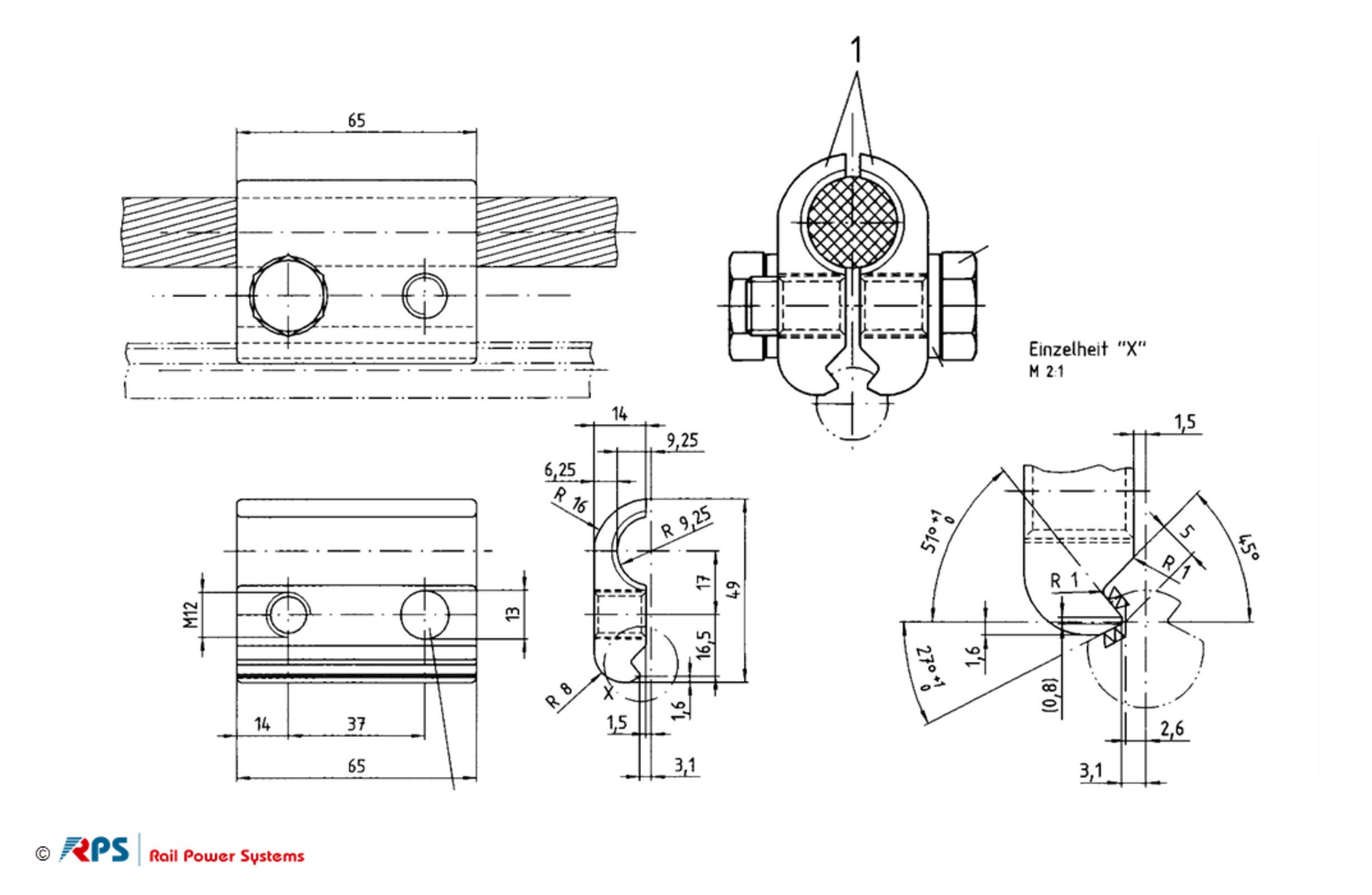

Terminal / Electrical connection clamp parallel
Variante: Electrical Connection Clamp AC-contact Wire / wire 150f
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Electrical Connection Clamp AC-contact Wire / wire 150f |
| Weight | 0,587 kg |
| Contact Wire | AC80-150 |
| Rope Q | 150 mm² |
| Material-ID | 3EGF006169 |

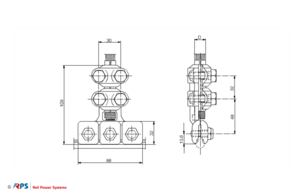

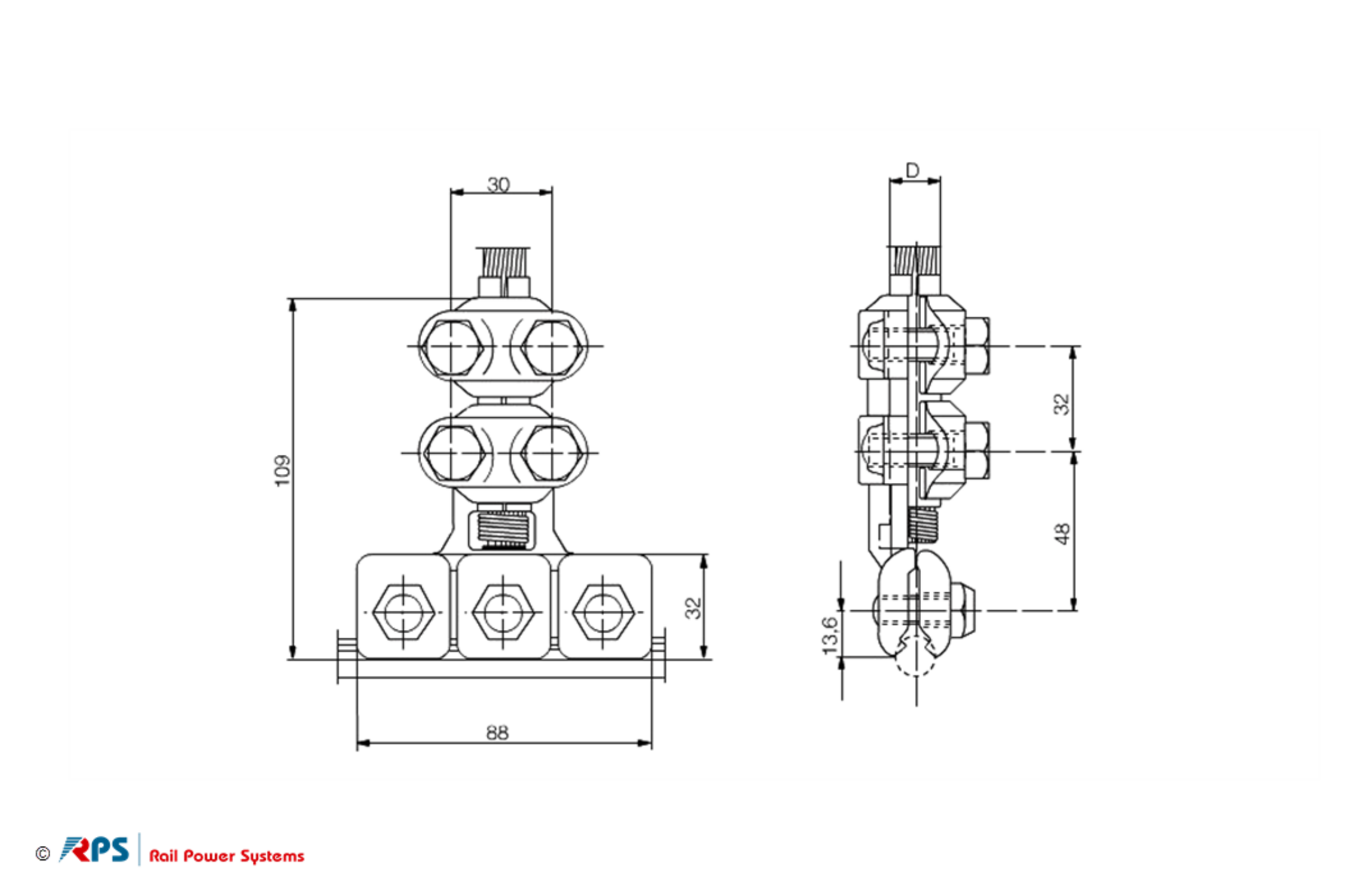

Terminal / Electrical connection clamp standing
Variante: Electrical Connection Clamp AC-contact wire
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Electrical Connection Clamp AC-contact wire |
| Material | CW008A |
| Weight | 0,903 kg |
| Contact Wire | AC80-150 |
| Material-ID | 3EGF006903 |

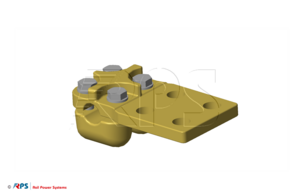

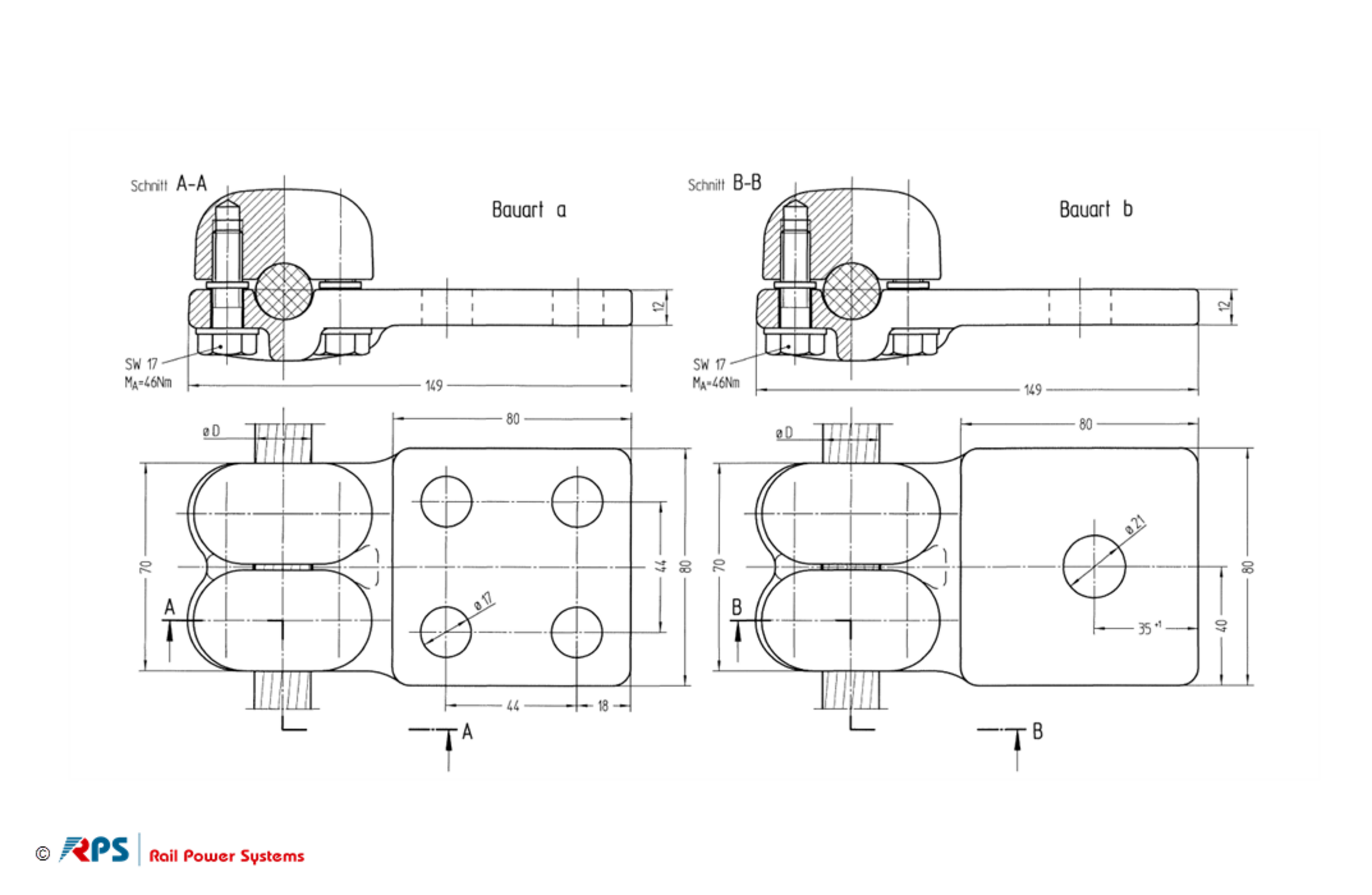

Terminal / Electrical connection clamp flat
Variante: Terminal Clamp 4-hole wire 243/184
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Terminal Clamp 4-hole wire 243/184 |
| Ebs | Ebs 09.10.22-1 A |
| Weight | 0,705 kg |
| Build Type | 4-hole |
| Rope Q | 184 / 243 mm² |
| Material-ID | 3EGF002044 |

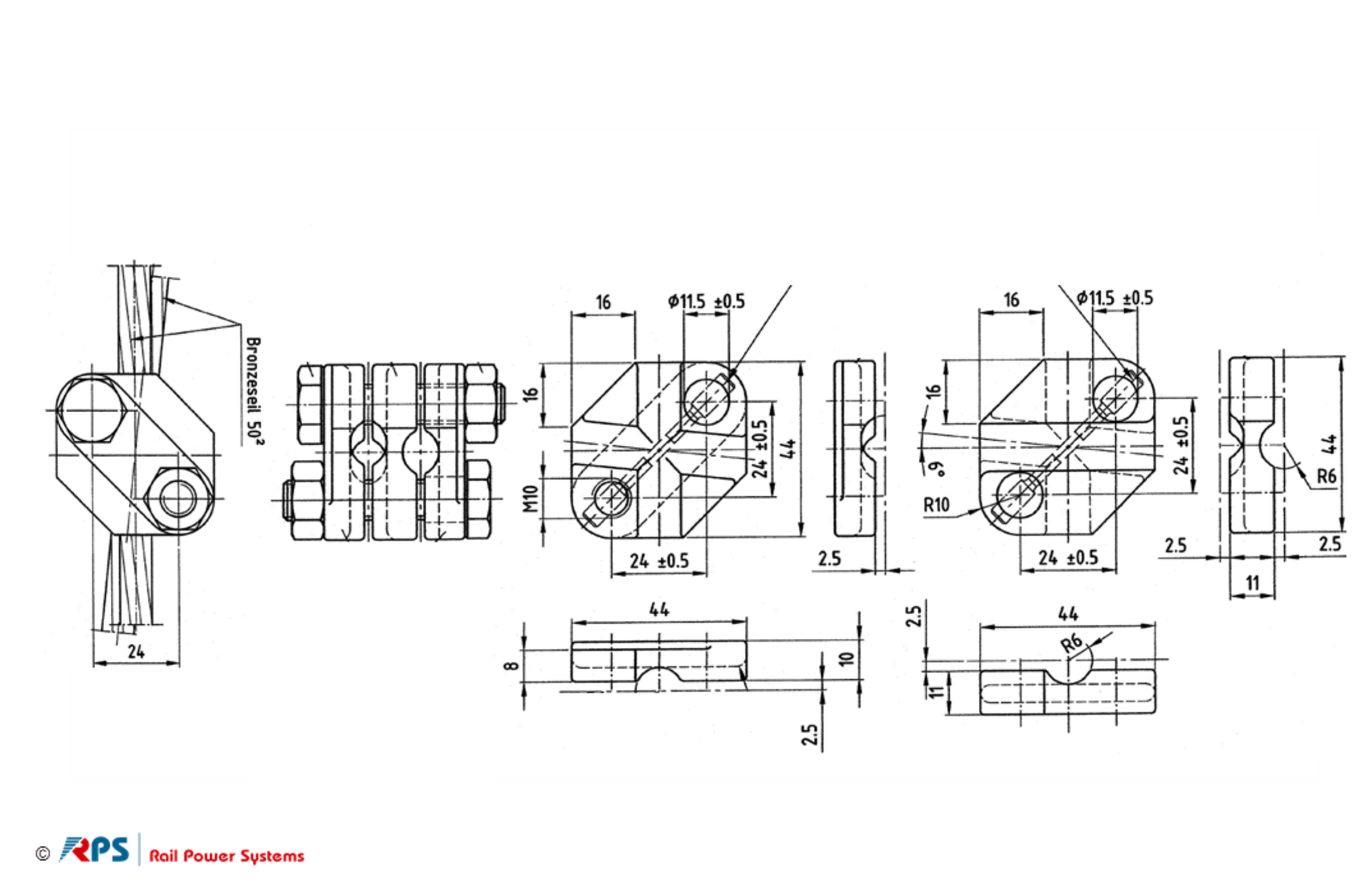

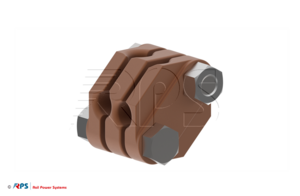

Crossing Clamp Acute
Variante: Crossing Clamp Acute 6° wire 50
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Crossing Clamp Acute 6° wire 50 |
| Ebs | Ebs 07.41.04-2 |
| Material | CW111C |
| Weight | 0,391 kg |
| Rope Q | 50 mm² |
| Material-ID | 3EGF001596 |

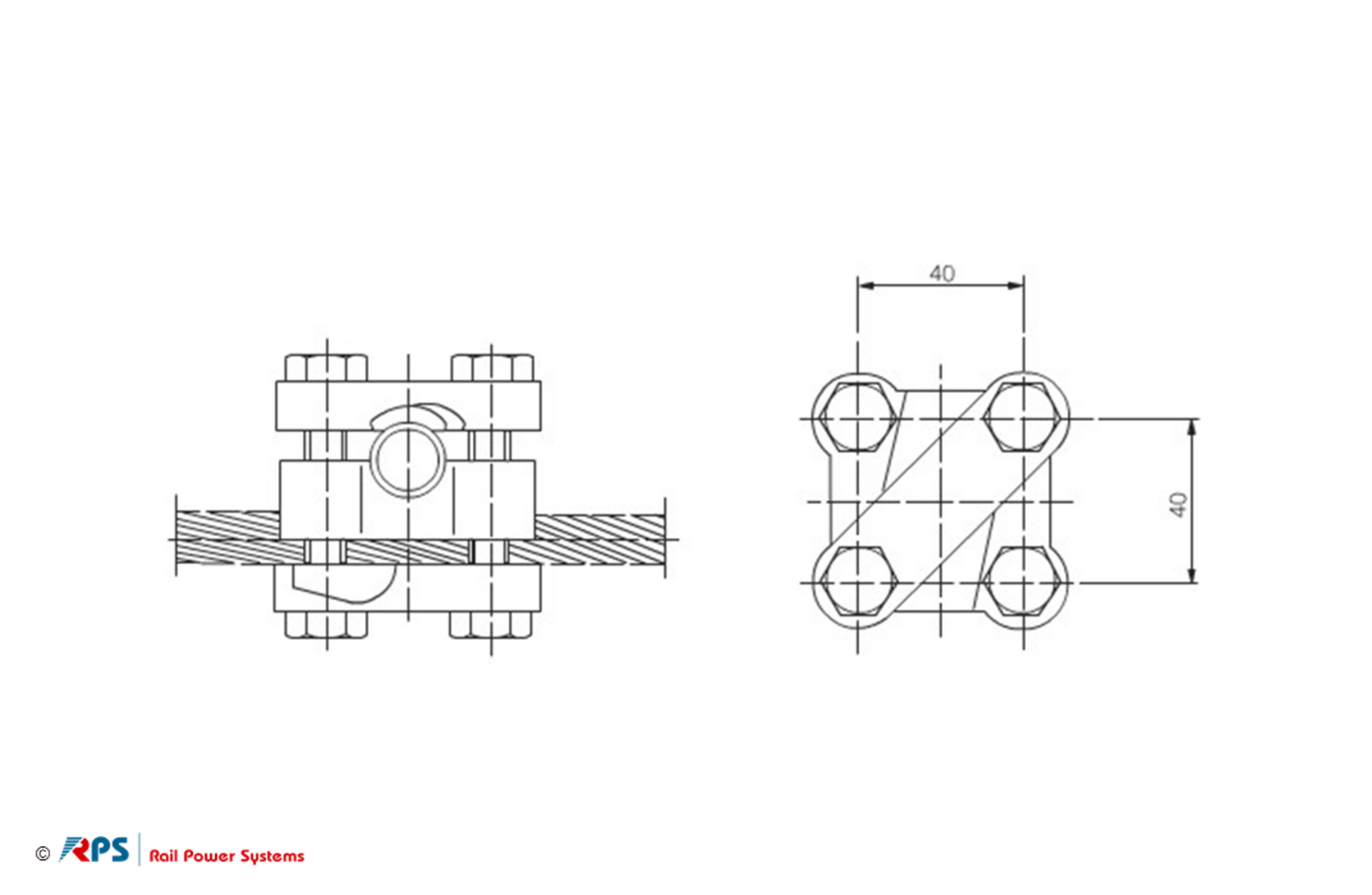

Crossing Clamp rectangular
Variante: Crossing Clamp wire 50/50f
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Crossing Clamp wire 50/50f |
| Weight | 1,01 kg |
| Rope Q | 50 mm² |
| Material-ID | 3EGF011697 |

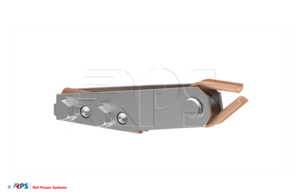

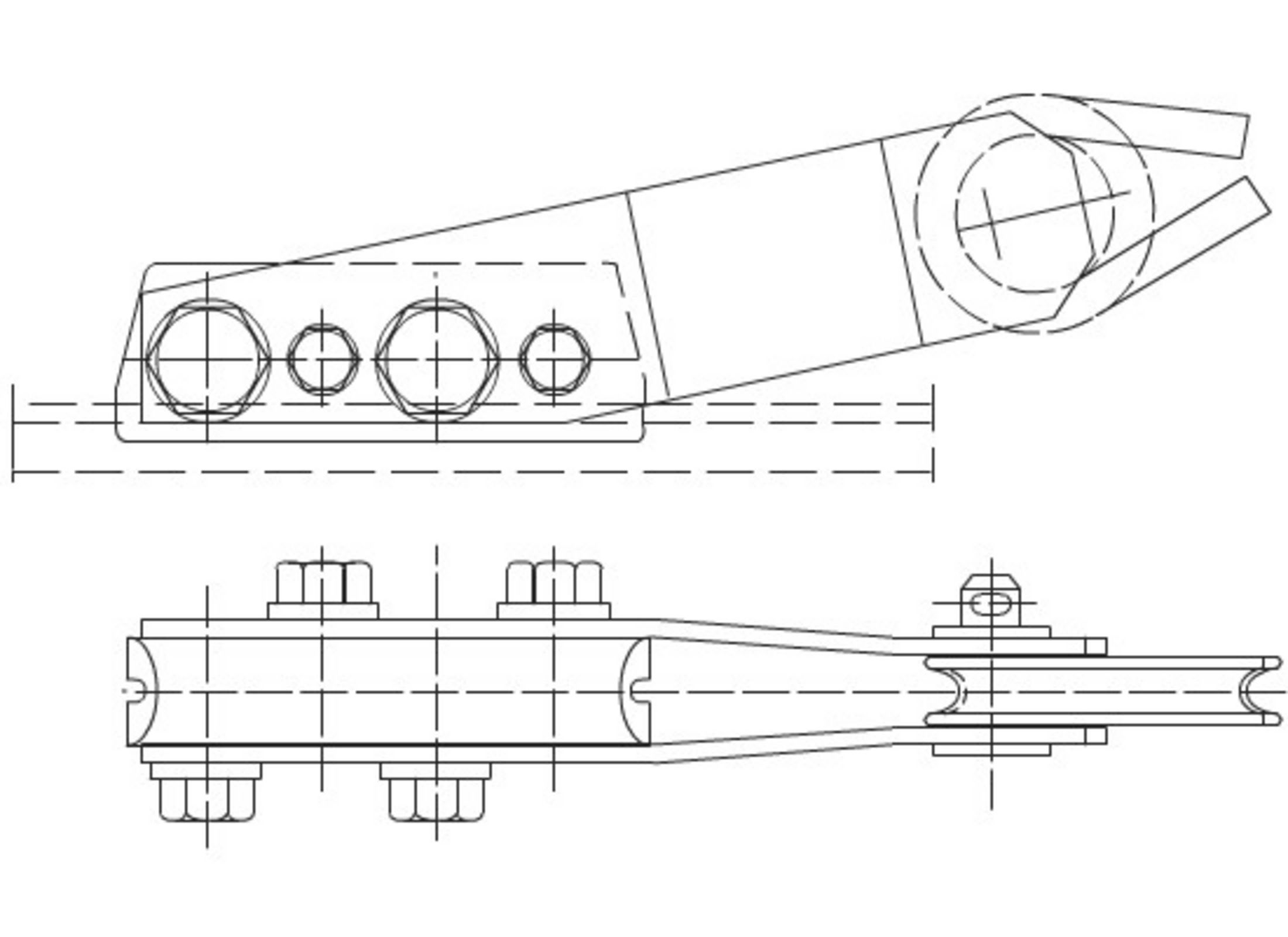

Fix Point Clamp
Variante: Festpunktklemme
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Festpunktklemme |
| Ebs | Ebs 05.83.01 |
| Weight | 0,909 kg |
| Nominal Force | 30 kN |
| Contact Wire | AC80-150 |
| Material-ID | 3EGF001222 |

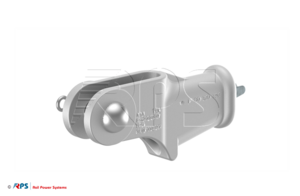

Wedge type dead end clamp
Variante: Wedge-Type Dead End Clamp AC80-120
|
|
For contact wire and wire.
Mechanical values
| Wert | |
|---|---|
| Name | Wedge-Type Dead End Clamp AC80-120 |
| Ebs | Ebs 20.02.07-1 A |
| Material | AW 6082 |
| Weight | 0,574 kg |
| Contact Wire | AC80-120 |
| Build Type | Wedge: 1-hole |
| Material-ID | 3EGF010855 |

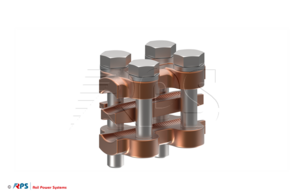

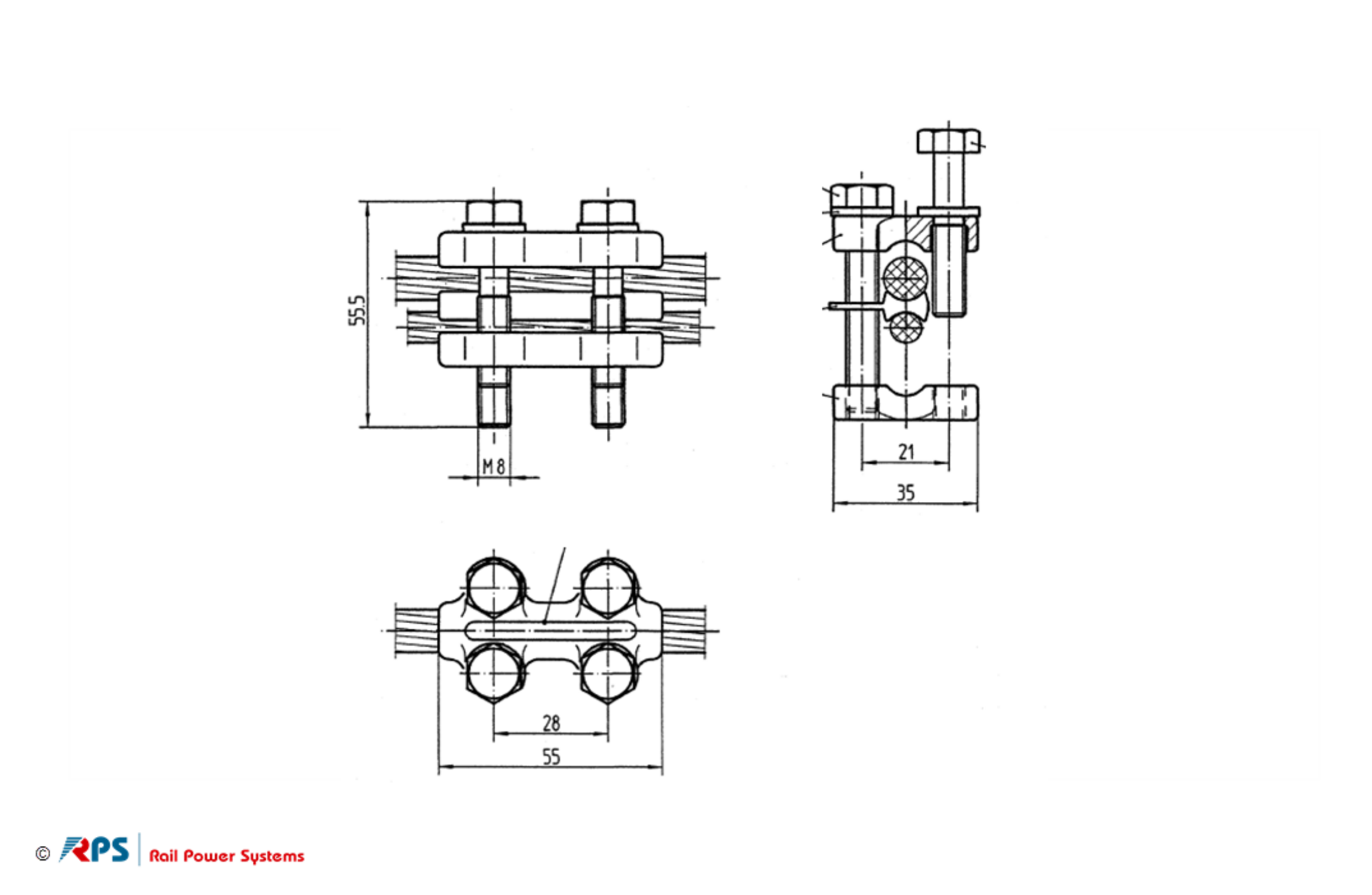

Wire clamps for 2 wires
Variante: Wire Clamp wire 25/70
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Wire Clamp wire 25/70 |
| Ebs | Ebs 07.42.42-2 |
| Material | CW111C |
| Weight | 0,269 kg |
| Rope Q | 25 / 70 mm² |
| Material-ID | 3EGF001651 |

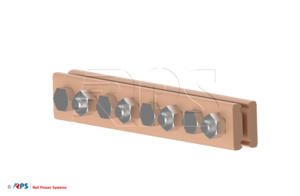

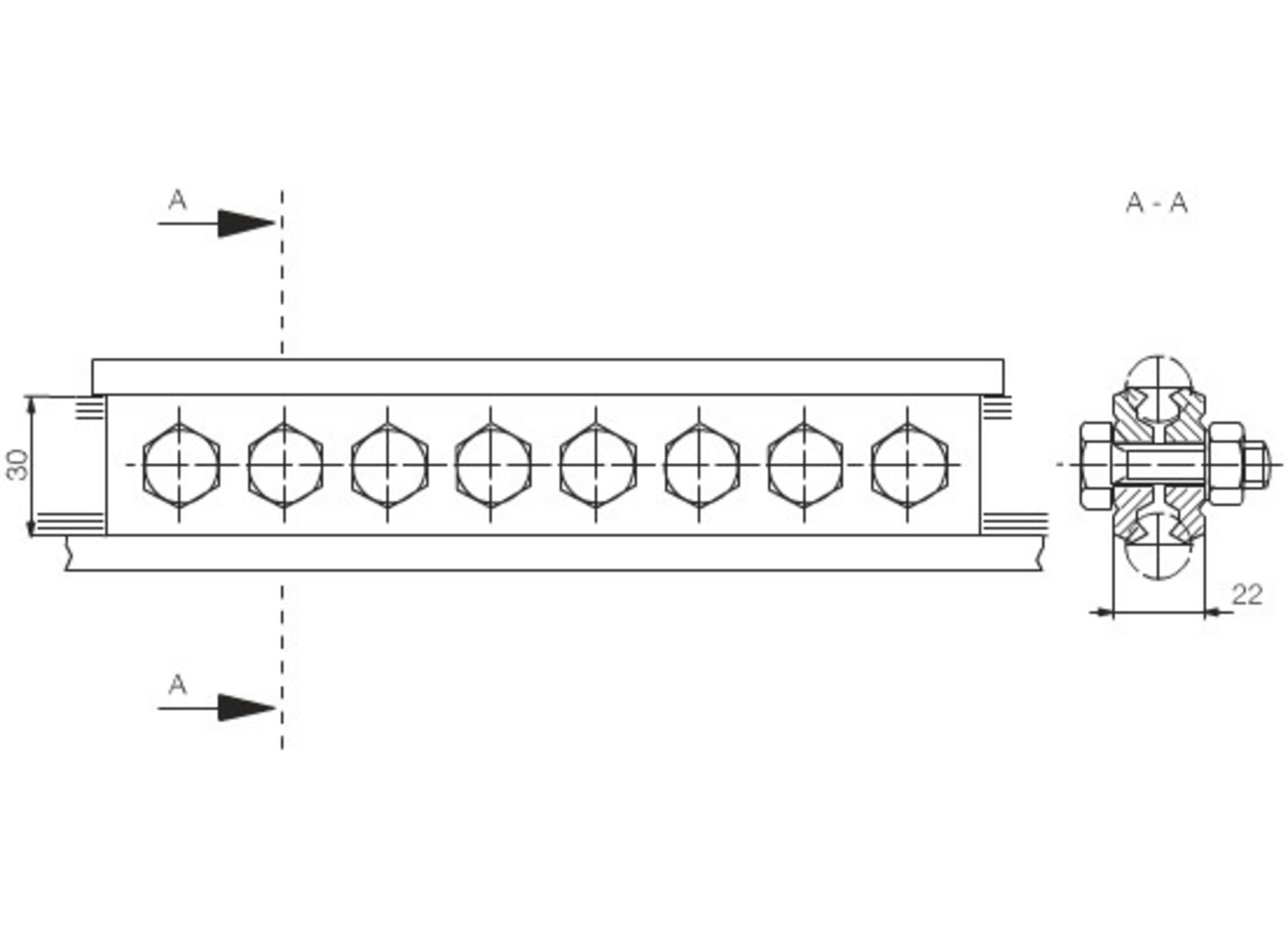

Contact wire clamp for contact wire AC contact wires
Variante: Contact wire splice
|
|
for contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Contact wire splice |
| Ebs | Ebs 07.42.45 |
| Material | CW111C |
| Weight | 1,09 kg |
| Nominal Force | 30 kN |
| Material-ID | 3EGF001655 |
Contact wire clamp for AC contact wires
Variante: Contact wire splice
|
|
for contact wires acc. EN 50149
Mechanical values
| Wert | |
|---|---|
| Name | Contact wire splice |
| Contact Wire | AC80-120 |
| Material | CW111C |
| Weight | 0,55 kg |
| Nominal Force | 13 kN |
| Material-ID | 3EGF007578 |

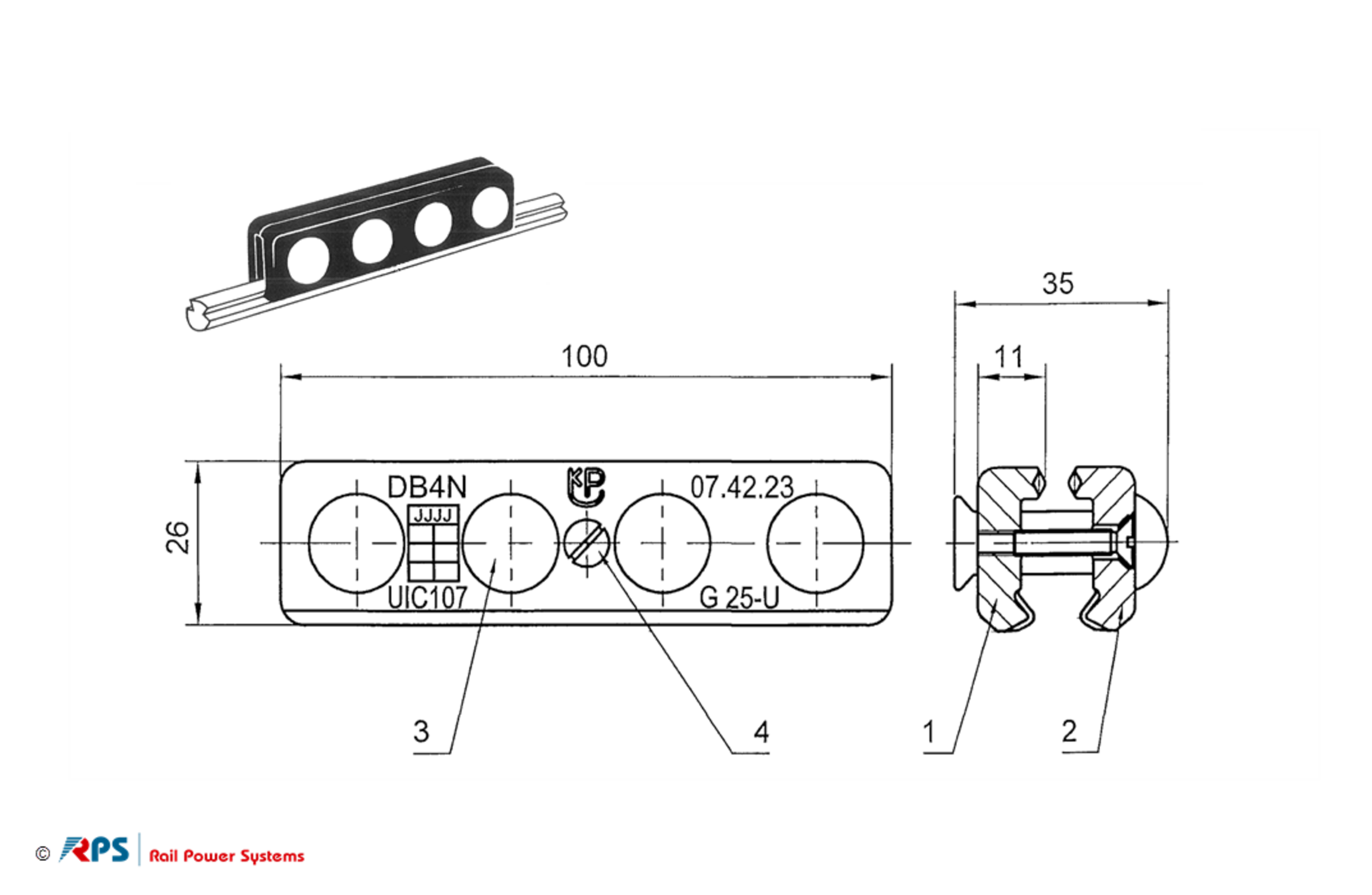

Tension-resistant connection of contact wires
Variante: Contact wire splice
|
|
for contact wires acc. EN 50149
Pressing Insert: 3EGF021517
Mechanical values
| Wert | |
|---|---|
| Name | Contact wire splice |
| Ebs | Ebs 07.42.23 A |
| Material | CW112C |
| Weight | 0,37 kg |
| Contact Wire | AC80-150 |
| Nominal Force | 15 kN |
| Material-ID | 3EGF001629 |
