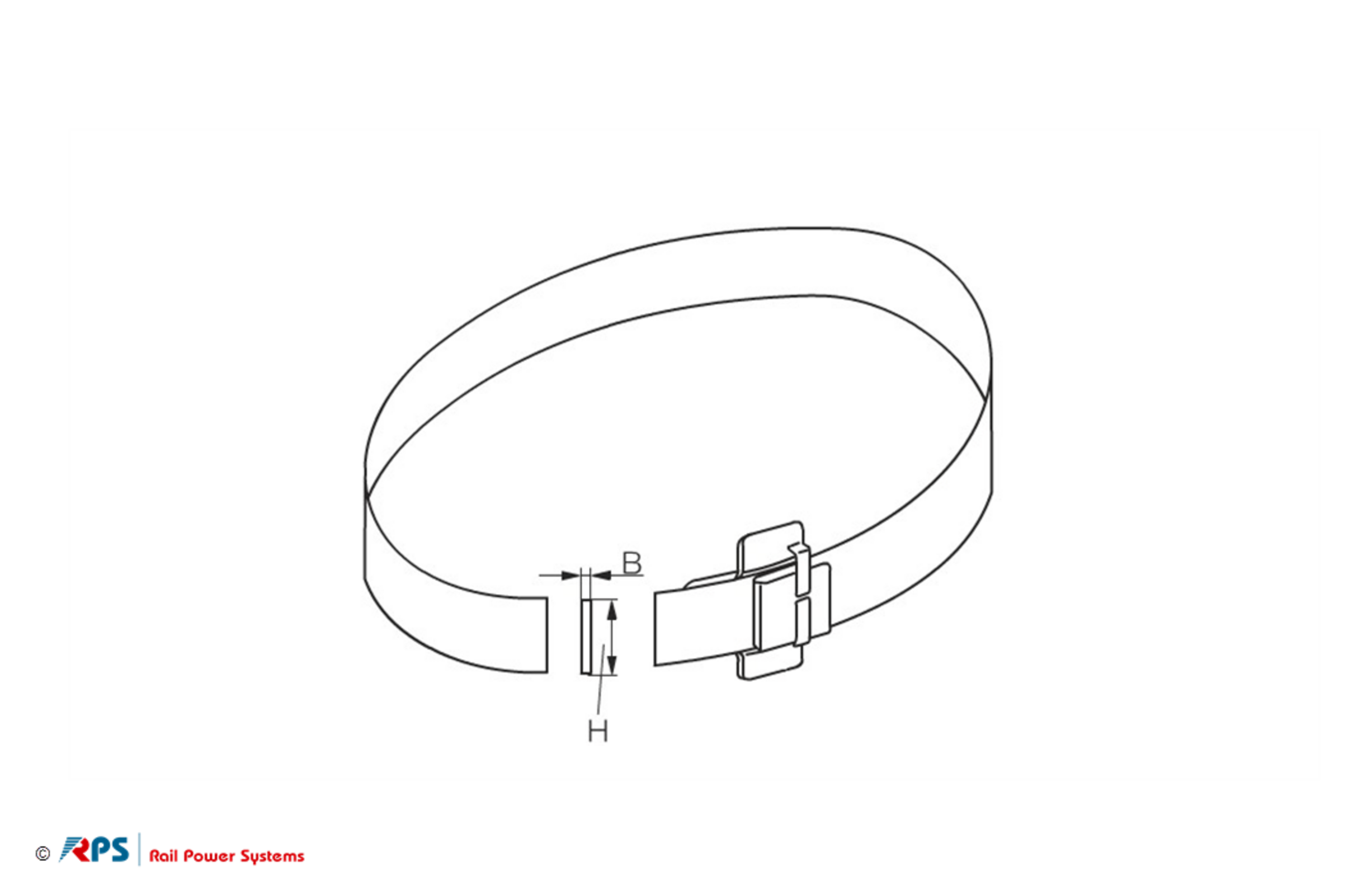

Strap Band
Variante: Strap band
|
|
for round mast
Mechanical values
| Wert | |
|---|---|
| Name | Strap band |
| Material | nrSt |
| Weight | 0,113 kg |
| Width | 0,7 mm |
| Height | 19 mm |
| Drawing Number | RB134 |
| Material-ID | 3EGF006784 |

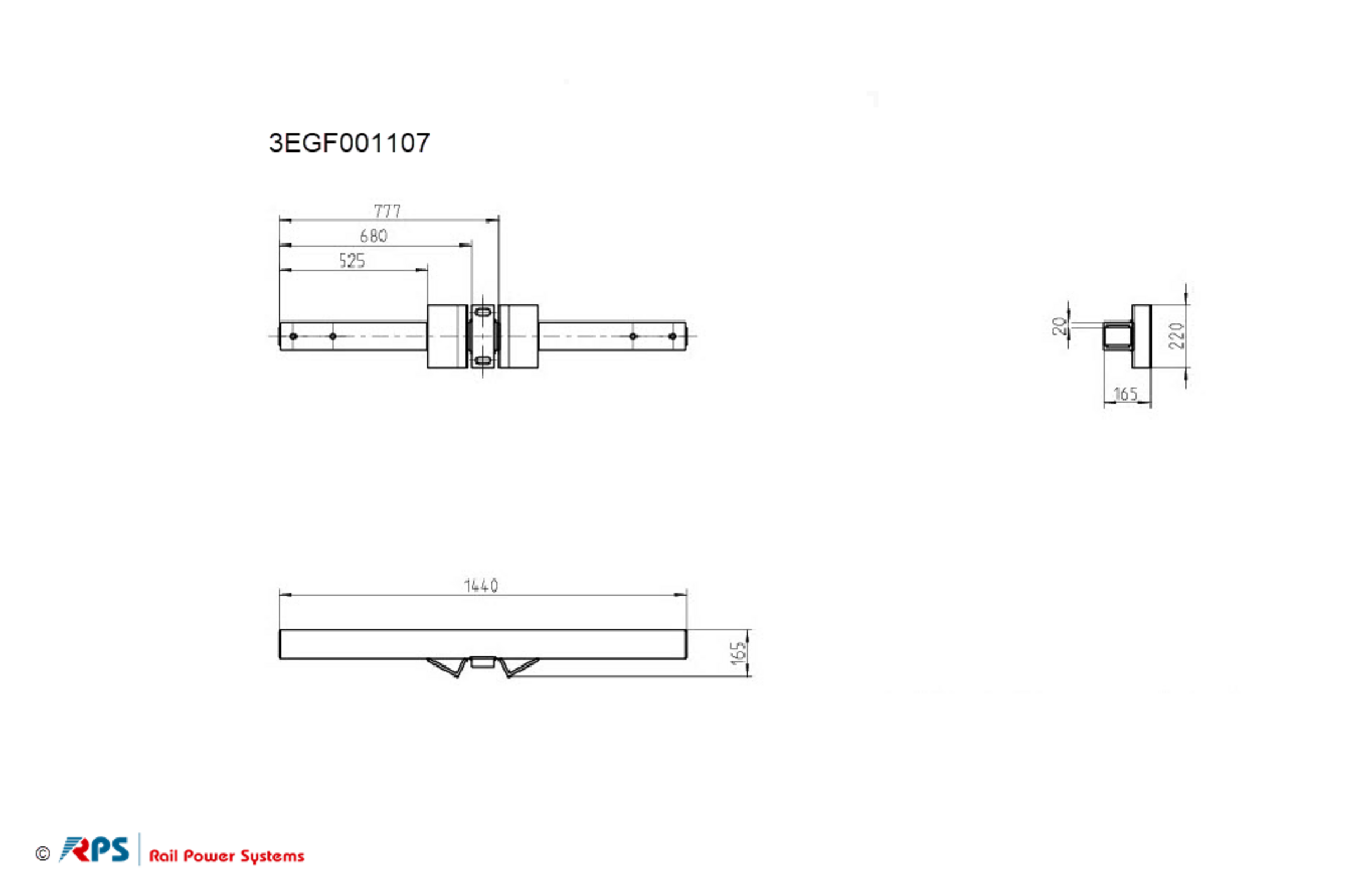

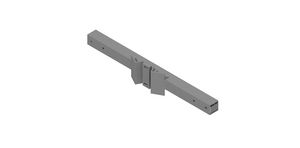

Cantilever mast bracket
Variante: Traverse Mastdurchmesser <= 250 mm
|
|
für Betonmast
Mechanical values
| Wert | |
|---|---|
| Name | Traverse Mastdurchmesser <= 250 mm |
| Ebs | Ebs 04.61.04 A |
| Material | AW 6082 |
| Weight | 13,48 kg |
| Mast Diameter | 250 mm |
| Drawing Number | EBS09.61.04 a |
| Material-ID | 3EGF001107 |

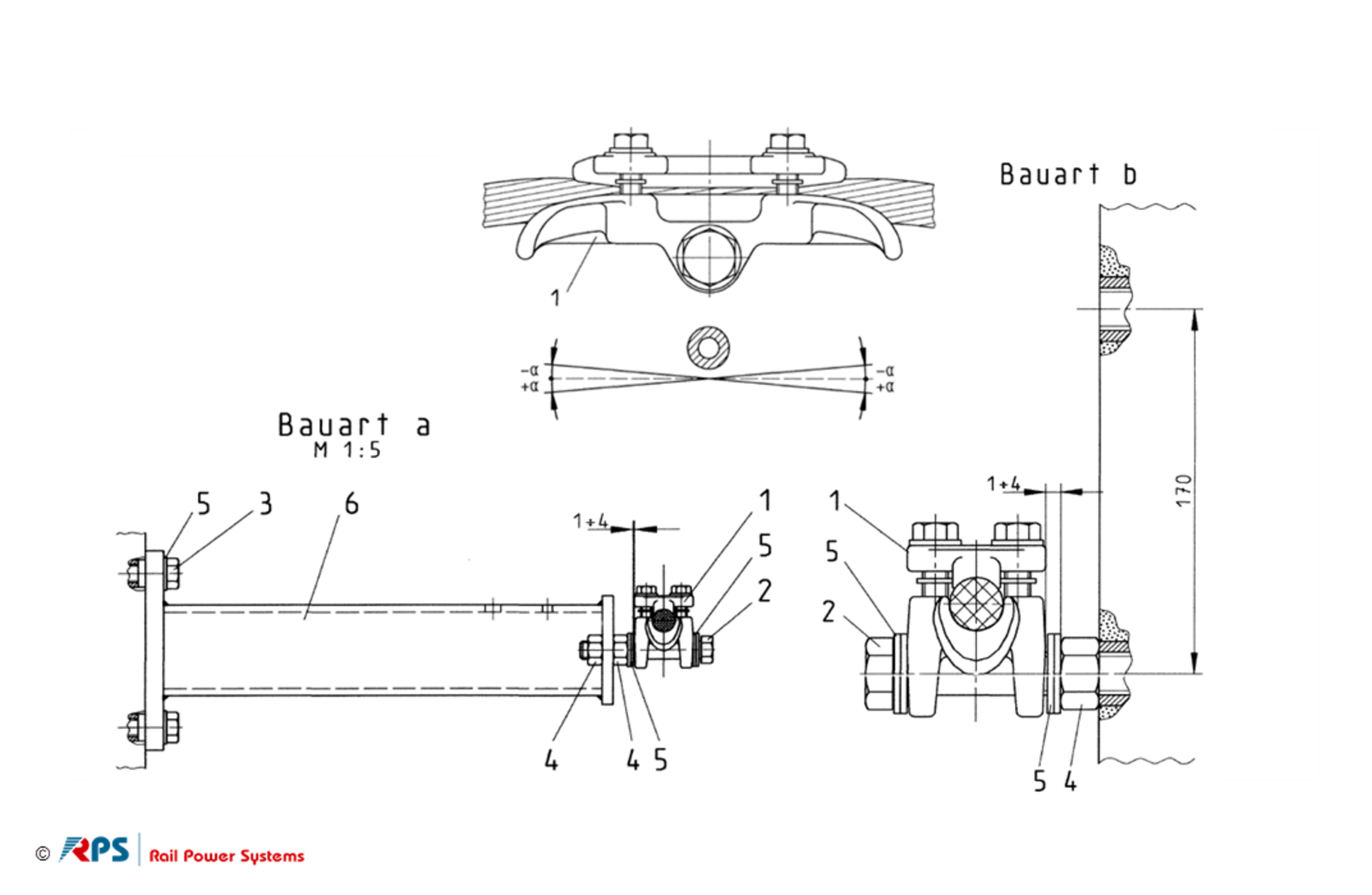

Suspension clamp
Variante: Suspension
|
|
For aluminium wire 240 mm²
At concrete mast.
Mechanical values
| Wert | |
|---|---|
| Name | Suspension |
| Ebs | Ebs 15.15.01 A |
| Build Type | a |
| Material | nrSt |
| Weight | 3 kg |
| Drawing Number | Ebs 15.15.01 a |
| Material-ID | 3EGF010343 |

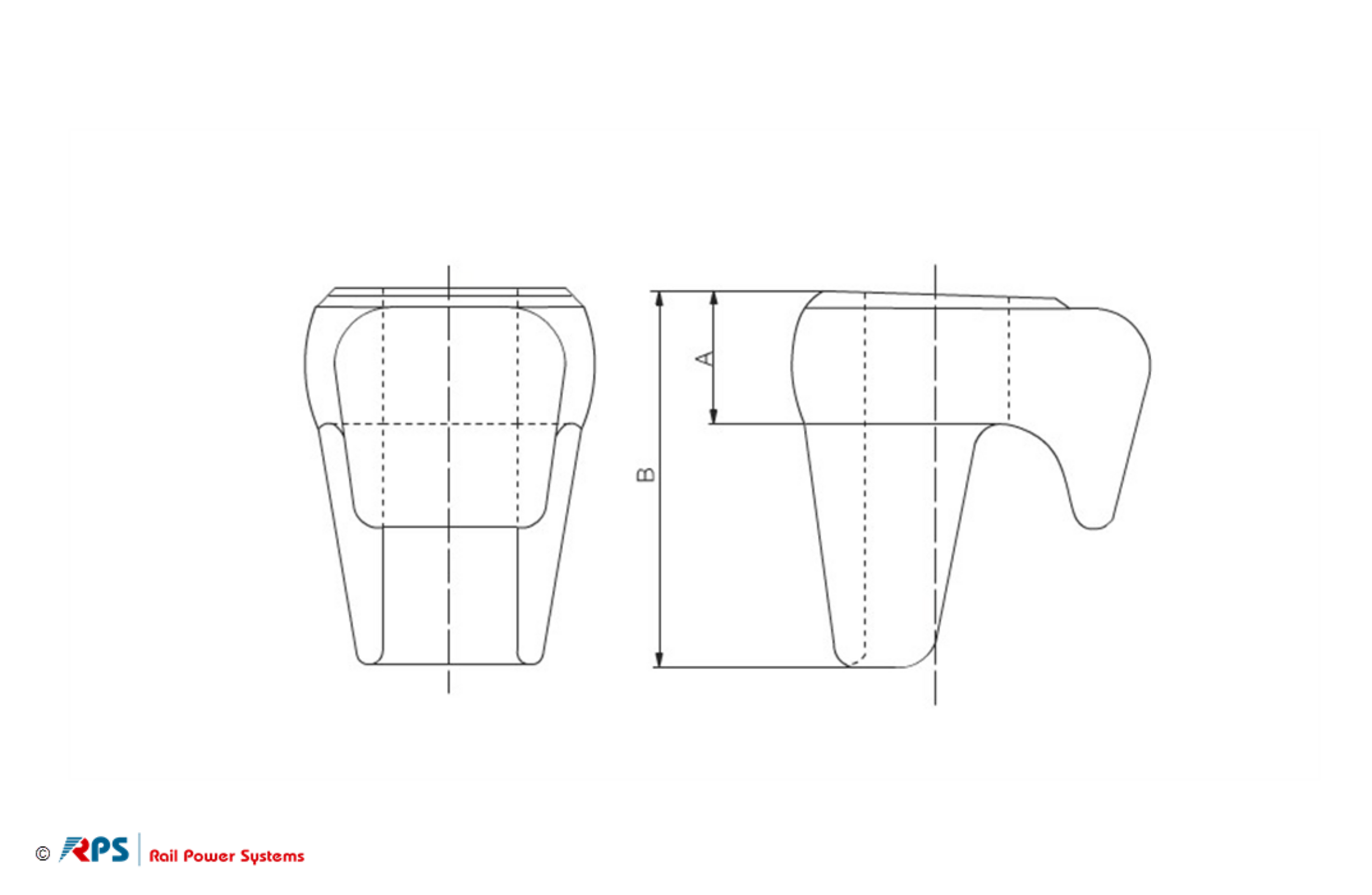

Hook claw
Variante: Klaue
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Klaue |
| Ebs | Ebs 04.54.07-1 |
| Material | Al |
| Weight | 0,17 kg |
| Width | 65 mm |
| Nominal Force | 75 kN |
| Drawing Number | Ebs 04.54.07 |
| Material-ID | 3EGF001024 |

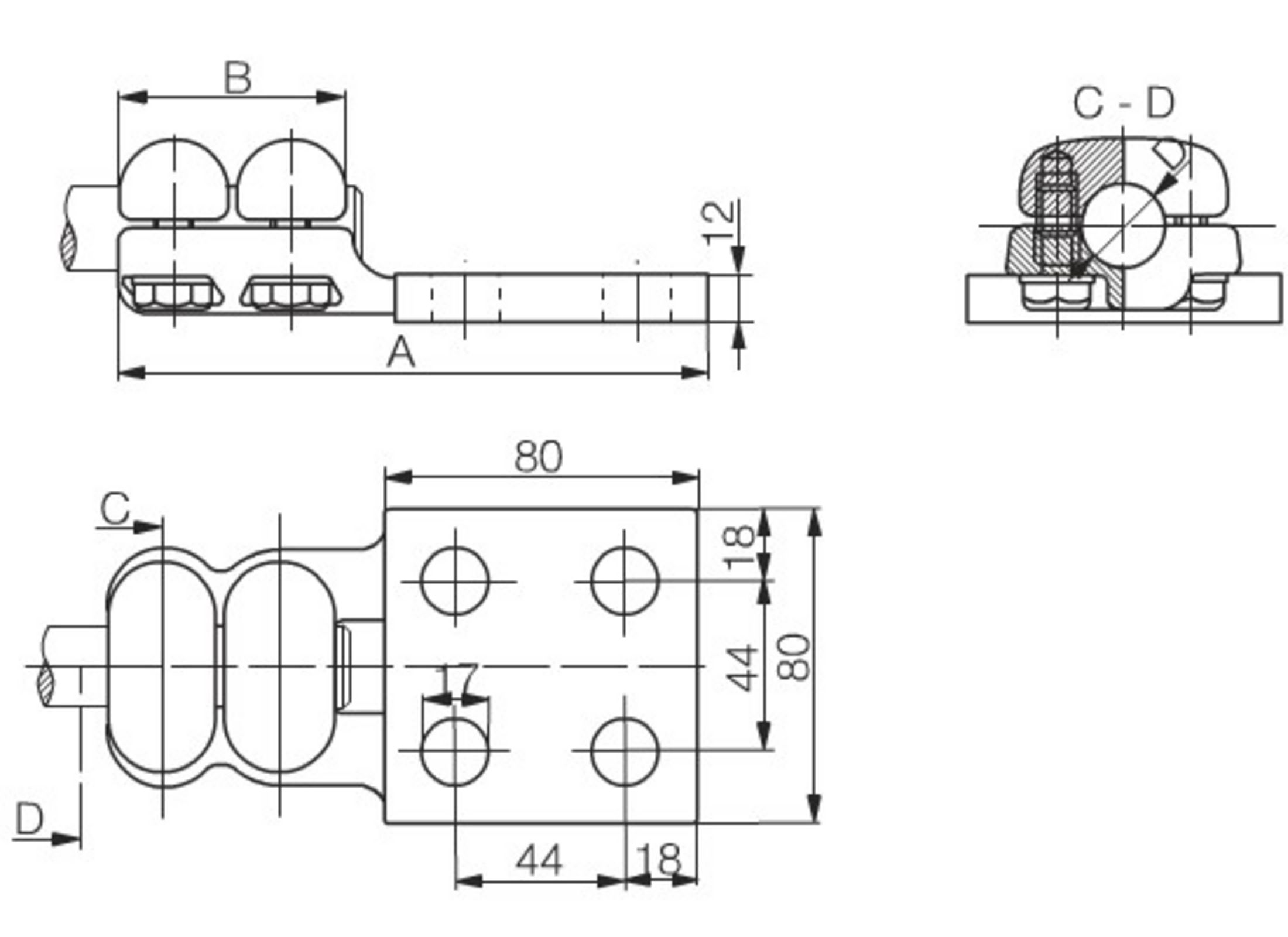

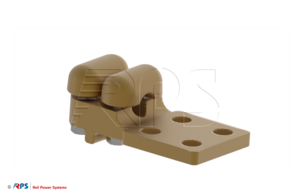

flat connector terminal
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Ebs | Ebs 09.31.10 A |
| Weight | 1,36 kg |
| Drawing Number | Ebs 09.31.10 a |
| Material-ID | 3EGF002099 |

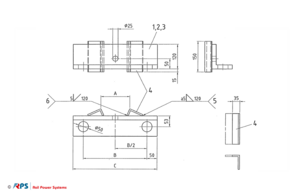

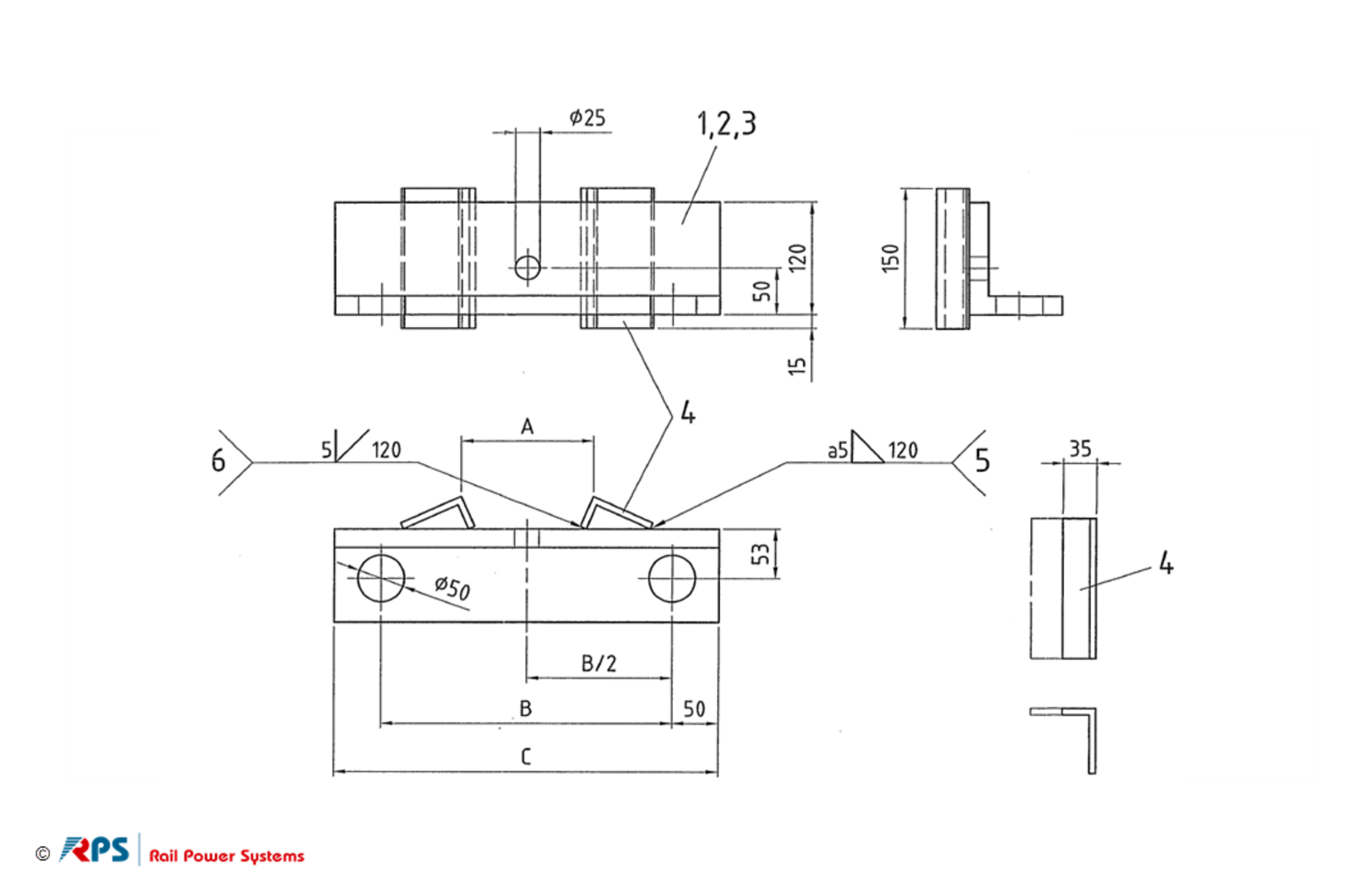

Mast Bracket
Variante: Mastverankerungswinkel
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Mastverankerungswinkel |
| Ebs | Ebs 04.54.43 C |
| Build Type | a |
| Material | nrSt |
| Weight | 3 kg |
| Mast Diameter | 195/260 mm |
| Drawing Number | Ebs 04.54.43 |
| Material-ID | 3EGF001094 |

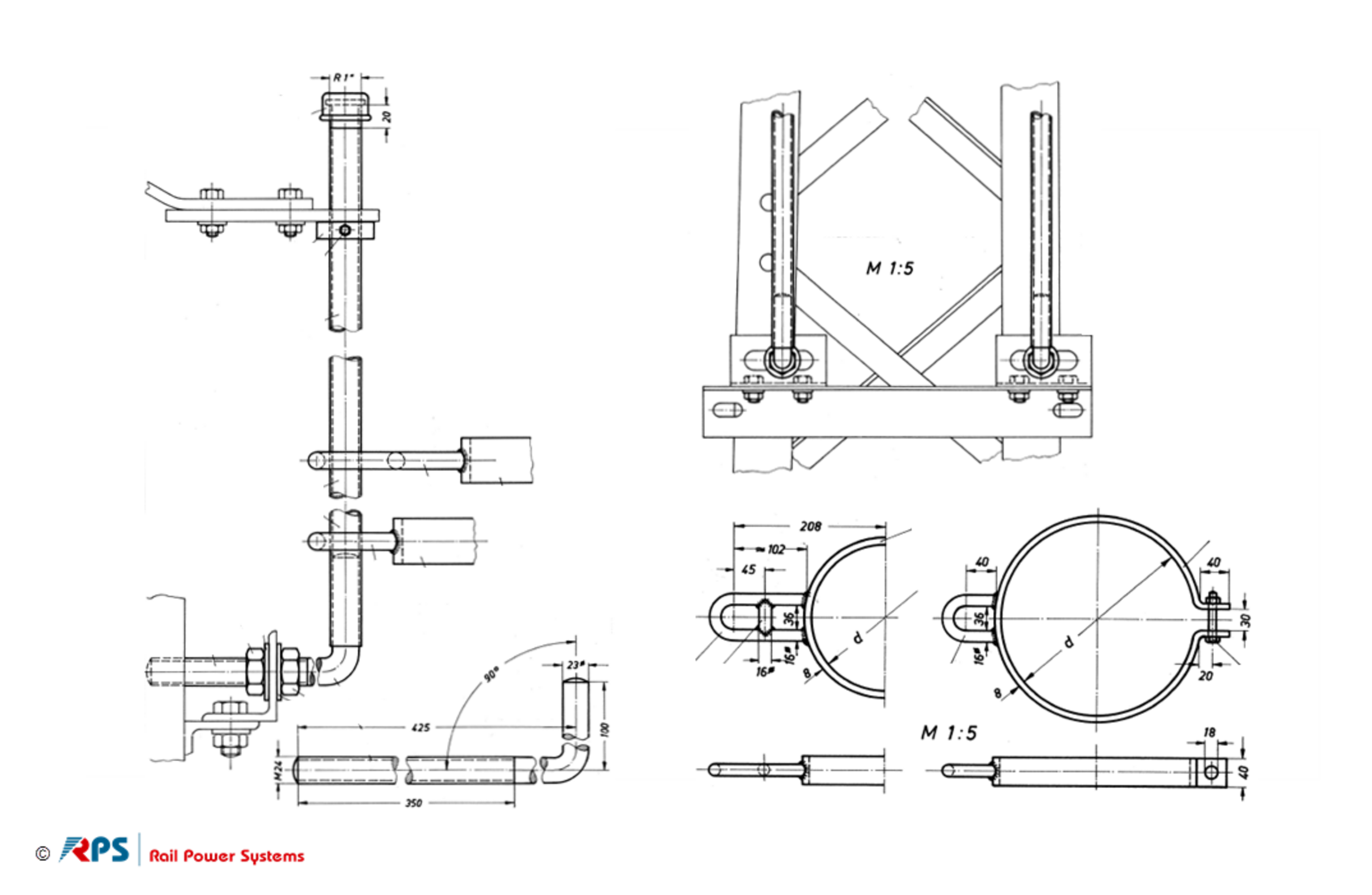

Bracket for weight
Variante: Guidebracket
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Guidebracket |
| Ebs | Ebs 08.10.07 C |
| Material | St |
| Weight | 3 kg |
| Drawing Number | EBS08.10.07 C |
| Material-ID | 3EGF001749 |
T-flat connector terminal
Variante: Terminal Clamp 4-hole wire 243/184
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Terminal Clamp 4-hole wire 243/184 |
| Ebs | Ebs 09.10.22-1 A |
| Build Type | 4-hole |
| Weight | 0,705 kg |
| Drawing Number | Ebs 09.10.22 |
| Material-ID | 3EGF002044 |

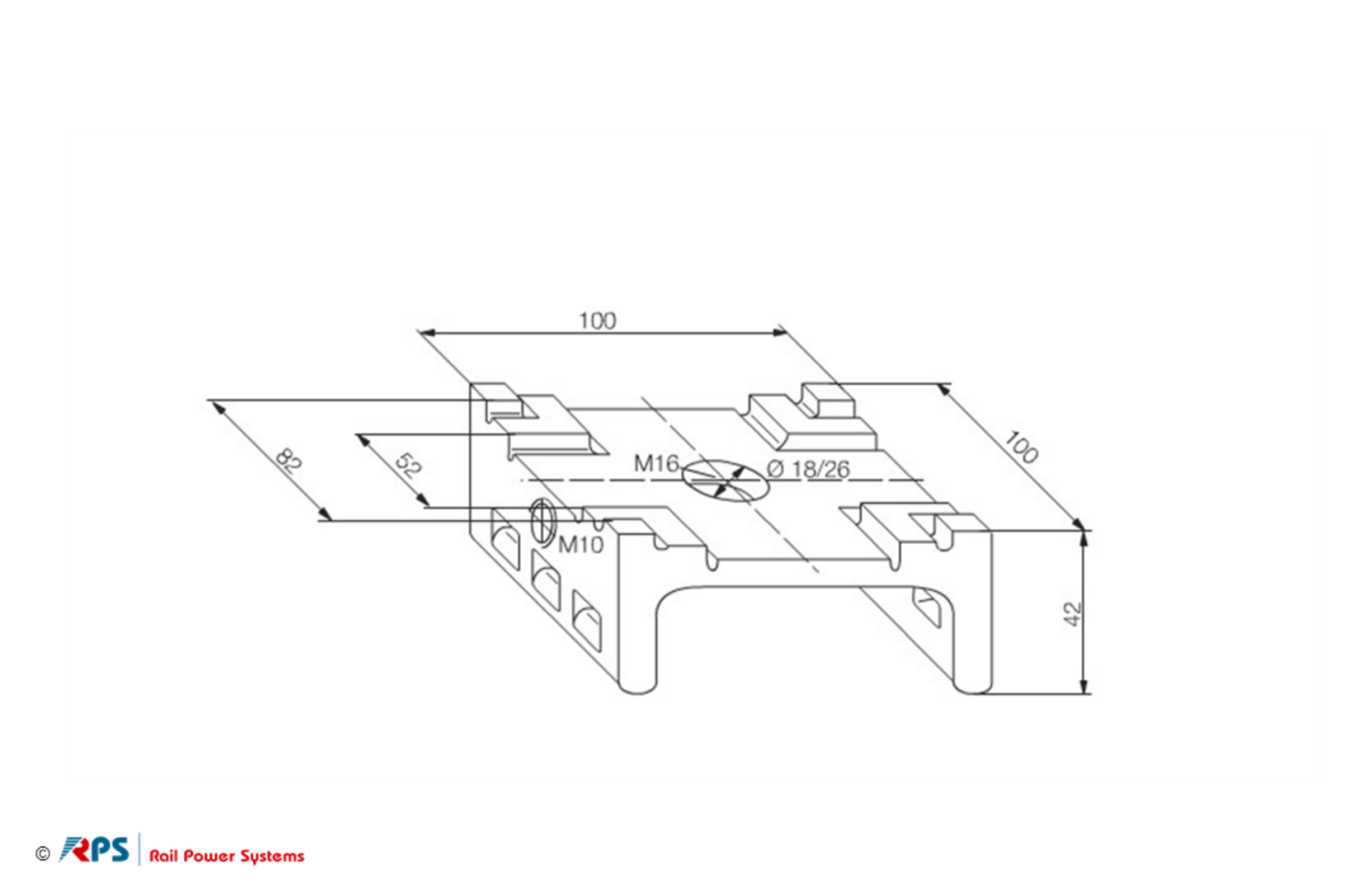

Adapter bracket (light-duty)
Variante: Adapter
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Adapter |
| Build Type | with thread M16 |
| Material | EPH |
| Weight | 0,50 kg |
| Drawing Number | GVT3509482 I |
| Material-ID | 3EGF006552 |

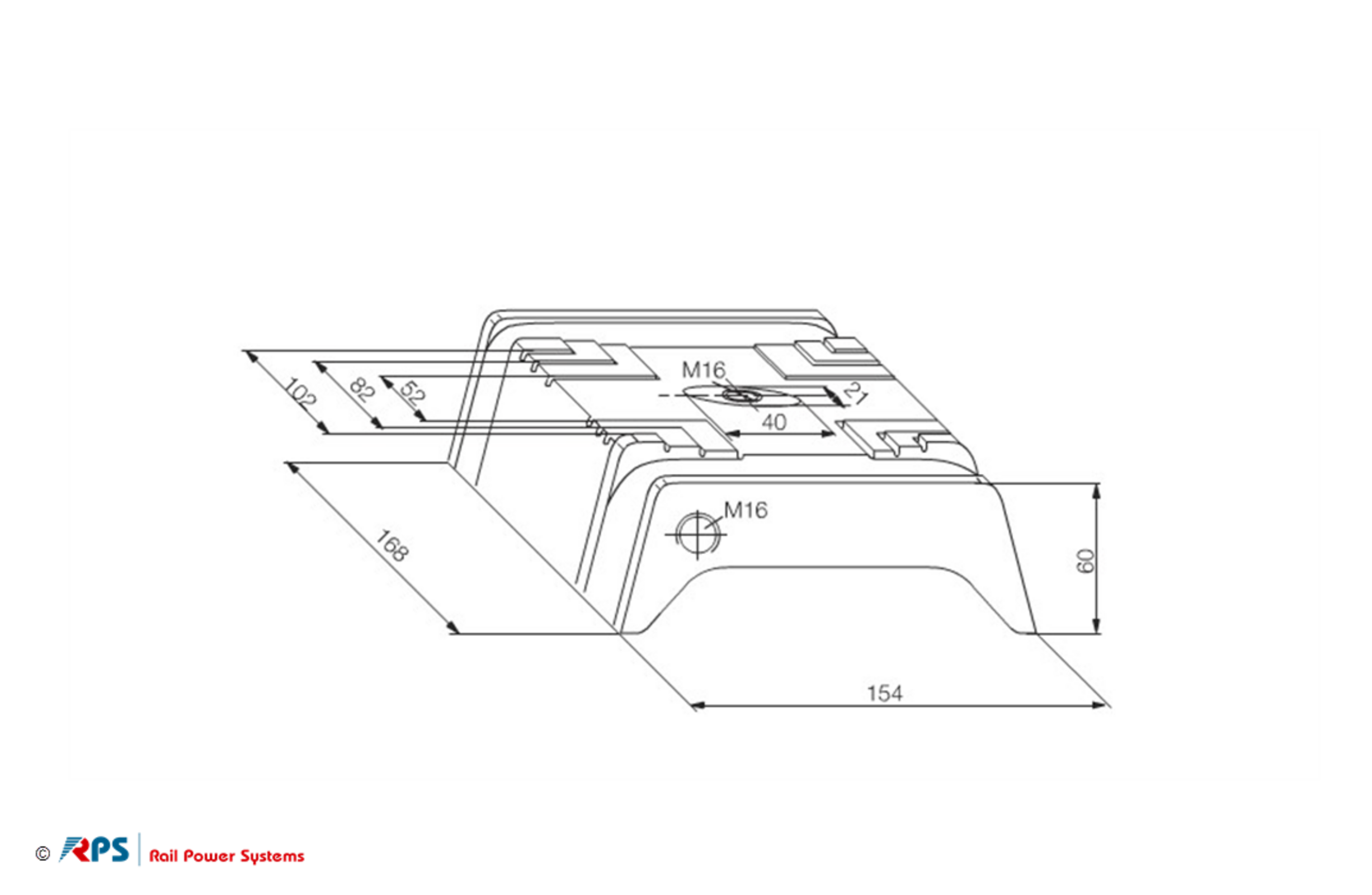

Adapter bracket (heavy-duty)
Variante: Adapter
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Adapter |
| Build Type | with thread M16 |
| Material | EPH |
| Weight | 1,30 kg |
| Drawing Number | GVT1516483 A |
| Material-ID | 3EGF006898 |

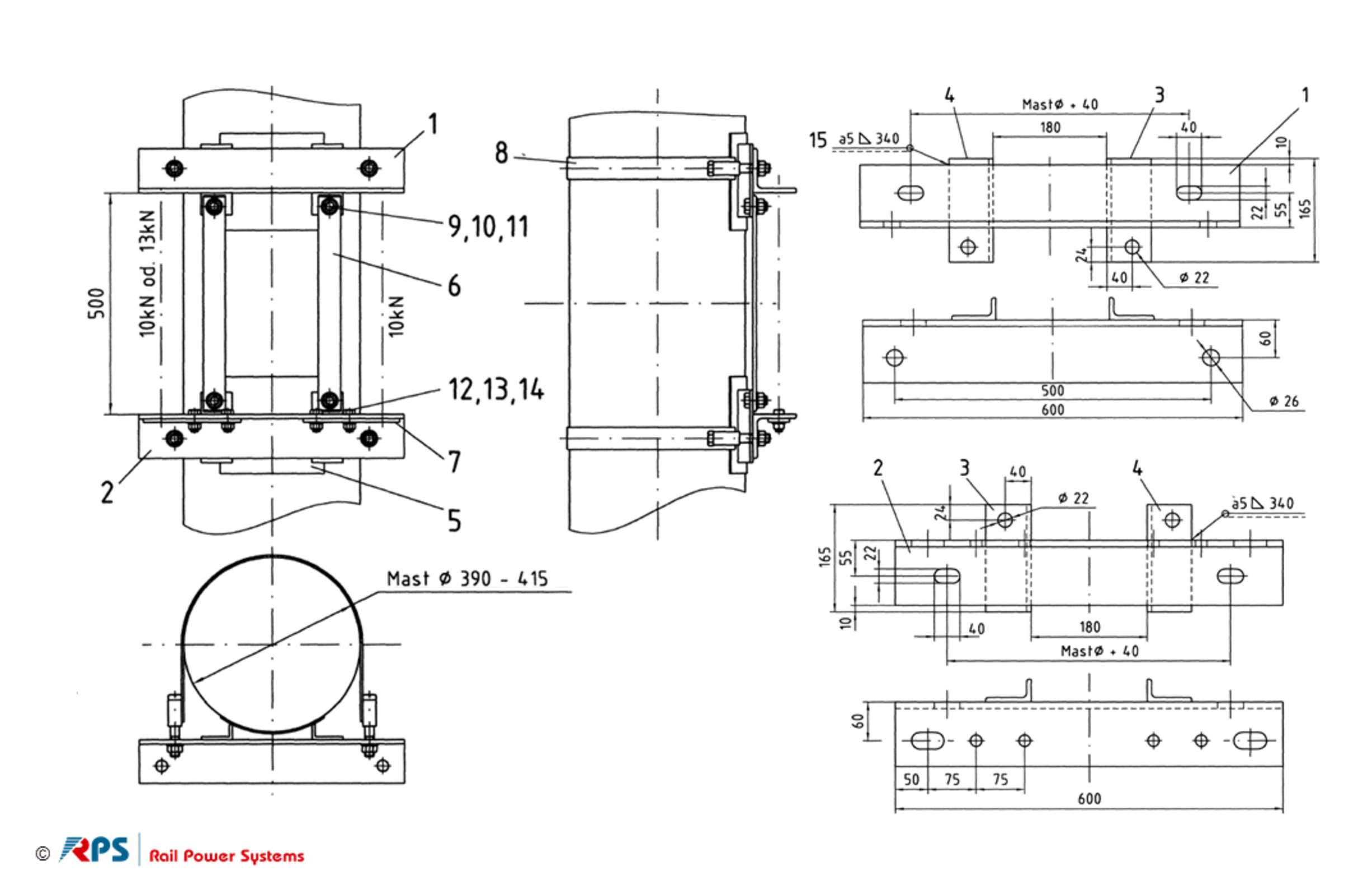

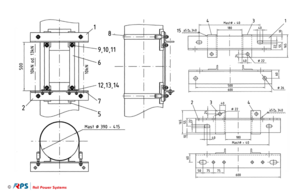

Mast bracket
Variante: Fastening bracket
|
|
For two tension wheels side by side at concrete mast.
Mechanical values
| Wert | |
|---|---|
| Name | Fastening bracket |
| Ebs | Ebs 08.09.63 |
| Material | S355JO |
| Weight | 3 kg |
| Drawing Number | Ebs 08.09.63 |
| Material-ID | 3EGF011622 |

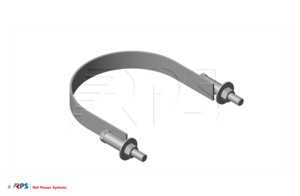

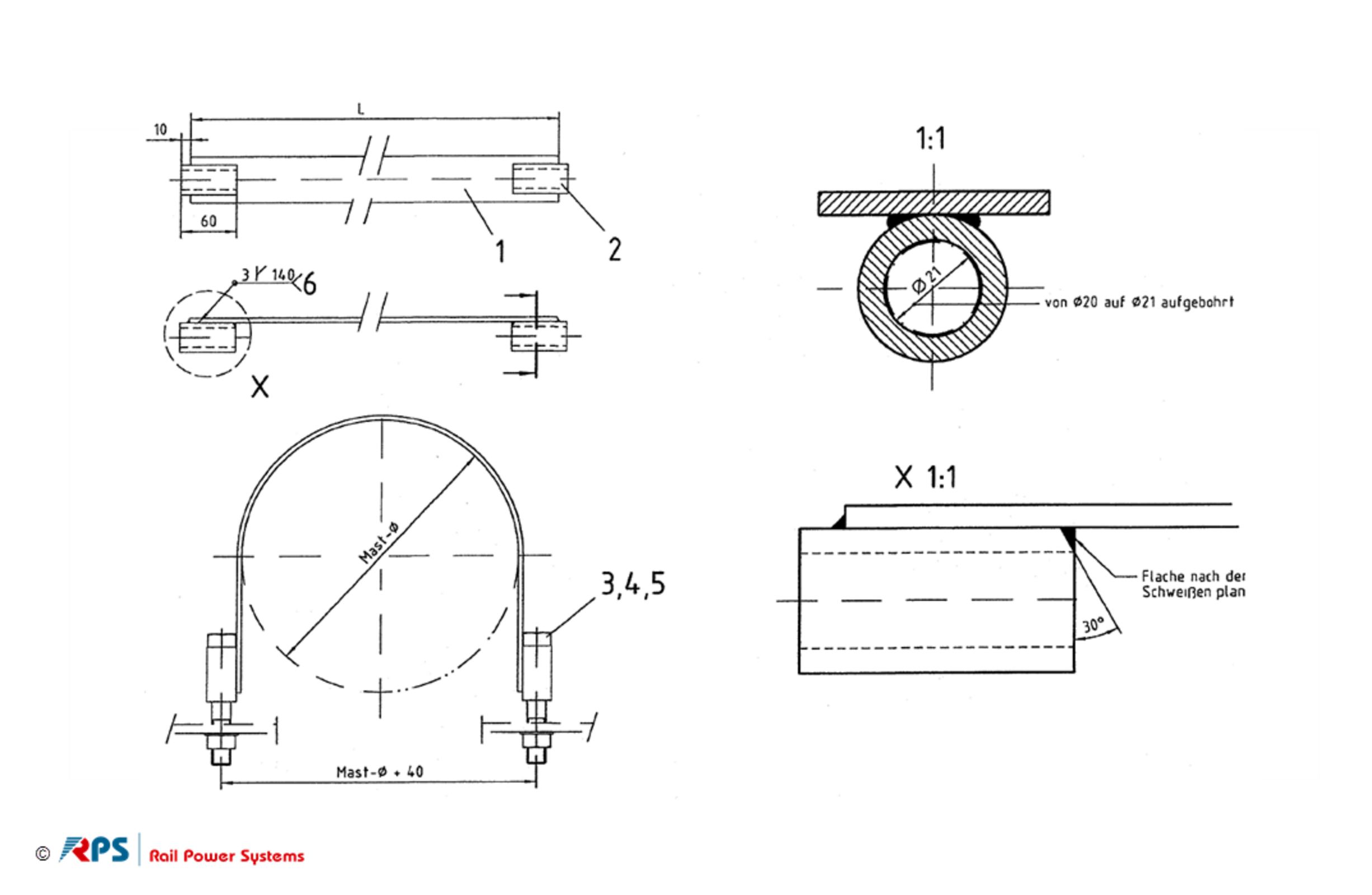

Tension band wrap-around strap Ø 100 - 800 mm
Variante: Tension band / strap
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Tension band / strap |
| Ebs | Ebs 04.54.45 |
| Material | nrSt |
| Weight | 1,81 kg (ø100) bis 5,13 kg (ø800) kg |
| Nominal Force | 80 kN |
| Drawing Number | Ebs 04.54.45 |
| Material-ID | 3EGF011027 |

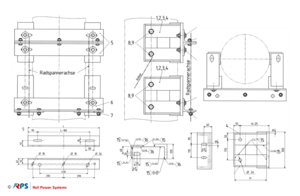

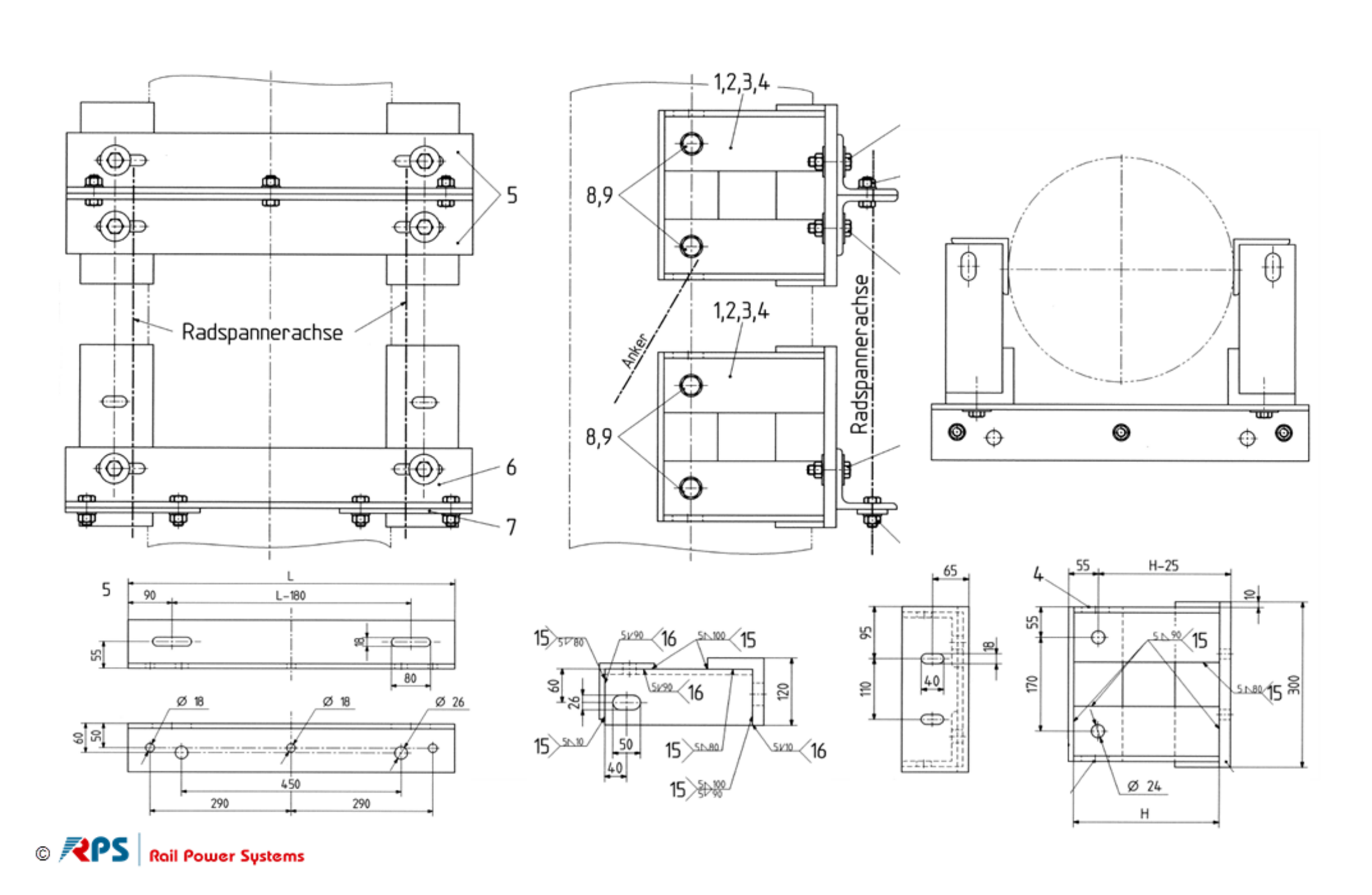

Mast bracket high speed
Variante: Fastening bracket
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Fastening bracket |
| Ebs | Ebs 08.09.46 A |
| Build Type | parallel |
| Material | A2-70 |
| Weight | 3 kg |
| Mast Diameter | 300 - 460 mm |
| Nominal Force | 60 kN |
| Drawing Number | 08.09.46 a |
| Material-ID | 3EGF001703 |

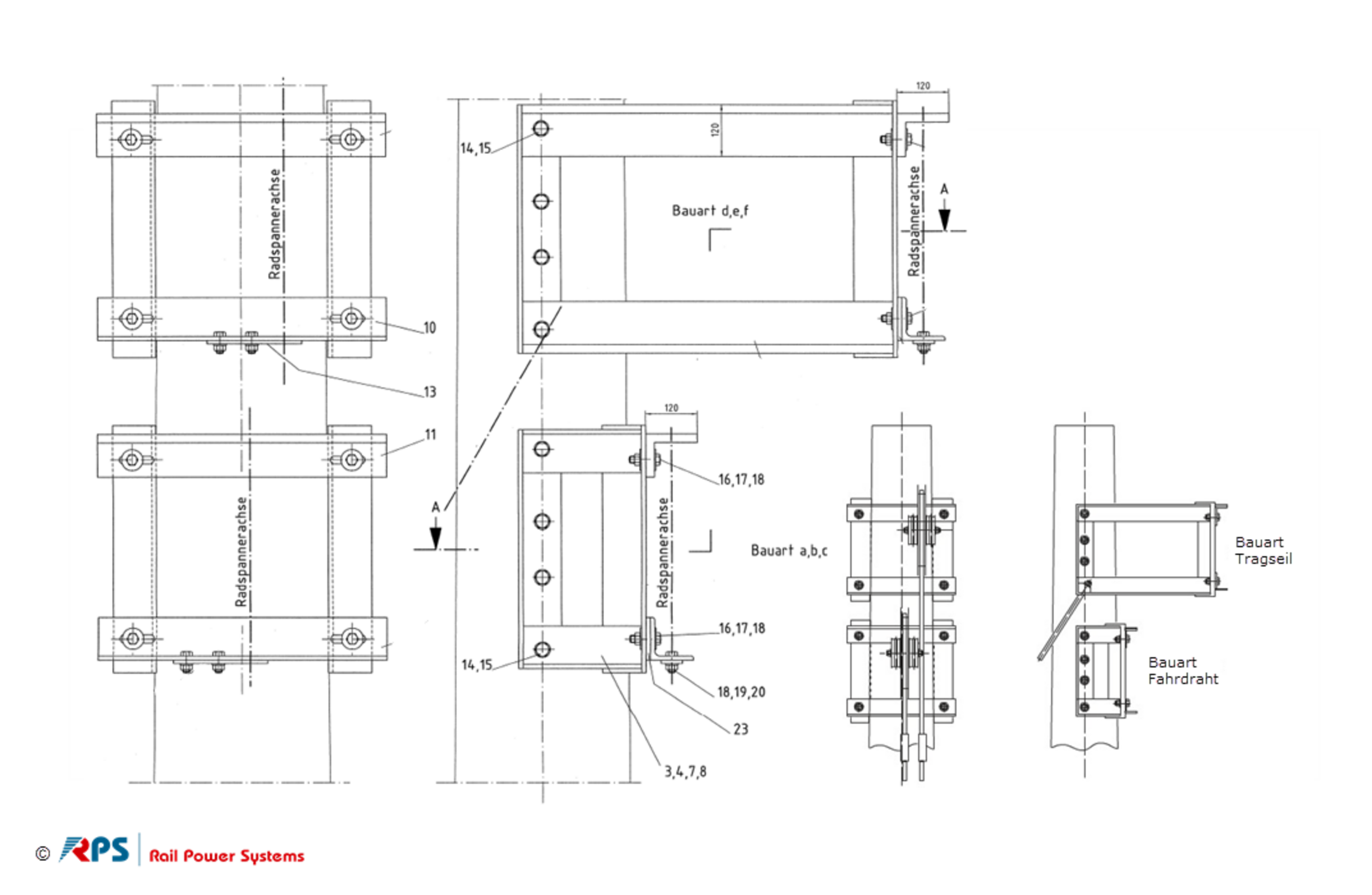

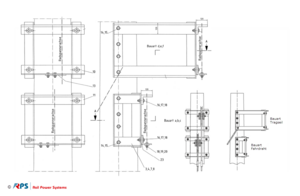

Mast bracket high speed
Variante: Fastening bracket
|
|
For two tension wheels one in front of another at concrete mast.
FD = Fahrdraht (contact wire);
TS = Tragseil (catenary messenger)
Mechanical values
| Wert | |
|---|---|
| Name | Fastening bracket |
| Ebs | Ebs 08.09.47 A |
| Build Type | series FD |
| Material | A2-70 |
| Weight | 3 kg |
| Mast Diameter | 300 - 460 mm |
| Nominal Force | 60 kN |
| Drawing Number | 08.09.47 a |
| Material-ID | 3EGF001711 |
