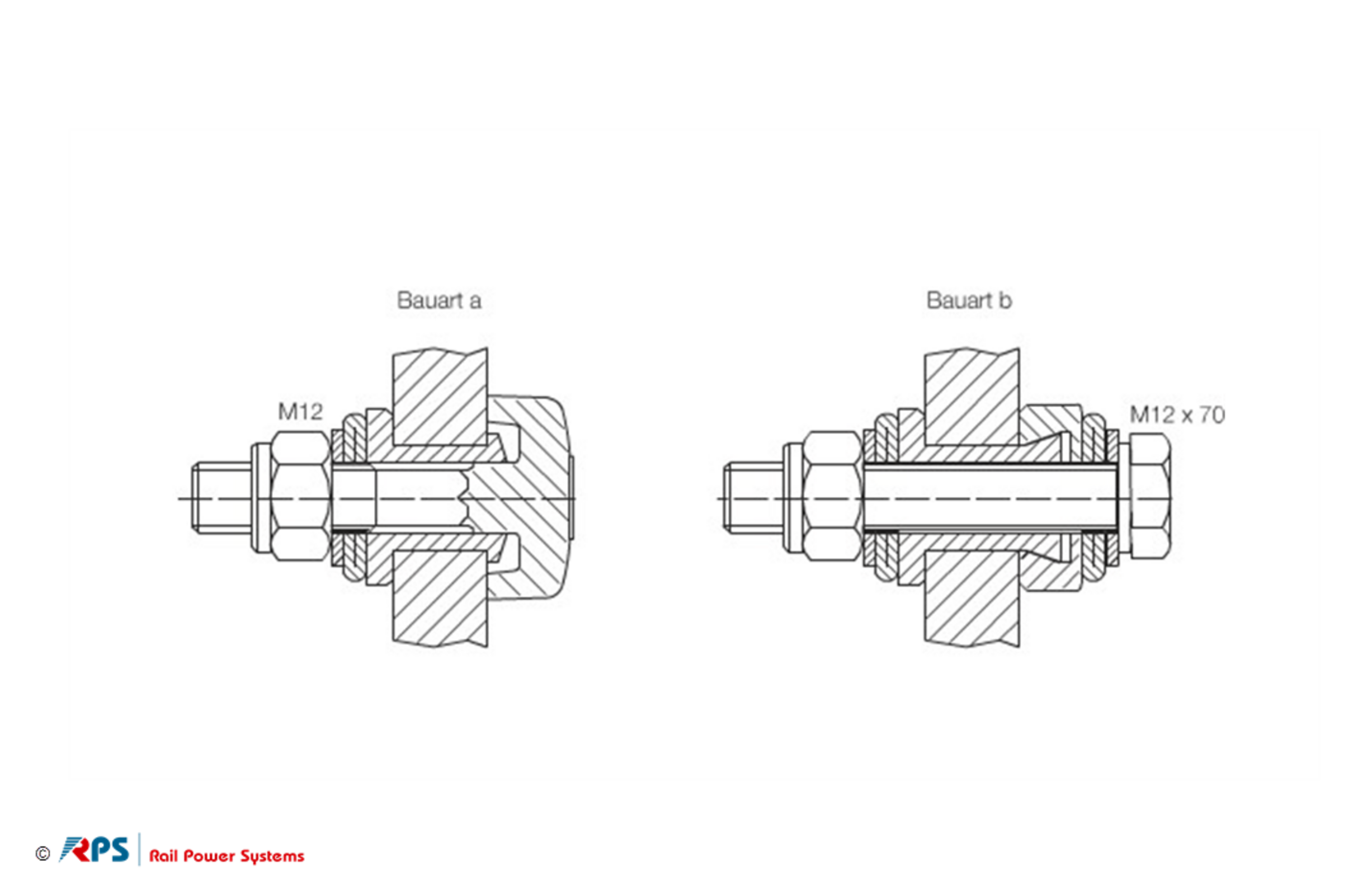

Connection to rail for S 49, S 54, UIC 60 and R 65
Variante: Rail contact system
|
|
For S 49, S 54, UIC 60 and R 65.
Mechanical values
| Wert | |
|---|---|
| Name | Rail contact system |
| Ebs | Ebs 15.03.23-1 A |
| Build Type | a |
| Material | nrSt |
| Weight | 0,16 kg |
| Drawing Number | Ebs 15.03.23 a Bl. 1 |
| Material-ID | 3EGF010525 |

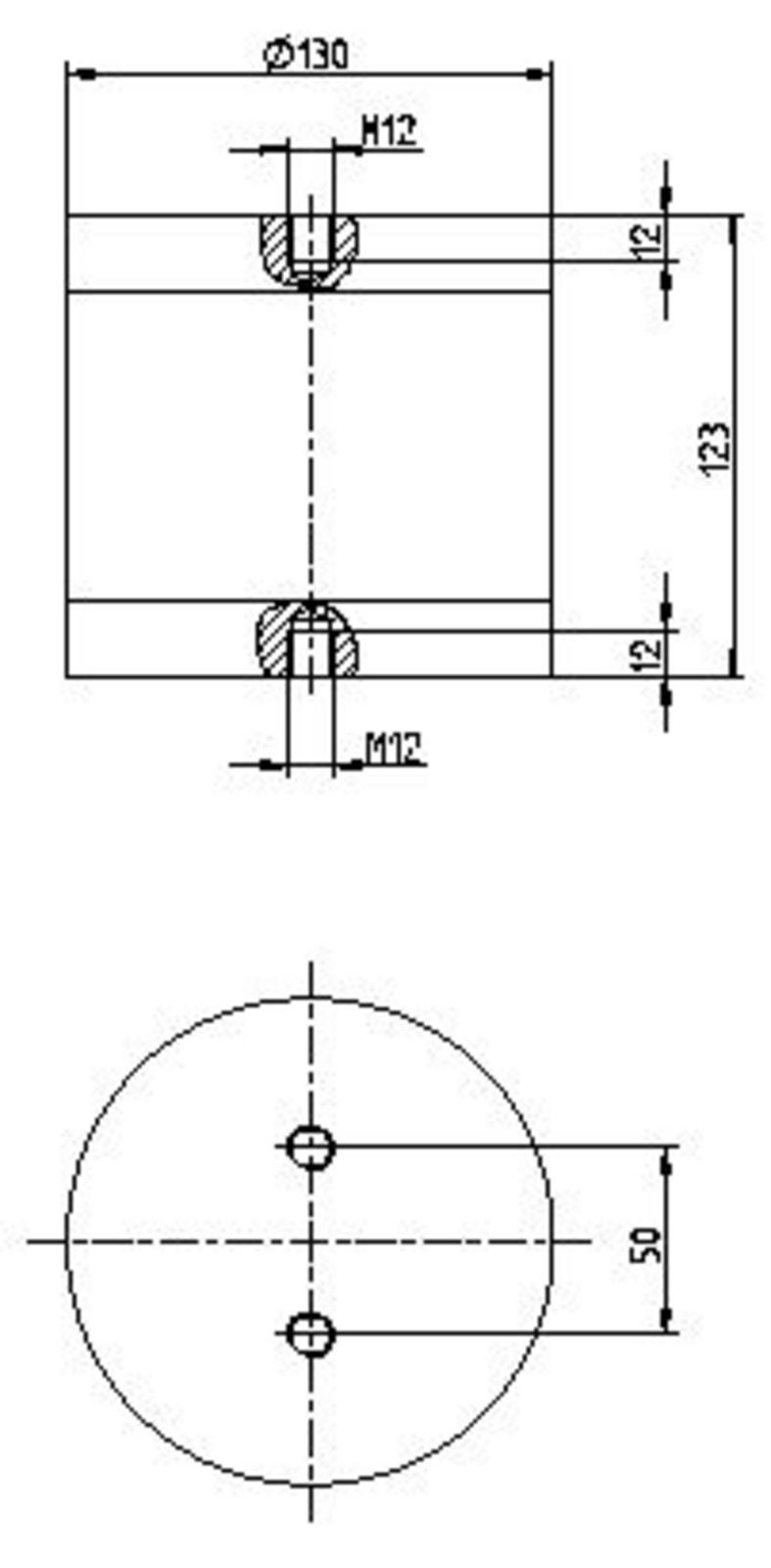

Low Voltage Limiter HVL 60-0.3
Variante: Low voltage limiter
|
|
Mechanical values
| Wert | |
|---|---|
| Material-ID | 3EGF020609 |
Electrical values
| Wert | |
|---|---|
| Name | Low voltage limiter |
| Build Type | 60V, nach EN505026-2 |
| Weight | 4 kg |
| Drawing Number | 1HC0129170 |

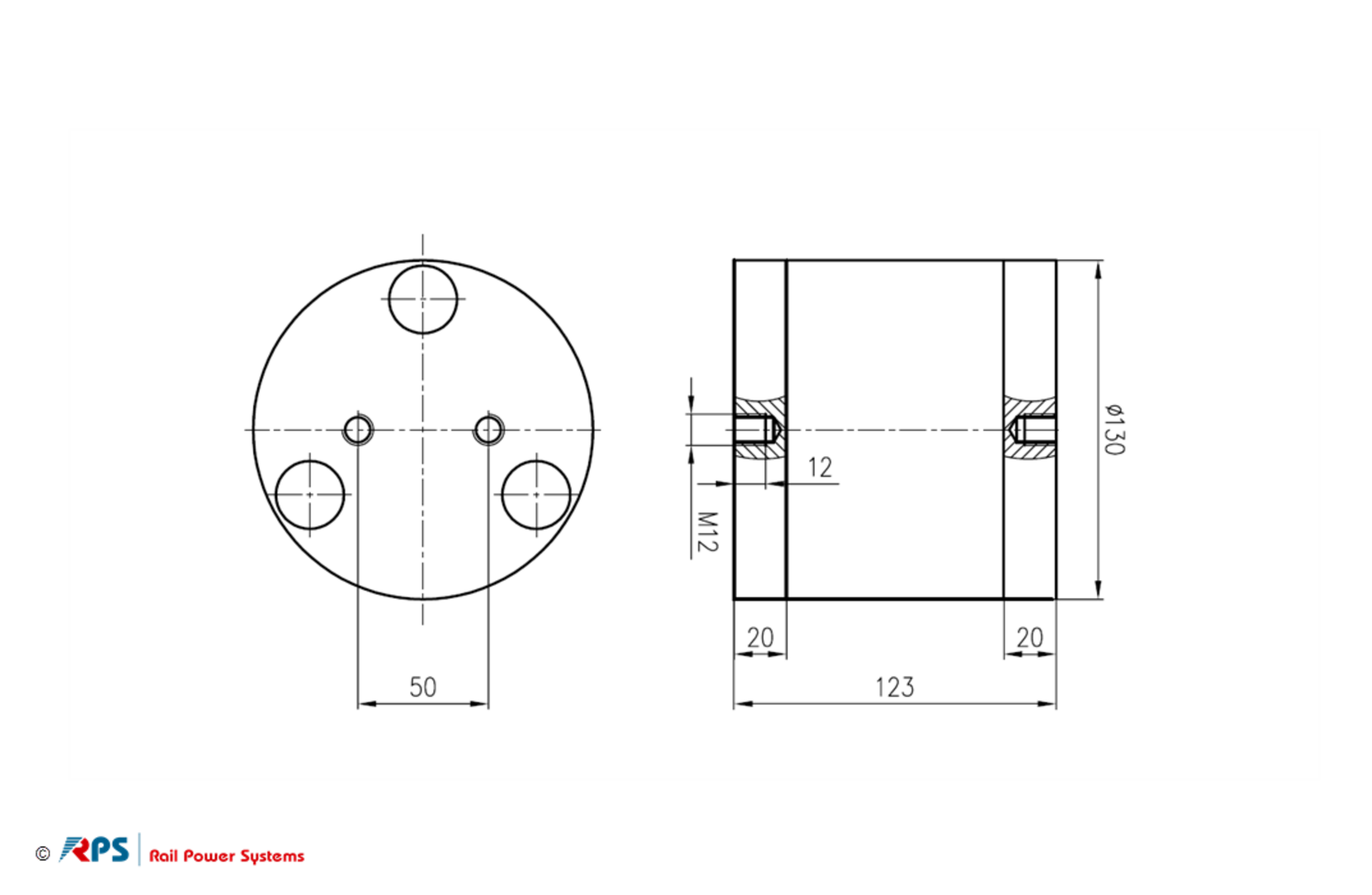

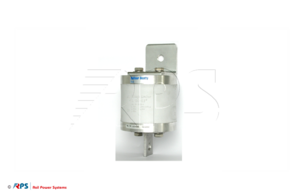

Low Voltage Limiter HVL 120-0.3
Variante: Low voltage limiter
|
|
Component: HVL 120-0.3
For DC systems.
For public safety and equipment protection.
EN 50 122-1/EN 50123-5
The low voltage limiter HVL consists of a metal oxide varistor and two thyristors in antiparallel connection.
Short-time overvoltages with a duration of less than 0.4 ms are limited by the metal oxide resistor. Due to the thyristors voltages with a duration of 0.4 ms or more are limited to 3 V.
The maximum voltage in accordance with EN 50123-5, table 5.2, can be reduced or increased on request as the case arises.
Including fittings (tee and angle).
Mechanical values
| Wert | |
|---|---|
| Name | Low voltage limiter |
| Build Type | 120 V |
| Weight | 3,8 kg |
| Drawing Number | 1HC0019144 |
| Material-ID | 3EGF012420 |
Surge Arrester Type POLIM-H
Variante: Surge arrester
|
|
For DC systems (indoor and outdoor installation)
silicone rubber casing.
Fadenlänge: 176 mm
Mechanical values
| Wert | |
|---|---|
| Name | Surge arrester |
| Build Type | POLIM-H 1 ND |
| Weight | 6,1 kg |
| Creepage Path | 327 mm |
| Rated impulse withstand voltage | 1,0 kV |
| Drawing Number | HAWA481453 |
| Material-ID | 3EGF011037 |

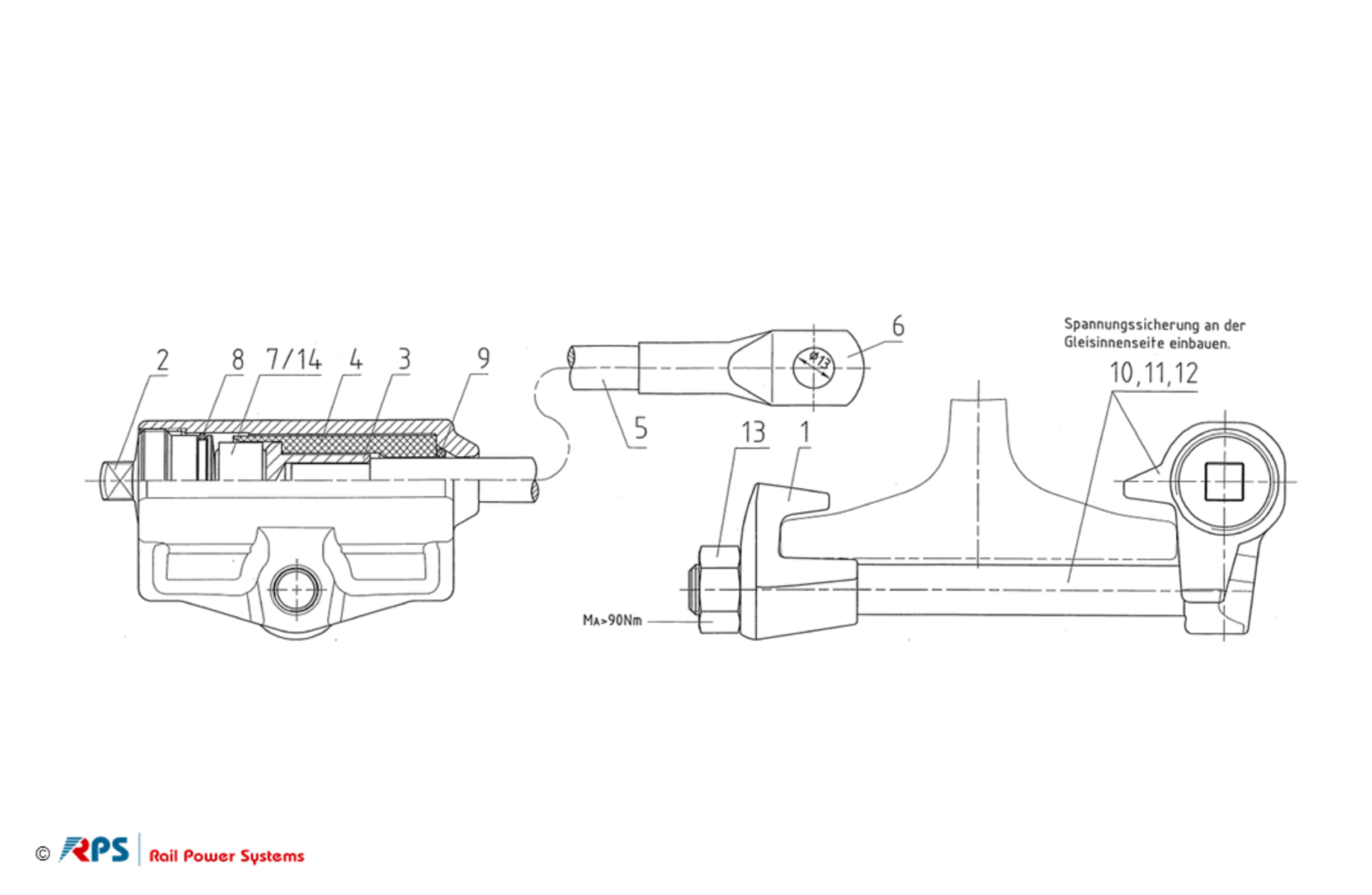

Voltage limiter
Variante: Voltage fuse
|
|
For rail fastening.
Including earth wire 50 mm².
Material body/ shackle: G-CuSn
Mechanical values
| Wert | |
|---|---|
| Name | Voltage fuse |
| Ebs | Ebs 15.13.18 BL1 A |
| Build Type | for rail S 49 |
| Material | G-CuSn |
| Weight | 1,7 kg |
| Drawing Number | Ebs 15.13.18 a |
| Material-ID | 3EGF002532 |

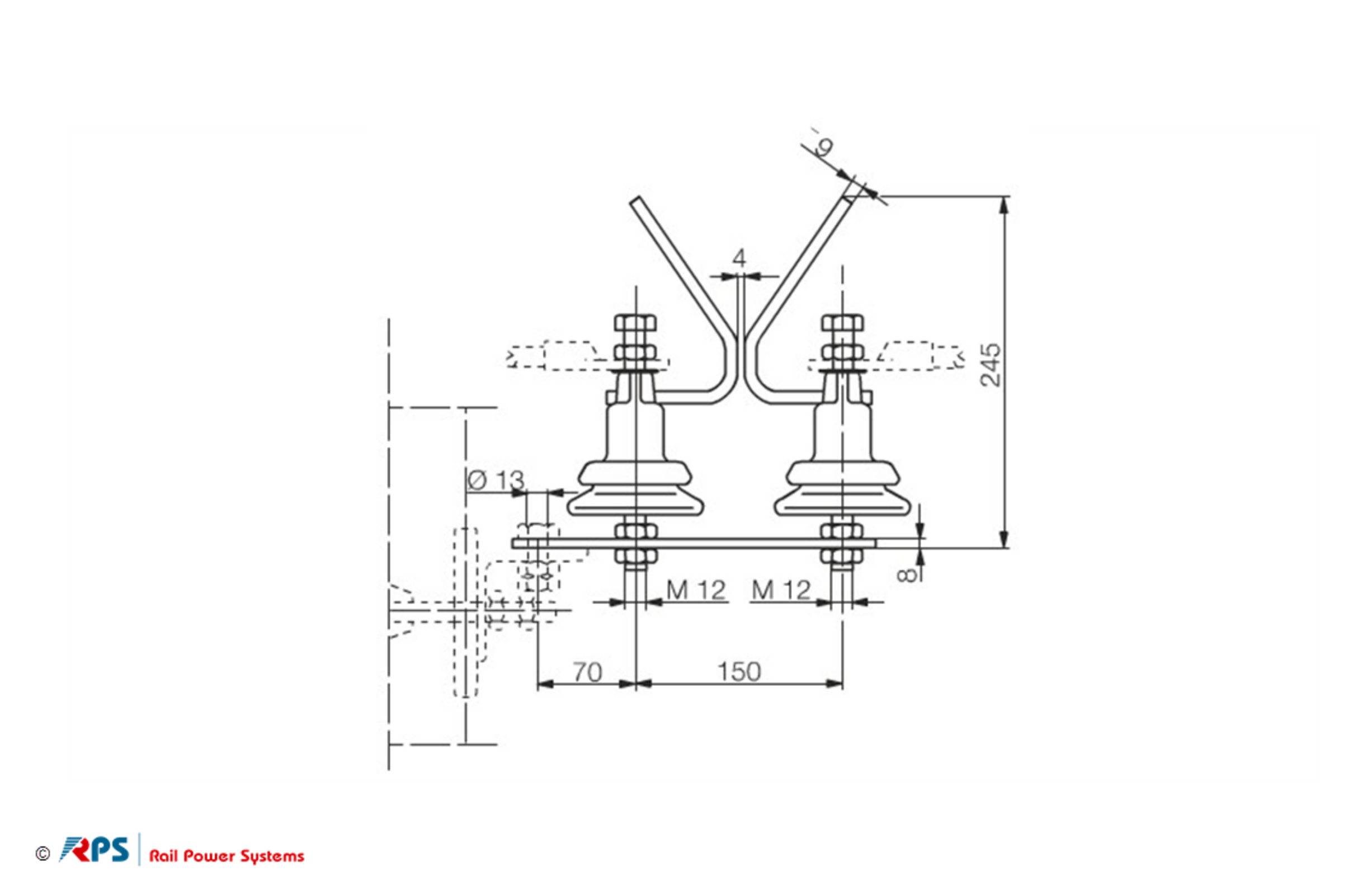

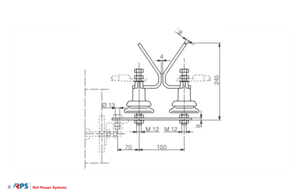

Lightning arrester 1.5 kV
Variante: Horn gap lightning arrester
|
|
For DC and AC overhead contact line systems, with cast resin insulator, cast iron cap and copper horns.
Mechanical values
| Wert | |
|---|---|
| Name | Horn gap lightning arrester |
| Material | Cu, Epoxy resin, GTW |
| Weight | 5,0 kg |
| Rated impulse withstand voltage | 1500 kV |
| 4 | |
| Drawing Number | GVT3526015 |
| Material-ID | 3EGF008212 |

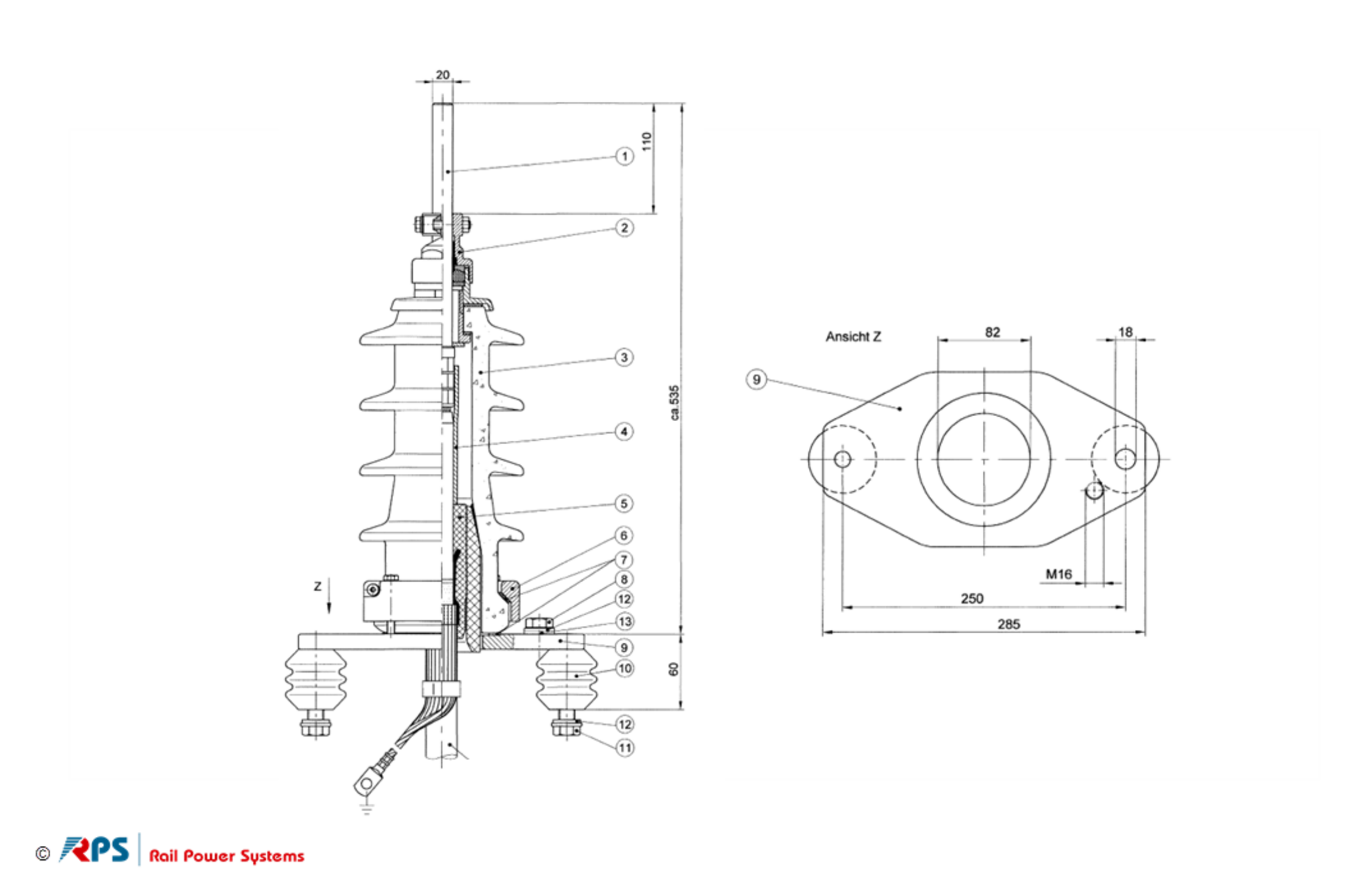

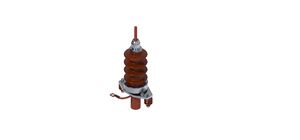

Sealed Cable Termination (outdoor)
Variante: Cable termination
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cable termination |
| Ebs | Ebs 09.31.11 |
| Weight | 11,0 kg |
| Wire Size | 240 |
| Rated impulse withstand voltage | 30 kV |
| Drawing Number | Ebs 09.31.11 |
| Material-ID | 3EGF002102 |

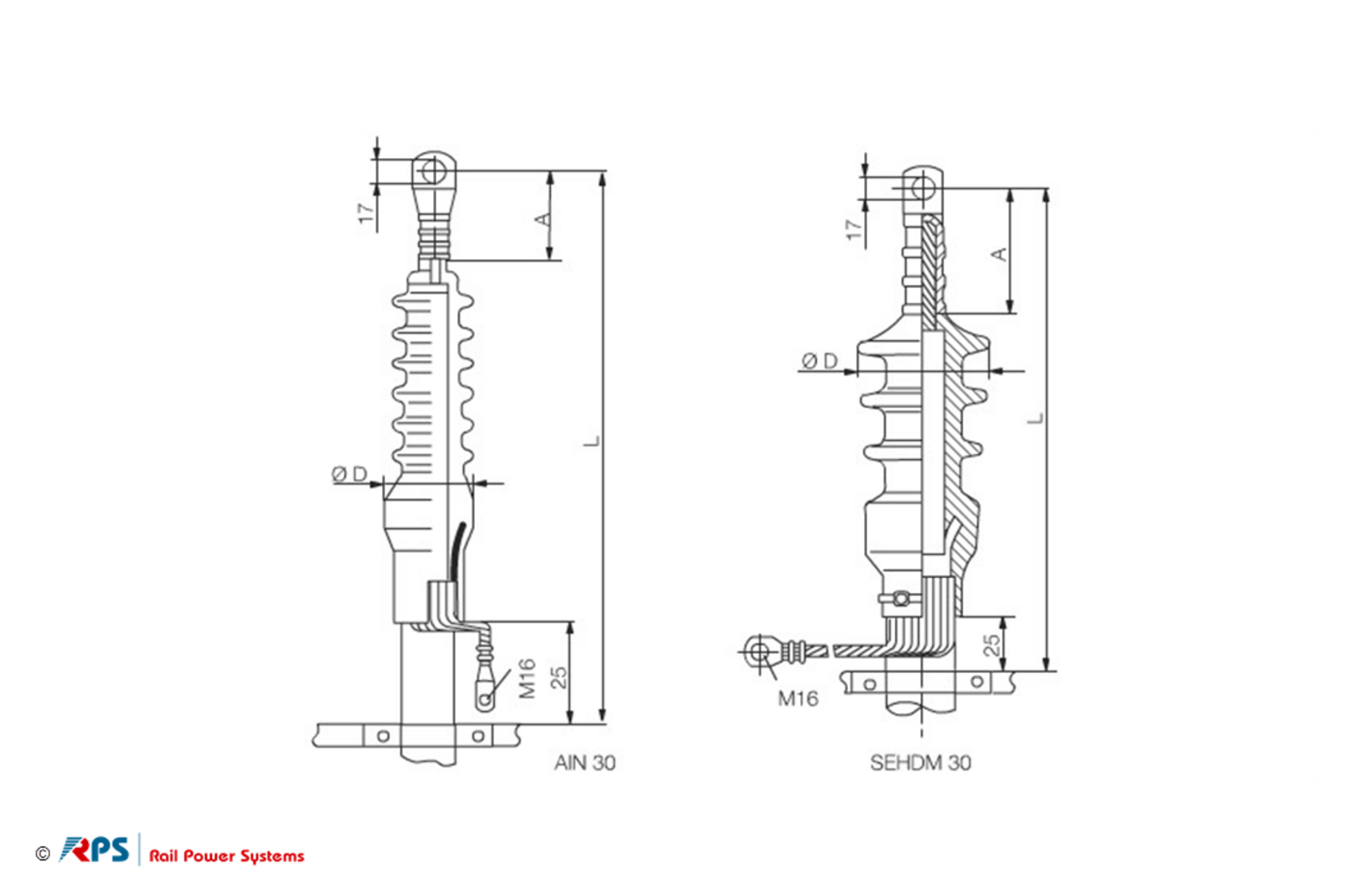

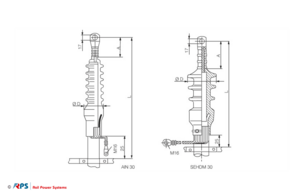

Cable Termination 30 kV (indoor)
Variante: Cable termination
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cable termination |
| Ebs | Ebs 09.31.08 |
| Build Type | SEHDM 30 |
| L | 371 mm |
| Diameter | 105 mm |
| Wire Size | 240 |
| Material-ID | 3EGF009626 |
