Cantilever, pull-off version with windstay
Variante: Cantilever pull-off with wind stay
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cantilever pull-off with wind stay |
| Material-ID | 3EGF017826Z1023A |
Cantilever, pull-off version without windstay
Variante: Cantilever pull-off without wind stay
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cantilever pull-off without wind stay |
| Material-ID | 3EGF017826Z1023B |
Cantilever lifted
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cantilever lifted |
| Material-ID | 3EGF025124Z1023 |
Cantilever pull off, bent
Variante: Cantilever pull off bent
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Cantilever pull off bent |
| Material-ID | 3EGF025094Z1023 |
Contact wire crossing with droppers
Variante: Overhead contact line crossing
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Overhead contact line crossing |
| Material-ID | 3EGF017819Z1153 |
Dropper
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Dropper |
| Material-ID | 3EGF017622Z1154A |
Dropper for stitch wire
Variante: Stitch wire dropper
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Stitch wire dropper |
| Material | Diverse |
| Material-ID | 3EGF017622Z1154B |
Electrical connection between catenary
Variante: Electrical connectors
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Electrical connectors |
| Material-ID | 3EGF017825Z1154 |
Electrical connection messenger wire and contact wire
Variante: Electrical connectors
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Electrical connectors |
| Drawing Number | 3EGF017823Z1154 |
| Material-ID | 3EGF017823Z1154 |
Fixed termination for messenger wire
Variante: Feste Abspannung für Tragseil
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Feste Abspannung für Tragseil |
| Material-ID | 3EGF017753Z1093A |
Fixed termination for contact wire
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Fixed termination for contact wire |
| Material-ID | 3EGF017811Z1093B |

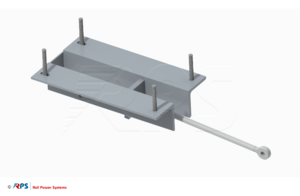

Backstay anchor
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Backstay anchor |
| Material-ID | 3EGF017728Z1073 |
Fixed termination, wire 50²-70²
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Fixed termination, wire 50²-70² |
| Material-ID | 3EGF024861Z1093 |
Fixed termination, CW80-120
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Fixed termination, CW80-120 |
| Material-ID | 3EGF024856Z1093 |
Mid point
Variante: Midpoint
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Midpoint |
| Material-ID | 3EGF017775Z1093 |
Stitch wire
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Stitch wire |
| Material-ID | 3EGF017773Z1013 |
Tension wheel assembly with 2 wheels
Variante: 2 Tension wheel assembly for concret mast
|
|
Mechanical values
| Wert | |
|---|---|
| Name | 2 Tension wheel assembly for concret mast |
| Material-ID | 3EGF017817Z1093 |

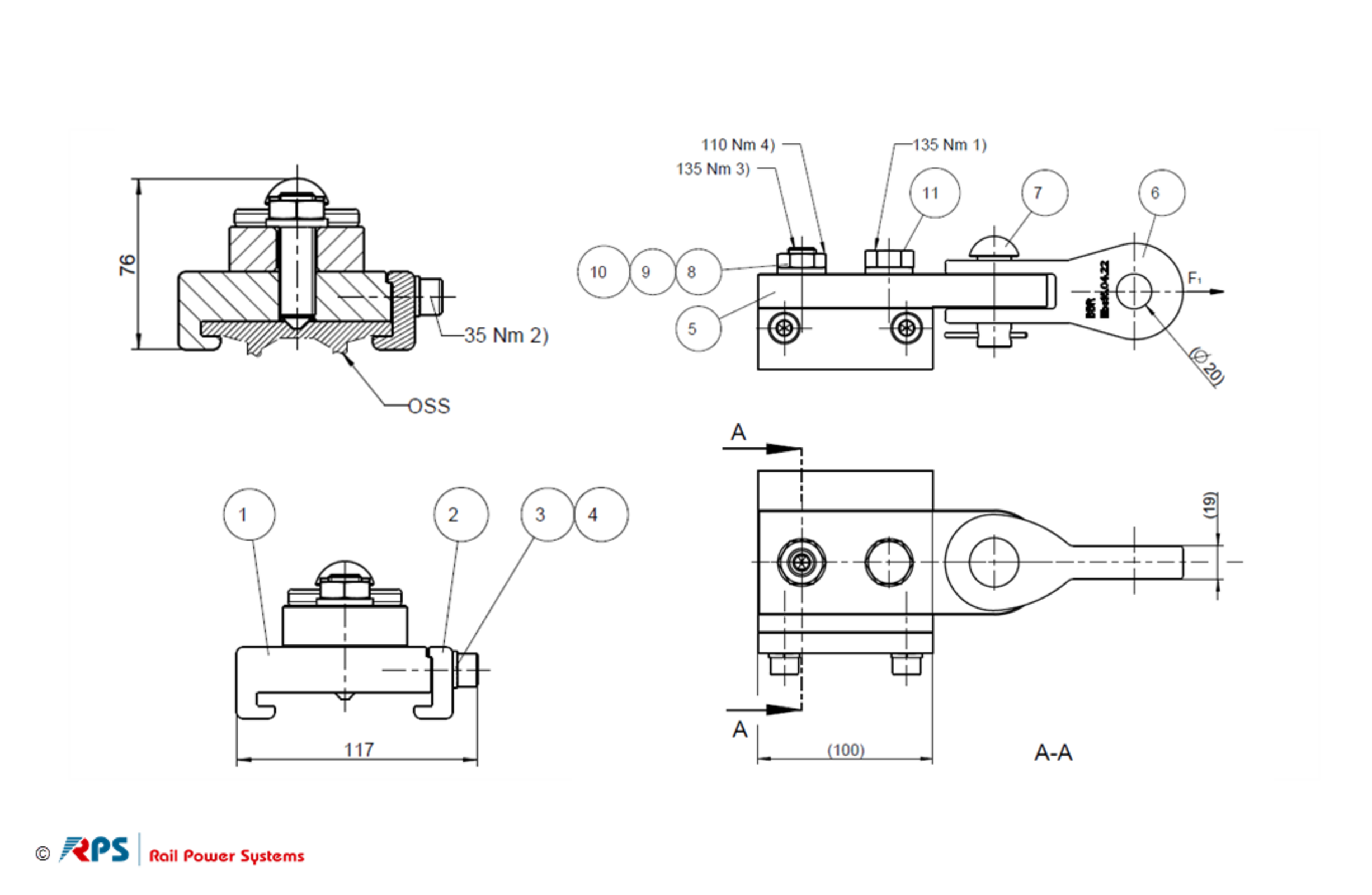

OCR clamp for fixed point
Variante: OSS Insulator connection for cantilever 8-32°
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OSS Insulator connection for cantilever 8-32° |
| Material | Al |
| Weight | 0,450 kg |
| L | 430 mm |
| Material-ID | 3EGF019658 |

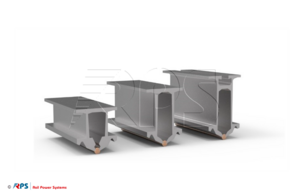

Conductor rail profiles OCR
Variante: OSS-Profil 80
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OSS-Profil 80 |
| Build Type | a |
| L | 12000 mm |
| Material | EN-AW 6106 T5 |
| Material-ID | 3EGF017033 |

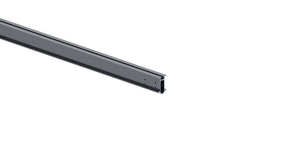

Stromschienenprofil OSS 130
Variante: OSS-Profil 130
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OSS-Profil 130 |
| L | 12000 mm |
| Material | EN-AW 6106 T5 |
| Material-ID | 3EGF020797 |

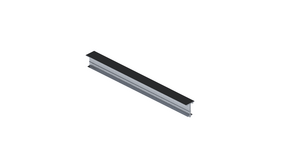

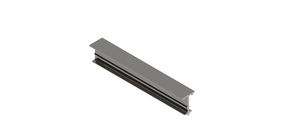

Schienenprofil OSS Vollprofil
Variante: Rail profile OSS solid profile
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Rail profile OSS solid profile |
| Material | EN AW-6101B T6 |
| Material-ID | 3EGF021392 |

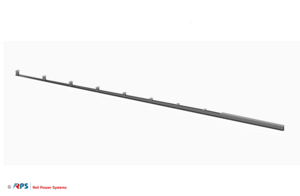

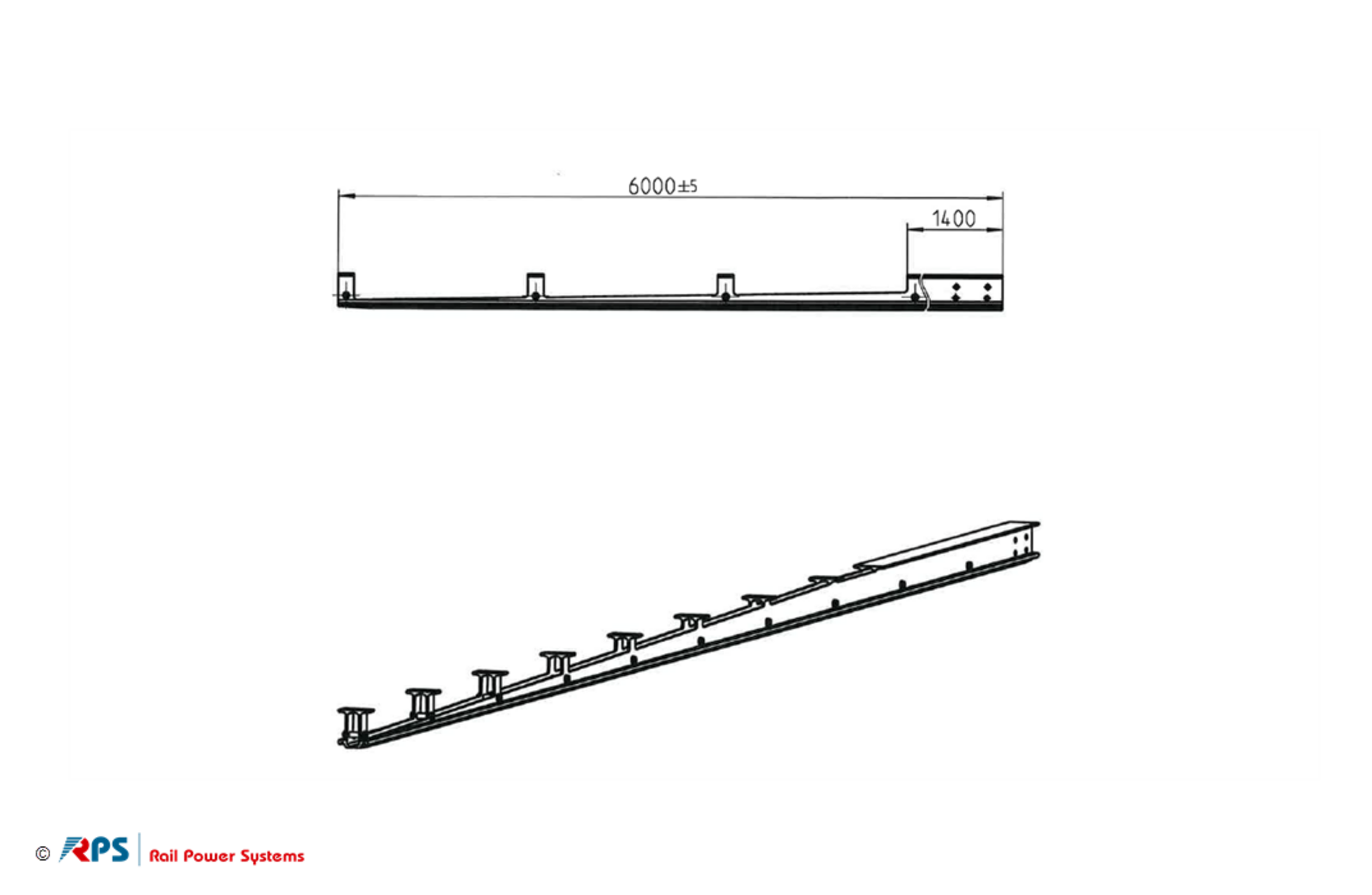

Übergangssegment OSS 110
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Übergangssegment OSS 110 |
| Material | EN-AW 6106 T5 |
| Weight | 29 kg |
| L | 6000 mm |
| Material-ID | 3EGF020041 |

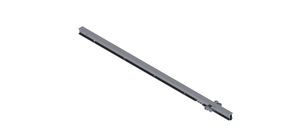

Tensioning segments
Variante: Tensioning segment OSS 110
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Tensioning segment OSS 110 |
| Material | EN-AW 6106 T5 |
| Weight | 20.60 kg |
| L | 3000 mm |
| Build Type | Verankerung über Seil |
| Material-ID | 3EGF021595 |

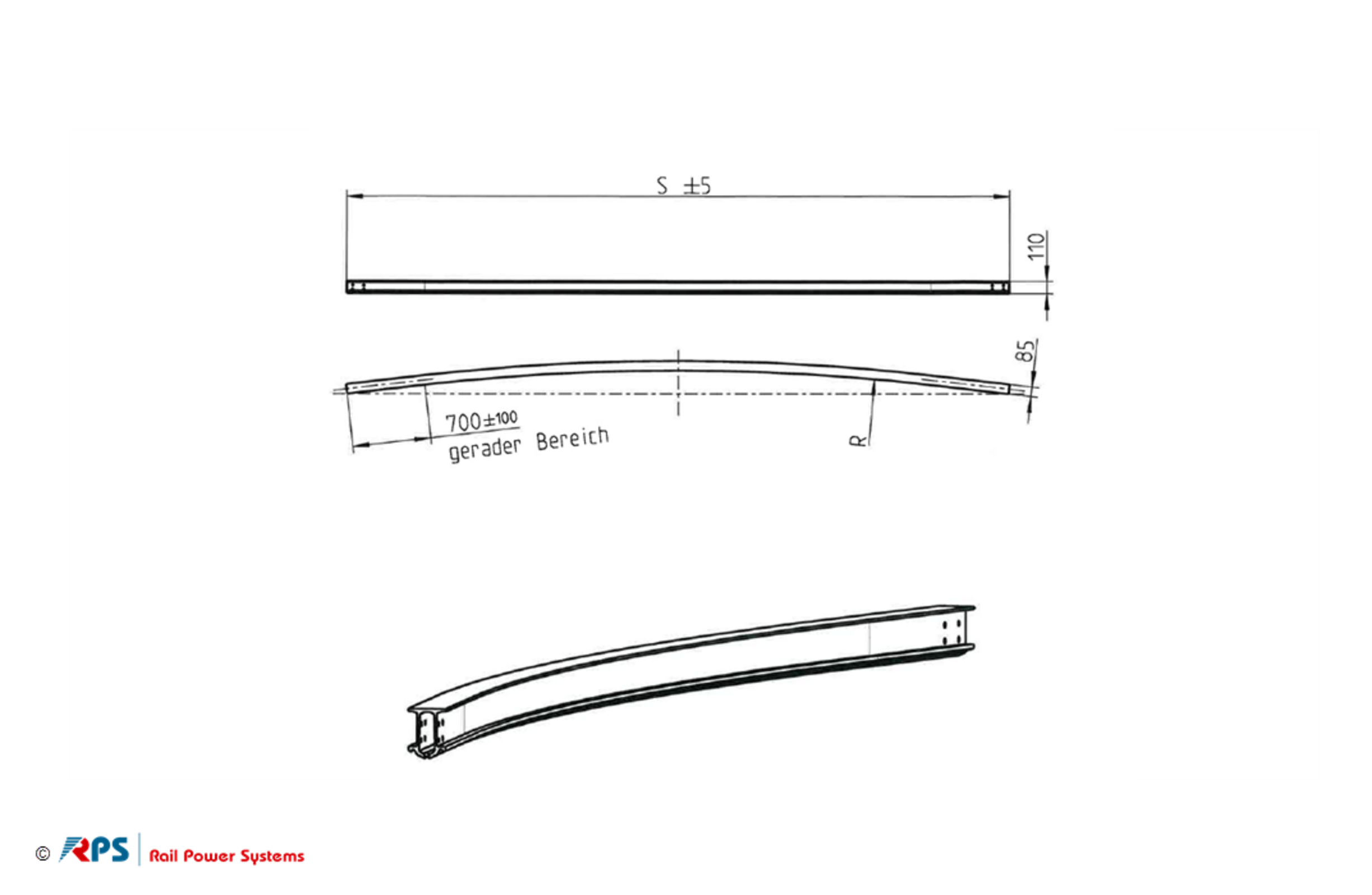

Conductor rail OCR, bent
Variante: Conductor rail OSS 110
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Conductor rail OSS 110 |
| Build Type | curved |
| Material | EN-AW 6106 T5 |
| Weight | 37 kg |
| Height | 110 mm |
| Drawing Number | 3EGF024335Z7513 |
| Material-ID | 3EGF019582 |

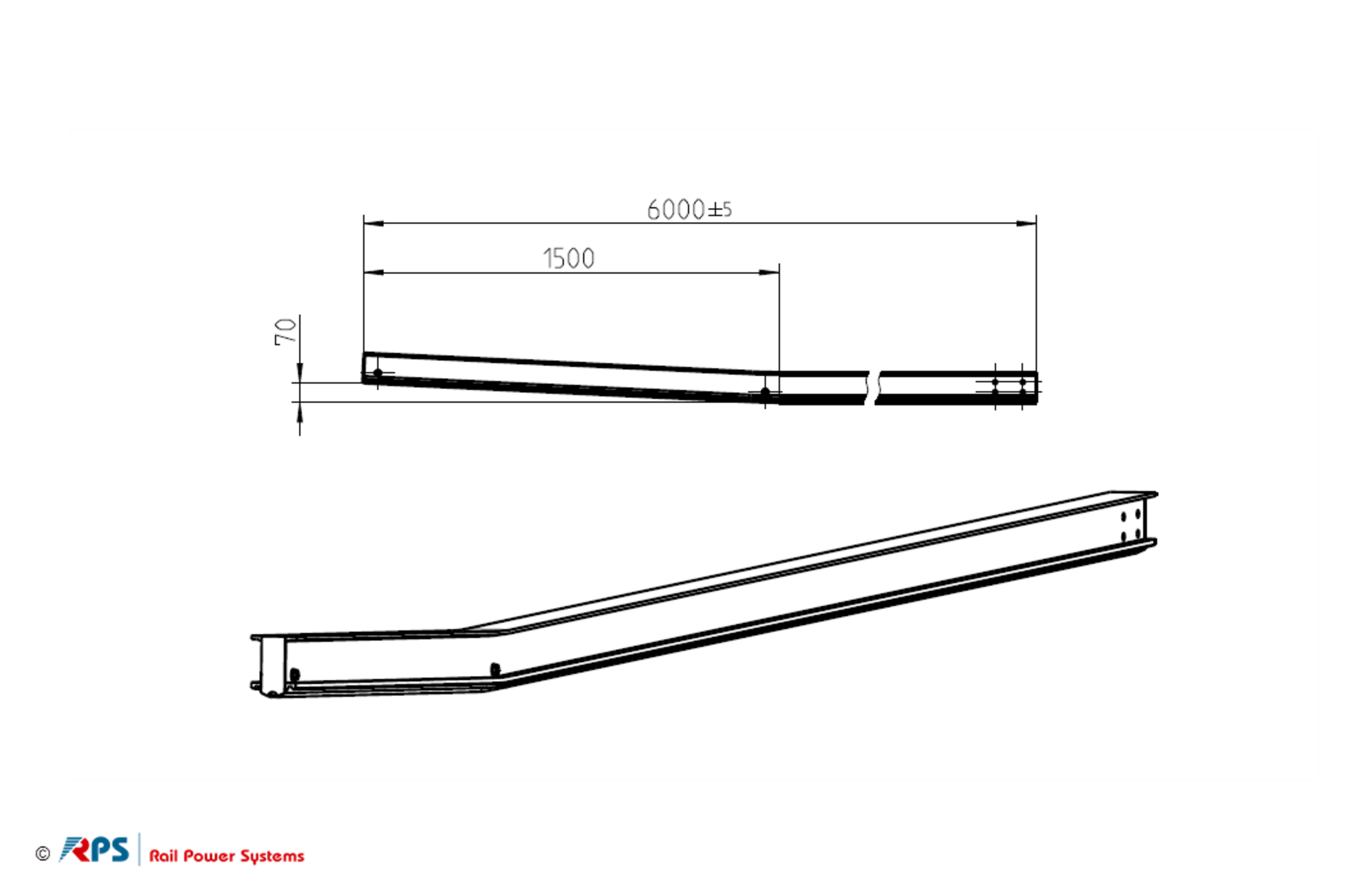

Ramp complete
Variante: Stromschienenendstück
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Stromschienenendstück |
| Material | Al |
| L | 6000 mm |
| Drawing Number | 3EGF026708Z7493 |
| Material-ID | 3EGF020289 |

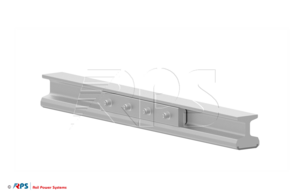

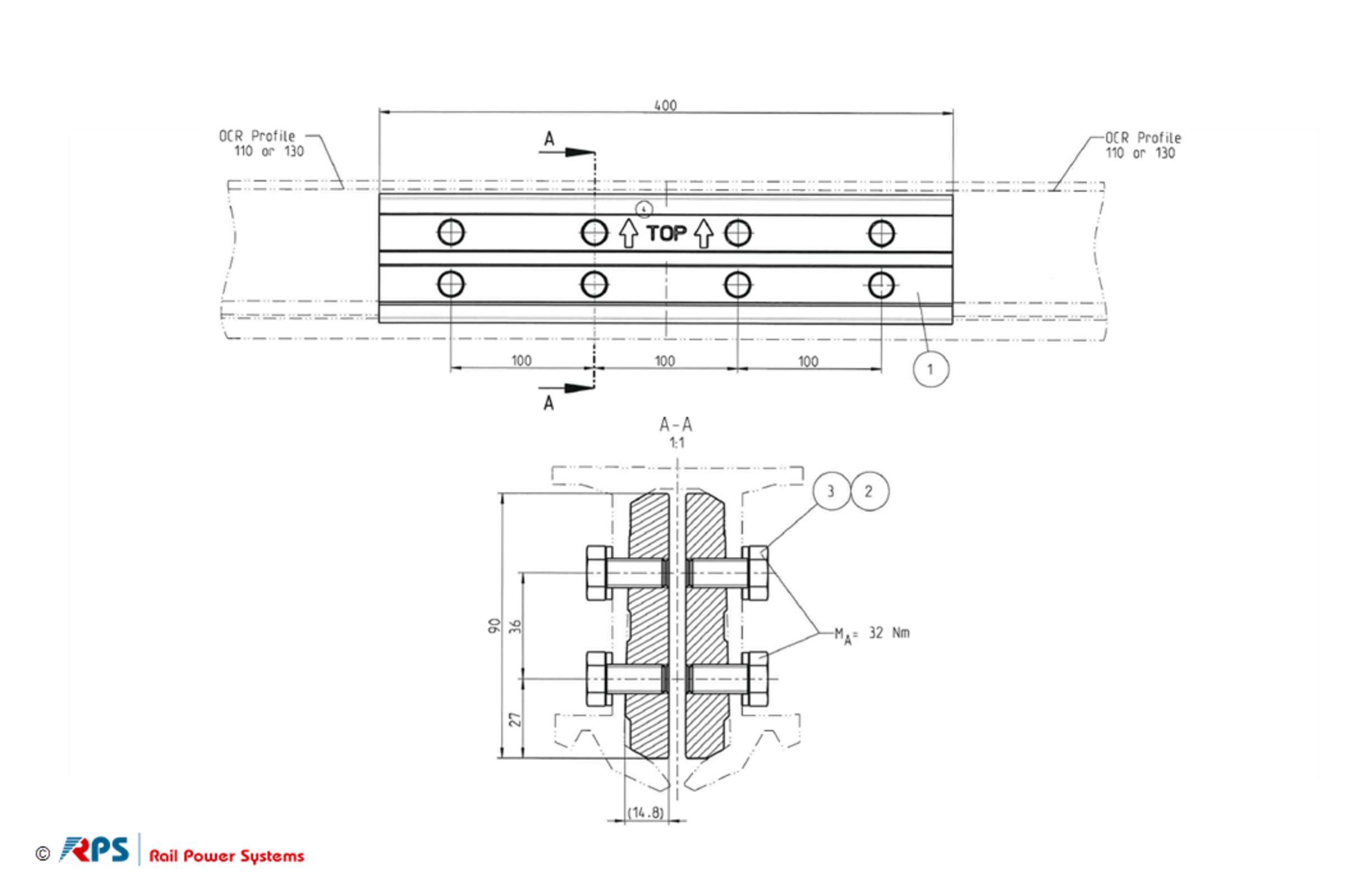

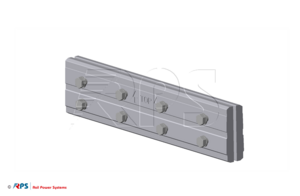

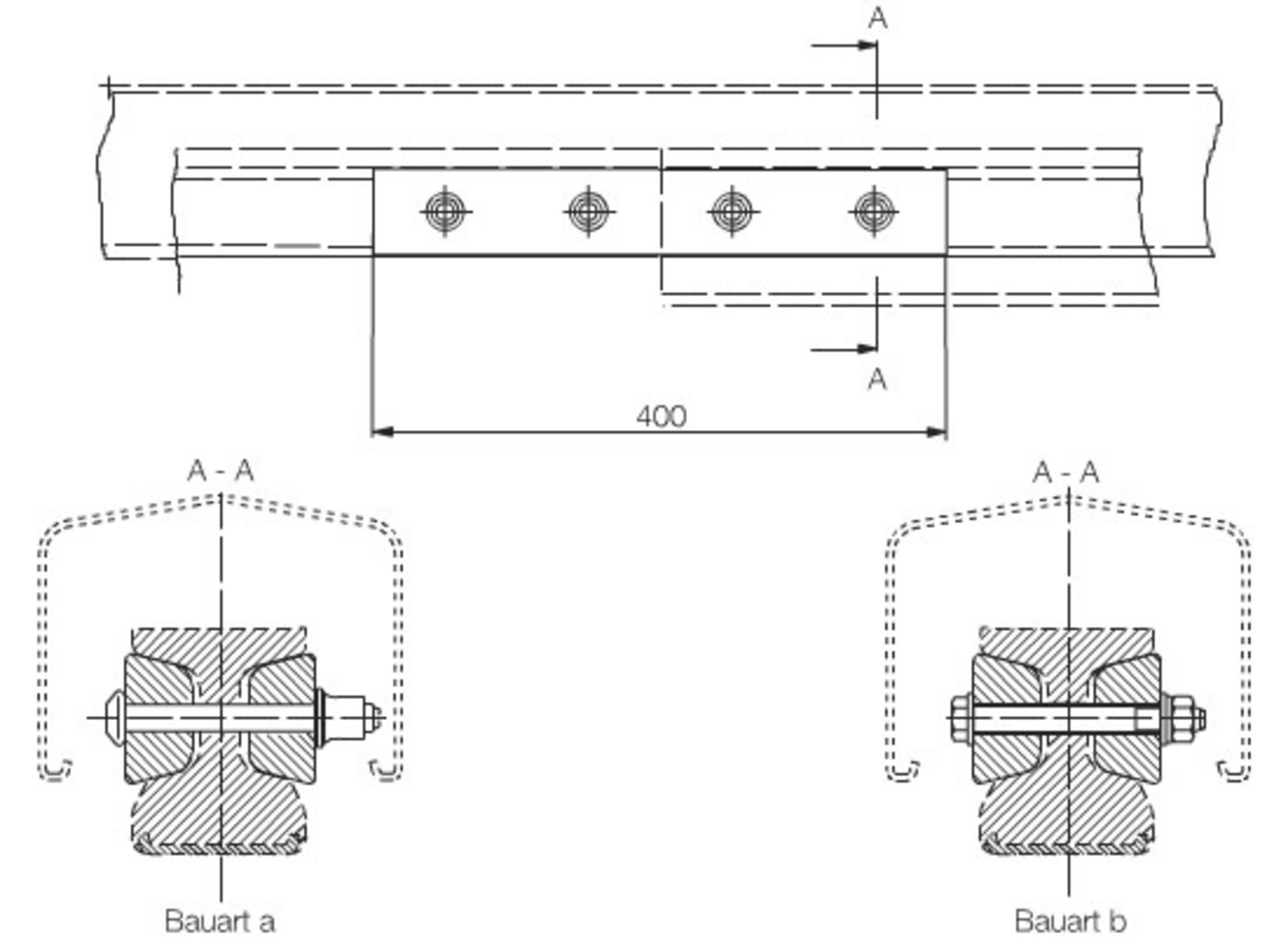

Connection plate for OCR130 and OCR110
Variante: Connection plate
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Connection plate |
| Material | Al, A2-70 |
| L | 400 mm |
| Drawing Number | 3EGF023097Z7493 |
| Material-ID | 3EGF019317 |

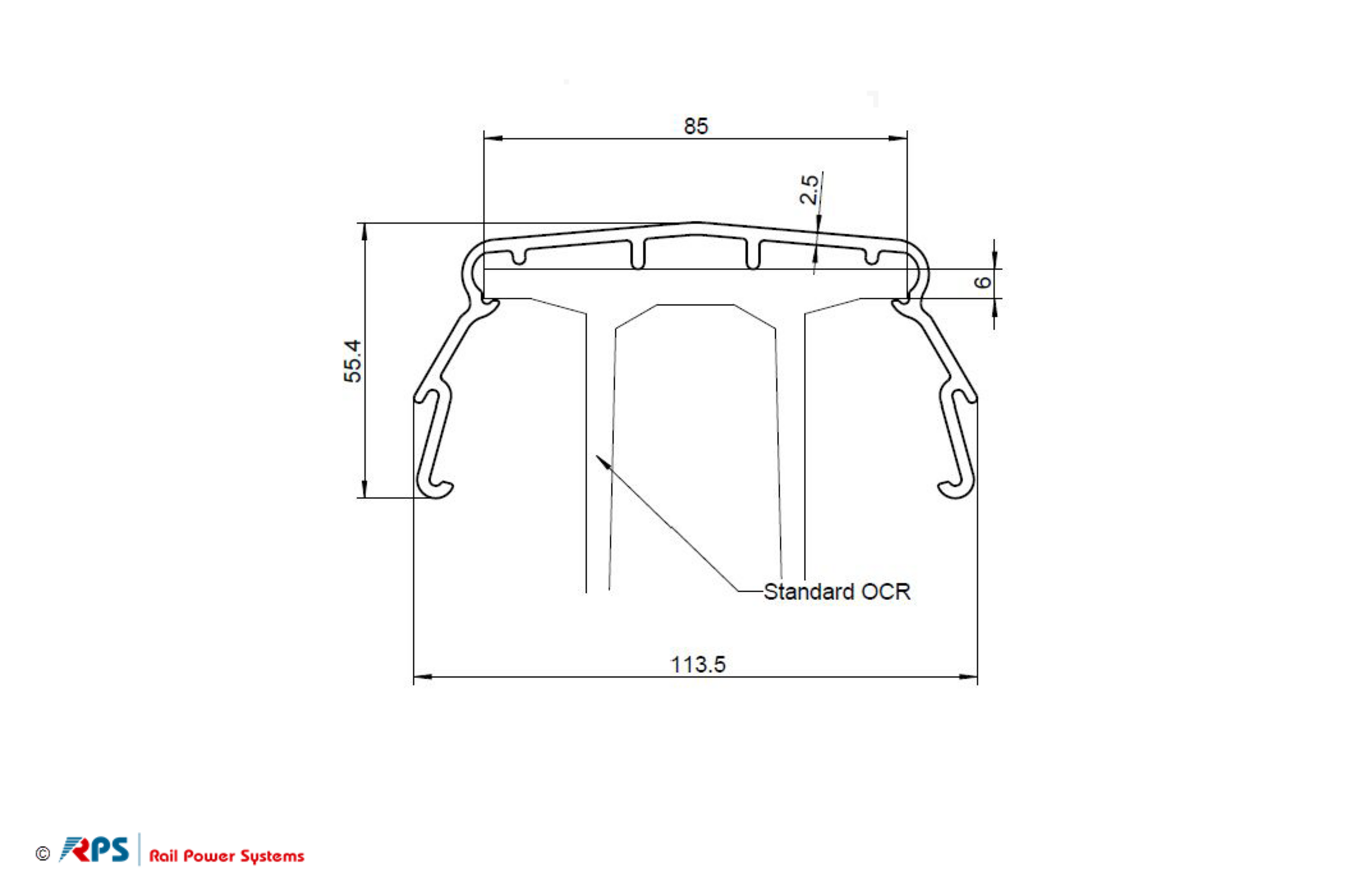

OSS Waschhallenprofil
Variante: OSS Wash hall profile
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OSS Wash hall profile |
| Height | 116 mm |
| Length | 12000 mm |
| Material | EN-AW 6106 T5 |
| Weight | 6,23 kg |
| Material-ID | 3EGF021424 |

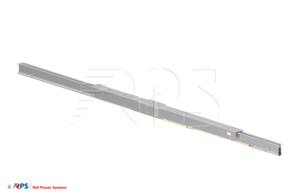

Dilatation OCR
Variante:
|
|
OSS-Dilatation
zur Kompensation von Temperaturunterschieden bis 1000mm
mit Fahrdraht 107mm²
für Fern- und Nahverkehr geeignet
zur Kompensation von Temperaturunterschieden bis 1000mm
mit Fahrdraht 107mm²
für Fern- und Nahverkehr geeignet
Mechanical values
| Wert | |
|---|---|
| Weight | 57 kg |
| Contact Wire | 107 |
| Material-ID | 3EGF017330 |

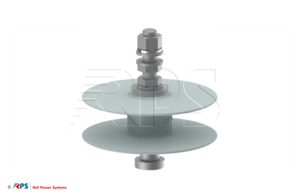

Insulator OSS
Variante: Isolator OSS
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Isolator OSS |
| Nominal Force | 3 kN |
| Material | GFK, Silikon |
| Creepage Path | 240 mm |
| Weight | 0,9 kg |
| Drawing Number | 3EGF020782Z7123 |
| Material-ID | 3EGF018792 |

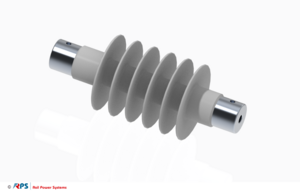

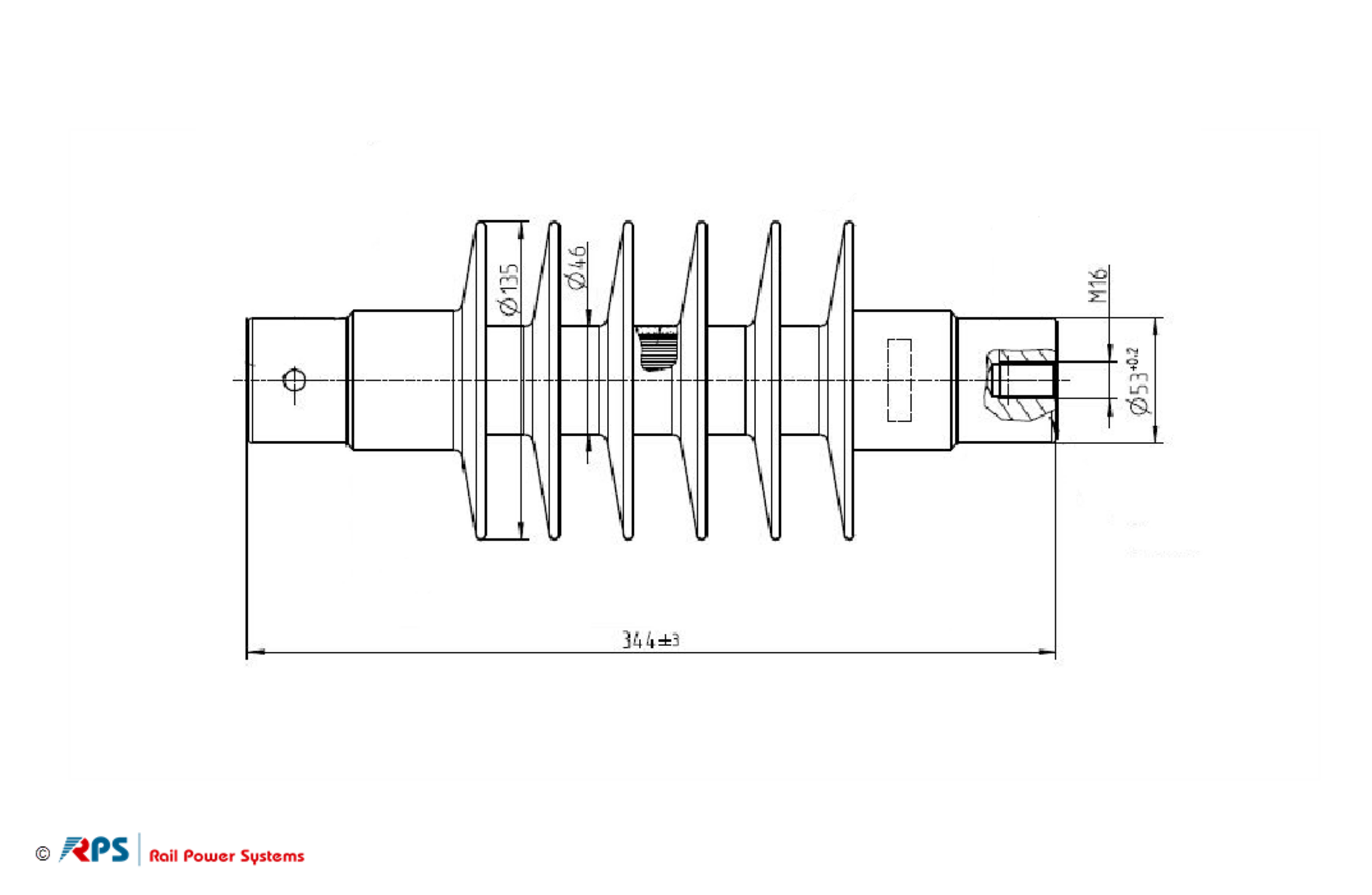

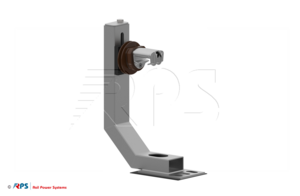

Insulator for support point 15 kV
Variante: Insulator 15 kV Thread M16 6 sheds
|
|
Only use for OCR/RPS
Mechanical values
| Wert | |
|---|---|
| Name | Insulator 15 kV Thread M16 6 sheds |
| Nominal voltage | 15 kV |
| Material | Composite |
| Weight | 2,5 kg |
| Creepage Path | 720 mm |
| Drawing Number | 3EGF02340Z7123 |
| Material-ID | 3EGF019386 |
Electrical values
| Wert | |
|---|---|
| Drawing Number | 3EGF02340Z7123 |

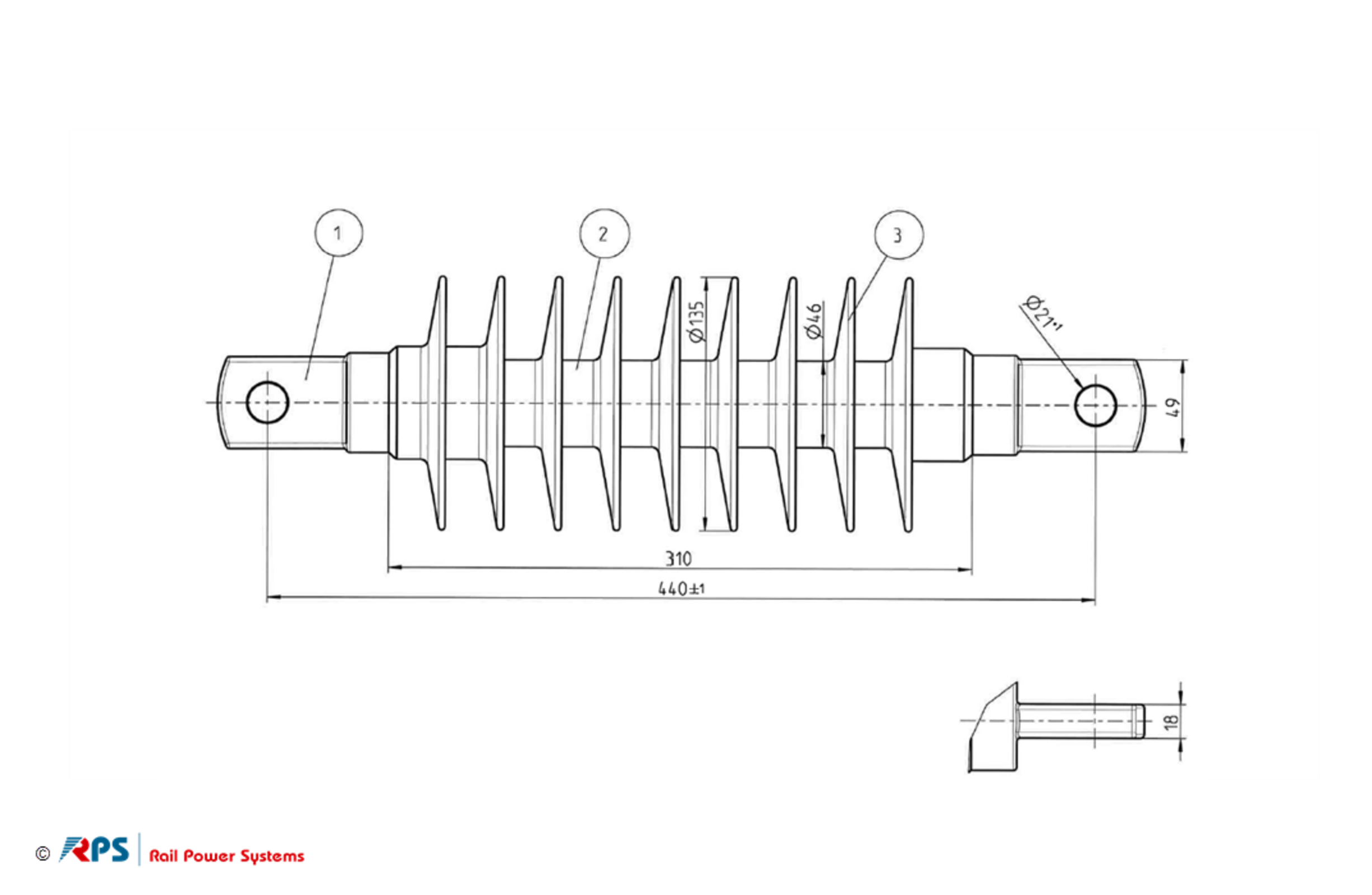

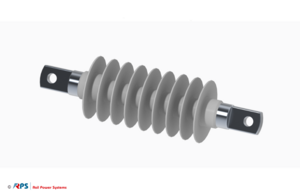

Isolator mit Laschenkappen
Variante: Insulator 25 kV Tongue/Tongue 7 sheds
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Insulator 25 kV Tongue/Tongue 7 sheds |
| Nominal voltage | 25 kV |
| Material | Composite |
| Creepage Path | 1045 mm |
| Drawing Number | 3EGF020918Z2123 |
| Material-ID | 3EGF019853 |

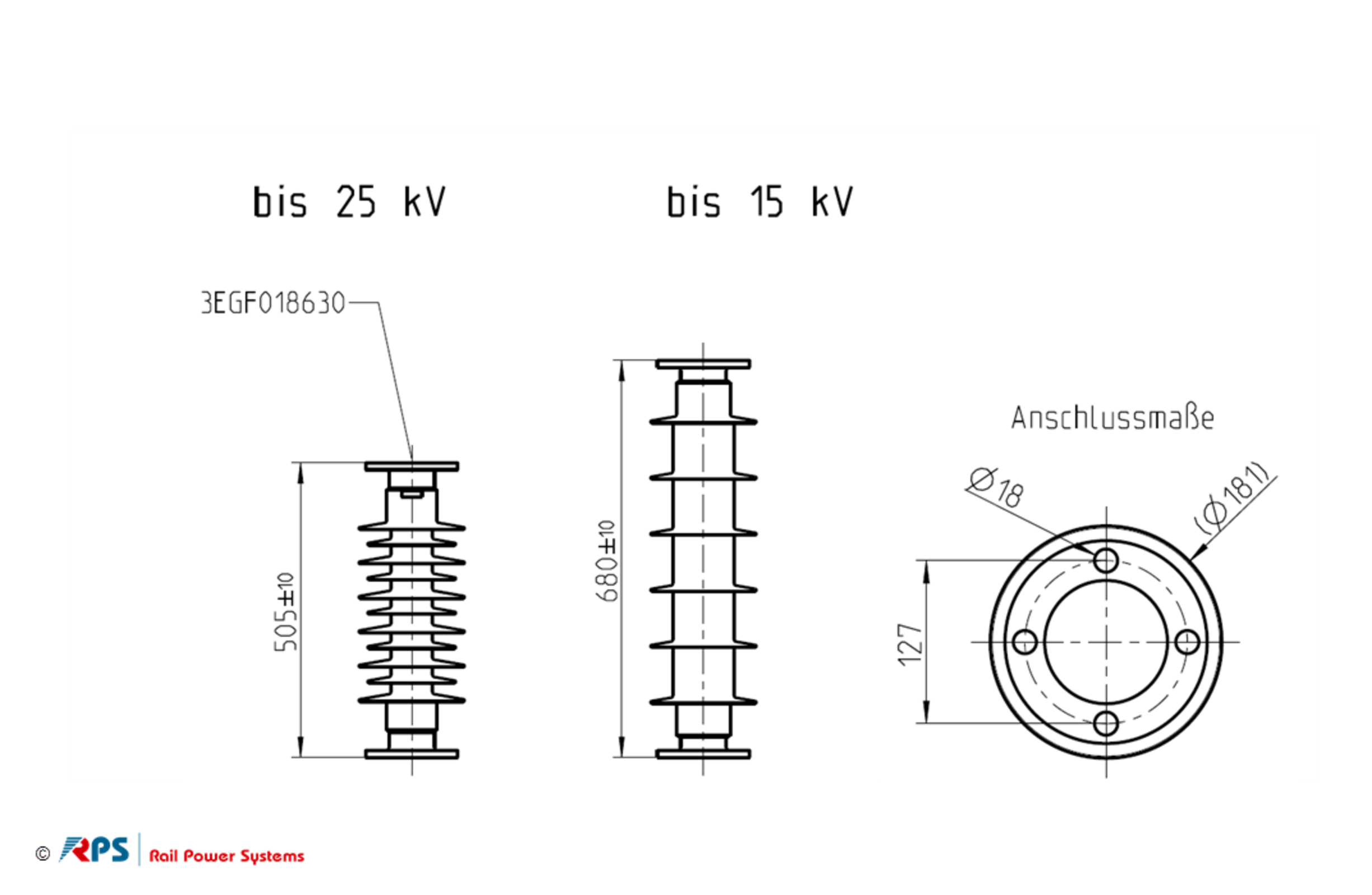

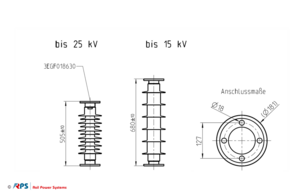

Insulator-Flansch
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Material-ID | 3EGF025214Z7004 |

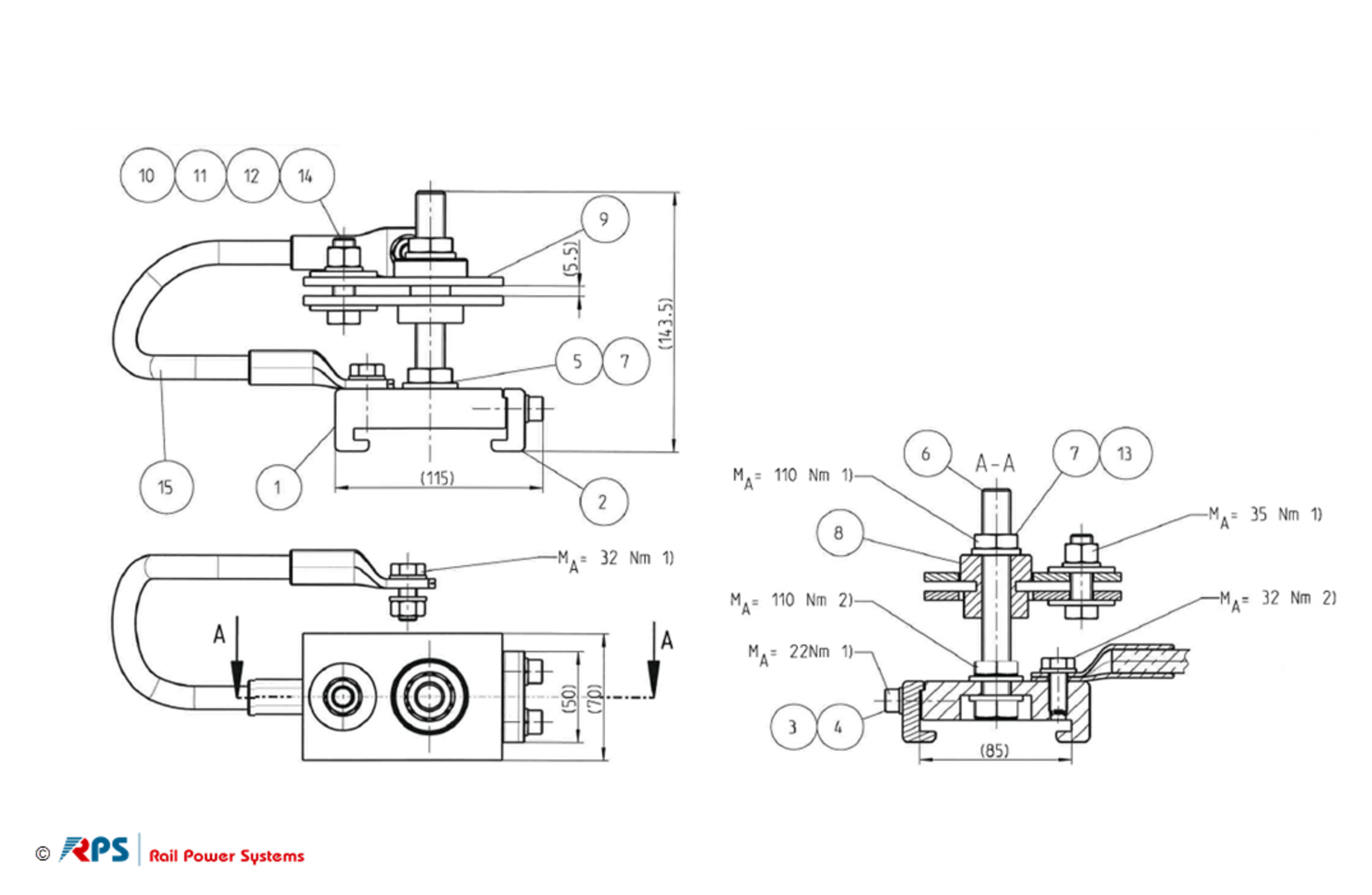

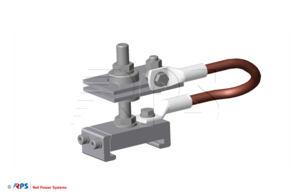

Aufhängung OSS, fest, mit Elektrischer Verbindung
Variante: Aufhängung
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Aufhängung |
| Material | Al |
| Drawing Number | 3EGF024406Z7463 |
| Material-ID | 3EGF020042 |

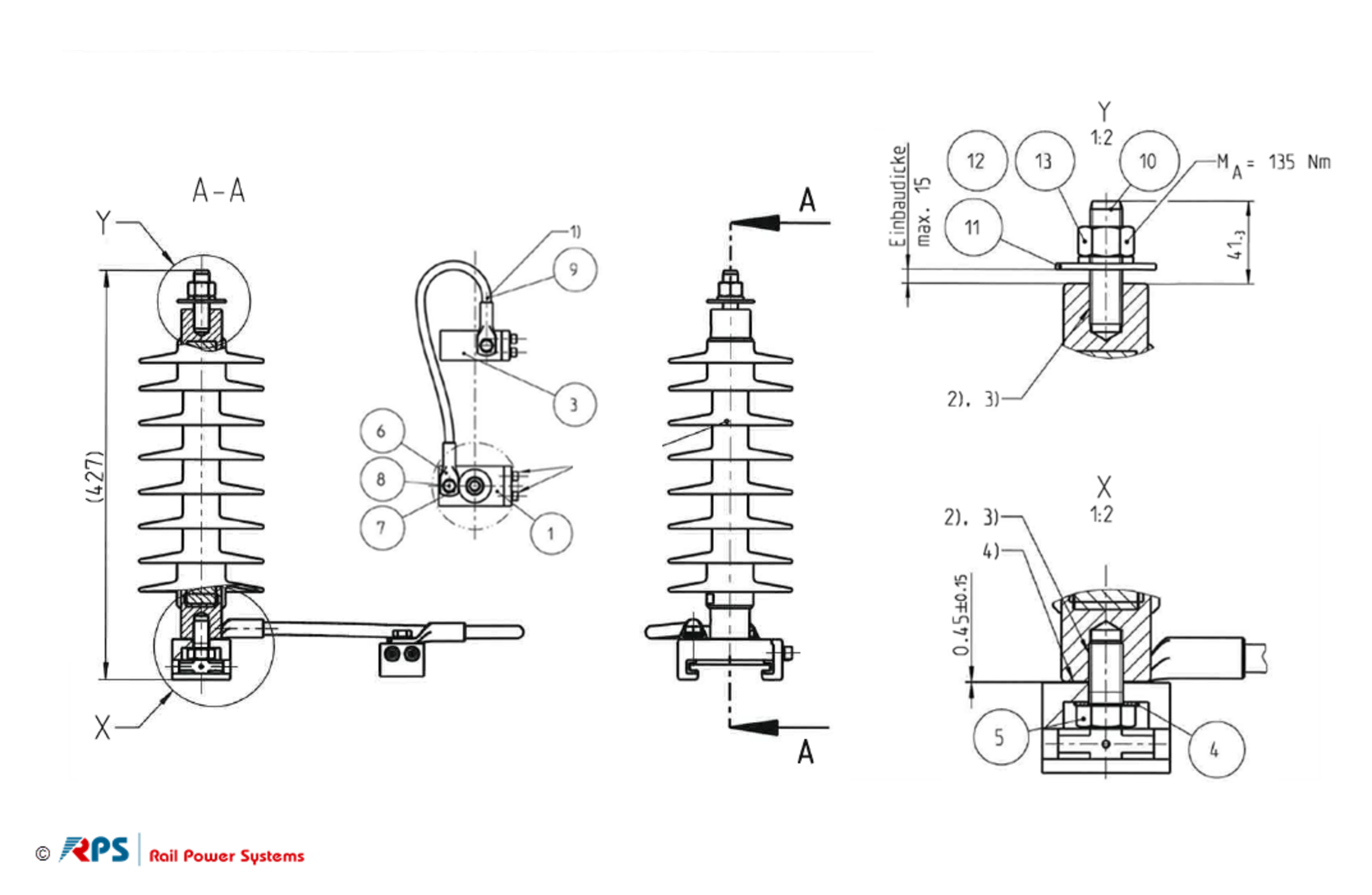

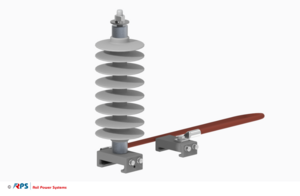

OSS suspension for insulators
Variante: OCR insulator suspension
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OCR insulator suspension |
| Material | Al |
| Weight | 3,920 kg |
| Rated impulse withstand voltage | 25 kV |
| Drawing Number | 3EGF024405Z7523 |
| Material-ID | 3EGF019612 |

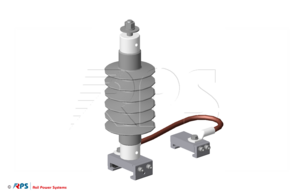

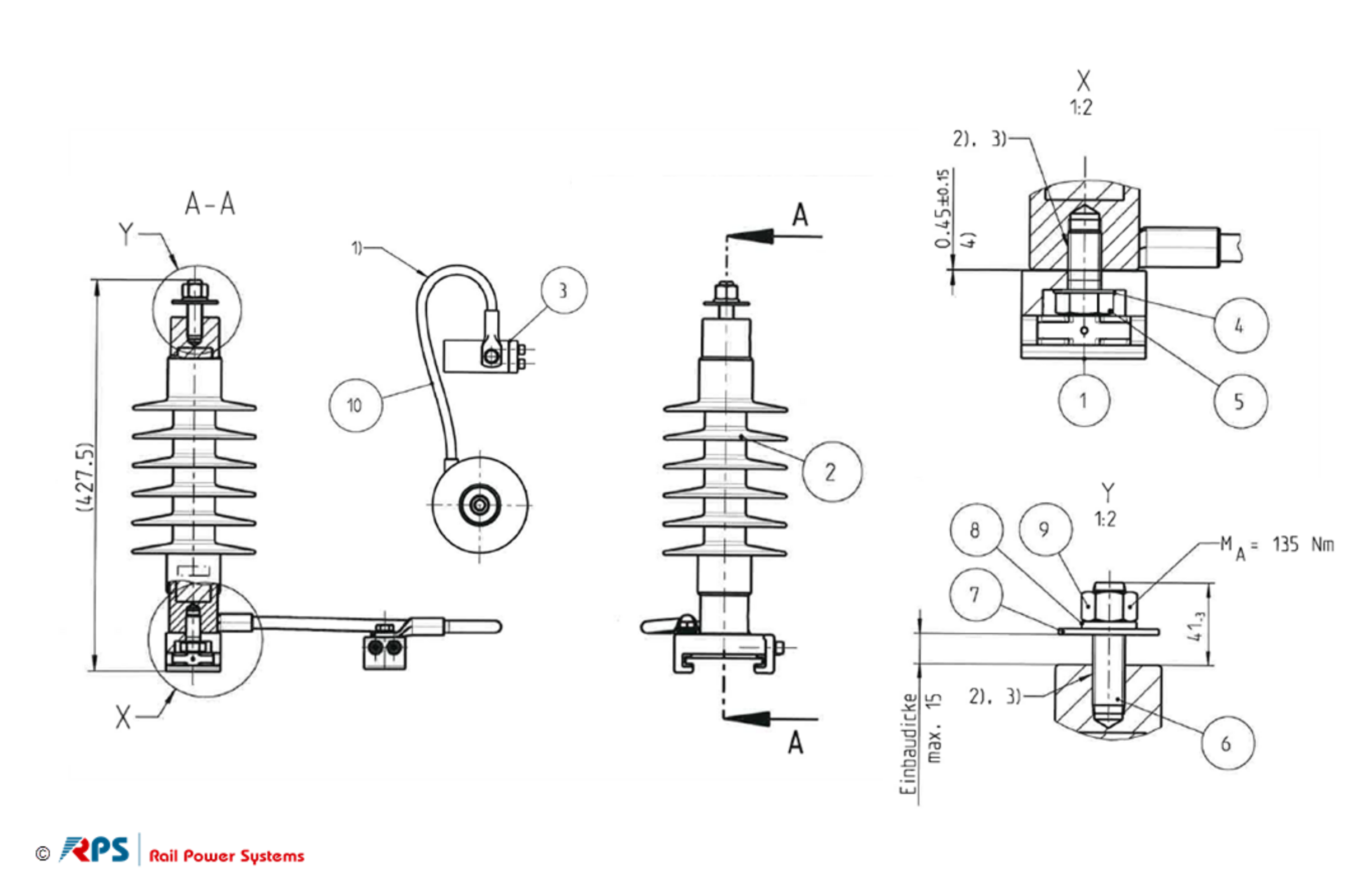

OSS Aufhängung für Isolatoren 15 kV, ohne Griff, gleitend
Variante: Aufhängung
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Aufhängung |
| Material | Al |
| Weight | 4,827 kg |
| Rated impulse withstand voltage | 15 kV |
| Drawing Number | 3EGF026710Z7523 |
| Material-ID | 3EGF020291 |

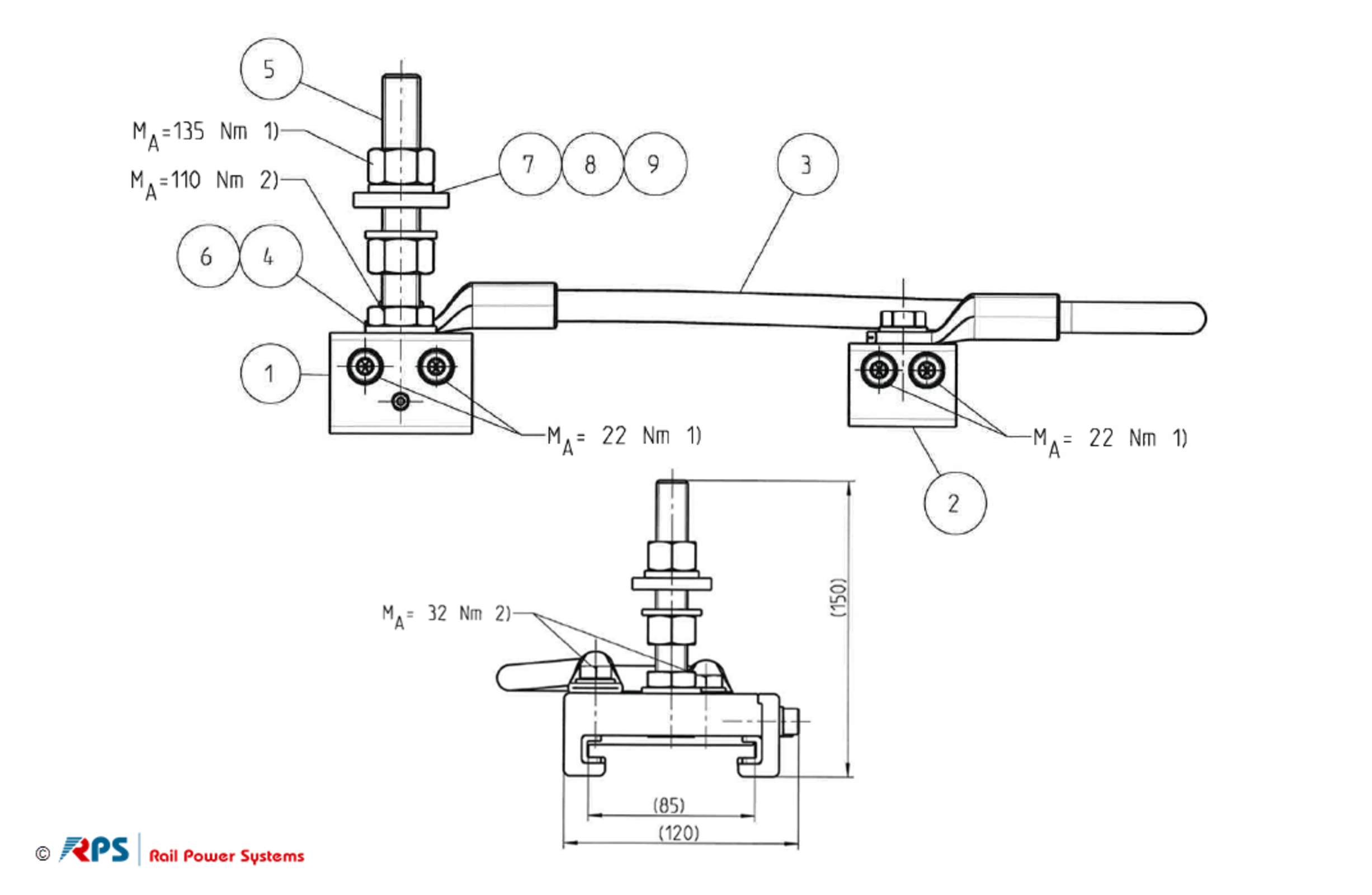

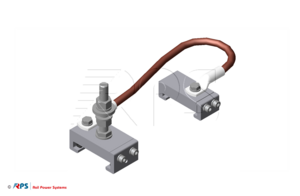

OSS Aufhängung mit Klemme, gleitend
Variante: Aufhängung
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Aufhängung |
| Material | Al |
| Drawing Number | 3EGF025929Z7463 |
| Material-ID | 3EGF020049 |

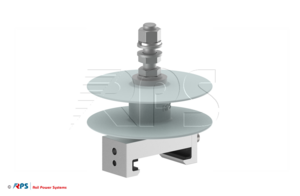

Suspension OCR 1,5 kV
Variante: Aufhängung OSS
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Aufhängung OSS |
| Weight | 3,44 kg |
| Material | Silikon |
| Drawing Number | 3EGF029018Z7463 |
| Material-ID | 3EGF021024 |

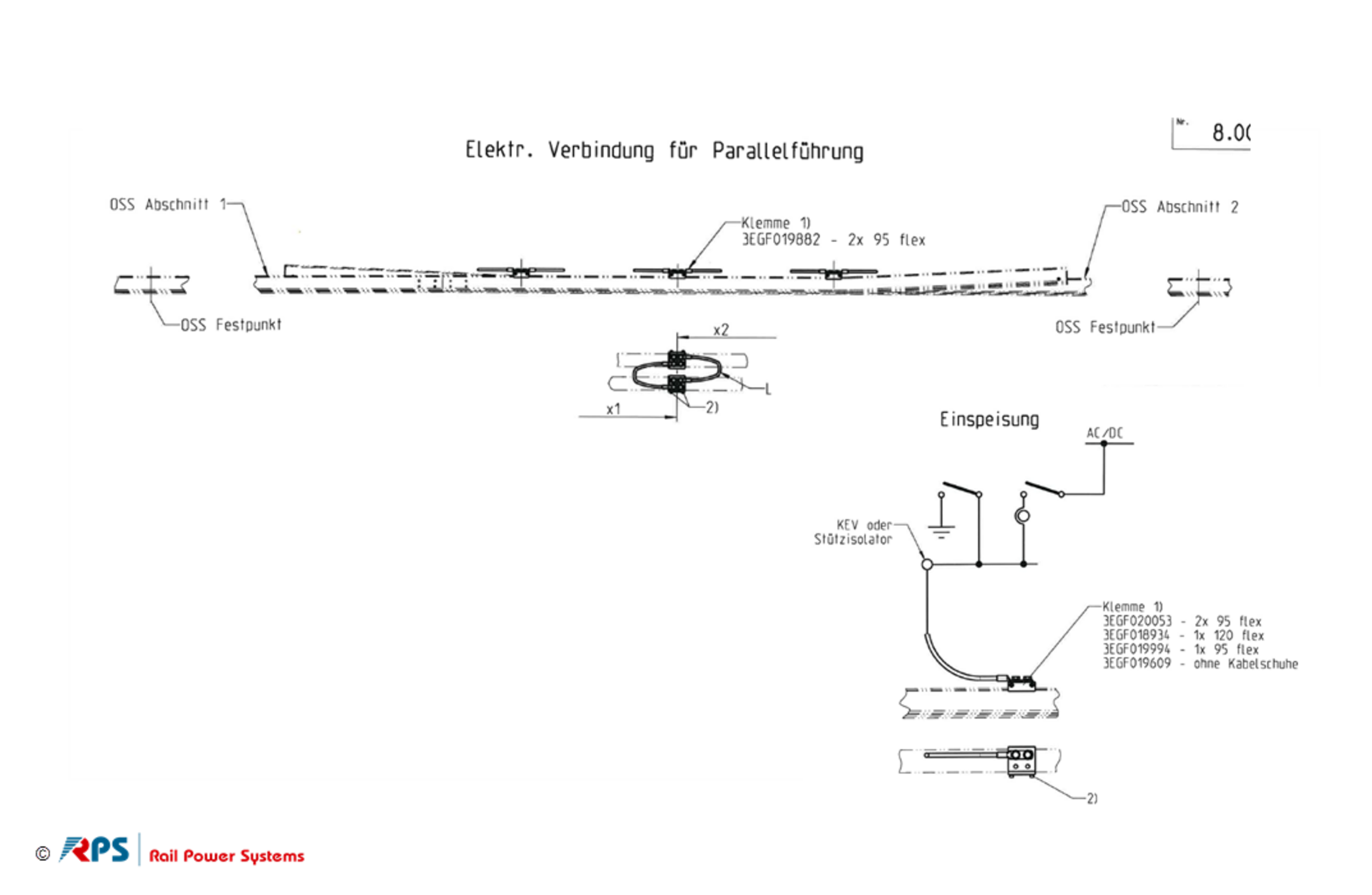

Elektrische Verbindung für Parallelführung
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Elektrische Verbindung für Parallelführung |
| Drawing Number | 3EGF024247Z7003 |
| Material-ID | 3EGF024247Z7003 |

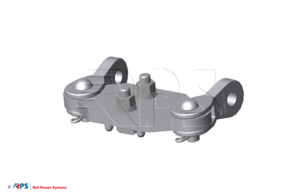

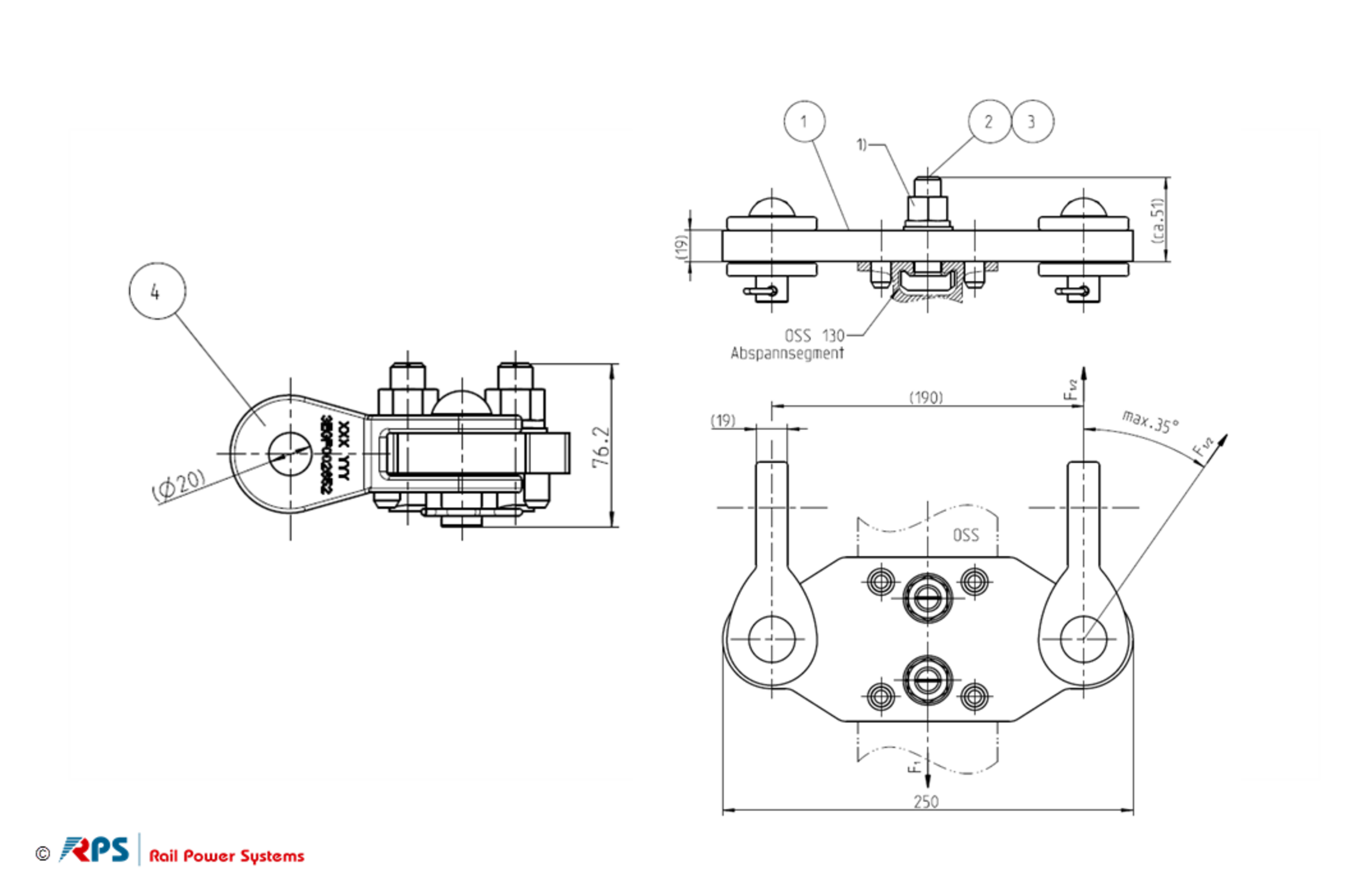

Abspannklemme OSS für Profil 130 mit 2 Gabelösen
Variante: Abspannklemme
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Abspannklemme |
| Material | Al |
| Weight | 1,886 kg |
| Drawing Number | 3EGF025605Z7093 |
| Material-ID | 3EGF019997 |

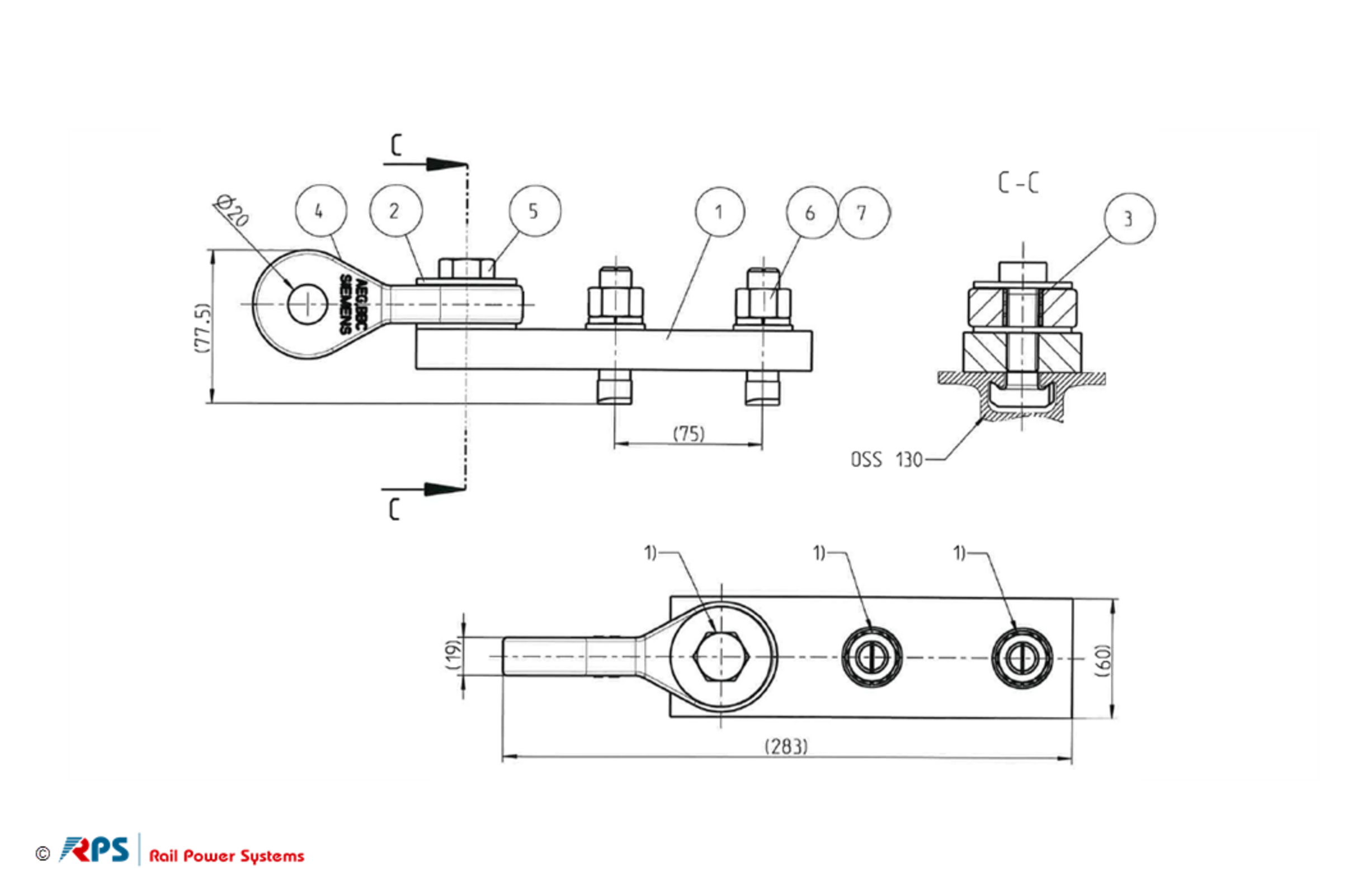

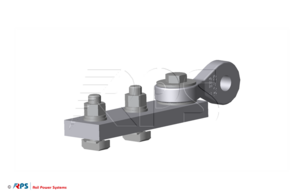

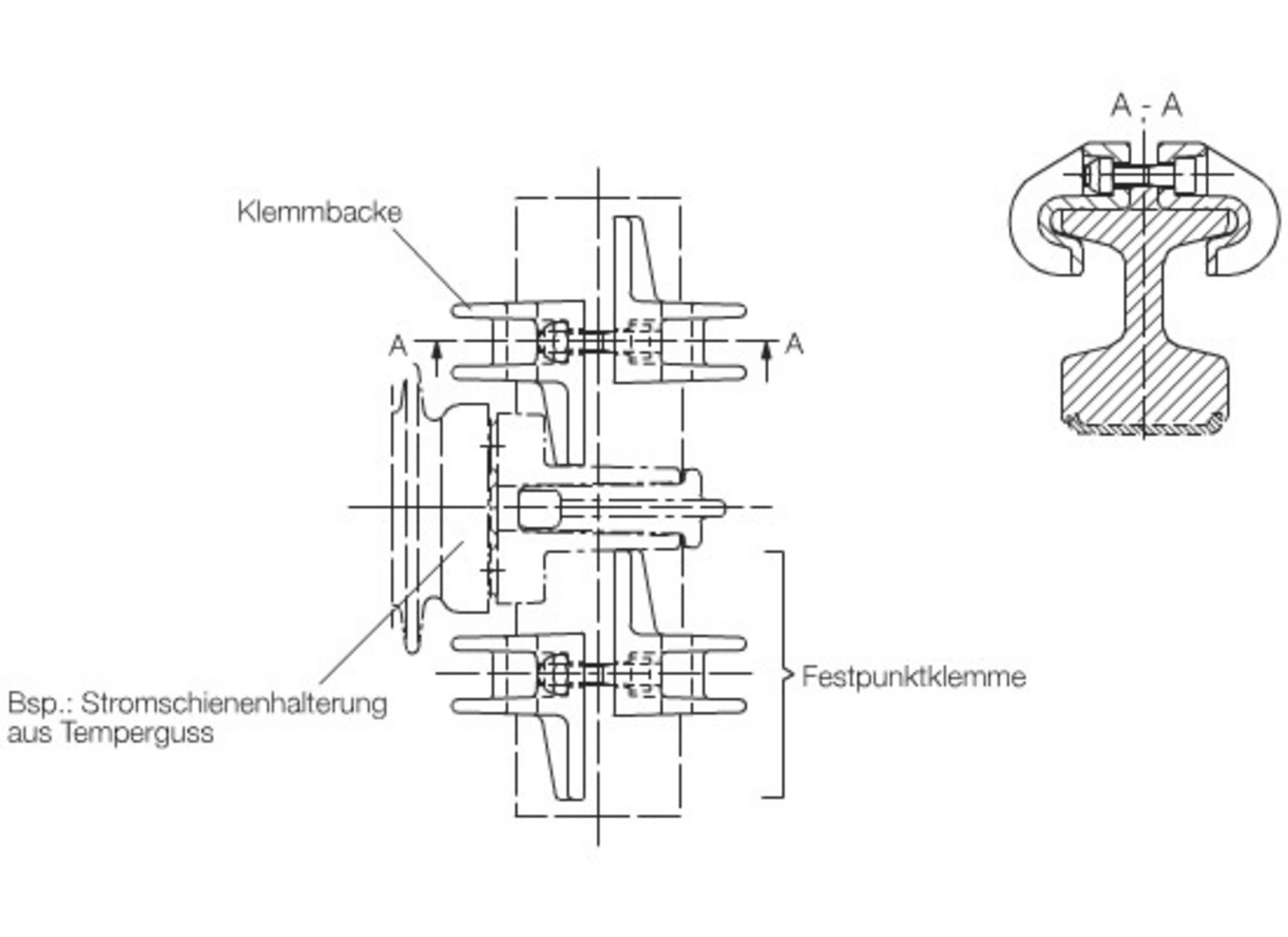

OSS clamp for fixed point 130
Variante: Festpunktklemme
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Festpunktklemme |
| Material | Al, A2 |
| Weight | 1,425 kg |
| Drawing Number | 3EGF025760Z7093 |
| Material-ID | 3EGF019985 |

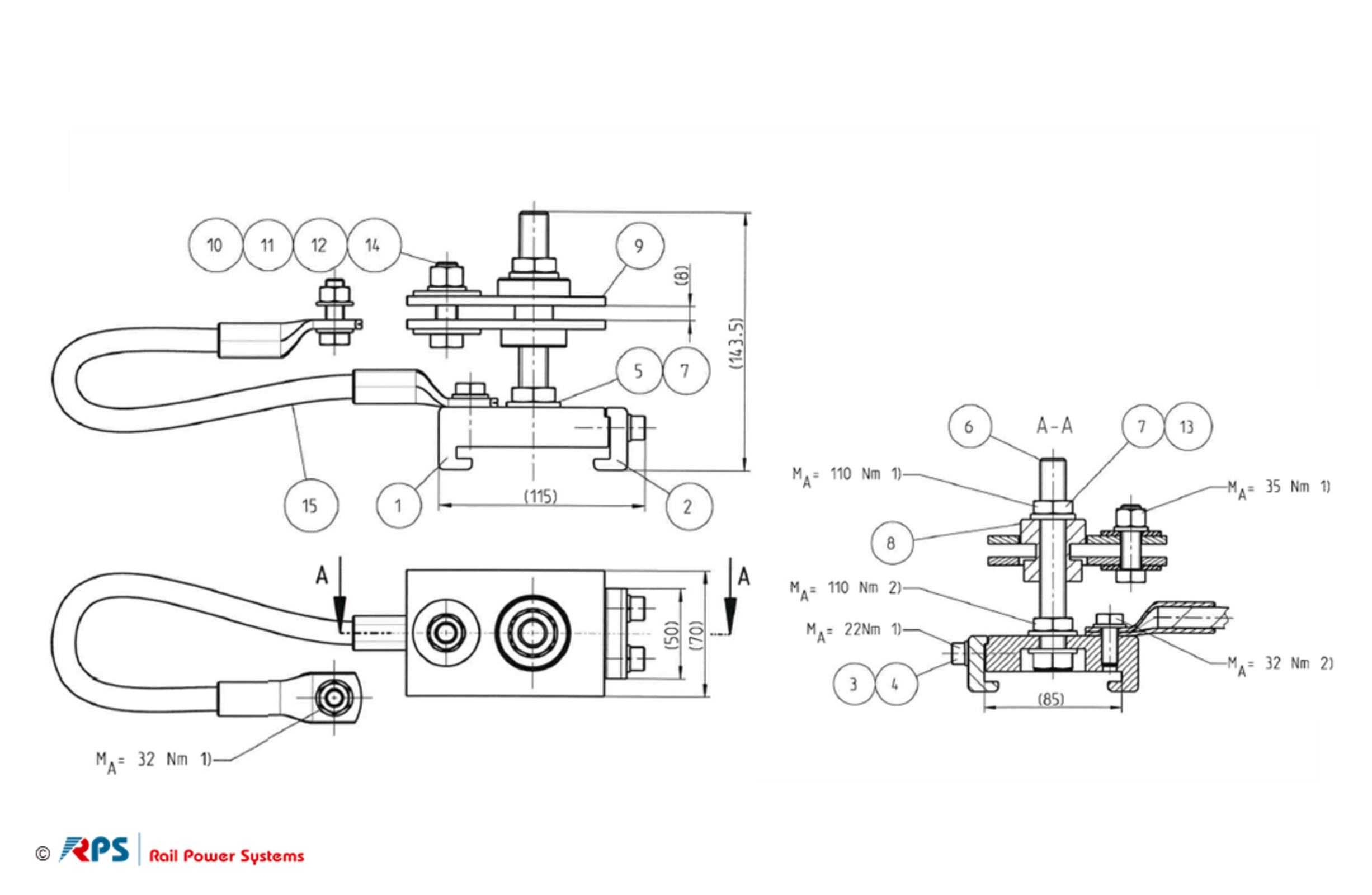

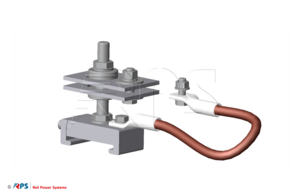

OCR clamp
Variante: Klemme
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Klemme |
| Material | Al |
| Material-ID | 3EGF019884 |

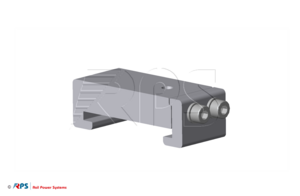

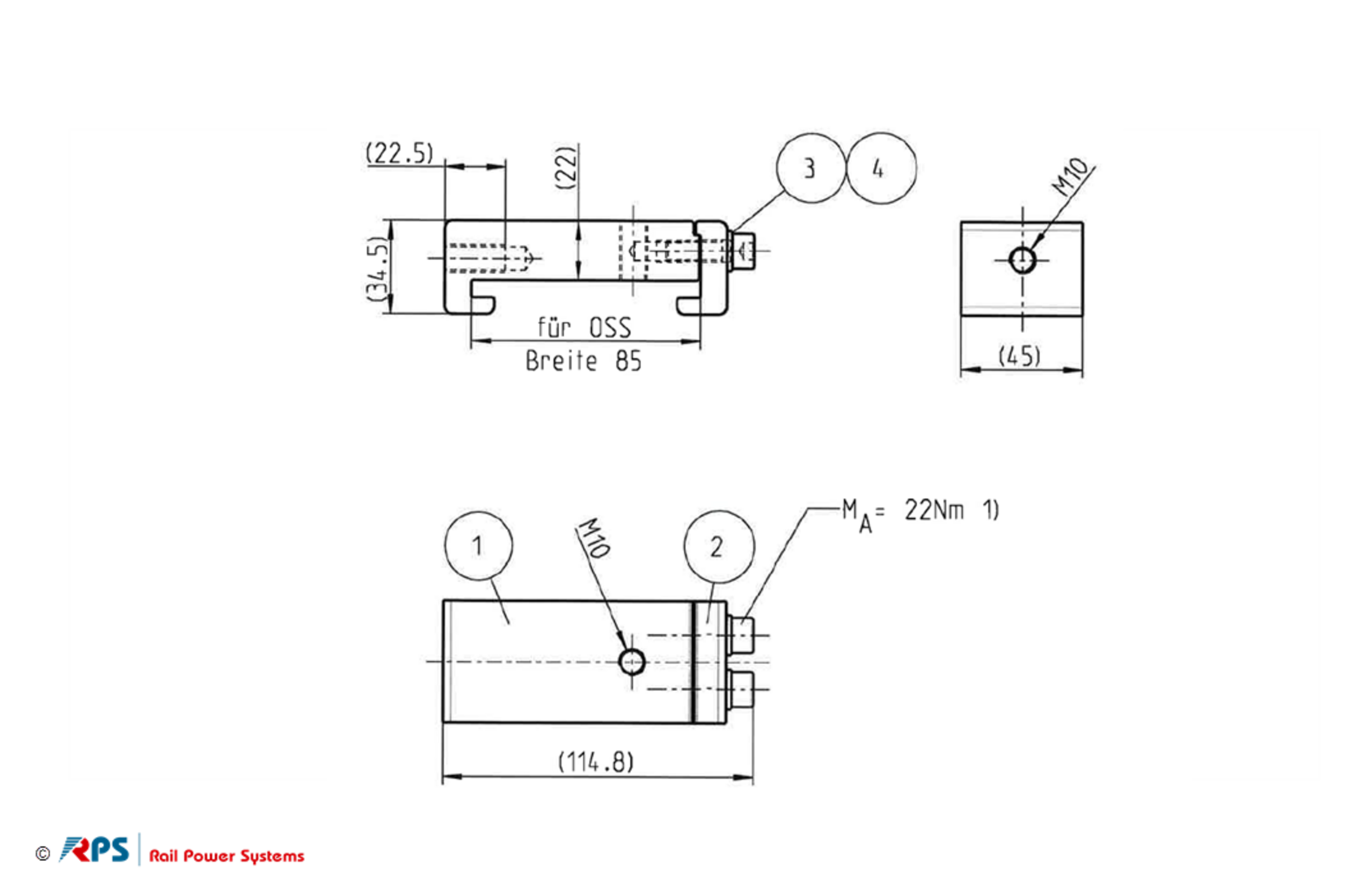

Schienenklemme OSS
Variante: Rail clamp
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Rail clamp |
| Material | Al |
| Weight | 0,341 kg |
| Material-ID | 3EGF019877 |

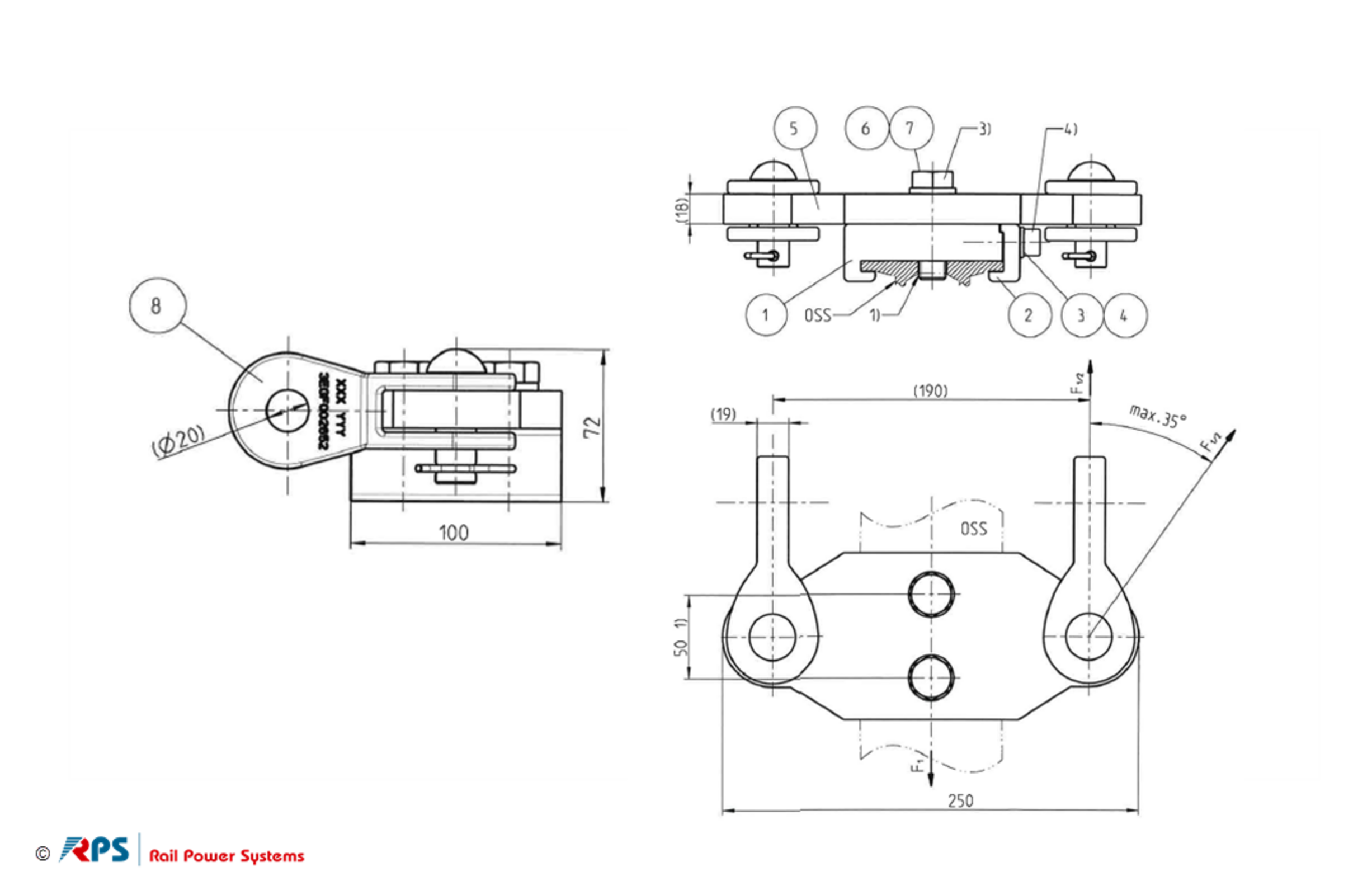

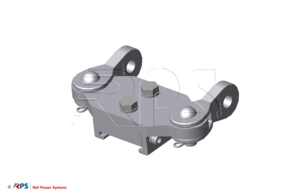

Abspannklemme OSS mit 2 Gabelösen
Variante: clamp
|
|
Mechanical values
| Wert | |
|---|---|
| Name | clamp |
| Material | Al |
| Weight | 0,620 kg |
| Drawing Number | 3EGF024490Z7093 |
| Material-ID | 3EGF019659 |

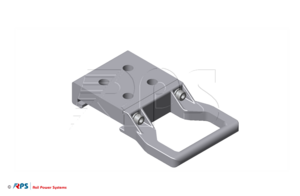

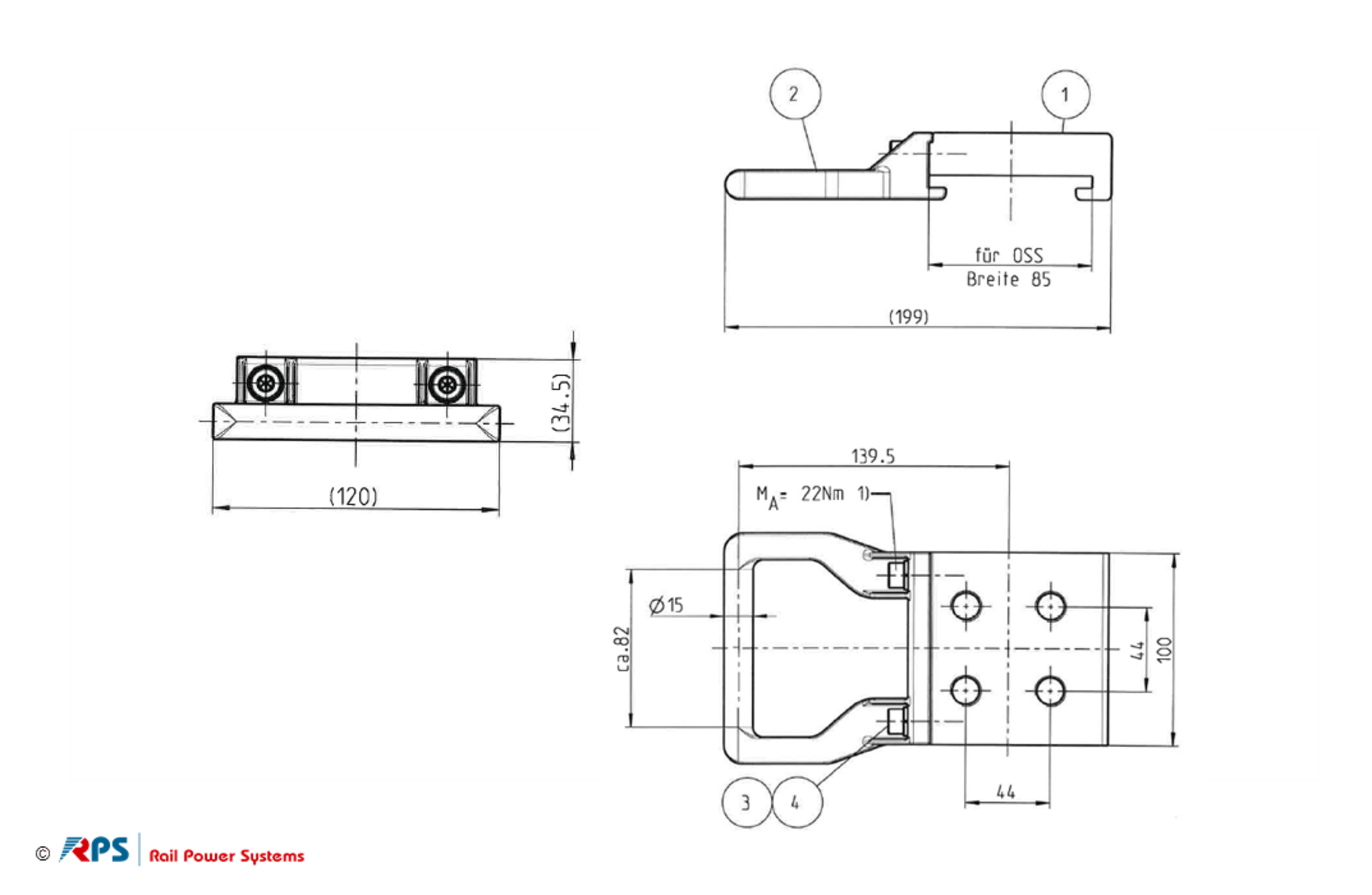

OSS clamp
Variante: Connection clamp
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Connection clamp |
| Material | Al |
| Weight | 0,889 kg |
| Material-ID | 3EGF019610 |

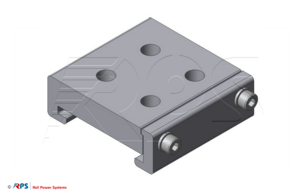

Clamp for OCR
Variante: Profile Clamp
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Profile Clamp |
| Weight | 0,70 kg |
| Material | A2, Al |
| Drawing Number | 3EGF024402Z7524 |
| Material-ID | 3EGF019609 |

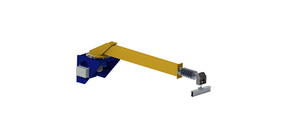

OSS Swivel arm SAM
Variante: OSS Swivel arm (SAM)
|
|
Mechanical values
| Wert | |
|---|---|
| Name | OSS Swivel arm (SAM) |
| Build Type | with motor |
| Place of operation | Montagehallen |
| Mounting length | MVK 2000 mm |
| Length | 1440 mm |
| Nominal voltage | 0,23/0,40-0,265/0,46 kV |
| Supply frequency | 50-60 Hz |
| Material-ID | 3EGF030063 |

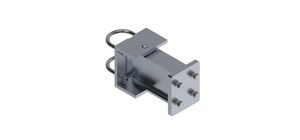

Cantilever bracket/Suspension with connection for insulator
Variante: Auslegergelenk
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Auslegergelenk |
| Material | A2-70, A2, EN AW-6082 T6 |
| Weight | 8,9 kg |
| Material-ID | 3EGF020434 |

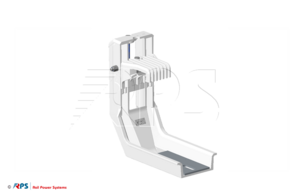

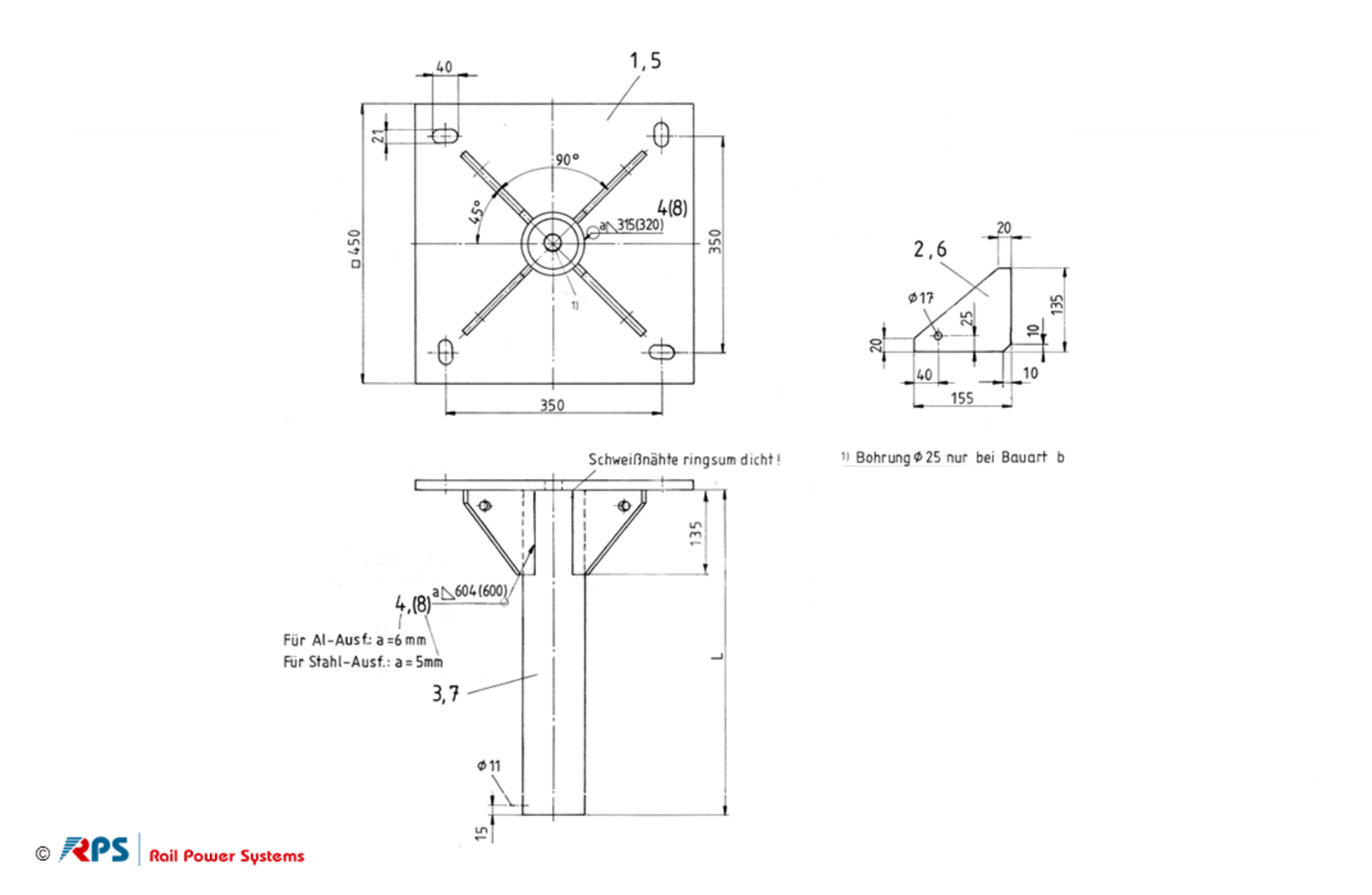

Cantilever supports
Variante: Stützpunktkonsole
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Stützpunktkonsole |
| Material | 3.2315 |
| Weight | 20,1 kg |
| L | 120 mm |
| Diameter | 100 mm |
| Material-ID | 3EGF002333 |

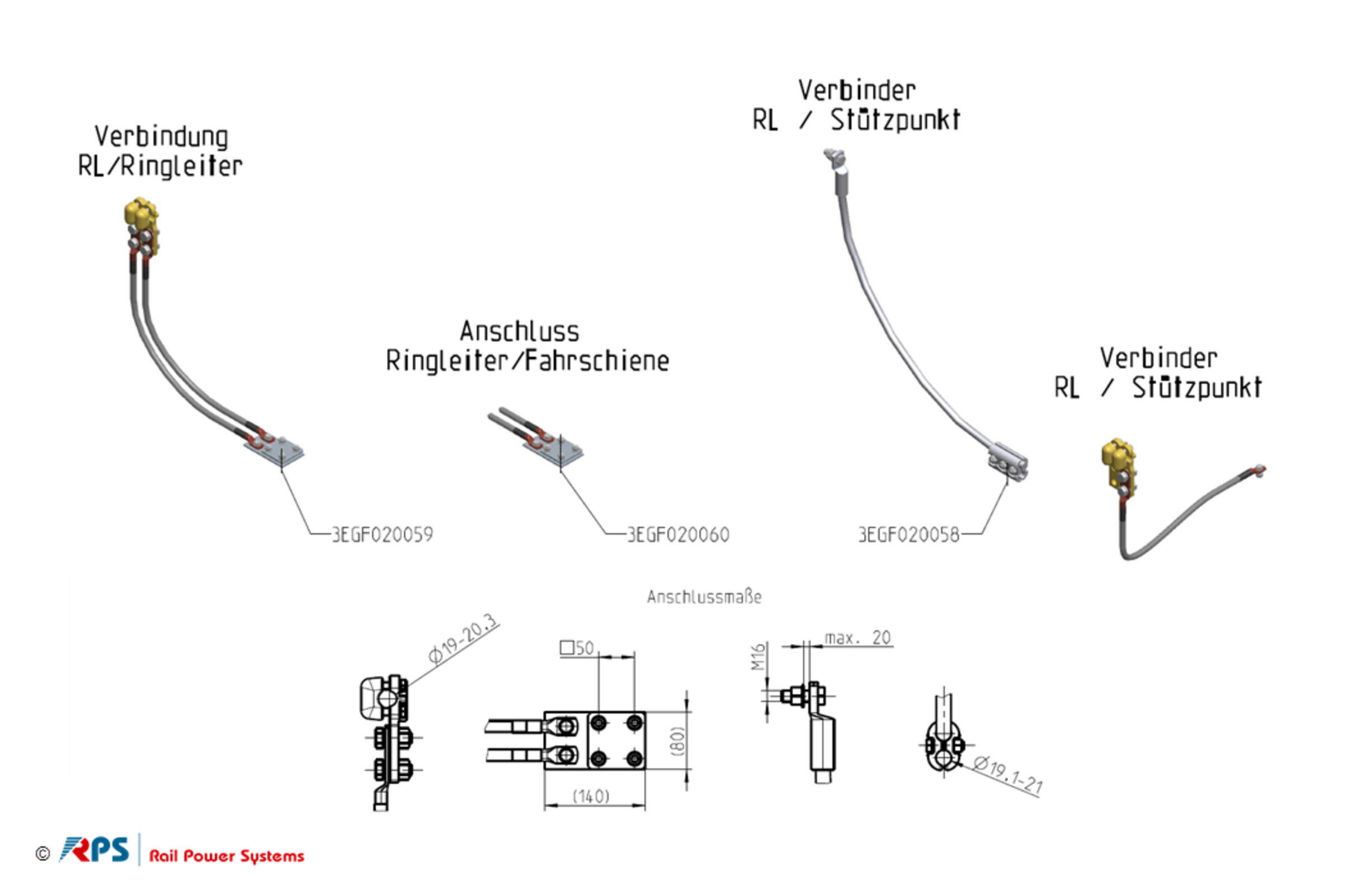

Reverse flow
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Material-ID | 3EGF024879Z1233 |

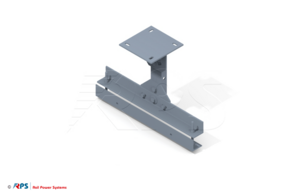

Carrying frame
Variante: Tragstruktur OSS einstellbar
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Tragstruktur OSS einstellbar |
| Weight | 43 kg |
| Material | St-tzn |
| Material-ID | 3EGF020051 |

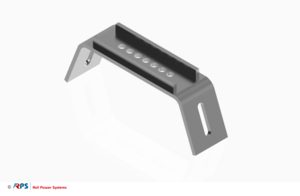

Schackle V_suspension
Variante: Shackle V-suspension
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Shackle V-suspension |
| L | 409 mm |
| Material | S355 |
| Weight | 5,9 kg |
| Material-ID | 3EGF017985 |

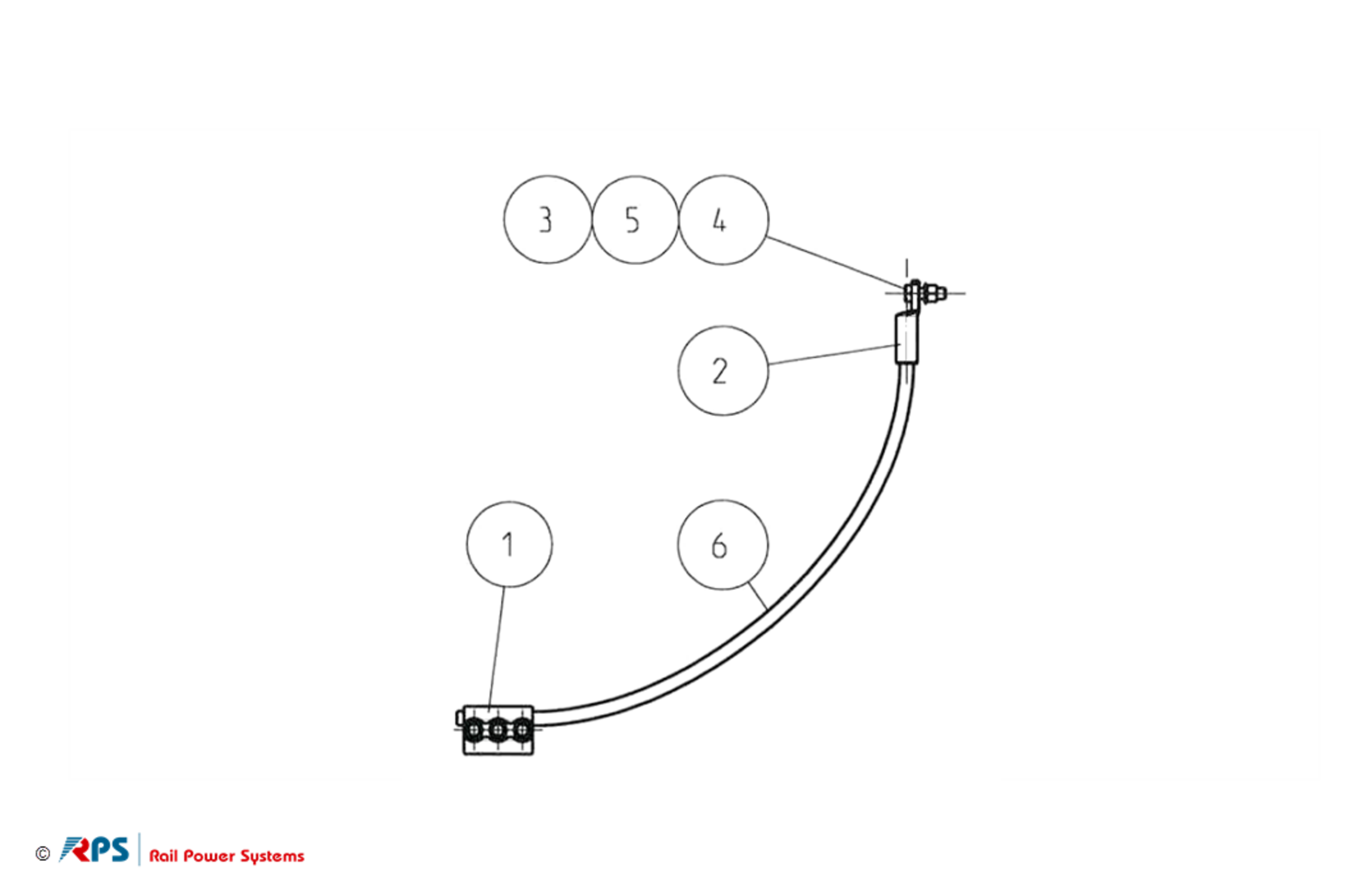

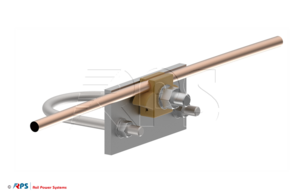

Return conductor connection with wire 243-Al1
Variante: Anschluss
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Anschluss |
| Material | Al, A2-70, E-Al |
| Weight | 1,800 kg |
| Drawing Number | 3EGF025947Z1233 |
| Material-ID | 3EGF020058 |
Return conductor suspension

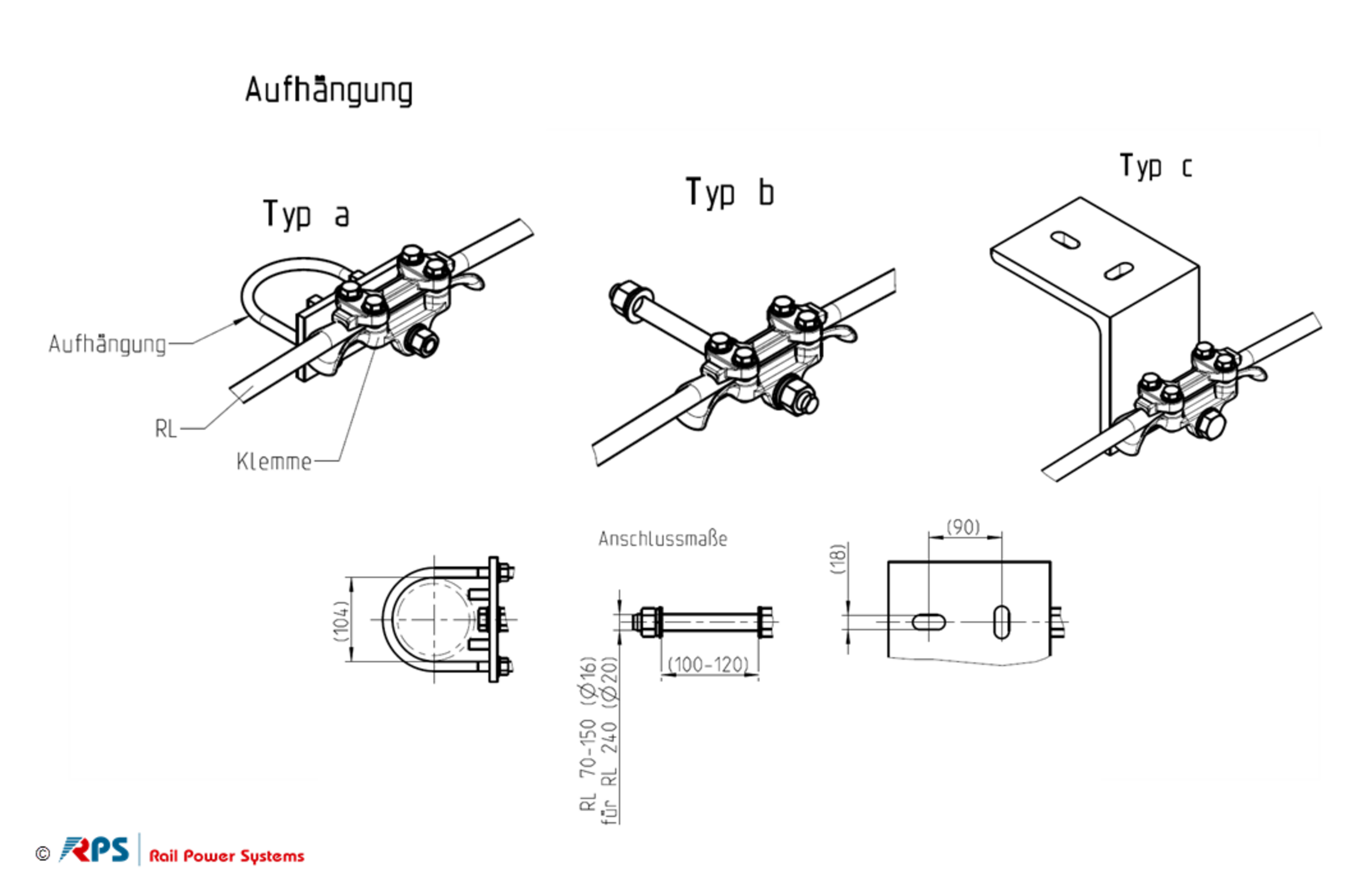

Variante: RL-suspension
|
|
Mechanical values
| Wert | |
|---|---|
| Name | RL-suspension |
| Material | A2-70, A2 |
| Weight | 2,7 kg |
| Build Type | Typ a / 3 (RL=95 mm²) |
| Material-ID | 3EGF013760 |

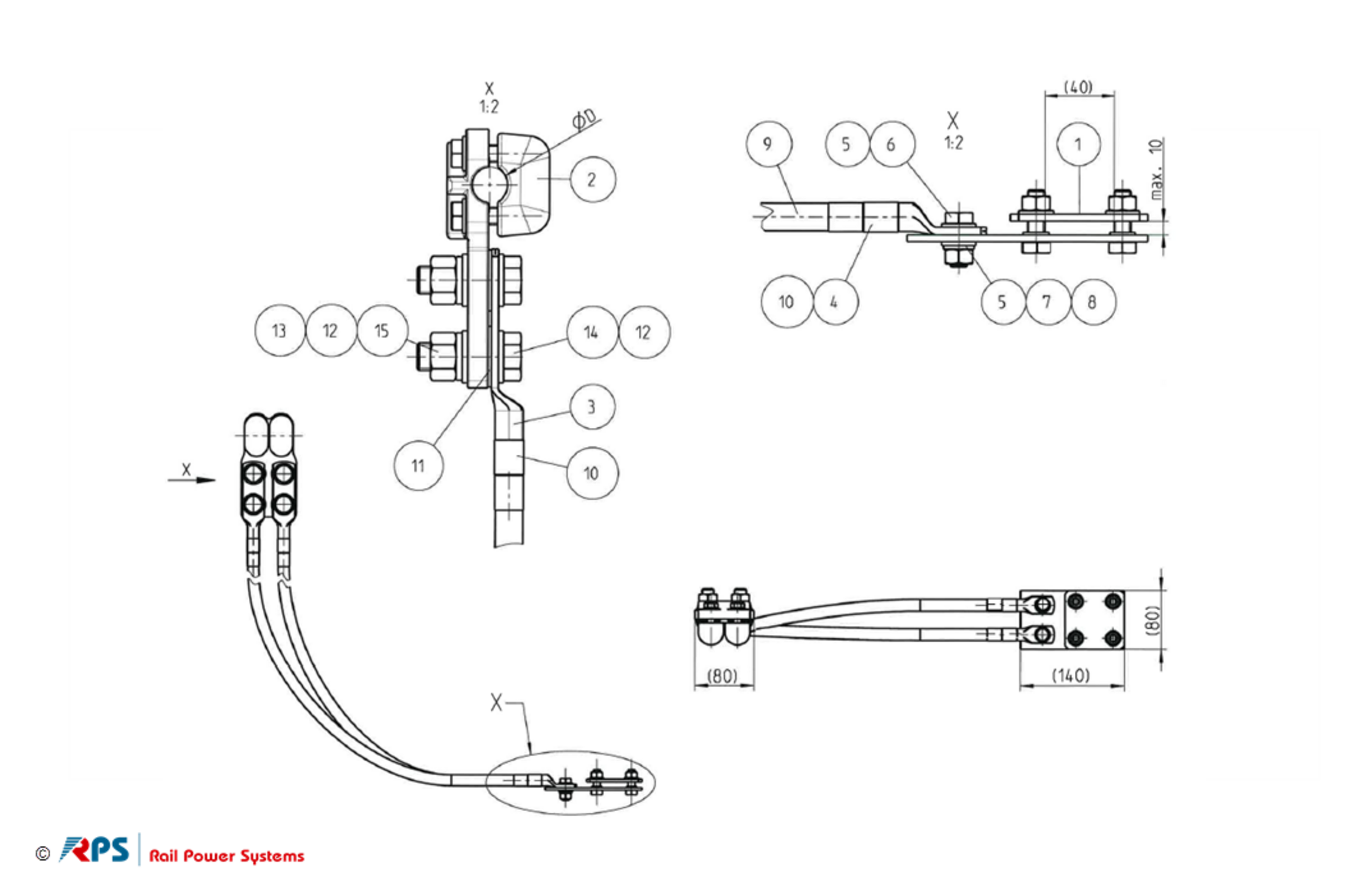

Ring conductor connection with 2x 70 mm²
Variante: Anschluss
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Anschluss |
| Material | A2-70, A2, Cu, Cu-ETP |
| Weight | 6,242 kg |
| Drawing Number | 3EGF025949Z1233 |
| Material-ID | 3EGF020059 |

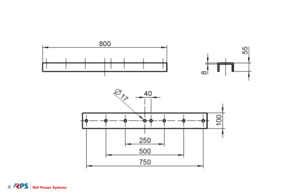

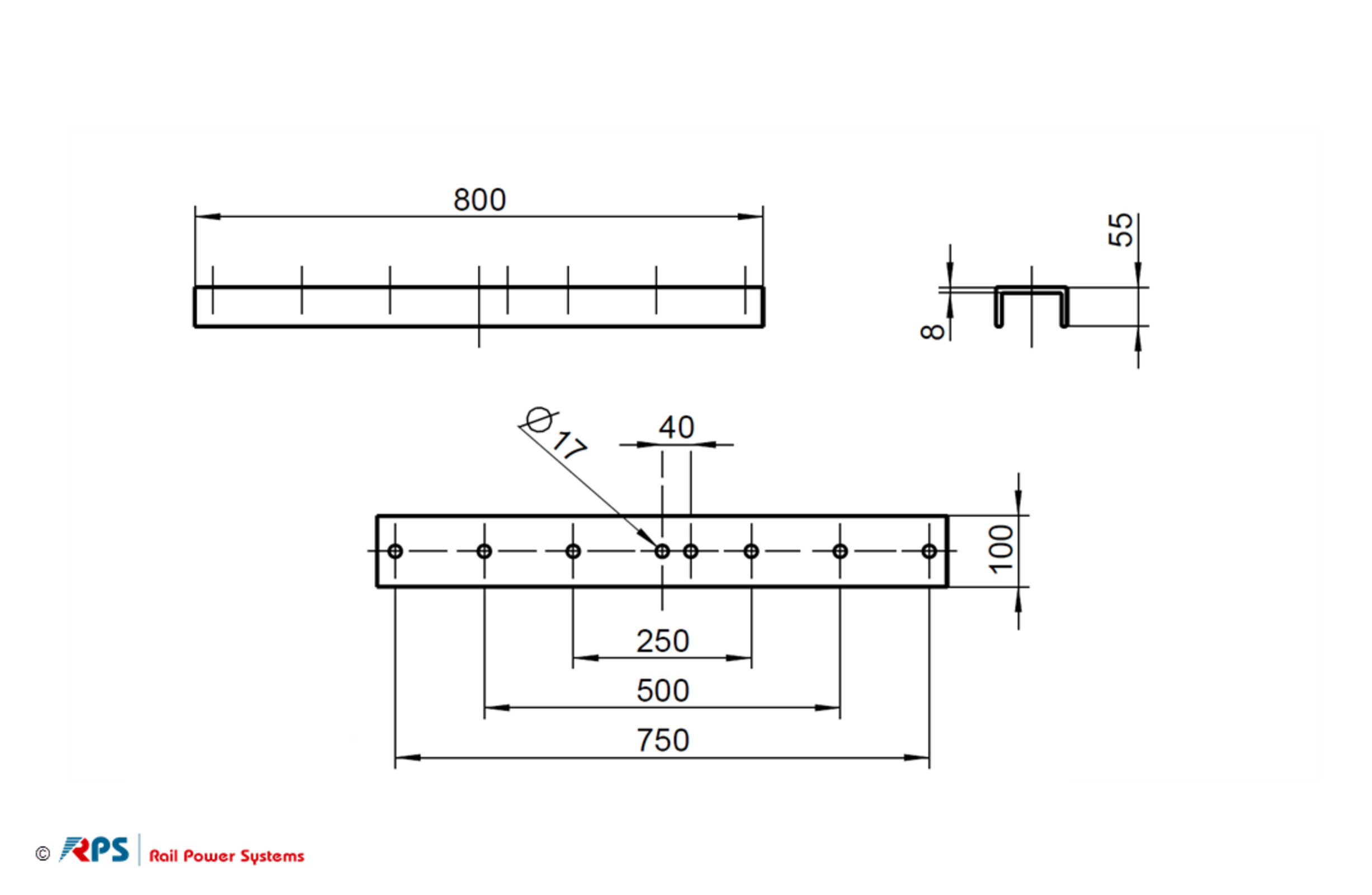

Connection cable to steel strip

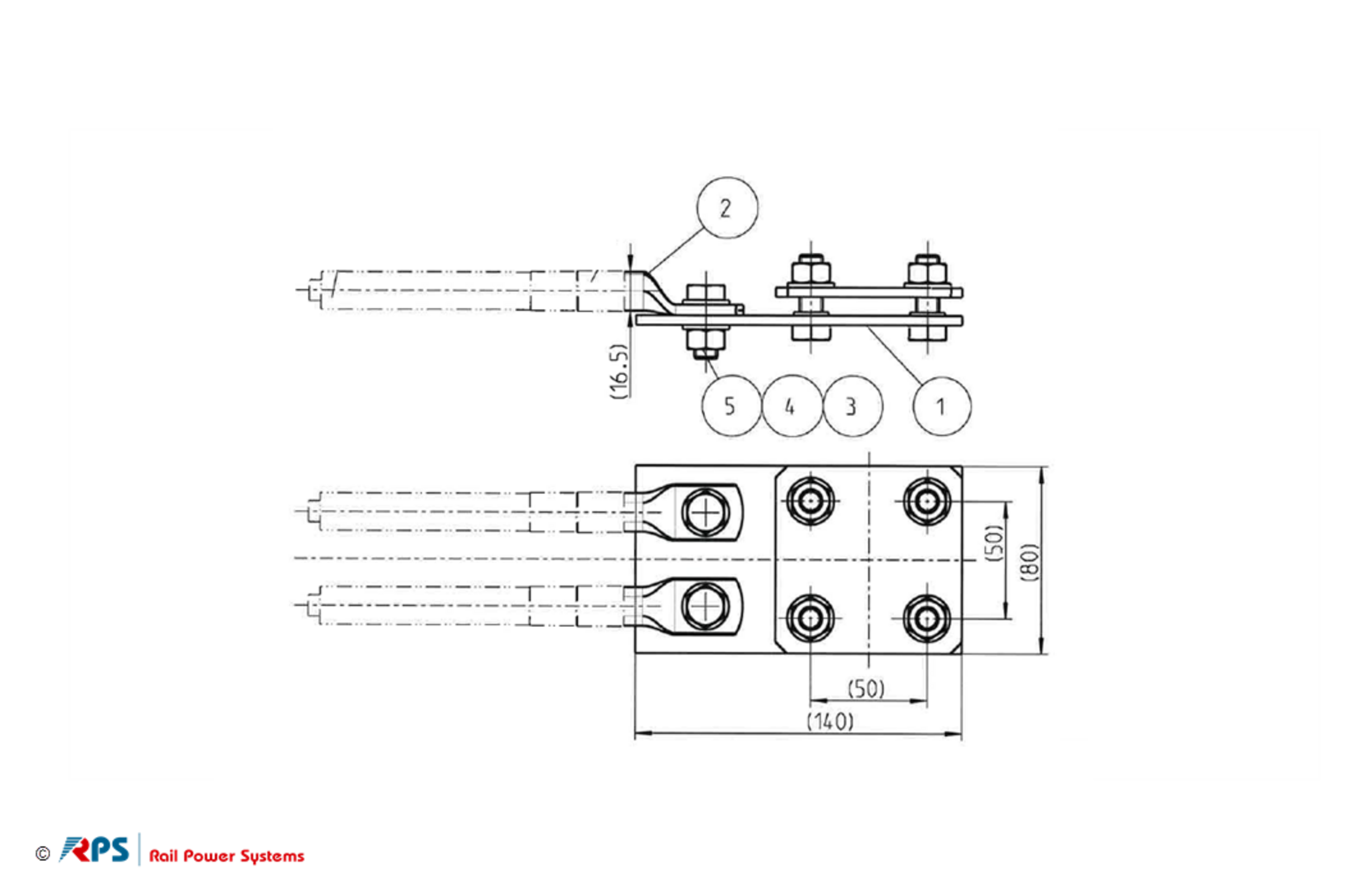

Variante: Befestigung
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Befestigung |
| Material | A2-70, Cu |
| Weight | 1,300 kg |
| Drawing Number | 3EGF025950Z1234 |
| Material-ID | 3EGF020060 |

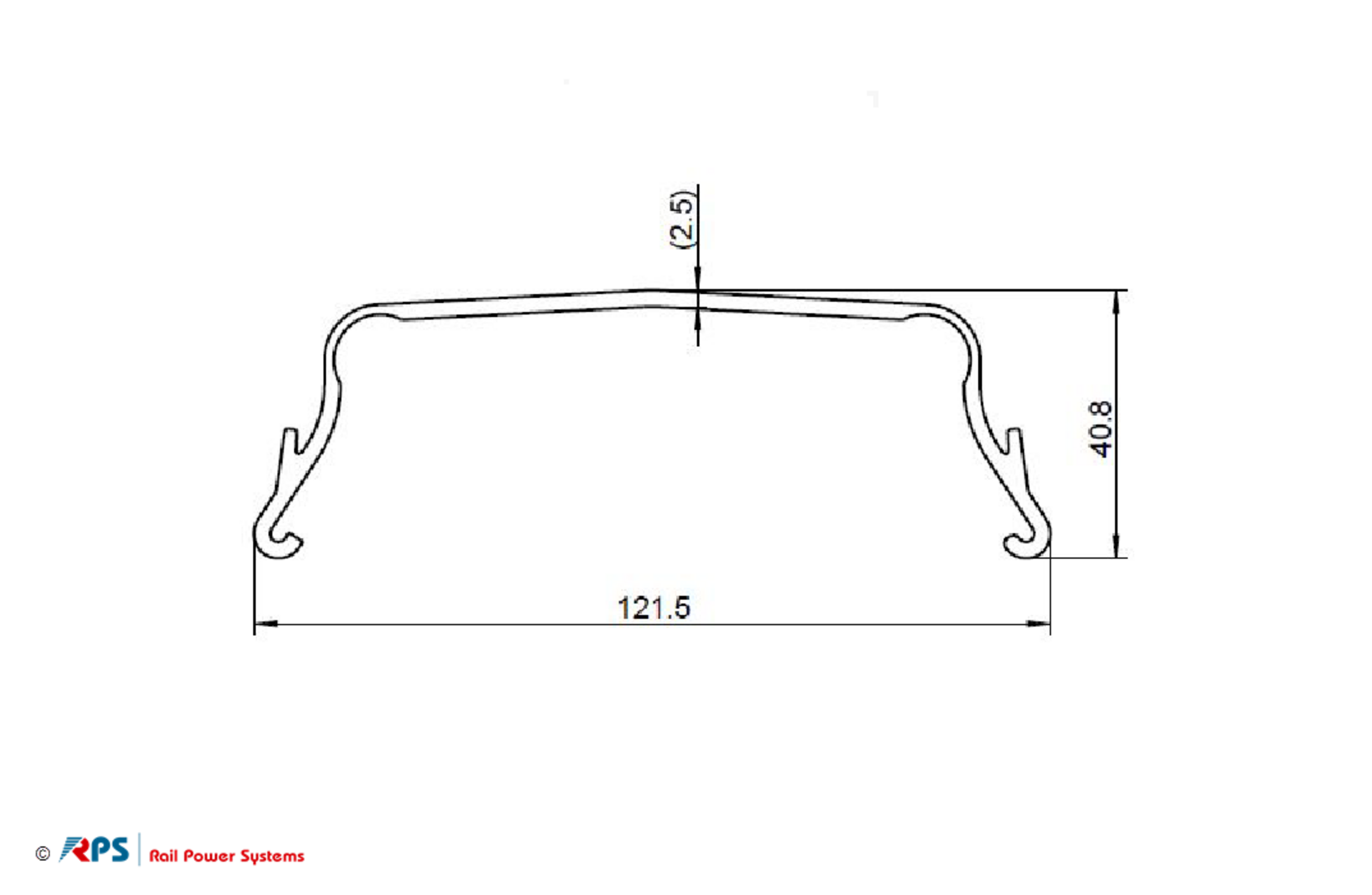

OCR protective cover - muffle
Variante: Muffle protective cover
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Muffle protective cover |
| Material | PC ABS, UV-resistant |
| L | 500 mm |
| Material-ID | 3EGF020415 |

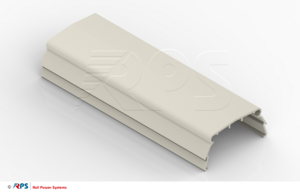

OCR protective cover - profile
Variante: Profile protective cover
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Profile protective cover |
| Material | PC ABS, UV-resistant |
| Material-ID | 3EGF020414 |

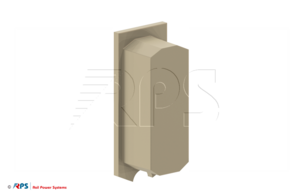

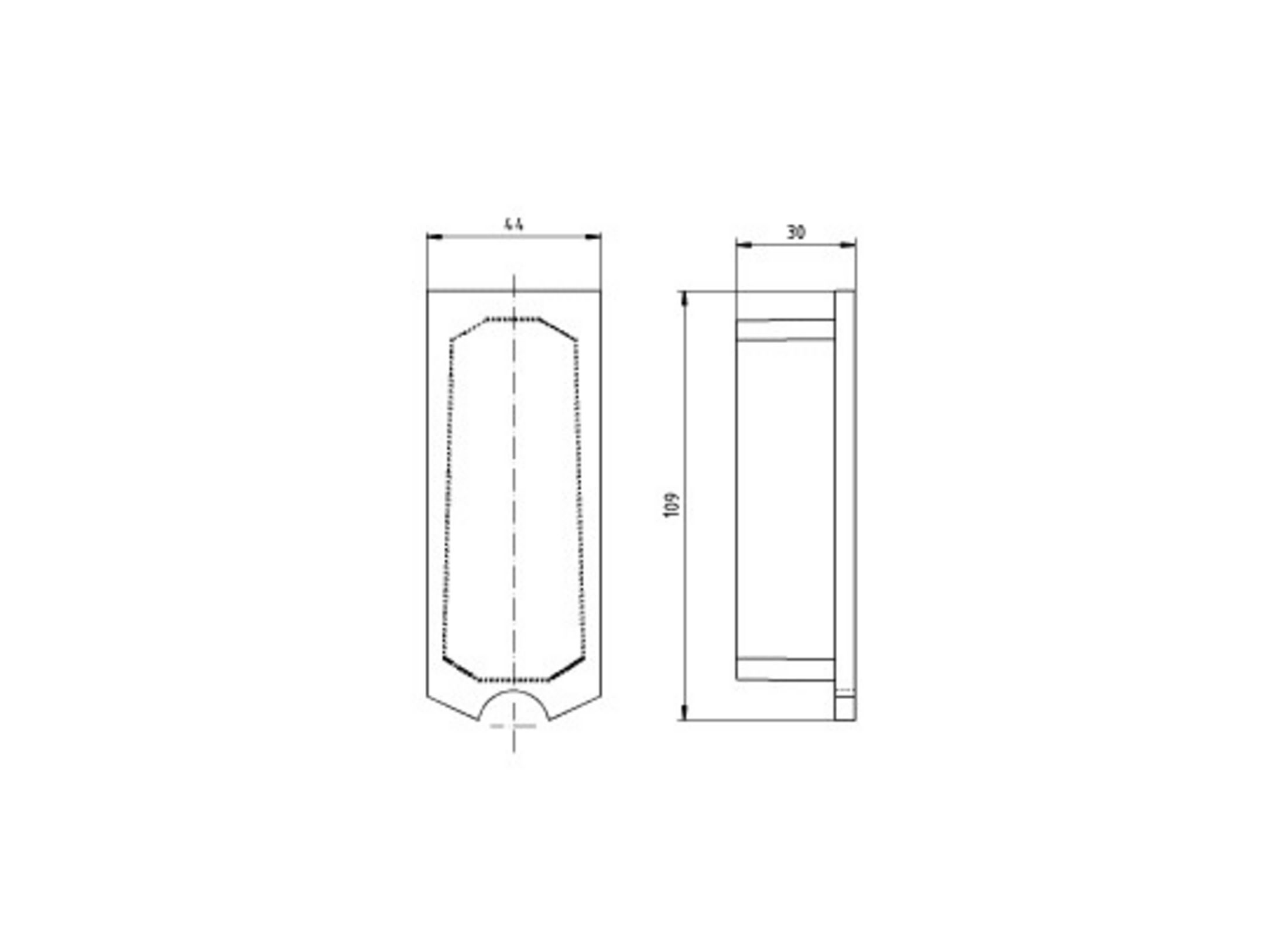

OCR closing cap
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 3EGF007041Z7513 |
| Material-ID | 3EGF013571 |
Anchor console
Variante: Anchorage console
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Anchorage console |
| Material | S235JR tZn |
| Weight | 29 kg |
| Material-ID | 3EGF020061 |

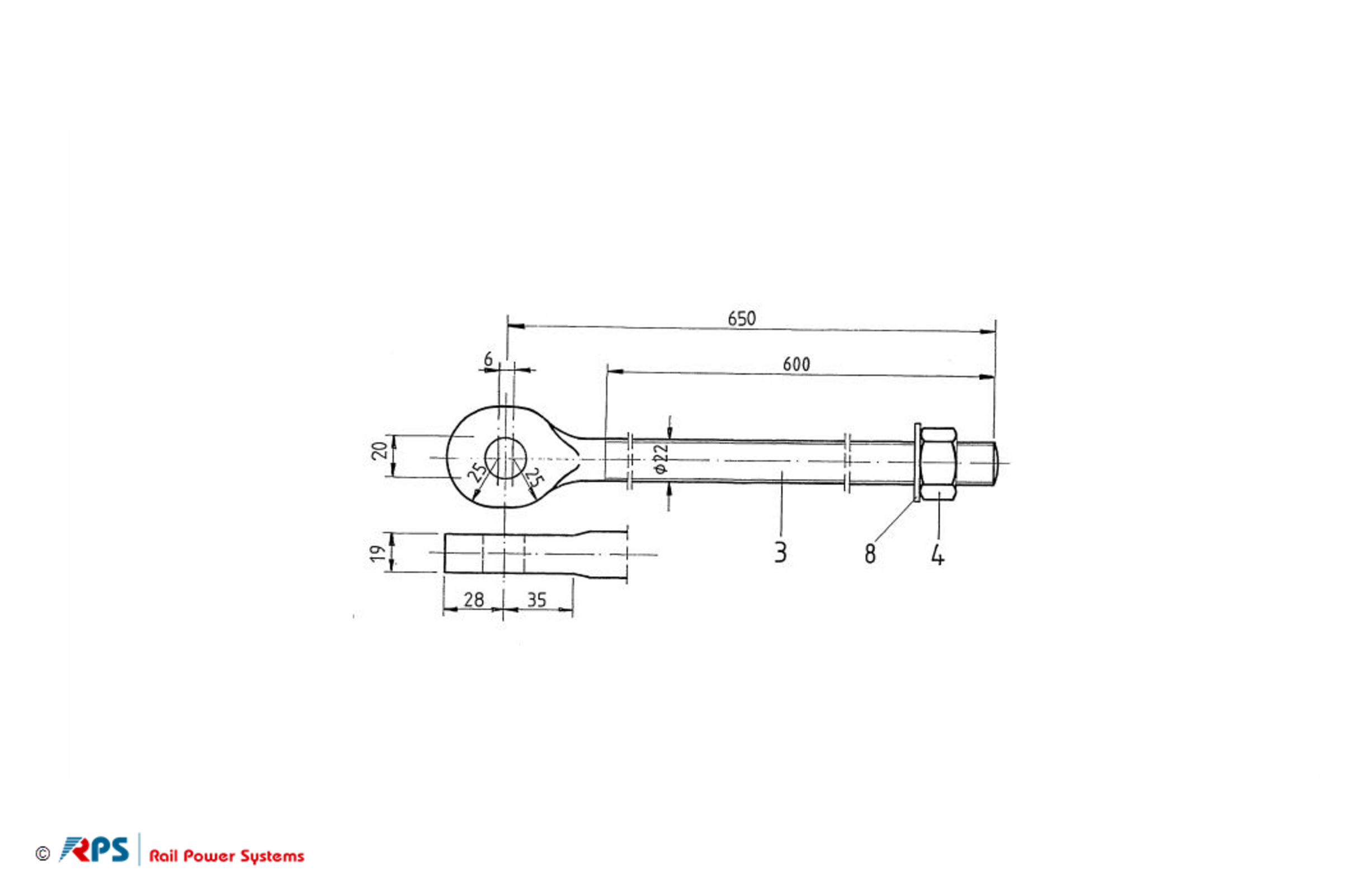

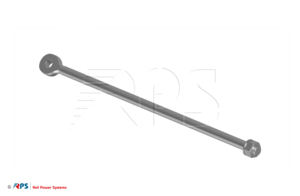

Anchor bar
Variante: Zugstange
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Zugstange |
| Material | A2-70 |
| Material-ID | 3EGF003048 |

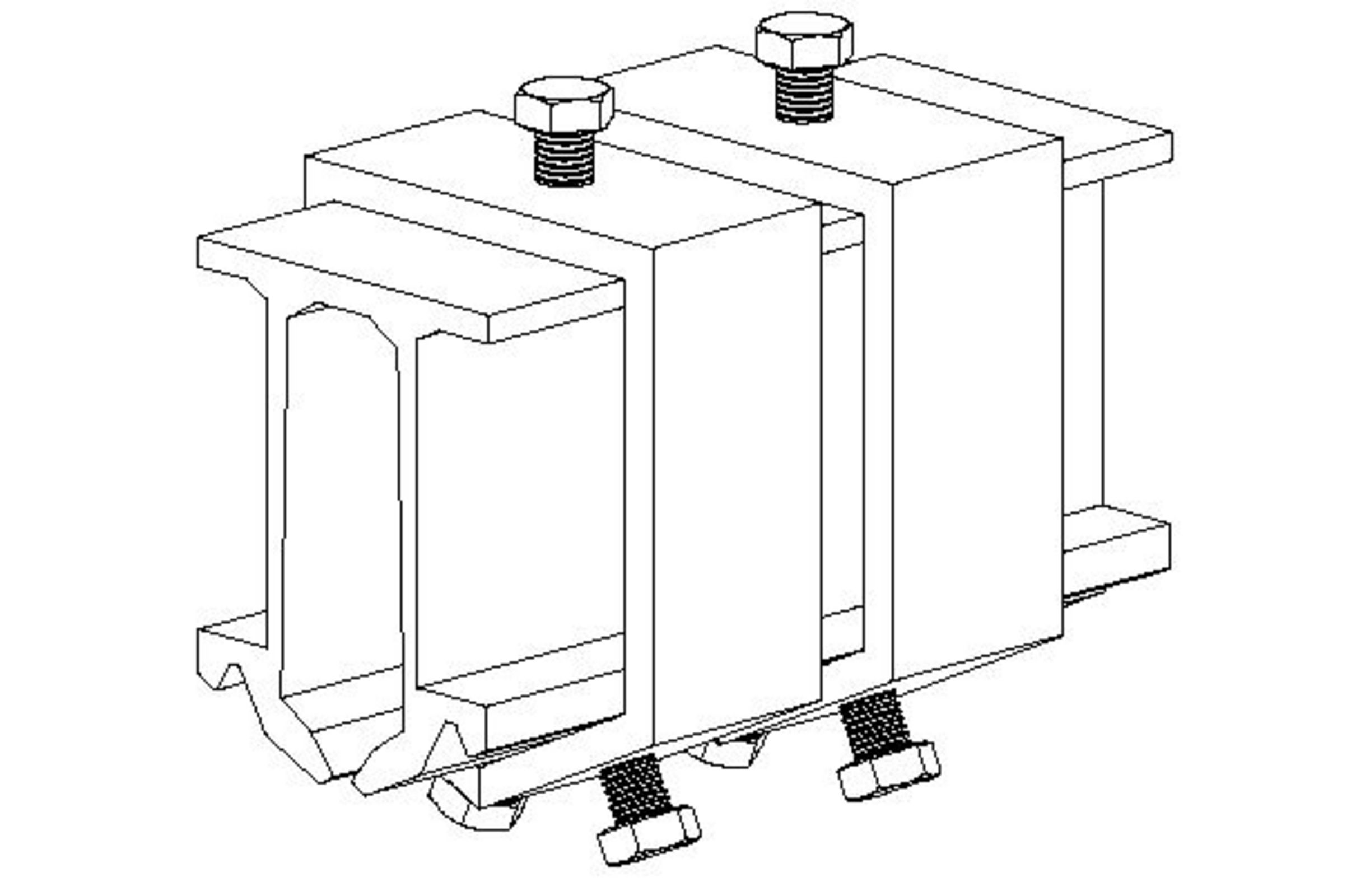

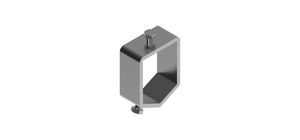

OSS Sägeschablone
Variante: OCR cutting tool
|
|
Delivery: in pairs
Mechanical values
| Wert | |
|---|---|
| Name | OCR cutting tool |
| Weight | 2,8 kg |
| Material-ID | 3EGF030165 |

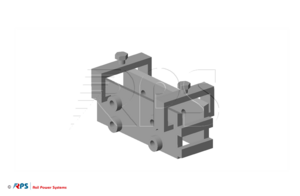

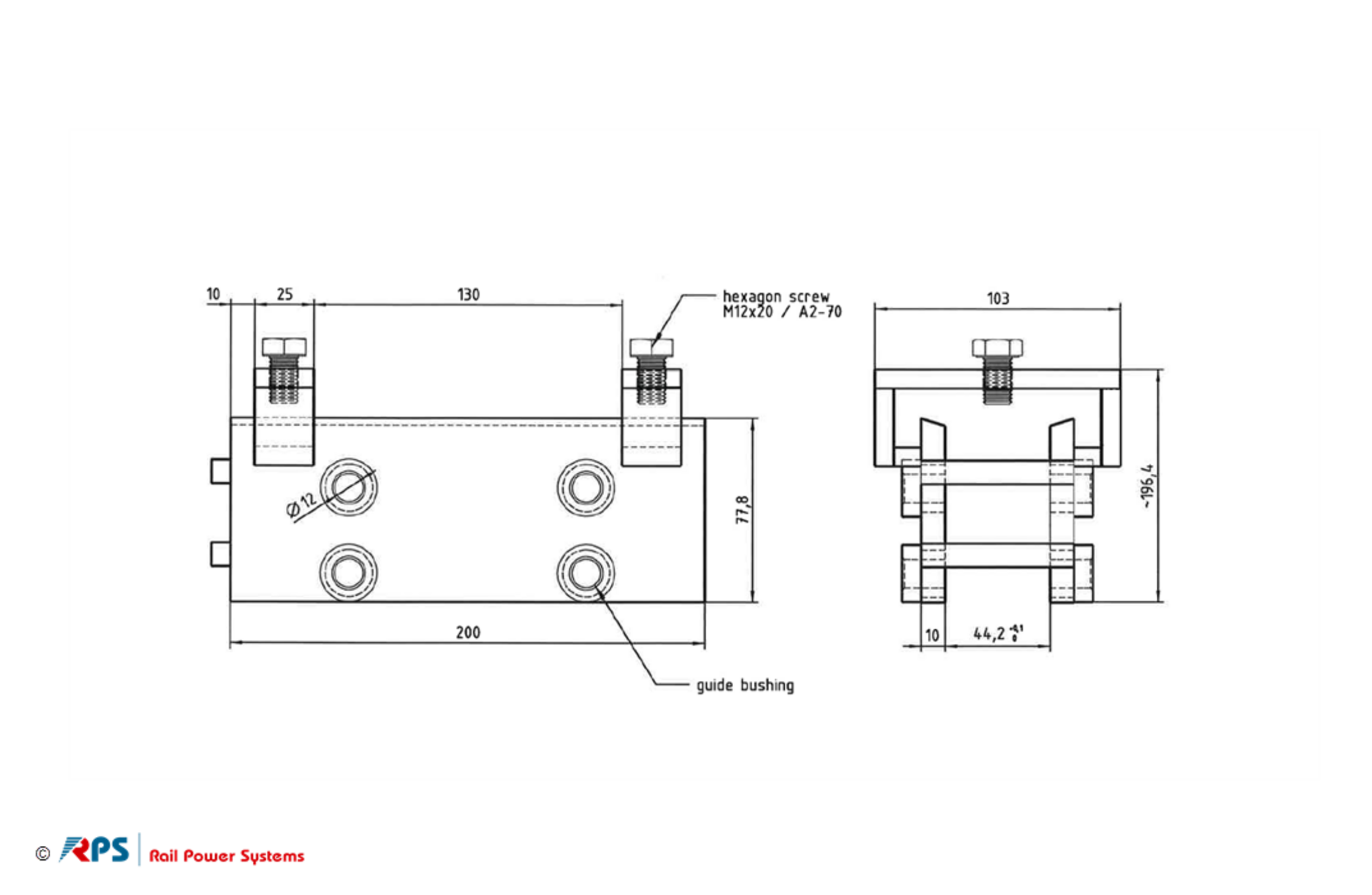

OCR drilling template
Variante: Bohrschablone
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Bohrschablone |
| Material | Al |
| Drawing Number | CR/TALAD-00-OF KLK |
| Material-ID | 3EGF014848 |

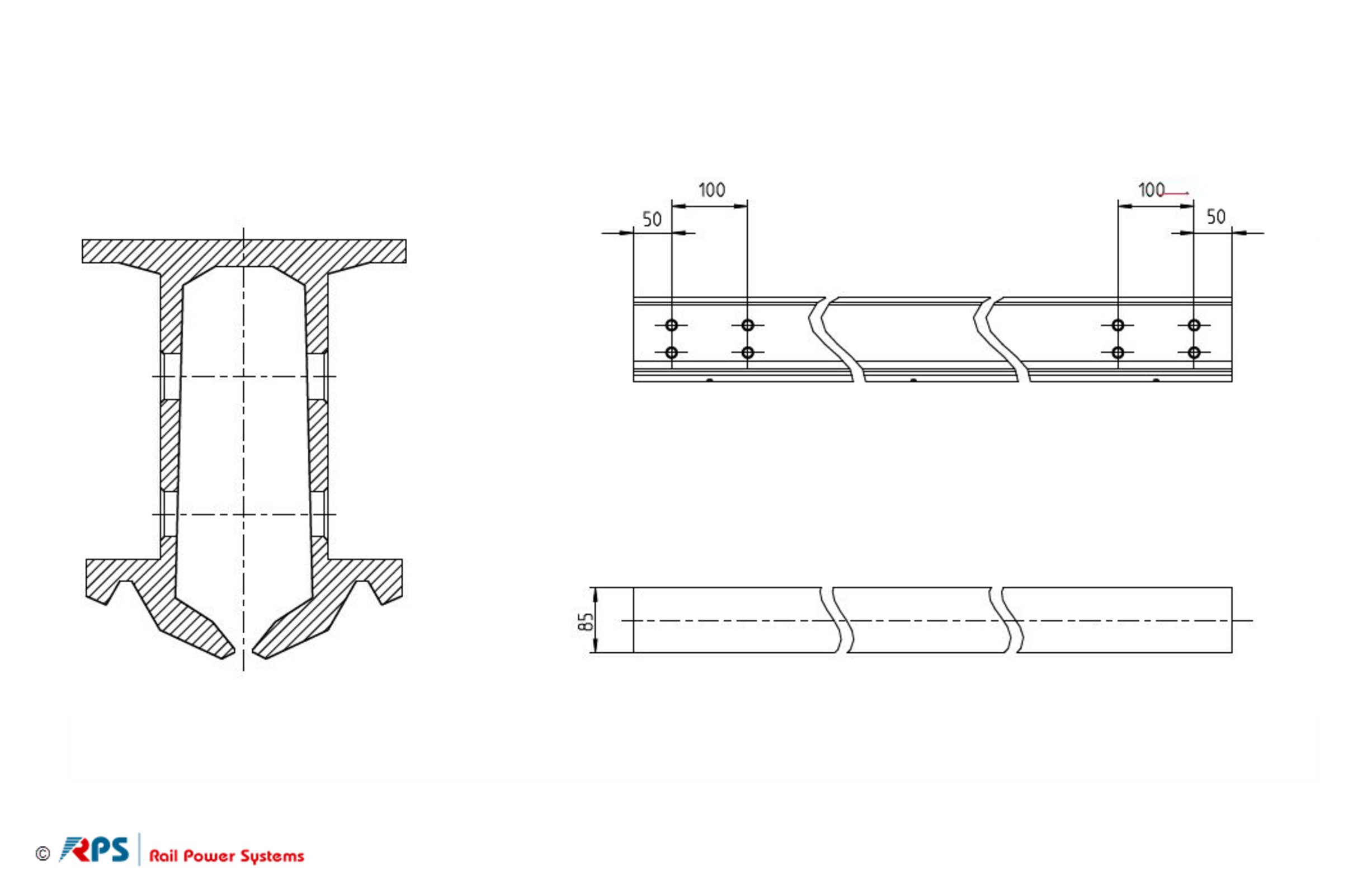

Aluminium composite conductor rail
Variante: Profile
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Profile |
| Build Type | 43385 |
| Material | EN AW-6082 T6 |
| Weight | 3,309 kg |
| L | 800 mm |
| Drawing Number | 3EGF020510Z2184 |
| Material-ID | 3EGF020510Z2184 |

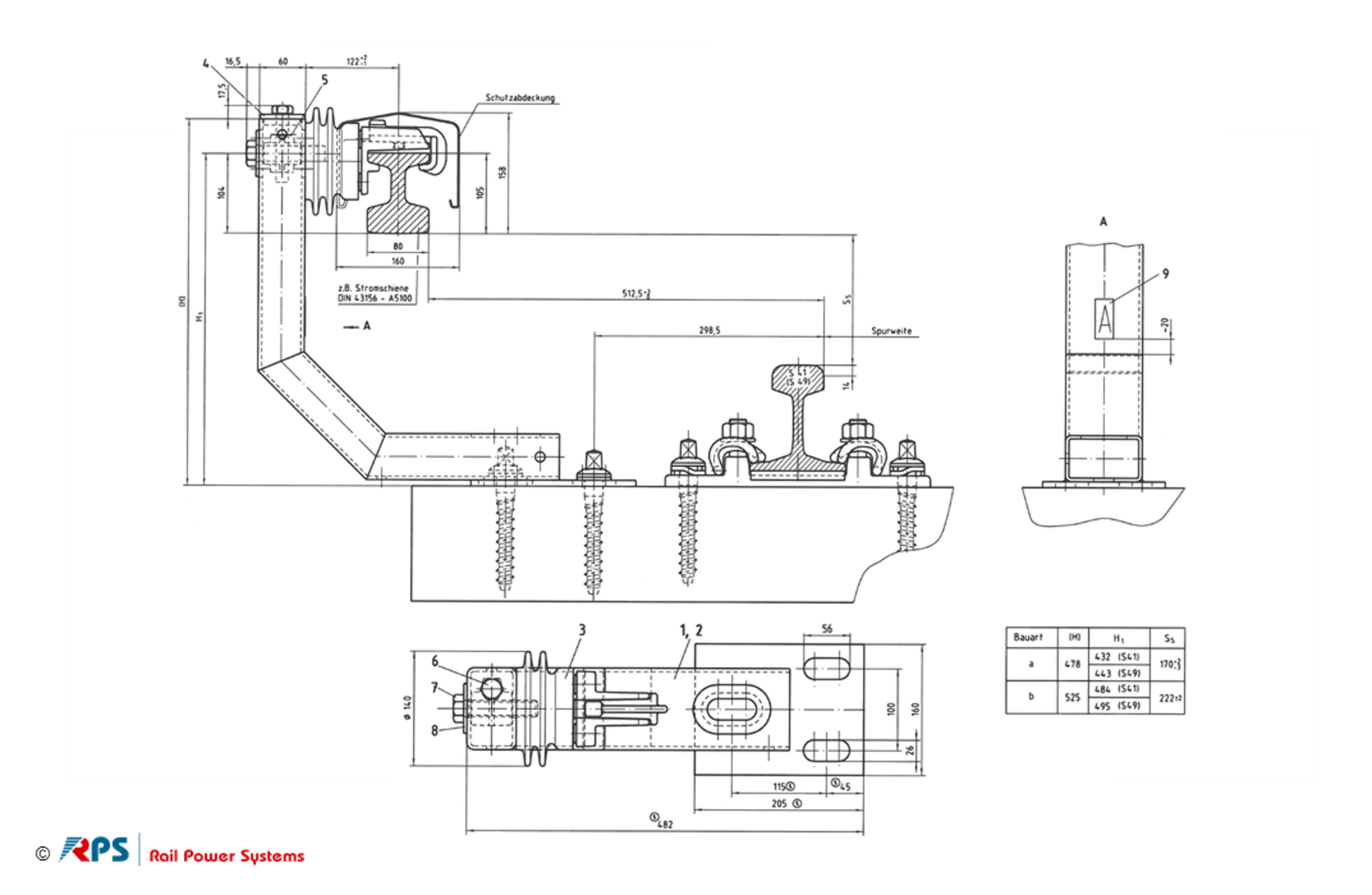

Conductor rail support (malleable cast iron fixation)
Variante: Conductor rail support
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Conductor rail support |
| Build Type | 3-hole (Berlin urban railway) |
| Weight | 17,0 kg |
| Nominal voltage | 1,5 kV |
| 170 | |
| Width | 160 mm |
| Drawing Number | 6700-102.345150-2A |
| Material-ID | 3EGF010396 |

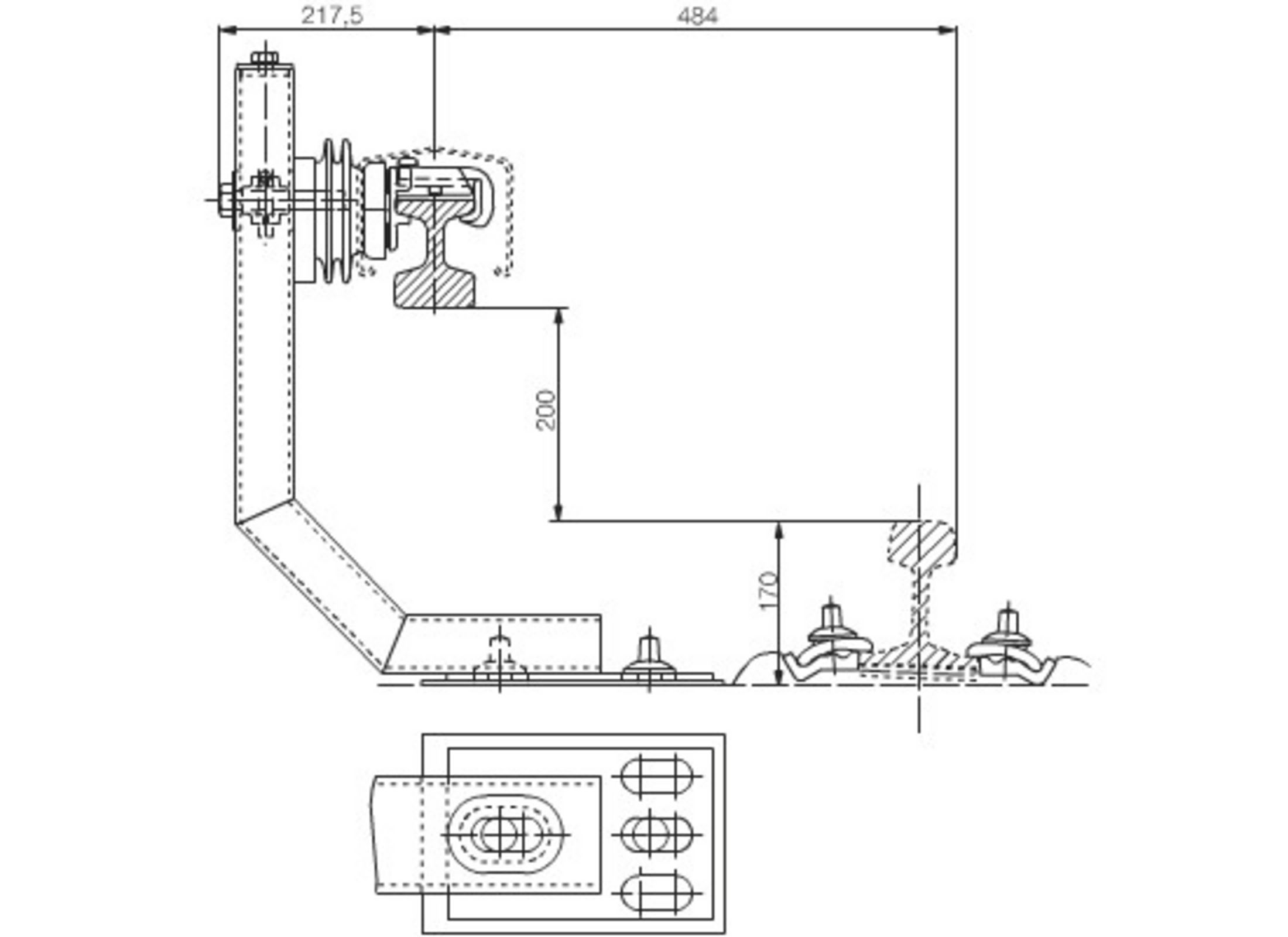

Conductor rail support - Stainless steel fixation (B)
Variante:
|
|
with stainless steel fixation, vertically adjustable ± 20 mm, rated voltage 1.5 kV
Supports with other dimensions and sleeper attachments upon request.
Supports with other dimensions and sleeper attachments upon request.
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 003463Z6312 b |
| Build Type | Hamburg elevated railway, 4-hole, for concrete sleeper |
| Material-ID | 3EGF012009 |

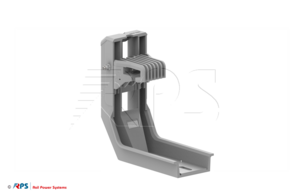

Conductor rail support (GRP) - Standard-type
Variante: Stromschienenträger
|
|
Standard-type support, for Al composite and steel conductor rail, vertically adjustable ± 35 mm, rated voltage 1.5 kV.
Support with other dimensions and sleeper attachments on request.
Support with other dimensions and sleeper attachments on request.
Mechanical values
| Wert | |
|---|---|
| Name | Stromschienenträger |
| Build Type | Nuremberg underground, 2-hole |
| Weight | 16,5 kg |
| Drawing Number | 6700102345400 |
| Material-ID | 3EGF009980 |

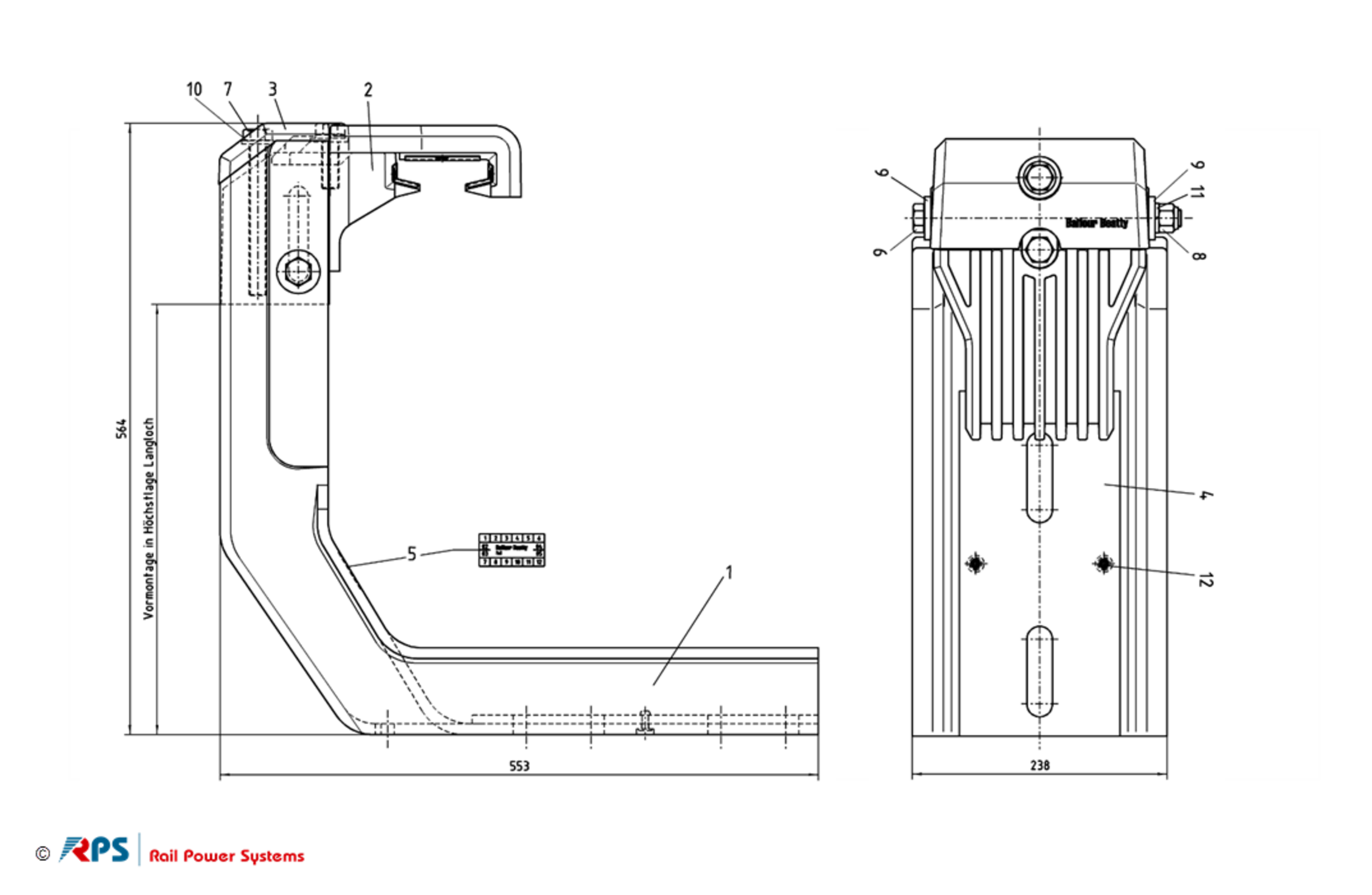

Conductor rail support (GRP) - Ramp-type
Variante: Endstützpunkt
|
|
for use on ramps, for Al composite and St conductor rails, vertically adjustable ± 35 mm, rated voltage 1.5 kV.
Supports with other dimensions and sleeper attachments on request.
Picture shows Metro Helsinki.
Supports with other dimensions and sleeper attachments on request.
Picture shows Metro Helsinki.
Mechanical values
| Wert | |
|---|---|
| Name | Endstützpunkt |
| Build Type | Nuremberg underground, 2-hole |
| Material | GFK |
| Weight | 16,500 kg |
| Rated impulse withstand voltage | 1,5 kV |
| Drawing Number | 6700-102.345422-2 |
| Material-ID | 3EGF009981 |

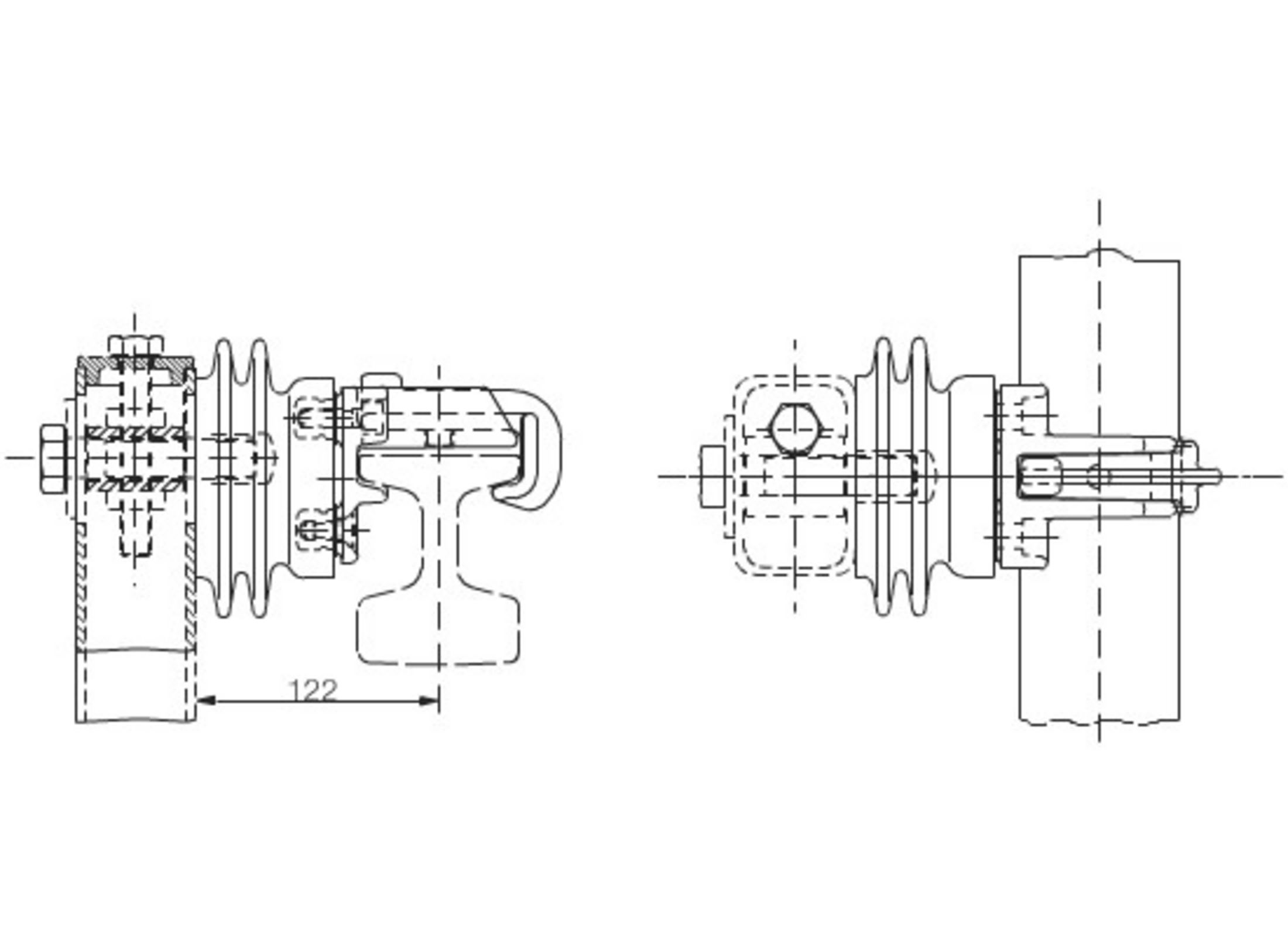

Insulator with malleable cast iron fixation
Variante:
|
|
Insulator of cast resin.
Individual parts of the vertical adjustment device are available on request.
Individual parts of the vertical adjustment device are available on request.
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 3EGF000538Z6314 |
| Weight | 3,73 kg |
| Material-ID | 3EGF010146 |

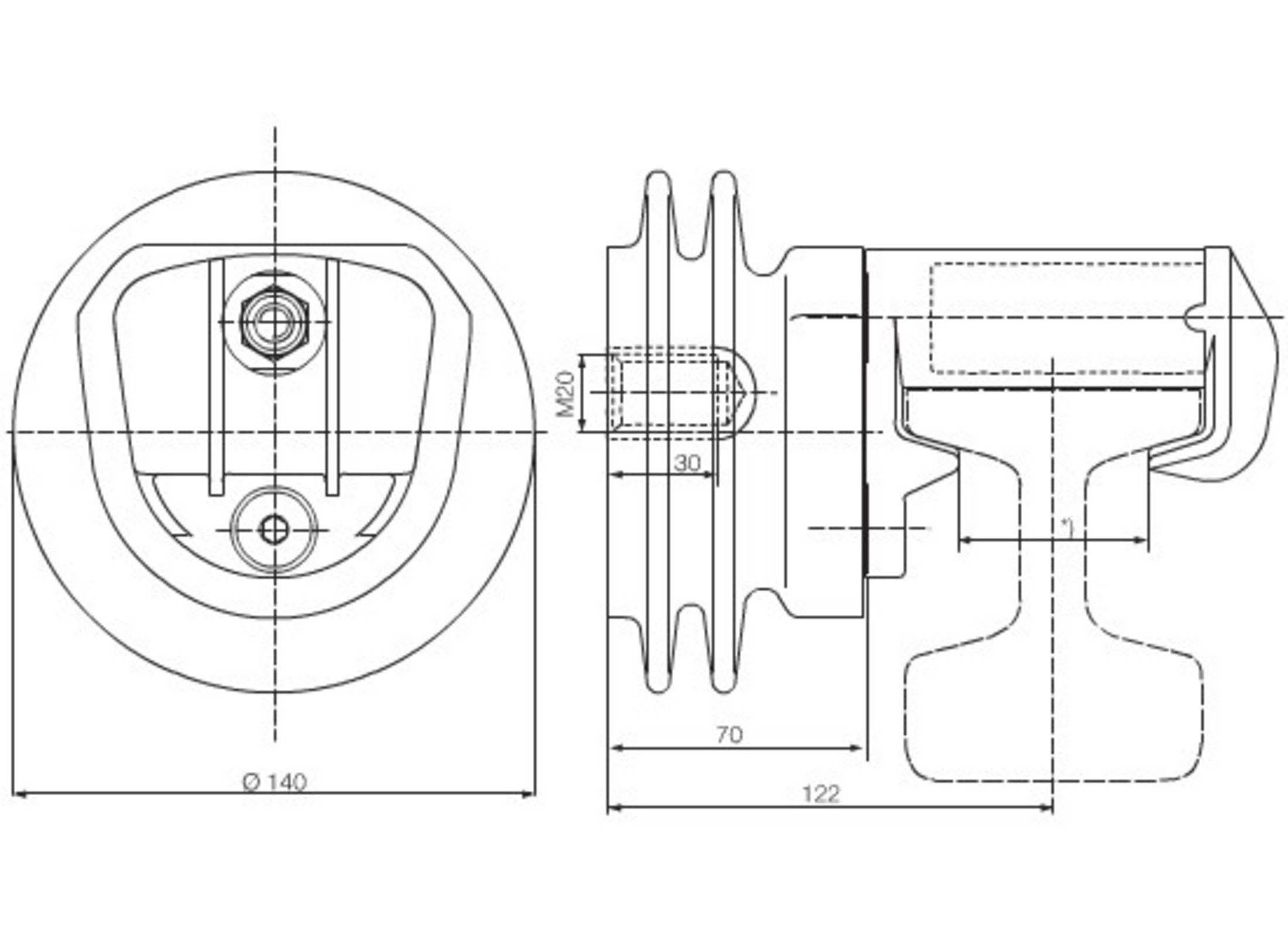

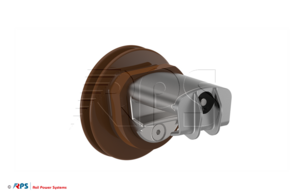

Insulator with stainless steel support
Variante:
|
|
Insulator of cast resing
*) Mounting dimension >= 90 mm
*) Mounting dimension >= 90 mm
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 6700-102.345349-3 |
| Weight | 2,95 kg |
| Material-ID | 3EGF009890 |
Conductor rail ramp (for open tracks)
Variante: Weichenauflauf
|
|
Screwed on in straight sections, for aluminium profiles 40706 and 6D, for steel conductor rail, with protective cover.
Mechanical values
| Wert | |
|---|---|
| Name | Weichenauflauf |
| Build Type | Berlin urban railway |
| Material | S355JO |
| Weight | 112 kg |
| L | 6750 mm |
| Drawing Number | 00720Z6351 a |
| Material-ID | 3EGF011000 |
Conductor rail ramp (for switch sections in tunnels)
Variante: Conductor rail ramp
|
|
Screwed on in straight sections, for aluminium profiles 40706 and 6D, for steel conductor rail, with protective cover.
Mechanical values
| Wert | |
|---|---|
| Name | Conductor rail ramp |
| Build Type | Approach: right, radius: R 190 |
| Material | S355JO |
| Weight | 112 kg |
| L | 6750 mm |
| Drawing Number | 3EGF000720Z6351 M |
| Material-ID | 3EGF013058 |

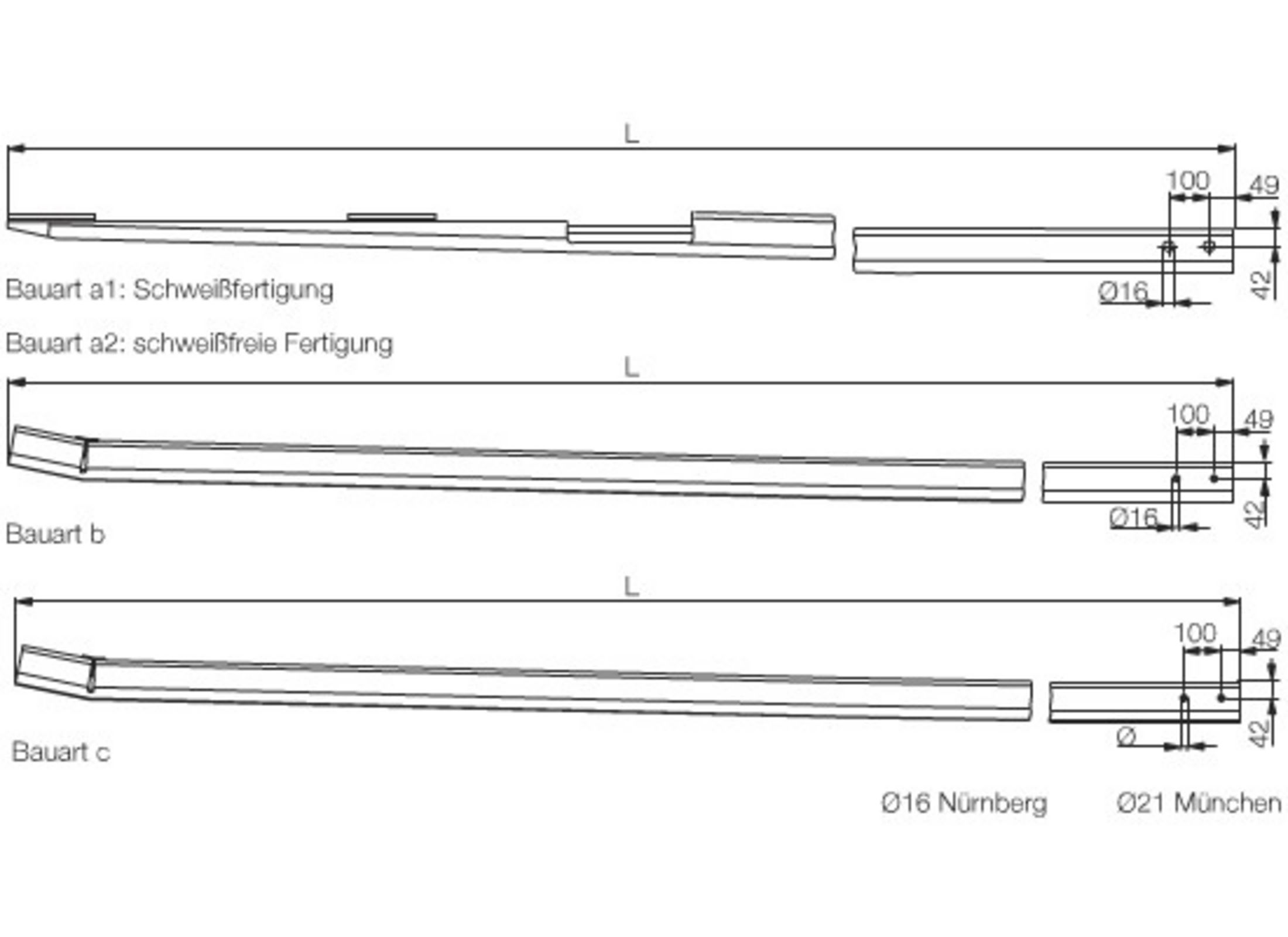

Conductor rail ramp (for aluminium composite conductor rail)
Variante:
|
|
Tilt: 1:30. Profile: 40706
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 6700-102.345399-1 |
| Weight | 58,0 kg |
| Build Type | Nuremberg underground |
| L | 3500 mm |
| Material-ID | 3EGF010388 |

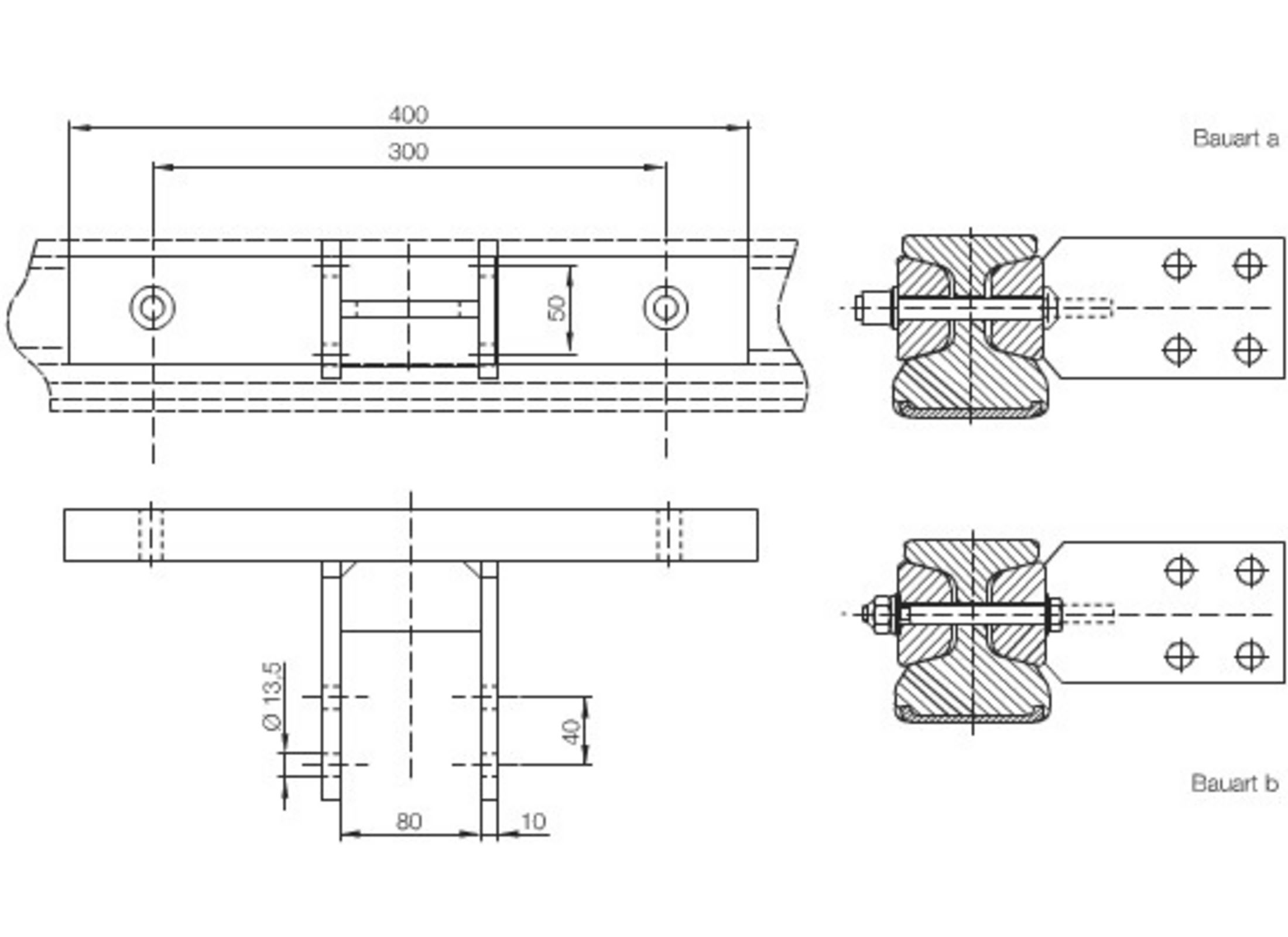

Cable terminal for aluminium composite conductor rail (B)
Variante:
|
|
For aluminium composite conductor rail, nondetachable (with Huckbolt technology), detachable (with screwed joints).
Other designs on request.
Other designs on request.
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 6700-102.345381-3 |
| Build Type | a) non-detachable |
| Material-ID | 3EGF009696 |
Conductor rail fixed point
Variante:
|
|
for aluminium composite conductor rail, for steel conductor rail
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 6700-102.345402-3 |
| Weight | 1,98 kg |
| Build Type | GTW |
| Material-ID | 3EGF010386 |

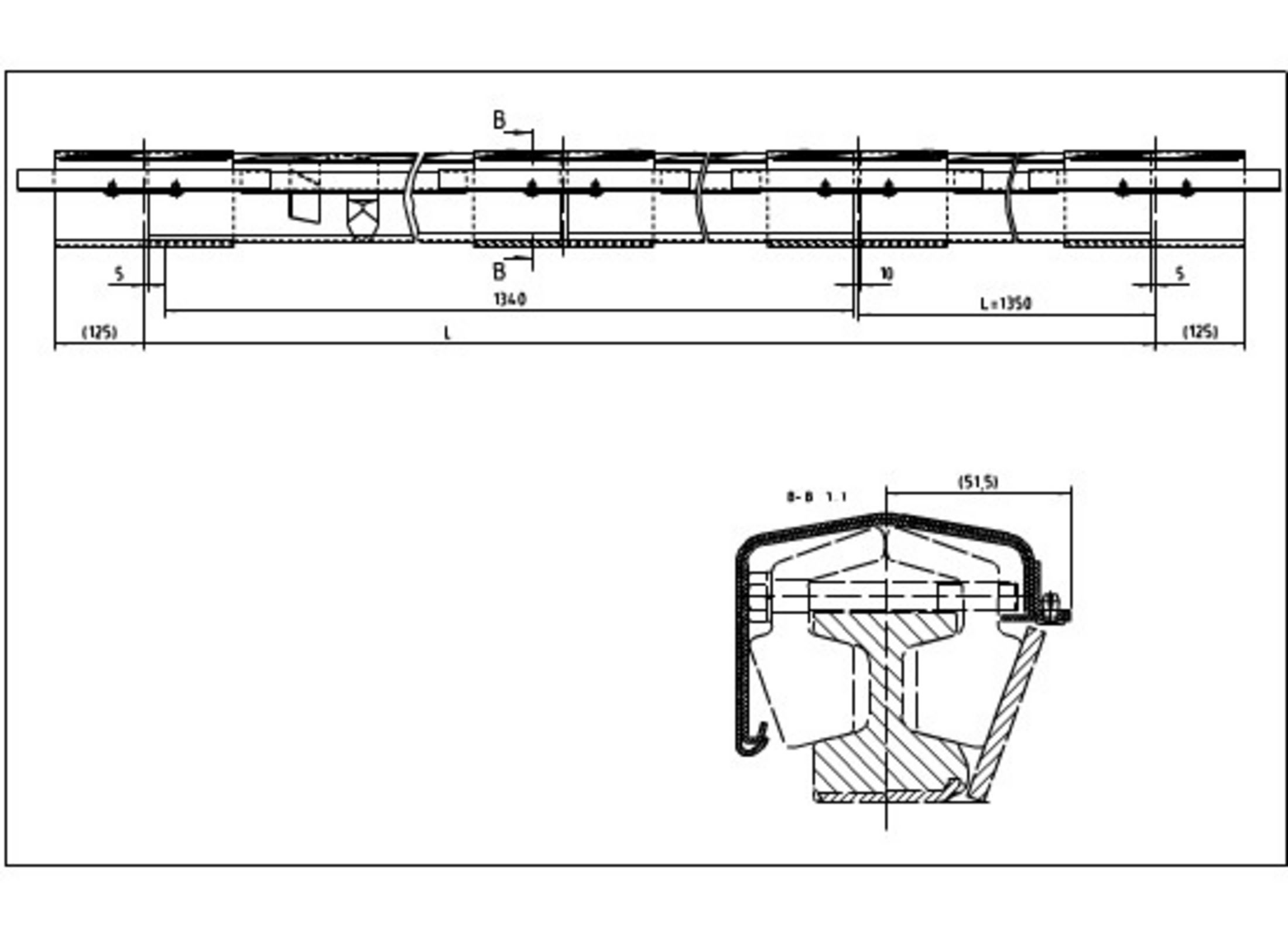

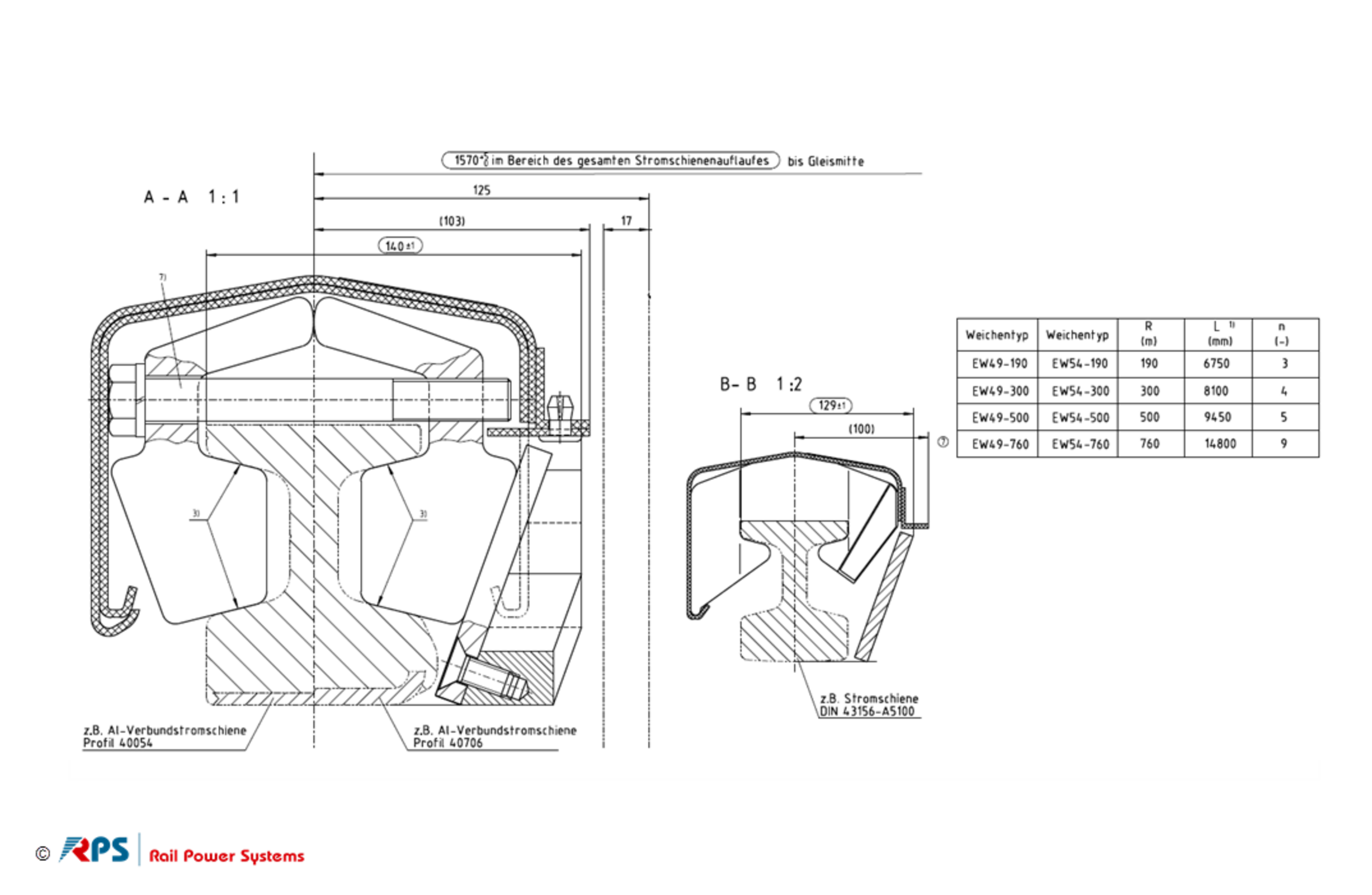

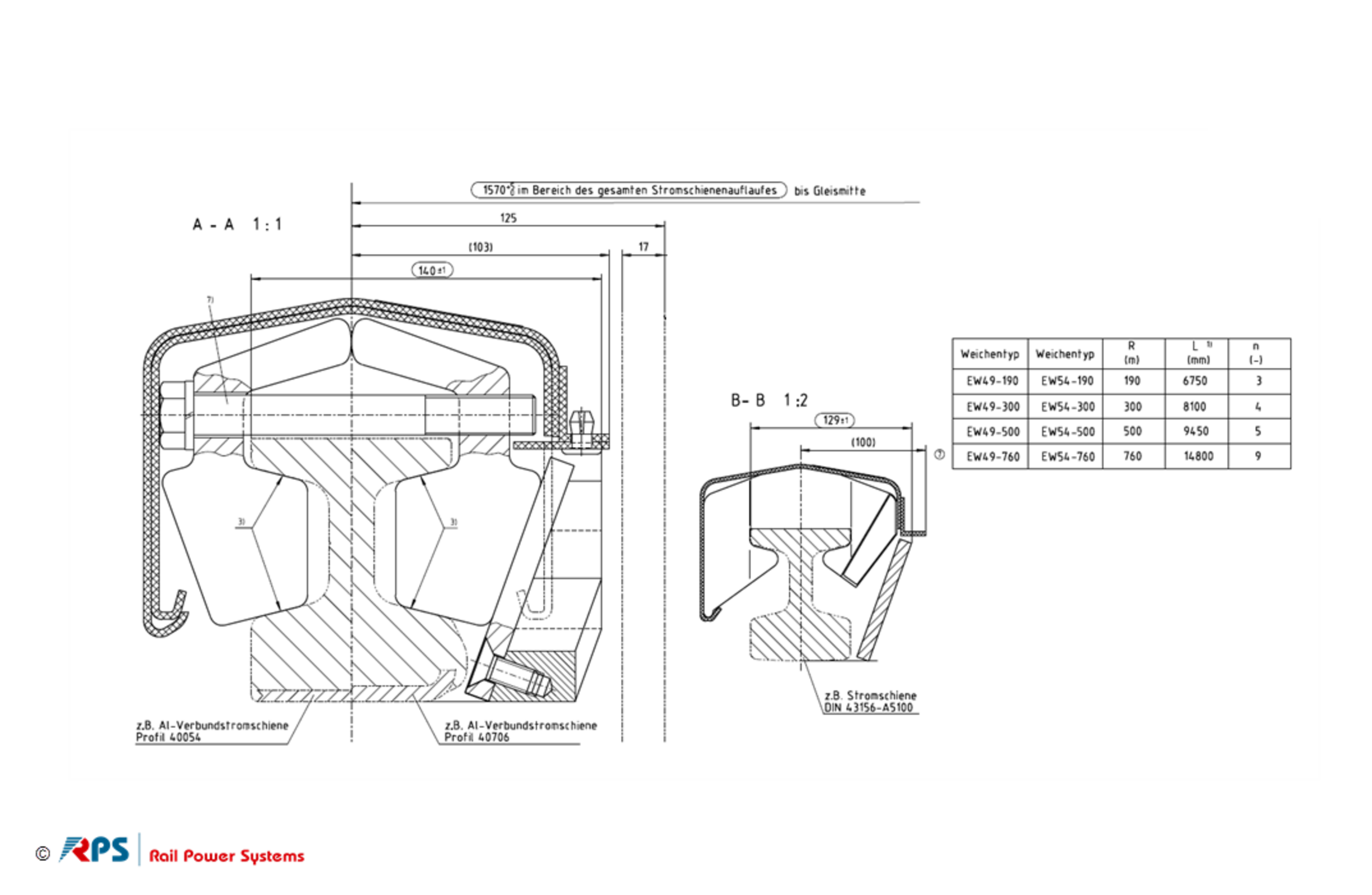

Protective cover for ramp (in switch sections)
Variante:
|
|
Made of PVC.
The necessary spacers are included.
For switch point: R 190
The necessary spacers are included.
For switch point: R 190
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 3EGF001452Z6371 A |
| Weight | 13,147 kg |
| Build Type | Berlin urban railway |
| L | 6750 mm |
| Material-ID | 3EGF011299 |
Conductor rail joint for aluminium conductor rail
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 6700-102.345420-3 |
| Weight | 3,6 kg |
| Build Type | b) soluble |
| Material-ID | 3EGF010385 |
