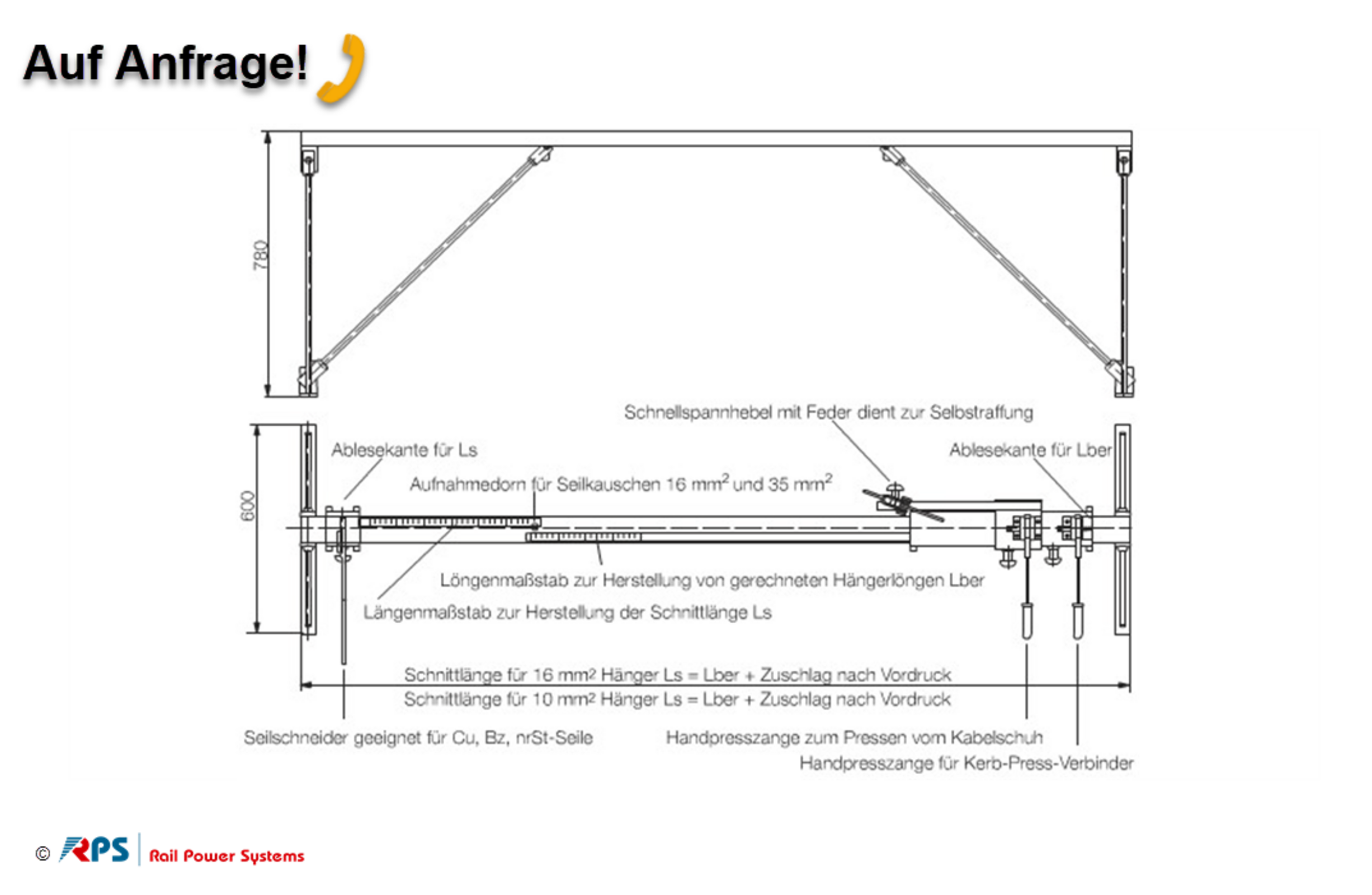

Dropper assembling Workbench
Variante:
|
|
up to 2.38 m dropper length, for pressing crimp connector and cable lug.
Mechanical values
| Wert | |
|---|---|
| Build Type | Compression die for 10 mm² wire |
| Weight | 55,0 kg |
| Drawing Number | 3EGF001143Z2271 A |
| Material-ID | 3EGF012048 |

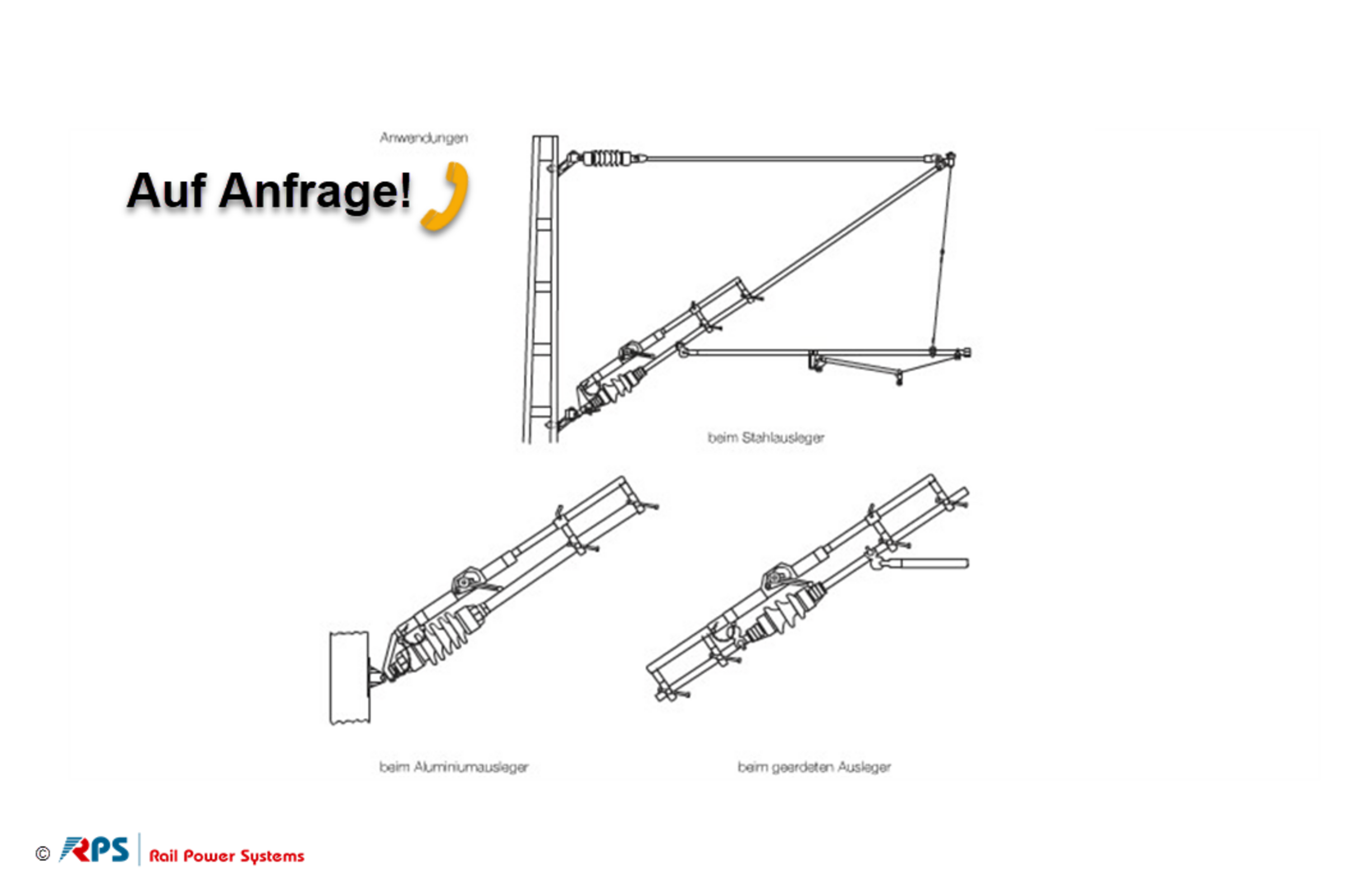

Device for replacing insulator at cantilever
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Build Type | for cantilevers up to Re 200 |
| Drawing Number | 3Ebgw 04.88 |
| Material-ID | 3EGF009946 |

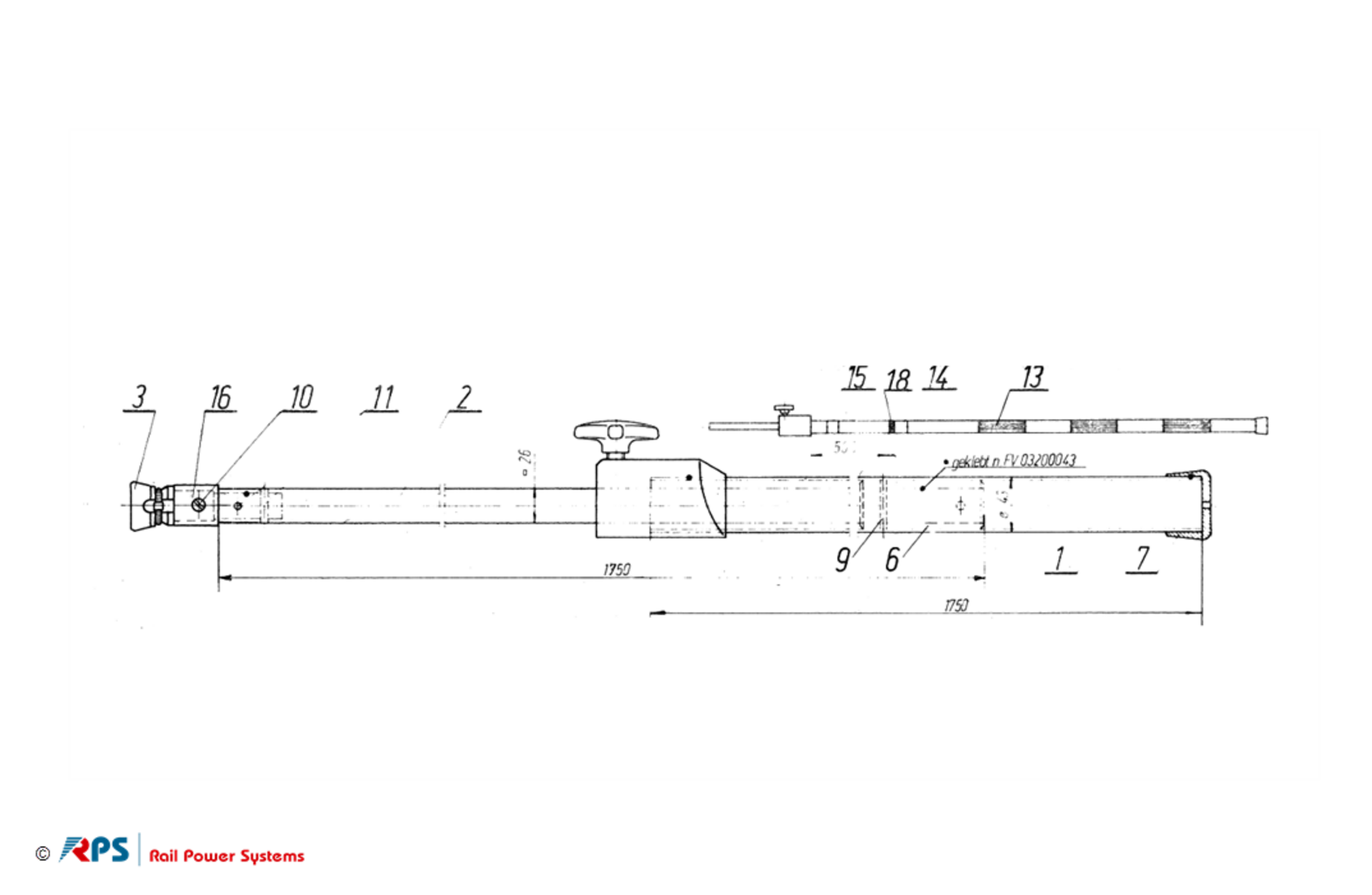

Telescopic ground rod
Variante: Erdungsstange
|
|
with automatic locking head for feeder and traction current line
Mechanical values
| Wert | |
|---|---|
| Name | Erdungsstange |
| Material | G-CuSn10Zn |
| Weight | 3,8 kg |
| L | 2600 - 5000 mm |
| Drawing Number | Gg 715.01 Bl.4.1 |
| Material-ID | 3EGF011827 |

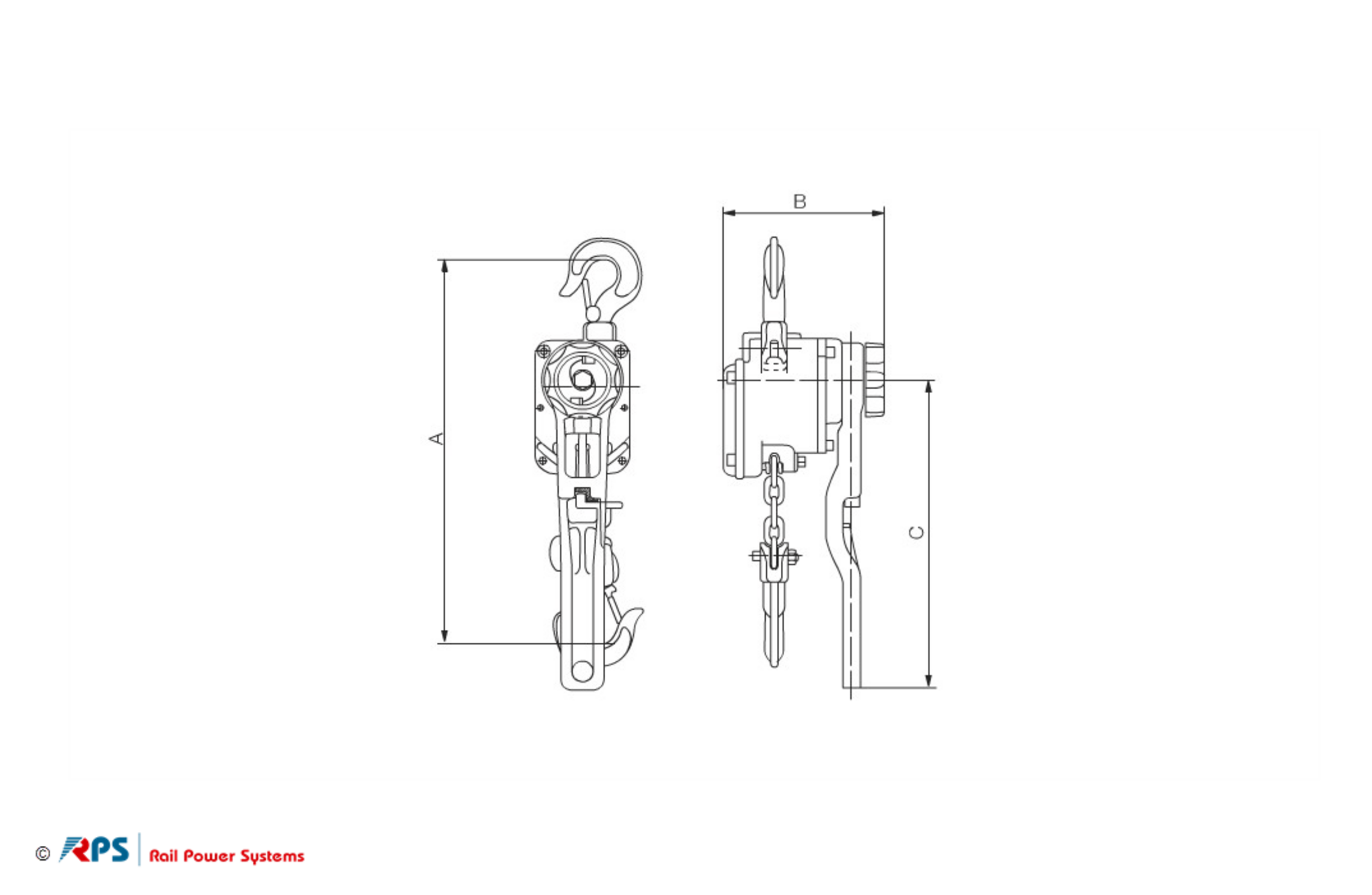

Hoisting tackel (1,5 m) with round steel chain
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Material | S355JO |
| Weight | 6,2 kg |
| Width | 153 mm |
| Nominal Force | 7,5 kN |
| Drawing Number | 53/03-800 HADEF |
| Material-ID | 3EGF009943 |

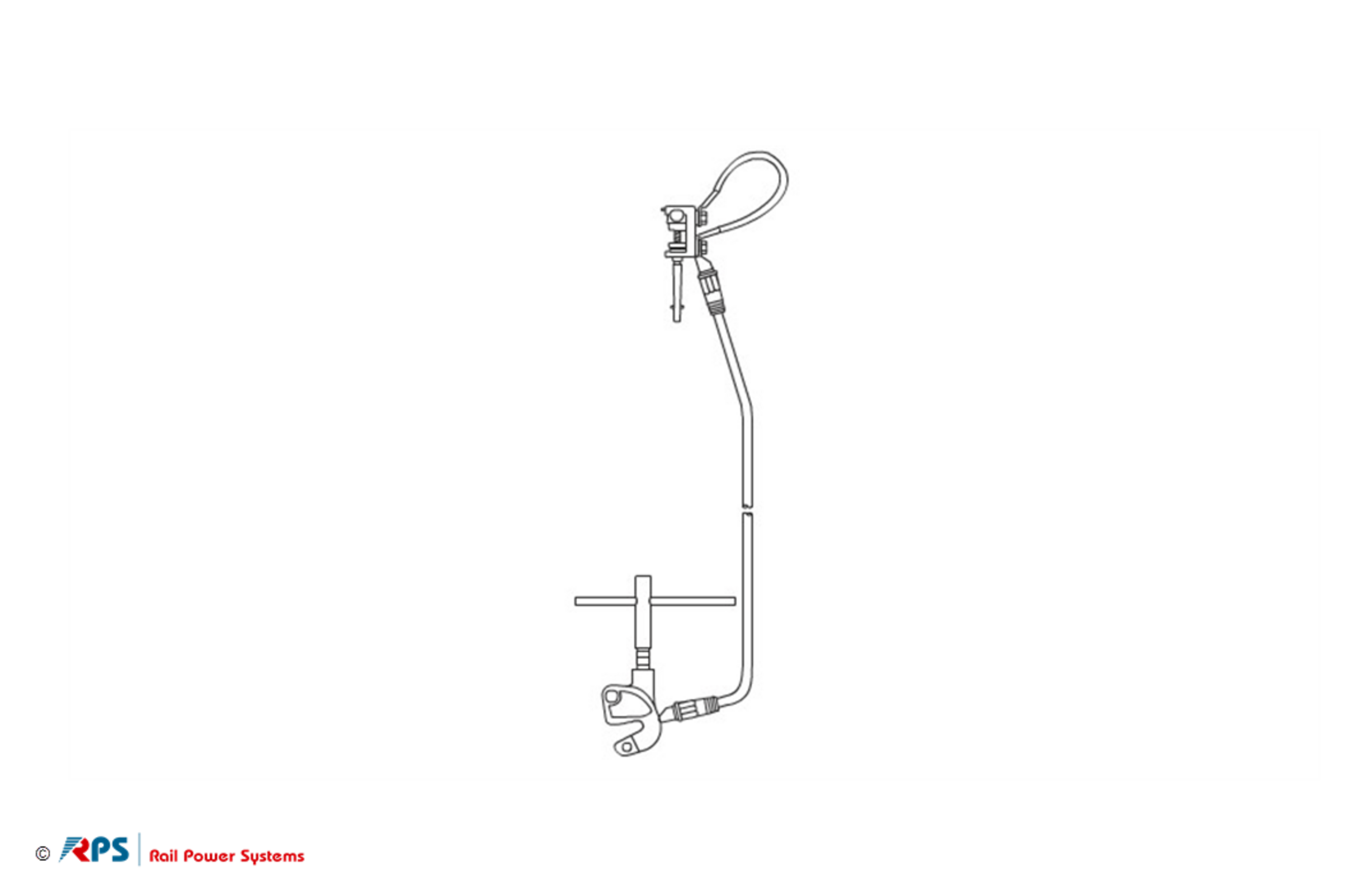

Grounding device for no-profile grounding of contact lines of electric trains
Variante:
|
|
for grooved contact wires Ri 80 - 120, round contact wires of Ø 10.6 - 13.2 mm, for rail profiles S 49, S 54, S 64 and UIC 60.
Short circuit current: 35,6 kA
Rope length: 12 m
Mechanical values
| Wert | |
|---|---|
| Weight | 12,45 kg |
| Rope Q | 50 mm² |
| Drawing Number | 364845002 |
| Material-ID | 3EGF011111 |

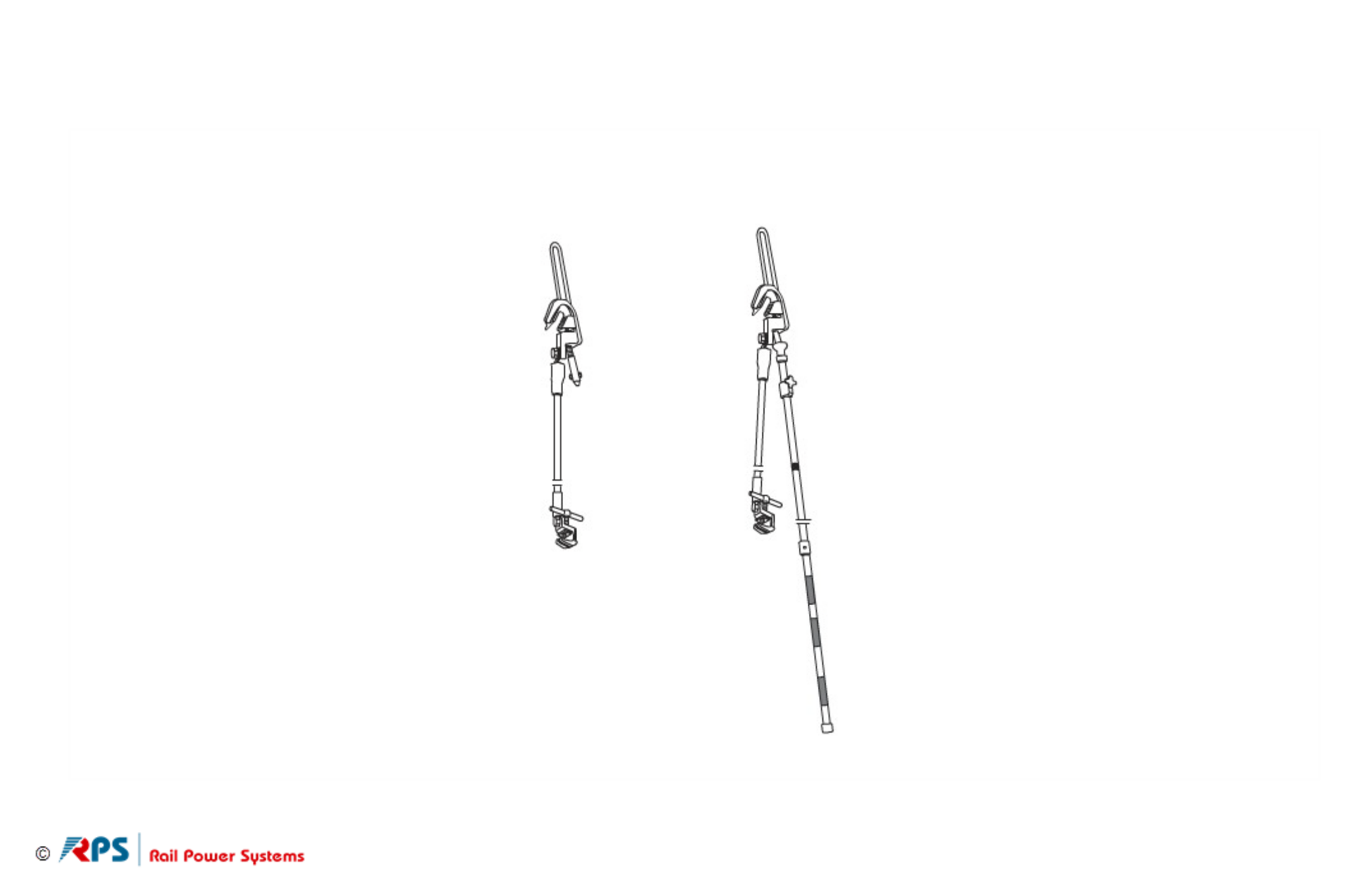

Grounding device for feeder and traction current line
Variante:
|
|
for conductor of Ø 4.5-35 mm, with ground wire, conductor and universal clamp, for connection to ball pin Ø 25 mm, with ground rod 3EGF011826.
Short circuit current: 36,5 kA
Mechanical values
| Wert | |
|---|---|
| Build Type | Rope lenght: 4 m |
| Weight | 10,5 kg |
| Rope Q | 50 mm² |
| Drawing Number | Gw 715.01. Bl. 19 |
| Material-ID | 3EGF011824 |
