Tool insert entire for hydr. high pressure compactor
Variante: Presseinsatzset
|
|
Mechanical values
| Wert | |
|---|---|
| Name | Presseinsatzset |
| Material-ID | 3EGF009922 |
Tooling insert for electro hyraulic high pressure pump
Variante: Tool insert
|
|
Detailliert Infos auf Anfrage
Mechanical values
| Wert | |
|---|---|
| Name | Tool insert |
| Material-ID | 3EGF011792 |
Electrohydraulic high-pressure pump EHP (850 bar)
Variante: Elektrohydraulische Hochdruckpumpe
|
|
Working pressure: 850 bar
Power supply lead lenght: 5 m
Power input electric driving motor: 500 W at 220 V AC
Workbench inserts of case-hardening steel burnished. The high-pressure pump is installed in a handy carrying case and suitable for construction site use. The double hose system that has proven effective in practice, feed and return, with control valve and coupling bush without any loss of oil for the connection of a compression head completes the unit. A pressure relief valve protects the high-pressure pump against overload.
Mechanical values
| Wert | |
|---|---|
| Name | Elektrohydraulische Hochdruckpumpe |
| Build Type | Hochdruckschlauchlänge: 4000 mm |
| Weight | 9,6 kg |
| Drawing Number | 305853013 |
| Material-ID | 3EGF011776 |
Workbench insert for electrohydraulic high-pressure pump EHP (850 bar)
Variante: Werkzeug-Einsatz
|
|
for pressing the compression clamp Z 11, for Re 330; depth of hardening 0.5 mm; burnished
Mechanical values
| Wert | |
|---|---|
| Name | Werkzeug-Einsatz |
| Material | 1.4301 |
| Weight | 0,414 kg |
| Drawing Number | GW854.43 BL1.1 |
| Material-ID | 3EGF008020 |
Hydraulic press head (850 bar, size III)
Variante: Presskopf Gr.III, hydraulisch
|
|
with coupler plug without any oil loss, with hose connection. Accessories with high-pressure coupler, coupler plug and coupling bush.
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 305678009 |
| Name | Presskopf Gr.III, hydraulisch |
| Material-ID | 3EGF011848 |
Hand pressing pliers Primat O2
Variante:
|
|
Pressable cross-sections in mm² : , copper 6 - 35, aluminium 16 - 50, tool inserts for pressing crimp sleeves and crimp cable lugs for current-carrying dropper connections 10 mm² Bz flex.
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 303088088 |
| Material-ID | 3EGF007848 |
Manual compression tool Primat O6
Variante:
|
|
Pressable cross-sections in mm² for strain-relieved connections: copper 6 - 185, aluminium 16 - 150,
for tension-proof connections: copper 6 - 150, aluminium 16 - 120, aluminium/steel 25/4 - 120/20
Mechanical values
| Wert | |
|---|---|
| Drawing Number | 303871002 |
| Weight | 3,10 kg |
| Material-ID | 3EGF010399 |
Wedge tensioning tool
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Build Type | Größe 1 |
| Weight | 1,220 kg |
| 110 | |
| Width | 276 mm |
| Rope Diameter | 5,0 - 10,0 mm |
| Nominal Force | 10 kN |
| Drawing Number | 92561 |
| Material-ID | 3EGF009945 |

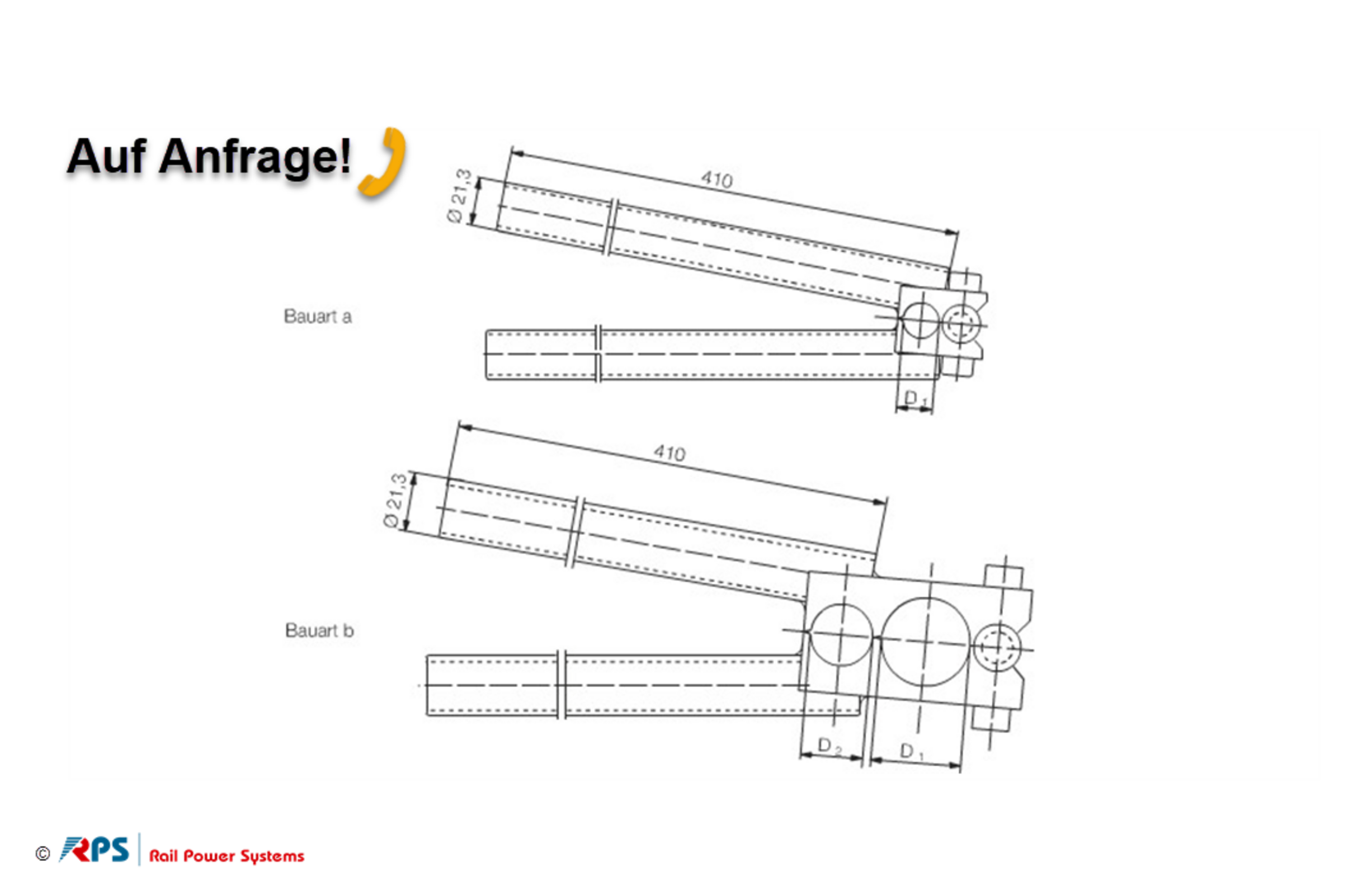

Bend pliers
Variante:
|
|
for protective sleeves with outer diameter D (see table).
Mechanical values
| Wert | |
|---|---|
| Build Type | a |
| Diameter | 13,5 mm |
| Weight | 1,50 kg |
| Drawing Number | GW 89204 Bl. 11 |
| Material-ID | 3EGF004378 |
Bending device
Variante:
|
|
for contact wires Ri 80, 100, 120 and RiS 120 with ratchet
Mechanical values
| Wert | |
|---|---|
| Weight | 6,0 kg |
| Drawing Number | GW89204 BL6 |
| Material-ID | 3EGF009944 |
Moving iron for grooved contact wires
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Weight | 0,50 kg |
| Drawing Number | 4 Ebgw 04.11 |
| Material-ID | 3EGF004341 |
Bending clevis for ground wires, usage in pairs
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Build Type | a) left |
| Weight | 0,55 kg |
| Drawing Number | Gw 892.19. Bl. 4 |
| Material-ID | 3EGF004340 |
Span clamp
Variante:
|
|
Mechanical values
| Wert | |
|---|---|
| Build Type | Zugkraft: 10 kN |
| Weight | 0,83 kg |
| 80 | |
| L | 155 mm |
| Diameter | 18 mm |
| Rope Q | 6 - 35 mm² |
| Drawing Number | 330736736 |
| Material-ID | 3EGF004425 |
