Material ID | Bezeichnung | Ebs | Werkstoff | Masse | Festgelegte mechanische Last (SML) | Festgelegte Mindestbiegebelastung (SCL) | Maximale Auslegungsbiegebelastung (MDCL) | ||
---|---|---|---|---|---|---|---|---|---|

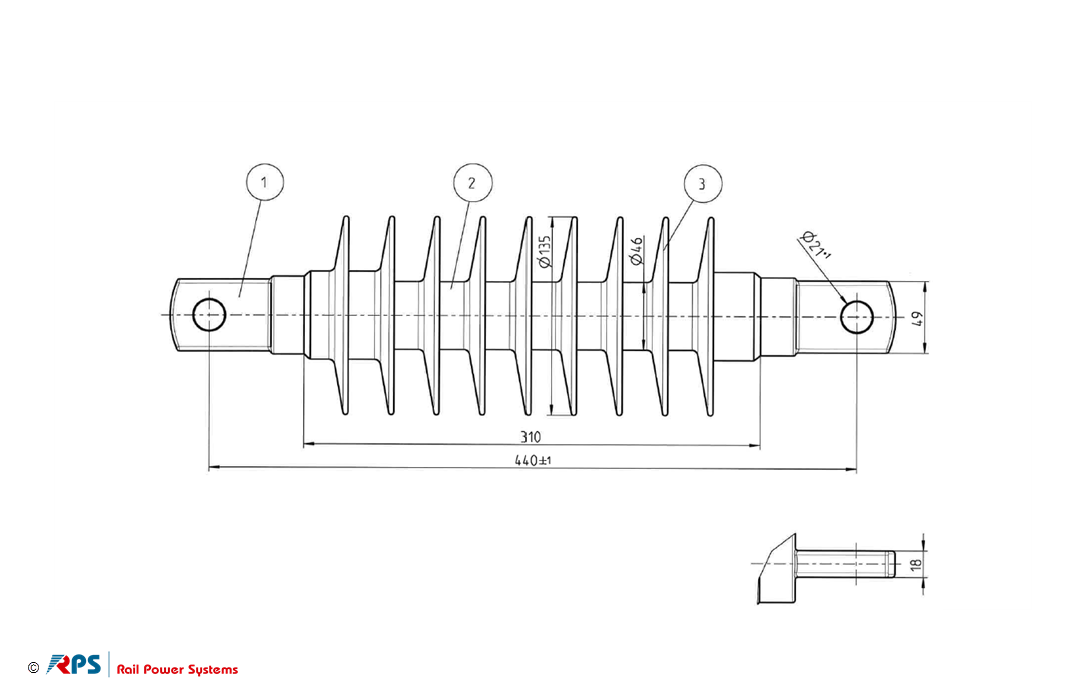

3EGF019853 | Isolator 25 kV Lasche/Lasche 7 Schirme | Verbundwerkstoff | 3,6 kg | 140 kN | 8 kN | 4 kN | Anfrage | ||
3EGF018326 | Isolator 25 kV Lasche/Lasche 9 Schirme | Ebs 13.07.14-7 | Verbundwerkstoff | 4,8 kg | 140 kN | 6 kN | 1,5 kN | Anfrage | |
3EGF018877 | Isolator 15 kV Lasche/Lasche 7 Schirme | Ebs 13.07.12-7 | Verbundwerkstoff | 3,4 kg | 140 kN | 8 kN | 4 kN | Anfrage |
Material ID | Bezeichnung | Nennspannung | Kriechstrecke | Bemessungs-Stehstoßspannung | Stehwechselspannung, beregnet | Schlagweite | ||
---|---|---|---|---|---|---|---|---|
3EGF019853 | Isolator 25 kV Lasche/Lasche 7 Schirme | 25 kV | 1045 mm | 200 kV | 95 kV | 360 mm | Anfrage | |
3EGF018326 | Isolator 25 kV Lasche/Lasche 9 Schirme | 25 kV | 1400 mm | 325 kV | 140 kV | 685 mm | Anfrage | |
3EGF018877 | Isolator 15 kV Lasche/Lasche 7 Schirme | 15 kV | 860 mm | 200 kV | 80 kV | 320 mm | Anfrage |
