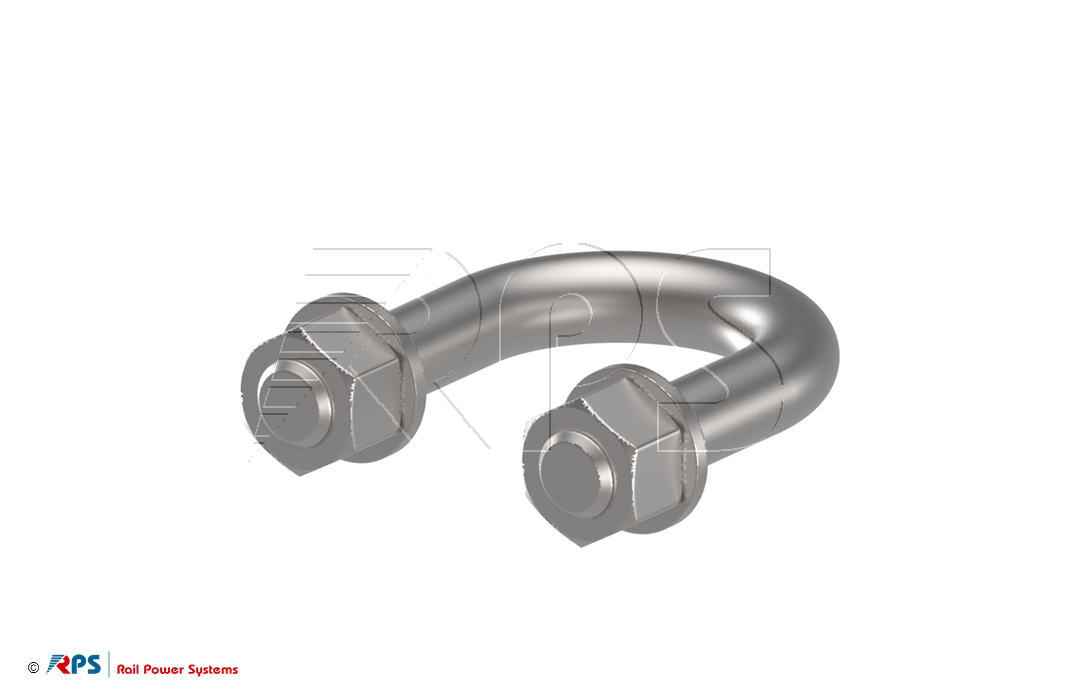

komplett, nichtrostender Stahl

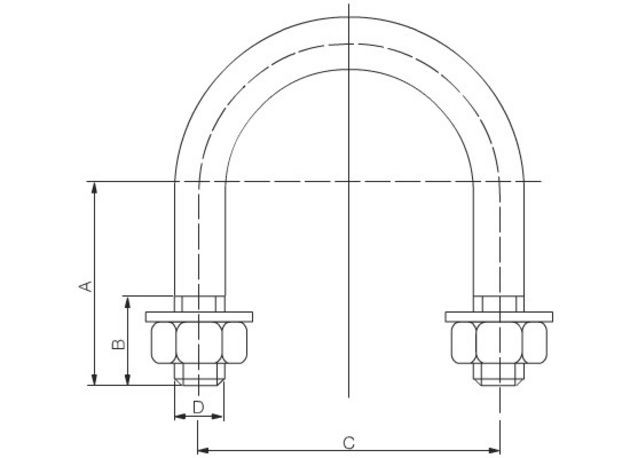

| Material-ID | Rohr ø | Masse | A | B | C | Durchmesser | Zeichnungsnummer | ||
|---|---|---|---|---|---|---|---|---|---|
| 3EGF008725 | 42 mm | 0,357 kg | 55 mm | 35 mm | 61 mm | 16 mm | Ebs 04.61.54 r | ||
| 3EGF001152 | 55 mm | 0,396 kg | 60 mm | 48 mm | 74 mm | 16 mm | Ebs 04.61.54 c | ||
| 3EGF001161 | 55 mm | 0,046 kg | 32 mm | 20 mm | 84 mm | 12 mm | Ebs 04.61.54 m | ||
| 3EGF008451 | 60 mm | 0,422 kg | 65 mm | 35 mm | 80 mm | 16 mm | Ebs 04.61.54 p | ||
| 3EGF001153 | 70 mm | 0,419 kg | 58 mm | 45 mm | 88 mm | 16 mm | Ebs 04.61.54 d | ||
| 3EGF001160 | 70 mm | 0,246 kg | 50 mm | 35 mm | 84 mm | 16 mm | Ebs 04.61.54 l | ||
| 3EGF008520 | 70 mm | 0,454 kg | 70 mm | 35 mm | 90 mm | 16 mm | Ebs 04.61.54 o | ||
| 3EGF001154 | 80 mm | 0,445 kg | 60 mm | 45 mm | 98 mm | 16 mm | Ebs 04.61.54 e | ||
| 3EGF001157 | 120 mm | 0,565 kg | 75 mm | 45 mm | 138 mm | 16 mm | Ebs 04.61.54 h | ||
| 3EGF001159 | 120 mm | 0,527 kg | 60 mm | 35 mm | 138 mm | 16 mm | Ebs 04.61.54 k |
