Ropes

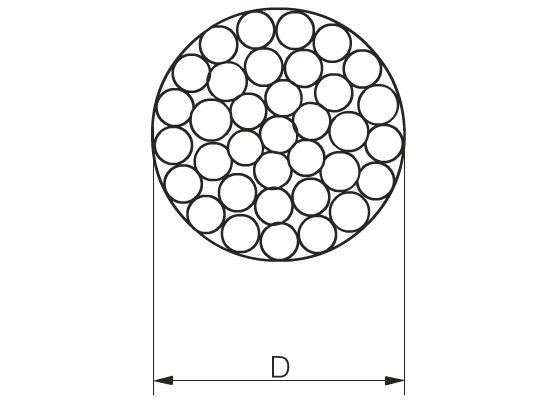

Multistrand aluminium wire (DIN 50182)

For feeder, amplification and return current.

Material-ID Weight Diameter Rope Q Drawing Number
3EGF002725 0,670 kg 20,3 mm 240 mm² Ebs 20.01.01
3EGF002726 1,732 kg 32,6 mm 625 mm² Ebs 20.01.01
