Standard parts
PDF

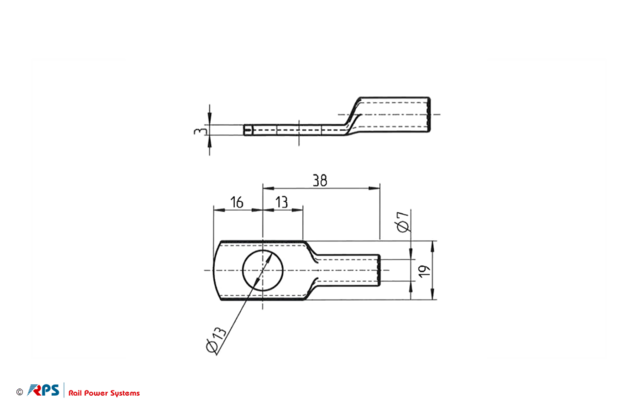

Calble lug
3EGF011310
Variants
Request
Variants
Mechanical values
Material ID
Name
Standard
Build Type
Diameter
Cable Q
Material
3EGF011310
Calble lug
DIN 46235 - 12 - 25
S
12 mm
25 mm²
Cu
PDF
Request
