Contact Wire Splices

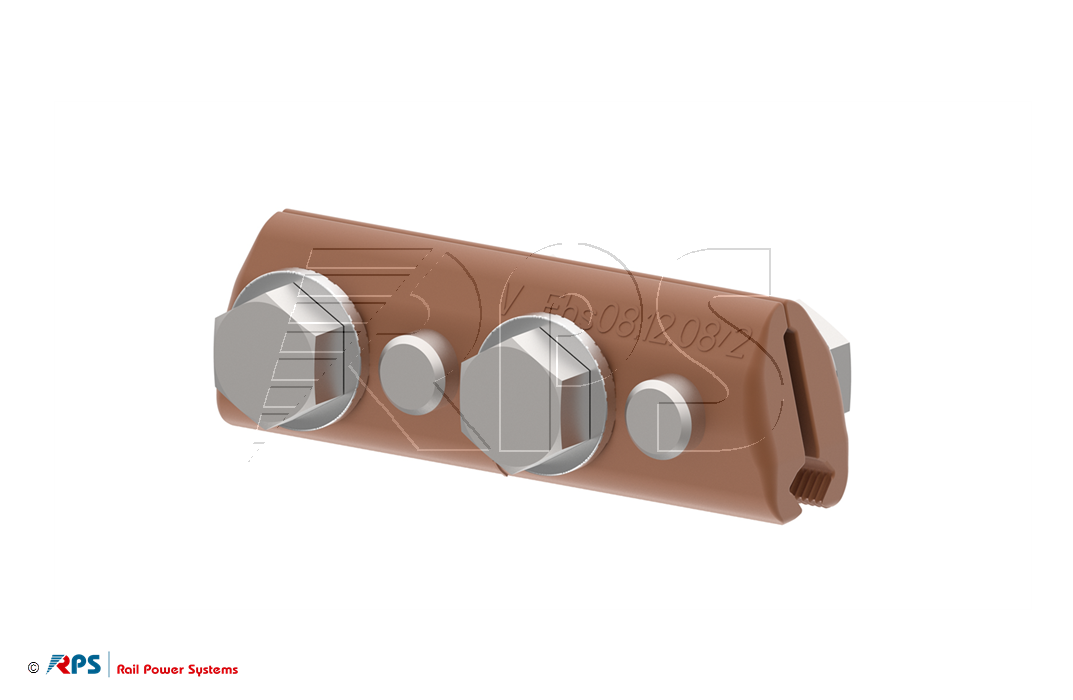

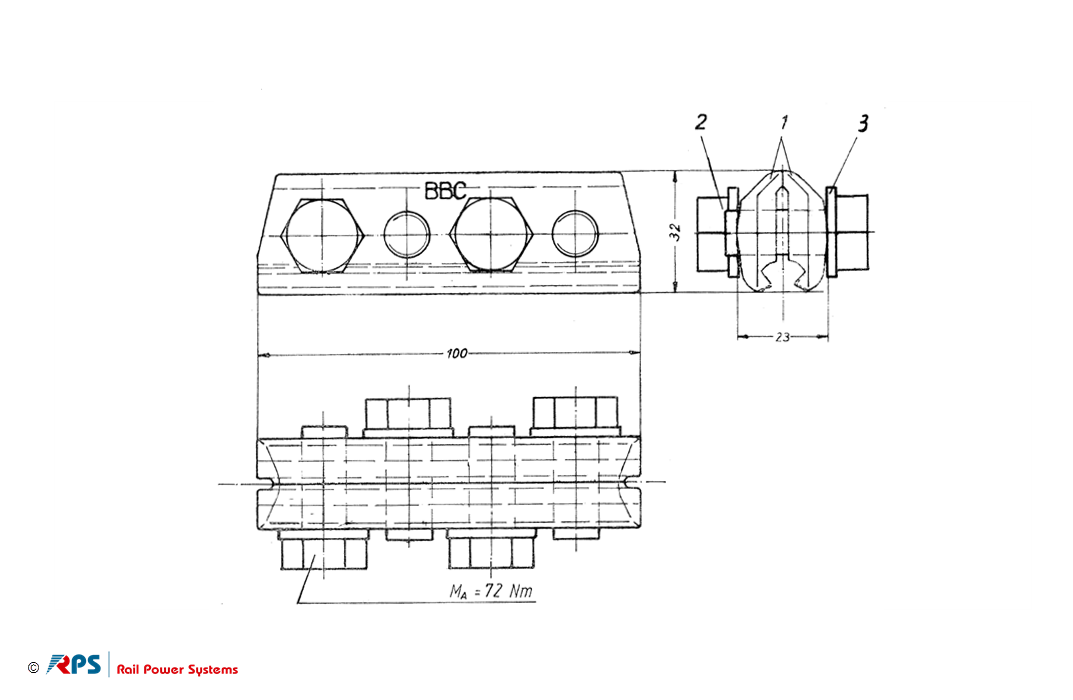

Contact wire splice
3EGF007578

for contact wires acc. EN 50149

Material ID	Name	Ebs	Build Type	Weight	Contact Wire	Nominal Force	Length	Material
3EGF007578	Contact wire splice		bolted	0,55 kg	AC80-120	13 kN	100 mm	CW111C	PDF	Request
3EGF001655	Contact wire splice	Ebs 07.42.45	bolted	1,09 kg	AC80-150 CuMg	30 kN	201 mm	CW111C	PDF	Request
3EGF001629	Contact wire splice	Ebs 07.42.23 A	riveted	0,37 kg	AC80-150	15 kN	100 mm	CW112C	PDF	Request
3EGF014905	Contact wire splice	Ebs 07.42.59	bolted	0,21 kg	AC80-120	10 kN	100 mm	CW111C	PDF	Request
