Contact Wire Splices

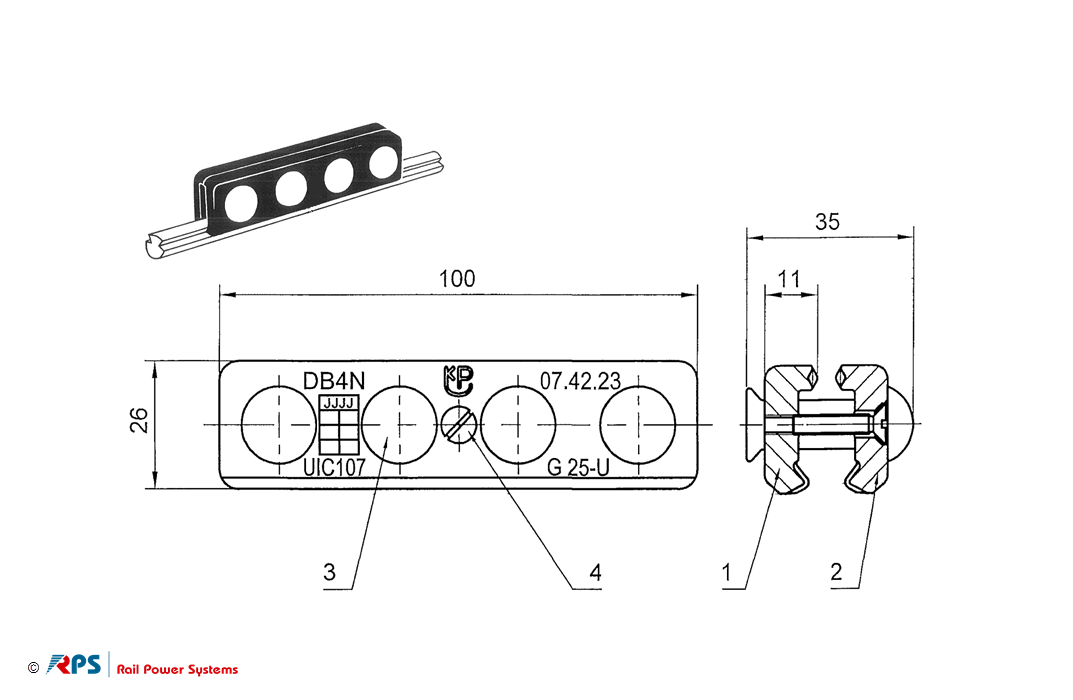

Contact wire splice
3EGF001629

for contact wires acc. EN 50149

Pressing Insert: 3EGF021517

Material ID	Name	Ebs	Build Type	Weight	Contact Wire	Nominal Force	Length	Material
3EGF007578	Contact wire splice		bolted	0,55 kg	AC80-120	13 kN	100 mm	CW111C	PDF	Request
3EGF001655	Contact wire splice	Ebs 07.42.45	bolted	1,09 kg	AC80-150 CuMg	30 kN	201 mm	CW111C	PDF	Request
3EGF001629	Contact wire splice	Ebs 07.42.23 A	riveted	0,37 kg	AC80-150	15 kN	100 mm	CW112C	PDF	Request
3EGF014905	Contact wire splice	Ebs 07.42.59	bolted	0,21 kg	AC80-120	10 kN	100 mm	CW111C	PDF	Request
