Wedge-type dead end clamp standard 50149

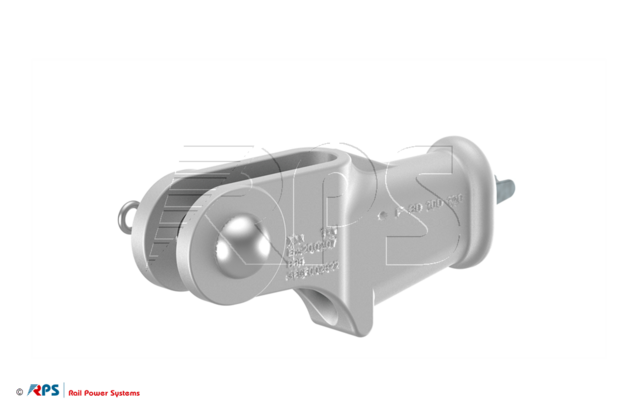

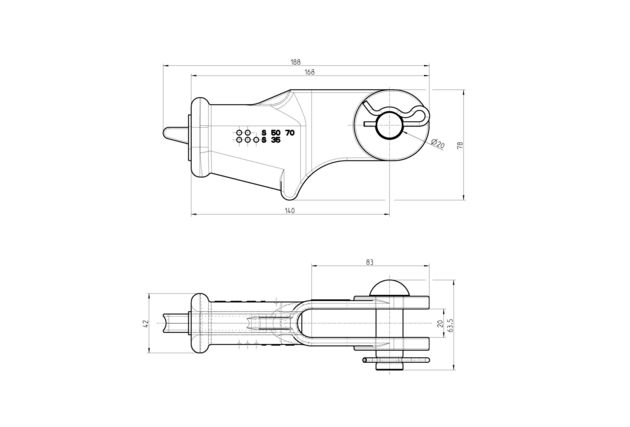

Wedge-Type Dead End Clamp AC80-120
3EGF010855

For contact wire and wire.

Material ID	Name	Ebs	Build Type	Contact Wire	Rope Q	Material	Weight	Nominal Force
3EGF010855	Wedge-Type Dead End Clamp AC80-120	Ebs 20.02.07-1 A	Wedge: 1-hole	AC80-120	70 / 70 flex mm²	AW 6082	0,574 kg	36 kN	PDF	Request
3EGF010856	Wedge-Type Dead End CLamp wire 50/70	Ebs 20.02.07-1 B	2-hole	n/a	50 / 70 mm²	AW 6082	0,577 kg	36 kN	PDF	Request
3EGF010864	Wedge-Type Dead End Clamp wire 35	Ebs 20.02.07-1 C	3-hole		35 mm²	AW 6082	0,58 kg	36 kN	PDF	Request
3EGF002815	Wedge-Type Dead End Clamp wire 95-150	Ebs 20.02.06-1	1-hole		95 - 150 mm²	GJMW 400-5	3,15 kg	60 kN	PDF	Request
3EGF007343	Wedge-type dead-end clamp	-	2-hole	AC 60/80/100 Cu	50/70 mm²	GTW, Zn, nrSt	0,545 kg	20 kN	PDF	Request
3EGF002821	Wedge-type dead end clamp	Ebs 20.02.07-1 C			für Seile 35 mm² mm²	G-Al	0,587 kg	36 kN	PDF	Request
