Strain clamps
PDF

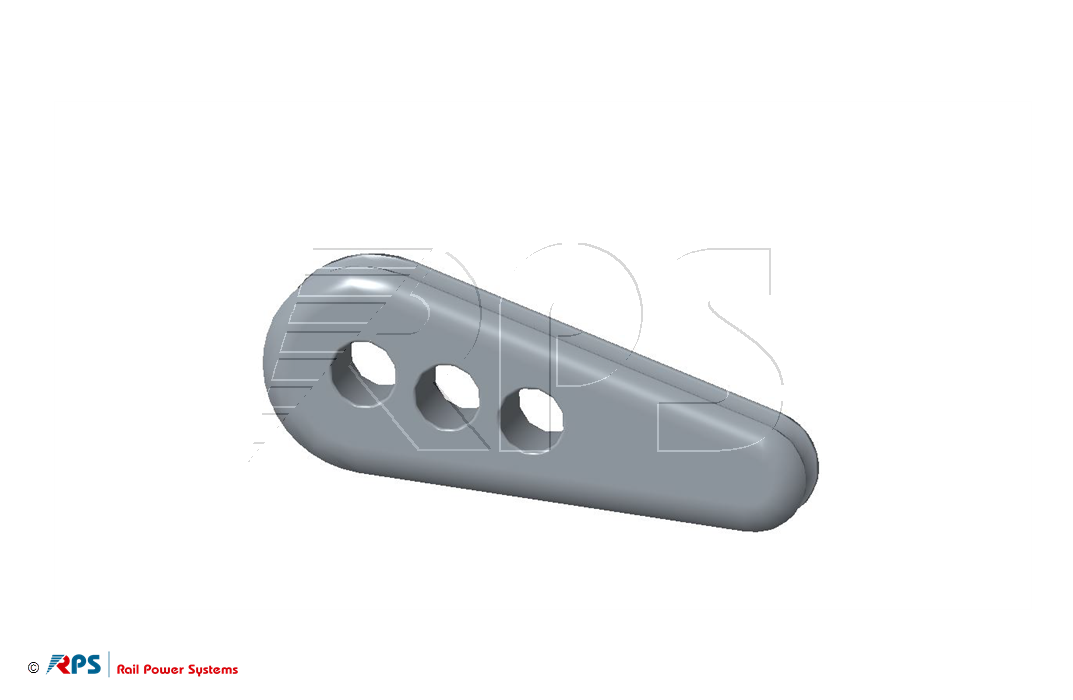

Wedge
3EGF002811
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Build Type
Material
Weight
3EGF002811
Wedge
Ebs 20.02.07-1 C
3-holes
GTW-tzn
0,167 kg
PDF
Request
3EGF002812
Wedge
Ebs 20.02.07-1 A
1-hole
GTW-tzn
0,088 kg
PDF
Request
3EGF002813
Wedge
Ebs 20.02.07-1 B
2-holes
GTW-tzn
0,115 kg
PDF
Request
3EGF002613
Link plate for anchor clamp
Ebs 16.01.08 C
a
Al
1,10 kg
PDF
Request
3EGF002825
Bi-metal wire insert
EBS20.02.08 A
Cu-Al
PDF
Request
