Porcelain insulator
Porcelain insulator
PDF

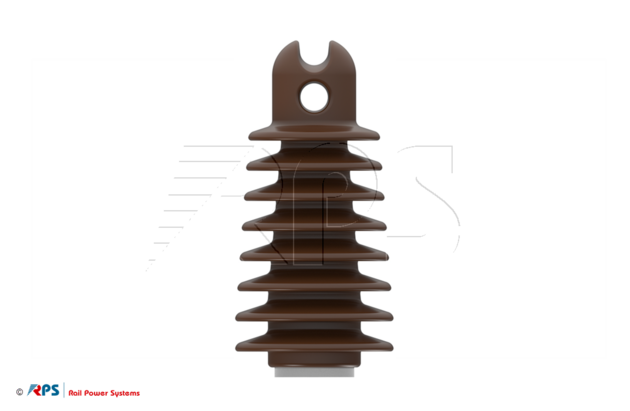

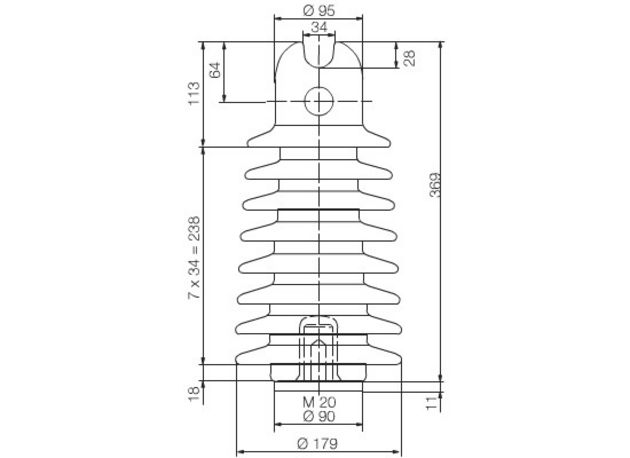

Post-Insulator 15 kV M20 8 sheds
3EGF010607
Variants
Request
Variants
Mechanical values
Electrical values
Material ID
Name
Ebs
Material
Weight
Maximum design cantilever load (MDCL)
Specified cantilever load (SCL)
3EGF010607
Post-Insulator 15 kV M20 8 sheds
Ebs 13.02.01
Porcelain
10,3 kg
4 kN
10 kN
PDF
Request
Material ID
Name
Nominal voltage
Creepage Path
Rated impulse withstand voltage
Power-frequency withstand voltage, wet
3EGF010607
Post-Insulator 15 kV M20 8 sheds
15 kV
760 mm
140 kV
65 kV
PDF
Request
