Insulators for section insulator - Porcelain insulator

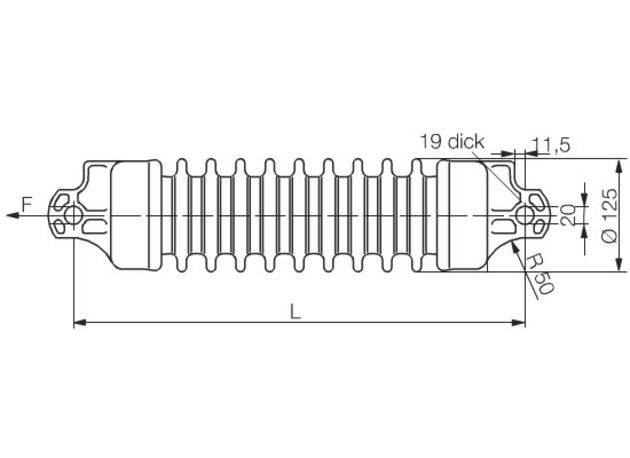

Insulator 15 kV STR-caps 7 sheds
3EGF002367

Material ID	Name	Ebs	Material	Weight	Maximum design tensile load (MDTL)
3EGF002367	Insulator 15 kV STR-caps 7 sheds	Ebs 13.01.10	Porcelain	10,36 kg	20 kN	PDF	Request
3EGF002368	Insulator 15 kV STR-caps 9 sheds	Ebs 13.01.12	Porcelain	12,2 kg	20 kN	PDF	Request
3EGF020836	Insulator 25kV for section insulator A-A/13S		Porcelain	15,5 kg		PDF	Request

Material ID	Name	Nominal voltage	Creepage Path
3EGF002367	Insulator 15 kV STR-caps 7 sheds	15 kV	420 mm	PDF	Request
3EGF002368	Insulator 15 kV STR-caps 9 sheds	15 kV	540 mm	PDF	Request
3EGF020836	Insulator 25kV for section insulator A-A/13S	25 kV	725 mm	PDF	Request
