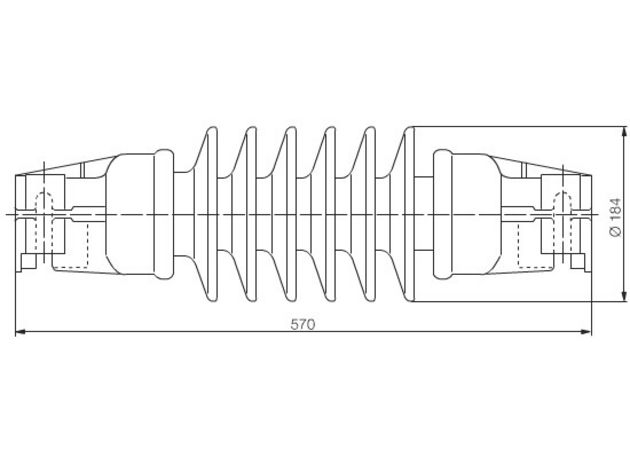

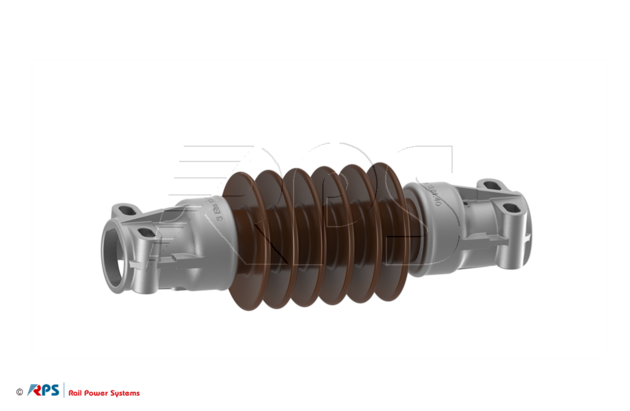

Insulator 15 kV Tubecaps D42-70 6 sheds
3EGF010604

Suitable U-bolts:
- D42: 3EGF008725
- D55: 3EGF001152
- D70: 3EGF008520

Material ID	Name	Ebs	Material	Weight	Maximum design cantilever load (MDCL)
3EGF010604	Insulator 15 kV Tubecaps D42-70 6 sheds	Ebs 13.02.22	Porcelain	18 kg	1,9 kN	PDF	Request
3EGF008293	Insulator 15 kV Tubecaps D42-70 4 sheds	Ebs 13.01.41	Porcelain	14,2 kg	2,2 kN	PDF	Request
3EGF002383	Insulator 15 kV Tubecaps D42-70 6 sheds	Ebs 13.01.42	Porcelain	15,4 kg	1,9 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Power-frequency withstand voltage, wet
3EGF010604	Insulator 15 kV Tubecaps D42-70 6 sheds	15 kV	789 mm	65 kV	PDF	Request
3EGF008293	Insulator 15 kV Tubecaps D42-70 4 sheds	15 kV	420 mm	65 kV	PDF	Request
3EGF002383	Insulator 15 kV Tubecaps D42-70 6 sheds	15 kV	560 mm	85 kV	PDF	Request
