Insulators with flange caps - Composite insulators

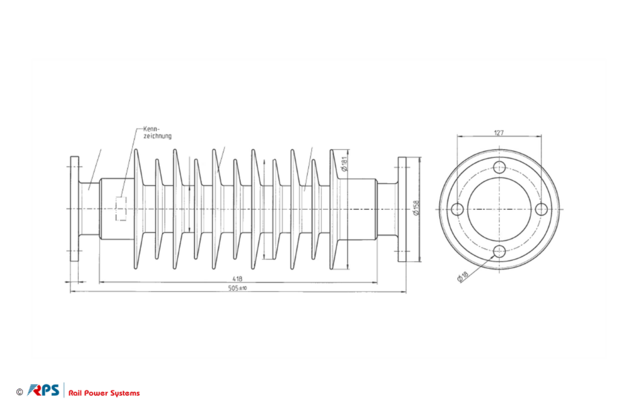

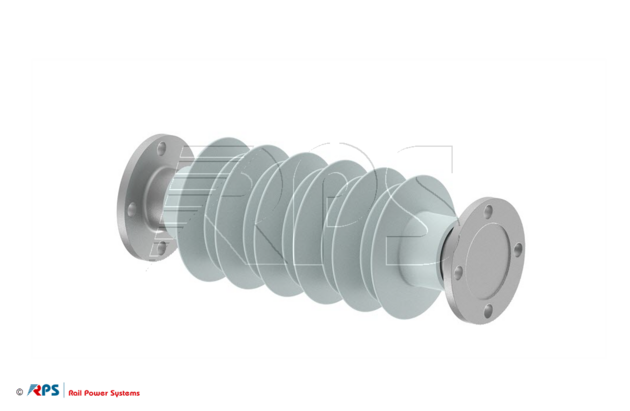

Insulator 25 kV Flange 11 sheds
3EGF018630

Material ID	Name	Material	Weight	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)	Specified tensile load (STL)
3EGF018630	Insulator 25 kV Flange 11 sheds	Composite	9,8 kg	20 kN	8 kN	100 kN	PDF	Request
3EGF020661	Insulator 25 kV Flange 19 sheds	Composite	12 kg	16 kN	6,4 kN	100 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF018630	Insulator 25 kV Flange 11 sheds	25 kV	1390 mm	250 kV	125 kV	455 mm	PDF	Request
3EGF020661	Insulator 25 kV Flange 19 sheds	25 kV	2200 mm	250 kV	95 kV	650 mm	PDF	Request
