Insulators with screw caps - Composite insulators

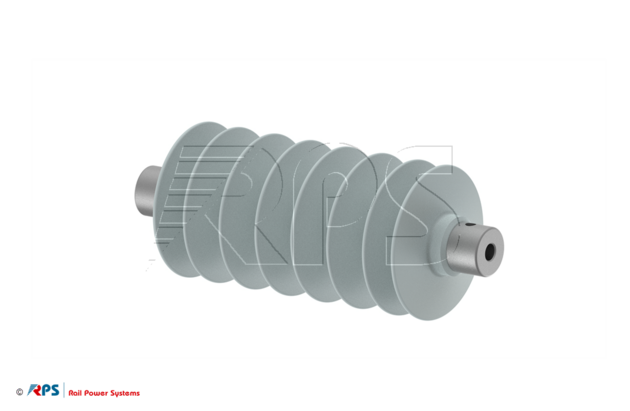

Insulator 25 kV Thread M16 8 sheds
3EGF018631

Material ID	Name	Material	Weight	Specified mechanical load (SML)	Maximum design tensile load (MDTL)	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)	Specified tensile load (STL)
3EGF018631	Insulator 25 kV Thread M16 8 sheds	Composite	2,1 kg	25 kN	10 kN	6 kN	2,4 kN		PDF	Request
3EGF020653	Insulator 25 kV Thread M16 8 sheds	Composite	4,3 kg			5,5 kN	2,2 kN	100 kN	PDF	Request
3EGF019386	Insulator 15 kV Thread M16 6 sheds	Composite	2,5 kg	25 kN		6 kN	2,4 kN		PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF018631	Insulator 25 kV Thread M16 8 sheds	25 kV	944 mm	220 kV	70 kV	338 mm	PDF	Request
3EGF020653	Insulator 25 kV Thread M16 8 sheds	25 kV	1240 mm	250 kV	95 kV	625 mm	PDF	Request
3EGF019386	Insulator 15 kV Thread M16 6 sheds	15 kV	720 mm	170 kV	70 kV	285 mm	PDF	Request
