Composite insulators
PDF

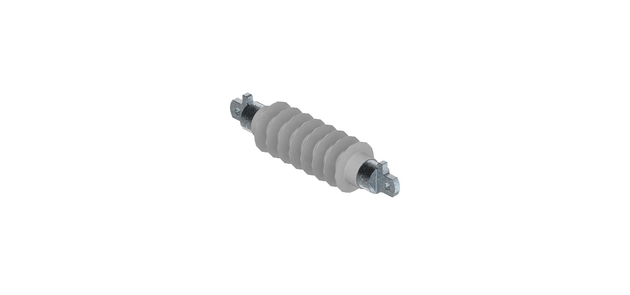

Insulator 15 kV STR-caps 8 sheds
3EGF020452
Variants
Request
Variants
Mechanical values
Electrical values
Material ID
Name
Material
Weight
Specified cantilever load (SCL)
Maximum design cantilever load (MDCL)
Specified mechanical load (SML)
3EGF020452
Insulator 15 kV STR-caps 8 sheds
Composite
7 kg
15 kN
6 kN
100 kN
PDF
Request
Material ID
Name
Nominal voltage
Creepage Path
Rated impulse withstand voltage
Power-frequency withstand voltage, wet
Arcing distance
3EGF020452
Insulator 15 kV STR-caps 8 sheds
15 kV
842 mm
200 kV
90 kV
395 mm
PDF
Request
