Composite insulators

PDF

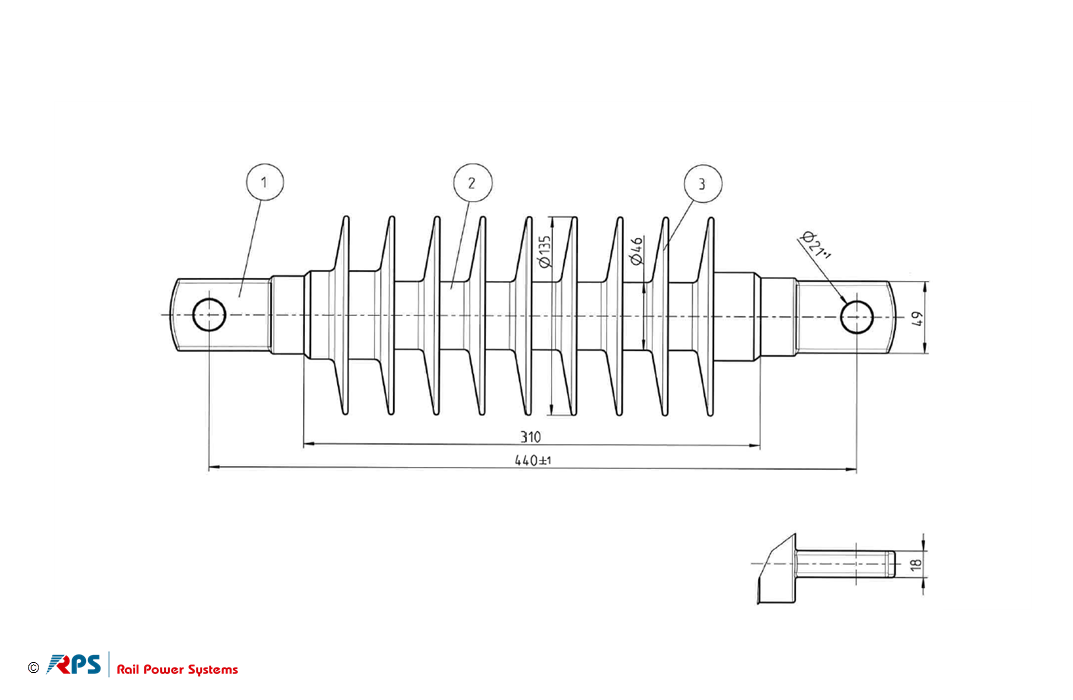

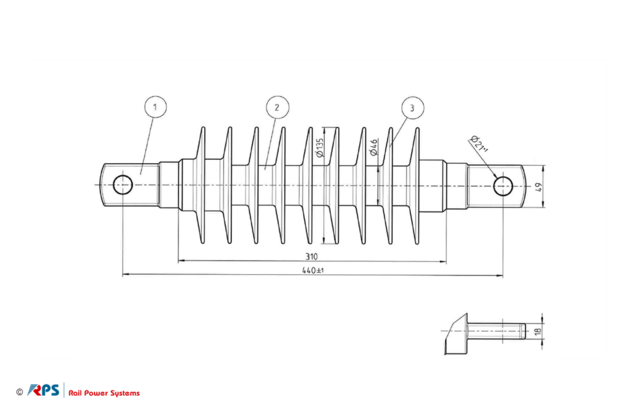

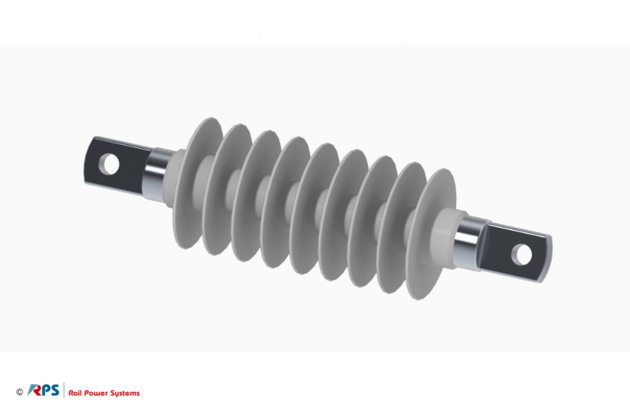

Insulator 25 kV Tongue/Tongue 7 sheds
3EGF019853

Request

Variants

Material ID Name Ebs Material Weight Specified mechanical load (SML) Specified cantilever load (SCL) Maximum design cantilever load (MDCL)
3EGF019853 Insulator 25 kV Tongue/Tongue 7 sheds Composite 3,6 kg 140 kN 8 kN 4 kN PDF Request
3EGF018326 Insulator 25 kV Tongue/Tongue 9 sheds Ebs 13.07.14-7 Composite 4,8 kg 140 kN 6 kN 1,5 kN PDF Request
3EGF018877 Insulator 15 kV Tongue/Tongue 7 sheds Ebs 13.07.12-7 Composite 3,4 kg 140 kN 8 kN 4 kN PDF Request
Material ID Name Nominal voltage Creepage Path Rated impulse withstand voltage Power-frequency withstand voltage, wet Arcing distance
3EGF019853 Insulator 25 kV Tongue/Tongue 7 sheds 25 kV 1045 mm 200 kV 95 kV 360 mm PDF Request
3EGF018326 Insulator 25 kV Tongue/Tongue 9 sheds 25 kV 1400 mm 325 kV 140 kV 685 mm PDF Request
3EGF018877 Insulator 15 kV Tongue/Tongue 7 sheds 15 kV 860 mm 200 kV 80 kV 320 mm PDF Request
