Insulators with tongue caps-tube caps

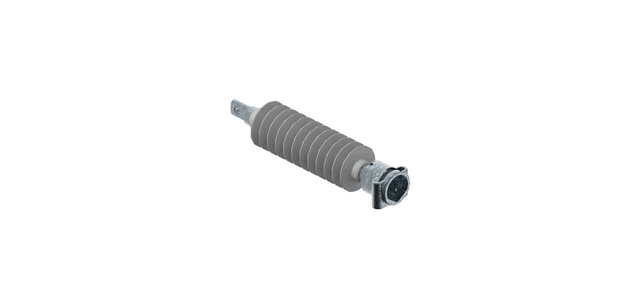

Isolator 25 kV Lasche/Rohrkappe D42-70 12 Schirme
3EGF019573

uitable U-bolts:
- D42: 3EGF008725
- D55: 3EGF001152
- D70: 3EGF008520

Material ID	Name	Material	Weight	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)
3EGF019573	Isolator 25 kV Lasche/Rohrkappe D42-70 12 Schirme	Composite	6,3 kg	8 kN	4 kN	PDF	Request
3EGF019087	Isolator 25 kV	Composite	6,7 kg	12 kN	6 kN	PDF	Request
3EGF019086	Insulator	Composite	6,80 kg	12 kN	4 kN	PDF	Request
3EGF019085	Insulator	Composite	6,88 kg	8 kN	4 kN	PDF	Request
3EGF018716	Insulator 15 kV Tongue/Tubecap D42-70 10 sheds	Composite	5,9 kg	8 kN	4 kN	PDF	Request
3EGF019858	Insulator 25kV	Composite	6,6 kg	8 kN	4 kN	PDF	Request
3EGF019575	Insulator	Composite	6,65 kg	8 kN	4 kN	PDF	Request
3EGF019574	Insulator	Composite	6,72 kg	8 kN	4 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF019573	Isolator 25 kV Lasche/Rohrkappe D42-70 12 Schirme	25 kV	1390 mm	200 kV	95 kV	450 mm	PDF	Request
3EGF019087	Isolator 25 kV	25 kV	1390 mm	250 kV		450 mm	PDF	Request
3EGF019086	Insulator	25 kV	1390 mm	200 kV	95 kV	450 mm	PDF	Request
3EGF019085	Insulator	25 kV					PDF	Request
3EGF018716	Insulator 15 kV Tongue/Tubecap D42-70 10 sheds	15 kV	1205 mm	250 kV	90 kV	410 mm	PDF	Request
3EGF019858	Insulator 25kV		1205 mm	250 kV	90 kV	410 mm	PDF	Request
3EGF019575	Insulator		1205 mm	25 kV	90 kV	410 mm	PDF	Request
3EGF019574	Insulator		1205 mm	250 kV	90 kV	410 mm	PDF	Request
