Insulators for tongue caps - Composite insulators

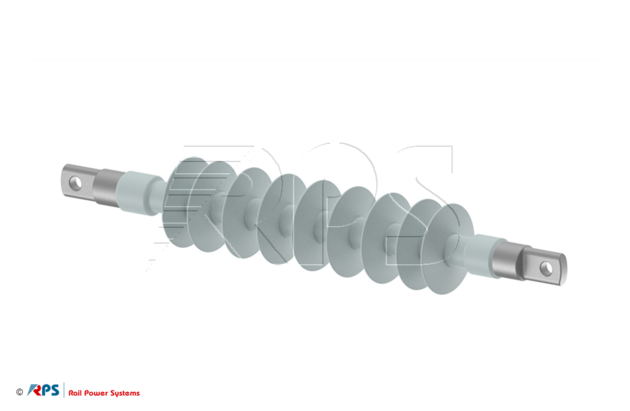

Insulator 25 kV Tongue/Tongue 9 sheds
3EGF018326

acc. Bird Protection Guideline

Material ID	Name	Ebs	Material	Weight	Specified mechanical load (SML)	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)
3EGF019853	Insulator 25 kV Tongue/Tongue 7 sheds		Composite	3,6 kg	140 kN	8 kN	4 kN	PDF	Request
3EGF018326	Insulator 25 kV Tongue/Tongue 9 sheds	Ebs 13.07.14-7	Composite	4,8 kg	140 kN	6 kN	1,5 kN	PDF	Request
3EGF018877	Insulator 15 kV Tongue/Tongue 7 sheds	Ebs 13.07.12-7	Composite	3,4 kg	140 kN	8 kN	4 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF019853	Insulator 25 kV Tongue/Tongue 7 sheds	25 kV	1045 mm	200 kV	95 kV	360 mm	PDF	Request
3EGF018326	Insulator 25 kV Tongue/Tongue 9 sheds	25 kV	1400 mm	325 kV	140 kV	685 mm	PDF	Request
3EGF018877	Insulator 15 kV Tongue/Tongue 7 sheds	15 kV	860 mm	200 kV	80 kV	320 mm	PDF	Request
