Composite insulators

PDF

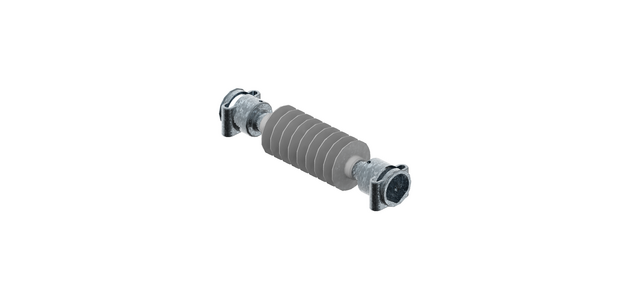

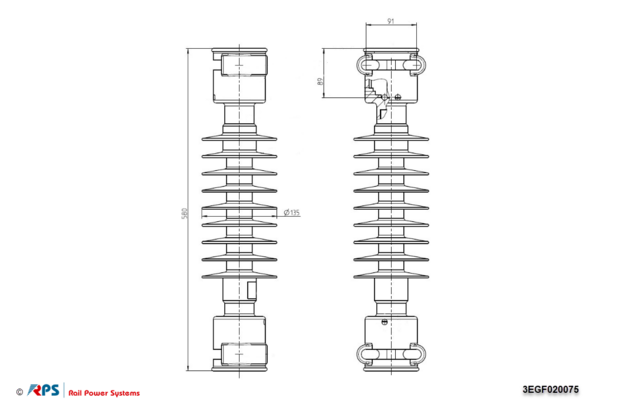

Insulator 25 kV Tubecaps D42-70 9 sheds
3EGF020075

Suitable U-bolts:
- D42: 3EGF008725
- D55: 3EGF001152
- D70: 3EGF008520

Request

Variants

Material ID Name Material Weight Specified cantilever load (SCL) Maximum design cantilever load (MDCL)
3EGF020075 Insulator 25 kV Tubecaps D42-70 9 sheds Composite 8,1 kg 8 kN 4 kN PDF Request
3EGF020166 Insulator 25kV Composite 8,6 kg 8 kN 4 kN PDF Request
3EGF020101 Insulator 25 kV with U-bolts M16 x Ø 55 Composite 9,079 kg 8 kN 4 kN PDF Request
3EGF020102 Insulator 25kV Composite 8,7 kg 8 kN 4 kN PDF Request
3EGF018715 Insulator 15 kV Tubecaps D42-70 7 sheds Composite 7,9 kg 8 kN 4 kN PDF Request
3EGF020806 Insulator 15kV Composite 8,6 kg 8 kN 4 kN PDF Request
3EGF020805 Insulator 15 kV Tubecaps D55 7 sheds Composite 4 kg 8 kN 4 kN PDF Request
3EGF019854 Insulator 15kV Composite 8,8 kg 8 kN 4 kN PDF Request
Material ID Name Nominal voltage Creepage Path Rated impulse withstand voltage Power-frequency withstand voltage, wet Arcing distance
3EGF020075 Insulator 25 kV Tubecaps D42-70 9 sheds 25 kV 1047 mm 200 kV 95 kV 359 mm PDF Request
3EGF020166 Insulator 25kV 25 kV PDF Request
3EGF020101 Insulator 25 kV with U-bolts M16 x Ø 55 25 kV PDF Request
3EGF020102 Insulator 25kV 25 kV PDF Request
3EGF018715 Insulator 15 kV Tubecaps D42-70 7 sheds 15 kV 860 mm 190 kV 90 kV 320 mm PDF Request
3EGF020806 Insulator 15kV 15 kV 860 mm 190 kV 90 kV 320 mm PDF Request
3EGF020805 Insulator 15 kV Tubecaps D55 7 sheds 15 kV 860 mm 190 kV 90 kV 320 mm PDF Request
3EGF019854 Insulator 15kV 15 kV 860 mm 190 kV 90 kV 320 mm PDF Request
