Insulators with tongue caps - tube caps

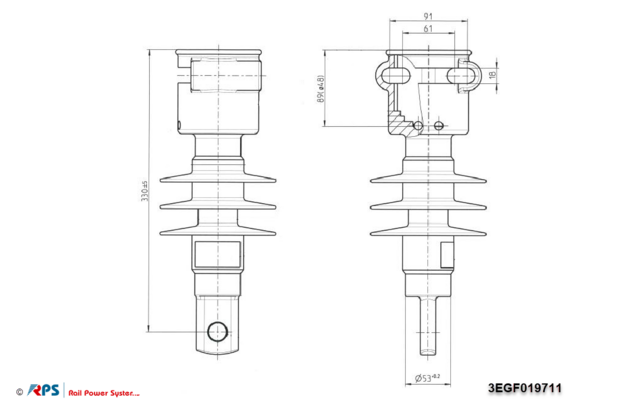

Insulator 3 kV Tongue/Tubecap D42-70 3 sheds
3EGF019711

Suitable U-bolts:
- D42: 3EGF008725
- D55: 3EGF001152
- D70: 3EGF008520

Material ID	Name	Material	Weight	Specified cantilever load (SCL)	Maximum design cantilever load (MDCL)	Specified tensile load (STL)
3EGF019711	Insulator 3 kV Tongue/Tubecap D42-70 3 sheds	Composite	4,92 kg	8 kN	4 kN	50 kN	PDF	Request
3EGF019712	Composite insulator	Composite	5,350 kg	8 kN	4 kN	50 kN	PDF	Request
3EGF019713	Composite insulator	Composite	5,390 kg	8 kN	4 kN	50 kN	PDF	Request
3EGF019714	Composite insulator	Composite	5,470 kg	8 kN	4 kN	50 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF019711	Insulator 3 kV Tongue/Tubecap D42-70 3 sheds	3 kV	345 mm	95 kV	40 kV	170 mm	PDF	Request
3EGF019712	Composite insulator	3 kV	(mindest) 345 mm		40 kV		PDF	Request
3EGF019713	Composite insulator	3 kV	(mindest) 345 mm				PDF	Request
3EGF019714	Composite insulator	3 kV	(mindest) 345 mm				PDF	Request
