Insulators with screw caps - DC up to 1,5 kV

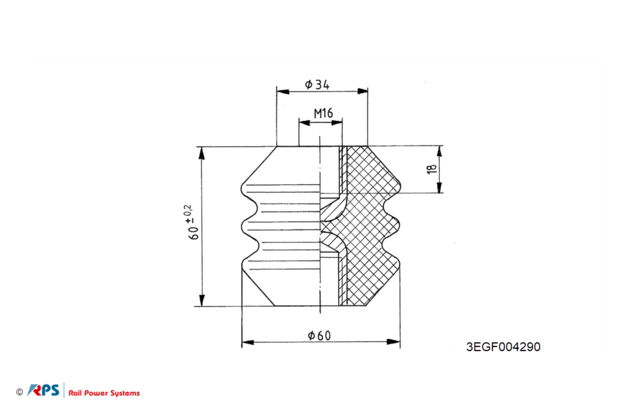

Insulator 0.75 kV Thread M16
3EGF004290

For steady arms; wire supports and cantilevers; cast resin.

Material ID	Name	Weight	Material	Specified cantilever load (SCL)	Specified mechanical load (SML)	Specified tensile load (STL)
3EGF009183	Insulator 1.5 kV Thread M20/3xM10	1,4 kg	Epoxy resin	16,6 kN			PDF	Request
3EGF004290	Insulator 0.75 kV Thread M16	0,28 kg	Epoxy resin		18 kN	5,6 kN	PDF	Request

Material ID	Name	Nominal voltage	Creepage Path	Rated impulse withstand voltage	Power-frequency withstand voltage, wet	Arcing distance
3EGF009183	Insulator 1.5 kV Thread M20/3xM10	1,5 kV	144 mm	15 kV	6 kV	70 mm	PDF	Request
3EGF004290	Insulator 0.75 kV Thread M16	0,75 kV	85 mm	16 kV		60 mm	PDF	Request
