PDF

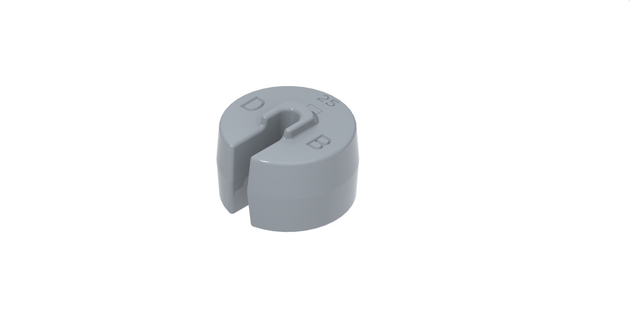

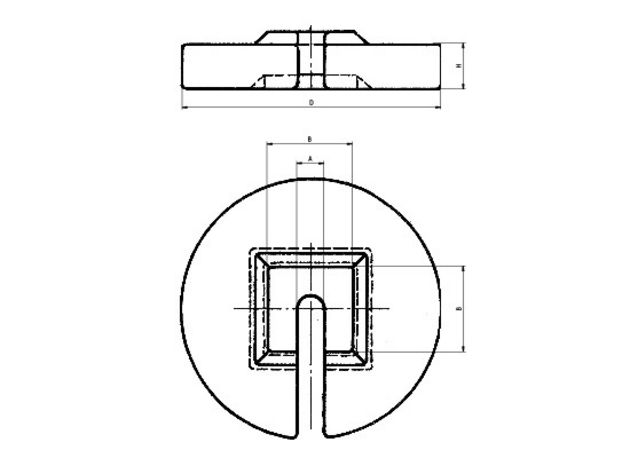

Balance Weight Segment D 350 mm H 115 mm 25 kg
3EGF001736
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Weight
Diameter
Height
Material
3EGF001736
Balance Weight Segment D 350 mm H 115 mm 25 kg
Ebs 08.10.04
25 kg
350 mm
115 mm
C26/30
PDF
Request
3EGF003122
Balance Weight Segment Tunnel H 43 mm 26.5 kg
Ebs 08.10.58
26,5 kg
43 mm
EN-JL 1020
PDF
Request
