Tension Wheel
PDF

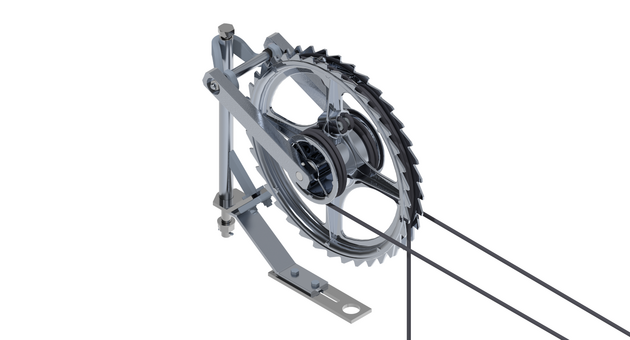

Tension wheel 20 kN rope attached for messenger wire
3EGF021810
Variants
Request
Variants
Mechanical values
Material ID
Name
Weight
Material
Nominal Force
3EGF021810
Tension wheel 20 kN rope attached for messenger wire
28 kg
EN AW DX51D + Z275
20 kN
PDF
Request
3EGF021811
Tension wheel 20 kN rope attached for contact wire
28 kg
EN AW DX51D + Z275
20 kN
PDF
Request
