Tubes and pipes
PDF

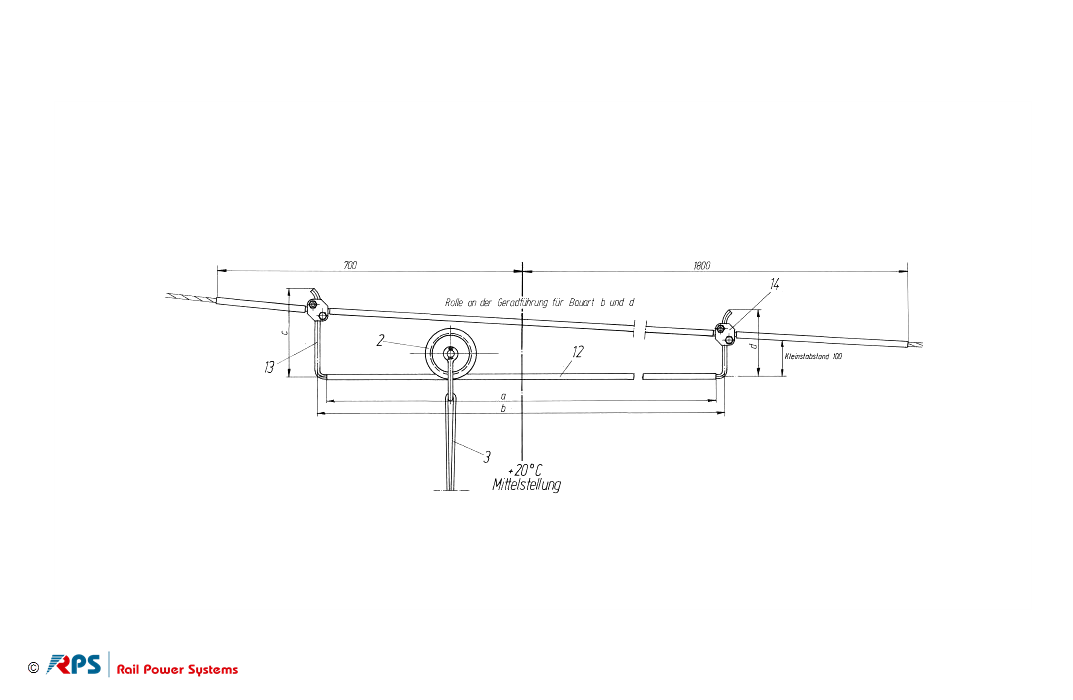

Tube
3EGF001839
Variants
Request
Variants
Mechanical values
Material ID
Name
Ebs
Material
Weight
Diameter
S
3EGF001836
Sliding tube
Ebs 08.12.02
A2
1,276 kg
17,2 mm
2,3 mm
PDF
Request
3EGF001839
Tube
Ebs 08.12.02
A2
0,51 kg
17,2 mm
2,3 mm
PDF
Request
