Contact Wire Clamp for pivot pin

Contact Wire Clamp

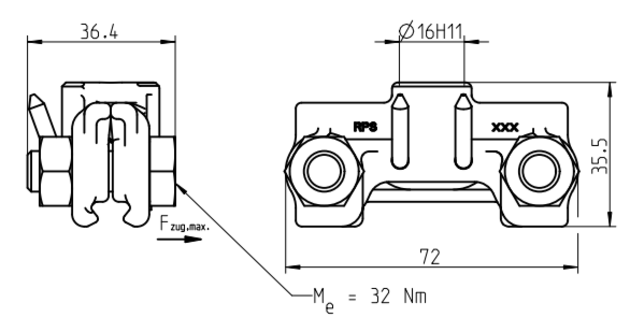

3EGF030104

Montagemoment: M_e= 32 Nm

Material ID	Name	Build Type	Material	Weight	Contact Wire	Nominal Force
3EGF006072	Contact wire clamp	without split pin	CW111C	0,29 kg	AC80-150	7,5 kN	PDF	Request
3EGF006073	Contact wire clamp	with split pin	CW111C	0,30 kg	AC80-150	7,5 kN	PDF	Request
3EGF006074	Contact wire clamp	with split pin	CW607N	0,29 kg	AC80-150	7,5 kN	PDF	Request
3EGF013199	Contact Wire Clamp	with split pin	CW111C	0,25 kg	BC80-150	9 kN	PDF	Request
3EGF030104	Contact Wire Clamp	Ø16mm	Cu-Al	0,22 kg	AC80-150	7,5 kN	PDF	Request
