Tension Wheel 30 kN - Tension Wheel

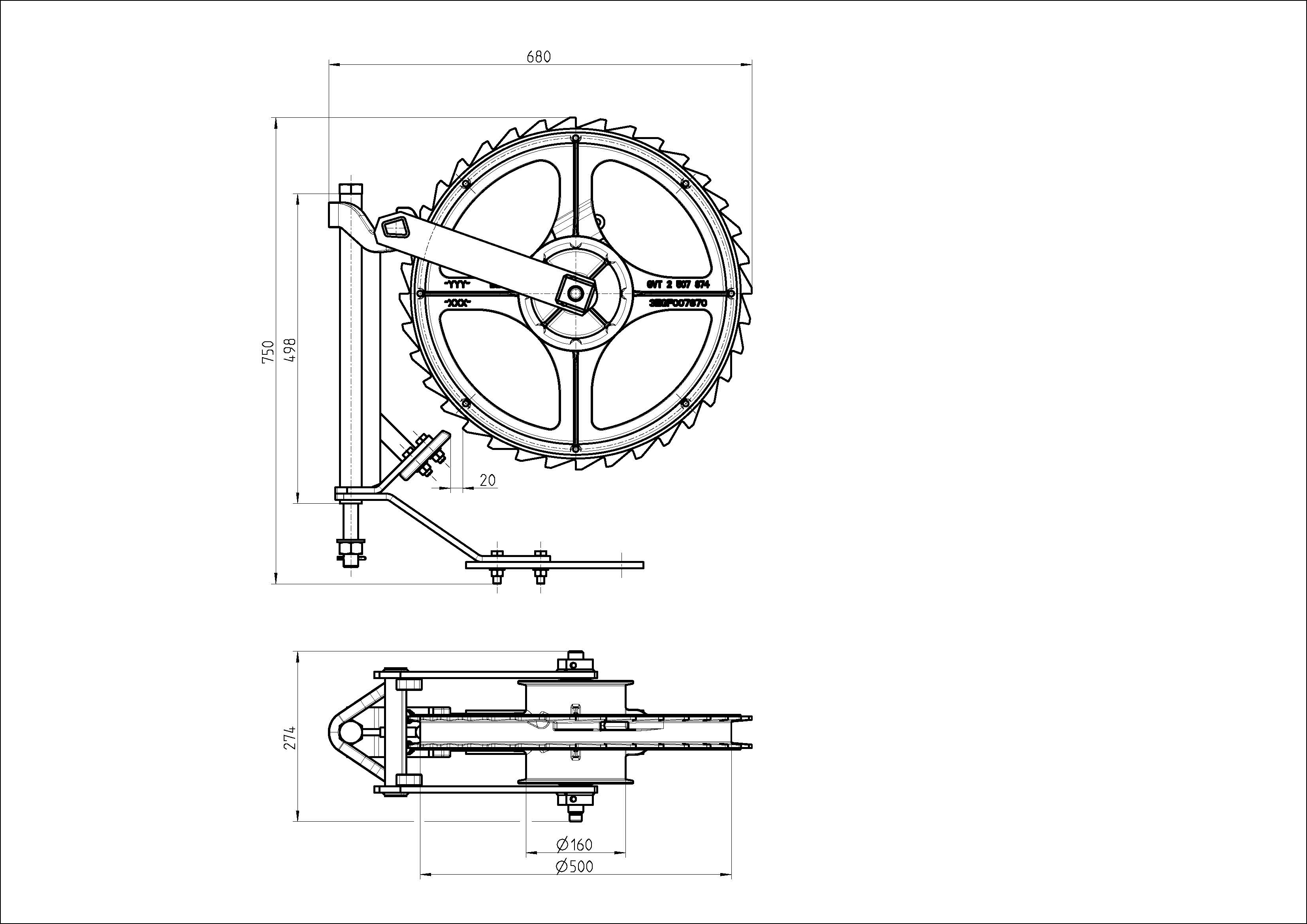

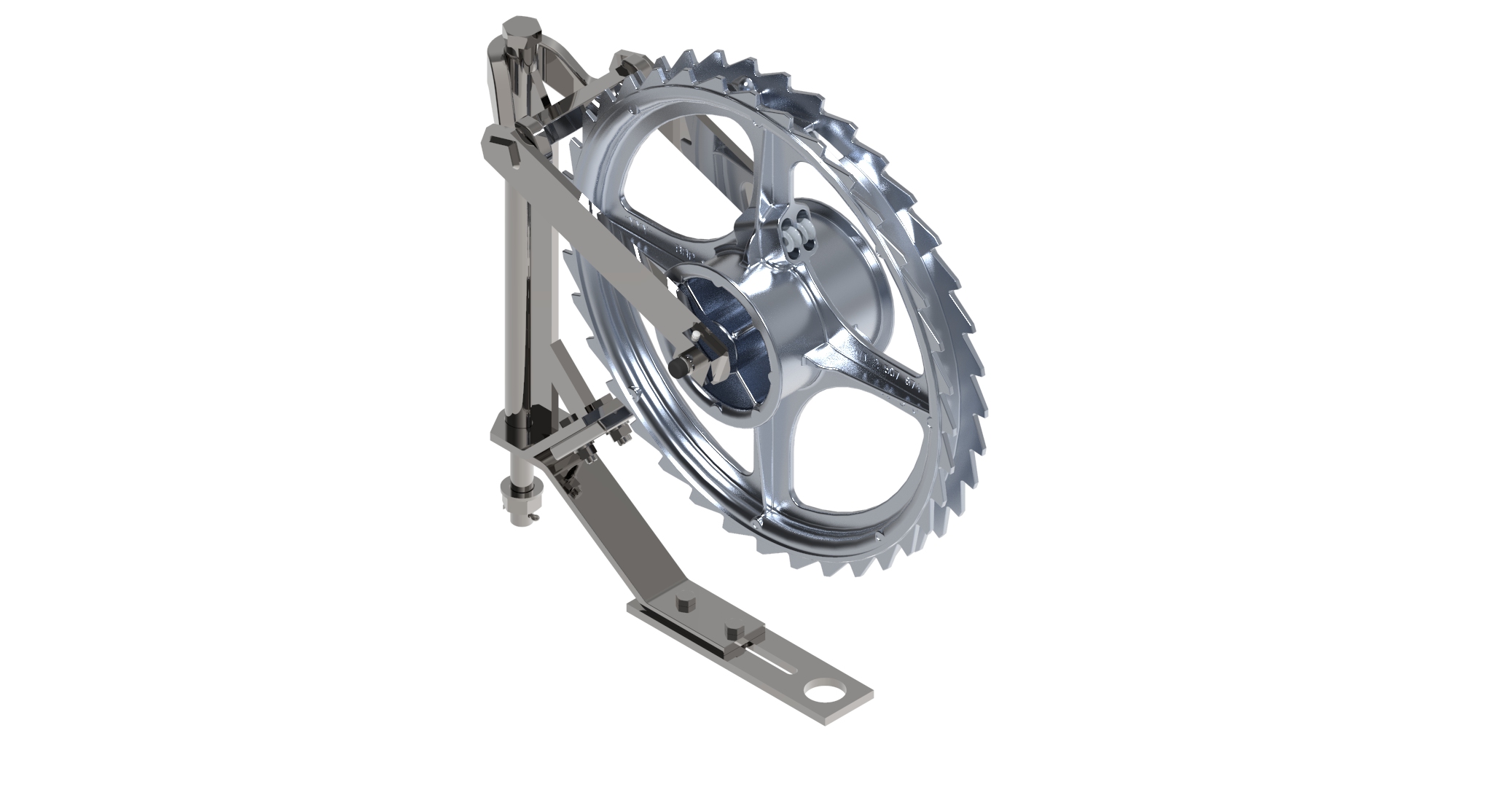

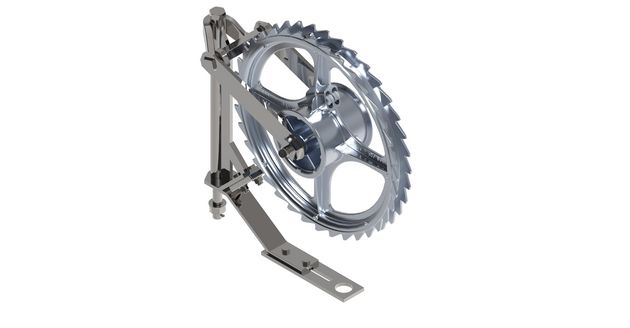

Tension wheel 30 kN with suspension AL/ST
3EGF030888

Transmission ratio 1:3

Working load 30 kN

Material ID	Name	Ebs	Weight	Material	Nominal Force
3EGF021359	Tension Wheel 30 kN with suspension A2, for tube D=43,5 mm	Ebs 08.06.02-6 A	25 kg	EN X5CrNi18-10	30 kN	PDF	Request
3EGF030888	Tension wheel 30 kN with suspension AL/ST		26 kg	EN AW DX51D + Z275	30 kN	PDF	Request
